Eaton MBP6KIECG2 Bypass Switch
In Stock Availability
- All Locations: (1+)
- Toronto, ON (1+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | MBP6KIECG2 |
| Brand Name | Eaton |
| Product Model | MBP6KIECG2 |
| Product Name | MBP6KIECG2 Bypass Switch |

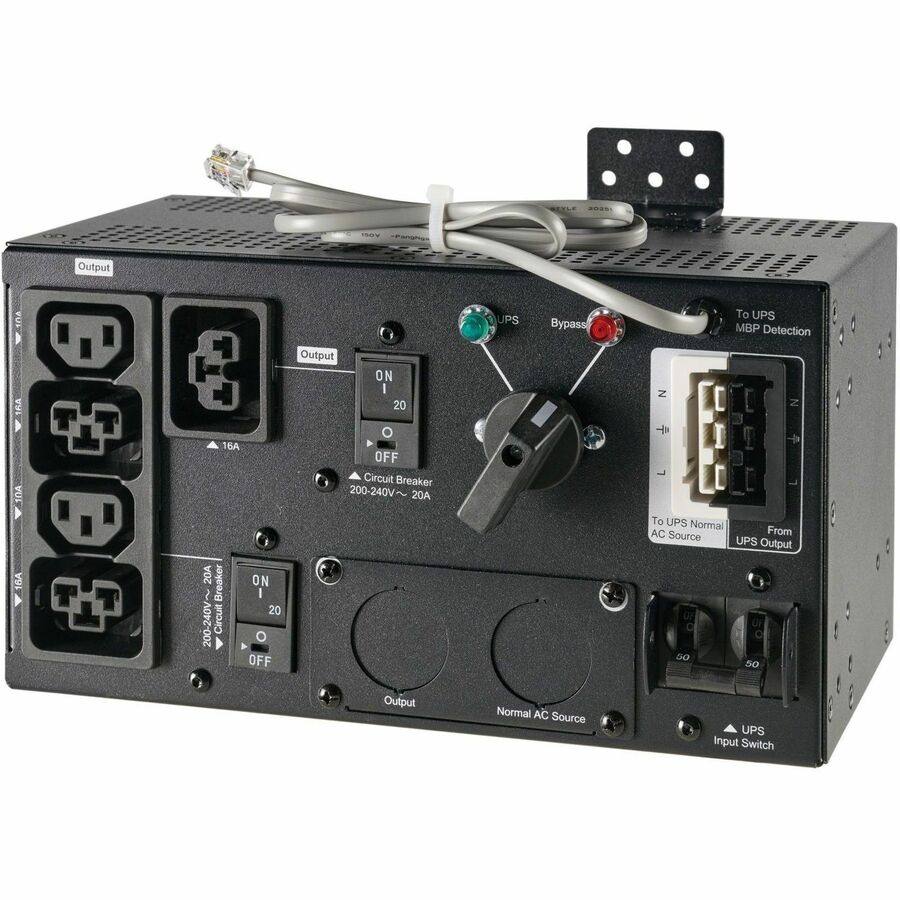

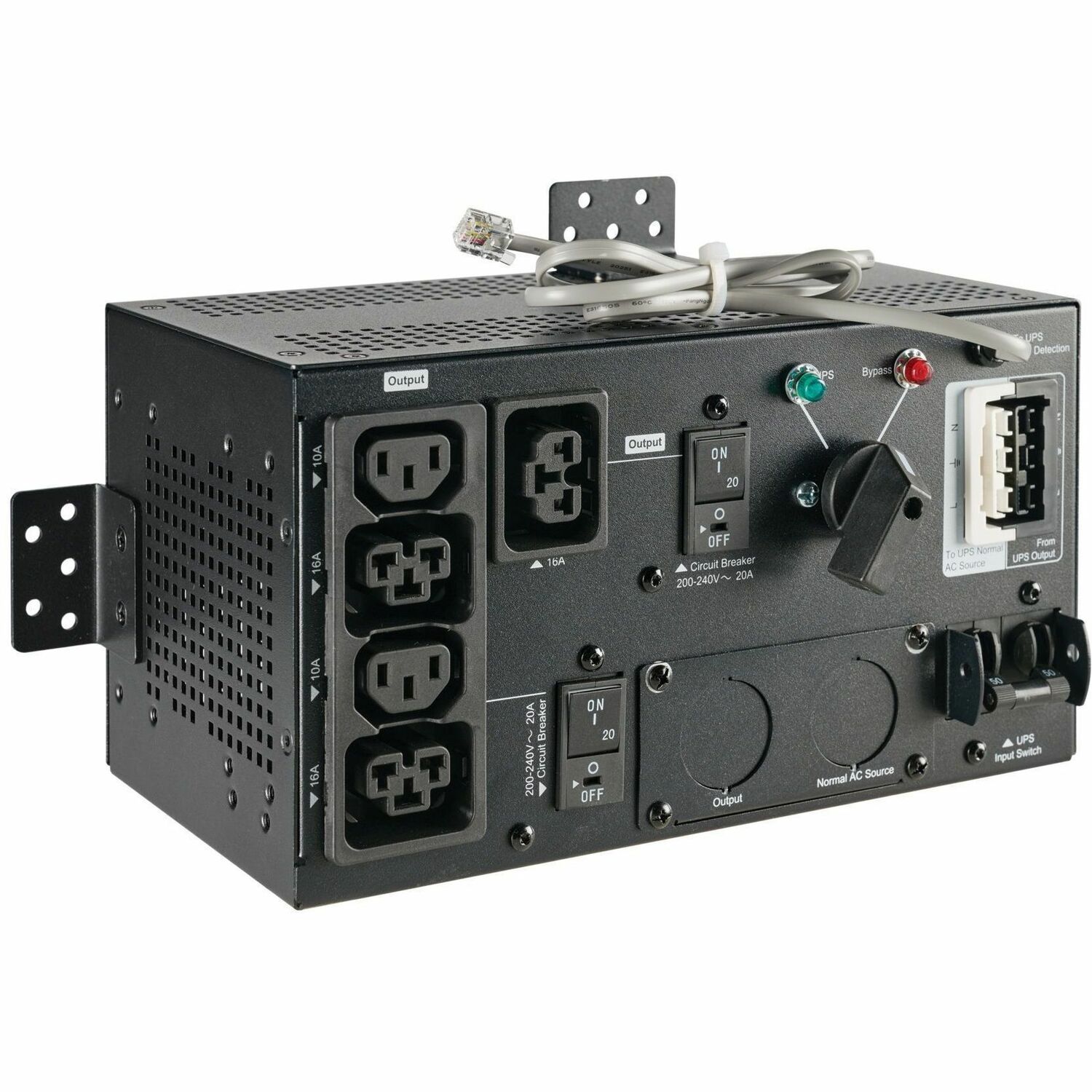

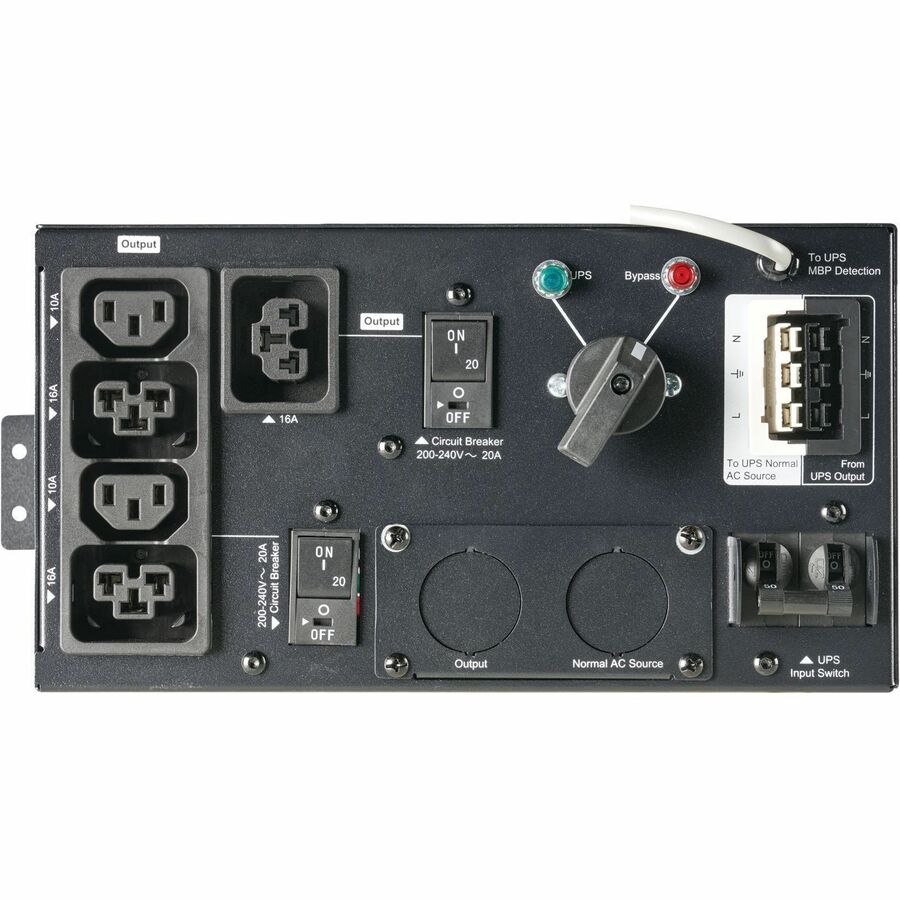

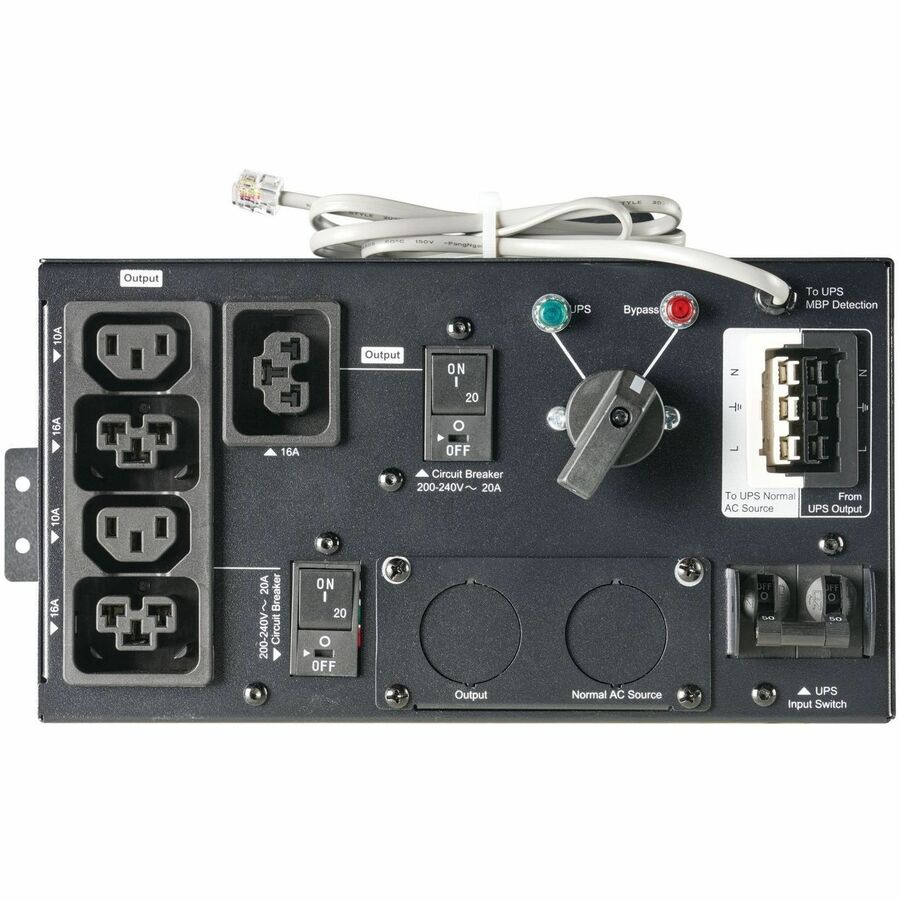

| Marketing Information | Features | Compatible with Eaton 9PX6KIECG2 9PX G2 UPS System The MBP6KIECG2 works with Eaton's 9PX6KIECG2 UPS system. The bypass lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode. Versatile Connection and Installation Options The MBP6KIECG2 features hardwired input, as well as two C13 and three C39 outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware. |
| Product Type | Bypass Switch |
| Plug/Connector Type |
|
| Receptacles |
|
| Load Capacity (VA) | 6 kW |
| Load Capacity (Watt) | 6 kW |
| Output Voltage |
|
| Form Factor | Rackmount/Tower/Wall-mountable |
| Rack Height | 0U |
| Height | 5.12" (130.05 mm) |
| Width | 9.41" (239.01 mm) |
| Depth | 4.92" (124.97 mm) |
| Package Contents |
|
| Compatibility | Compatible with Eaton's 9PX6KIECG2 UPS system |
| Certifications & Standards |
|
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0786689876067 |
| Limited Warranty | 3 Year |
