Eaton SmartPro SMART1000RM2ULN 1000VA Rack/Tower UPS
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART1000RM2ULN |
| Brand Name | Eaton |
| Product Line | SmartPro |
| Product Model | SMART1000RM2ULN |
| Product Name | SmartPro SMART1000RM2ULN 1000VA Rack/Tower UPS |
| Marketing Information | 1kVA/800W/120V Battery Backup for Data Centers and Server Rooms This SmartPro® line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment. The SMART1000RM2ULN is ideal for delivering regulated sine wave output to large and small network devices, high-end workstations, storage and security equipment in labs, server rooms and data centers. Reliable LiFePO4 Battery Backup Offers Longer Life and Less Weight than Lead Acid Battery This lithium battery UPS system features a state-of-the-art lithium iron phosphate (LiFePO4) internal battery with longer life, more cycles and faster recharge. It more than doubles the service life of an equivalent lead acid battery, and offers up to three times more charge/discharge cycles. It recharges to 100% capacity in less than three hours, making the lithium UPS system an ideal backup in case of power outage. The LiFePO4 battery has 60% the weight of an equivalent lead acid battery, which reduces the overall UPS weight. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions Built-in AVR corrects abnormal voltage conditions without using the battery. The SMART1000RM2ULN maintains regulated 120V nominal output during brownouts and overvoltages from 83V to 147V while keeping the battery fully charged and ready to take over in case of power failure. Preinstalled WEBCARDLXE Network Interface Allows Remote Control and Access 24/7 The WEBCARDLXE with PowerAlert Device Manager software enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices when a loss of connectivity is detected. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring and control options. NEMA 5-15R Outlets Protect Your Connected Components All six 5-15R outlets are protected by 570 joules of surge protection to fight off damaging power surges and spikes. Four outlets are split into two dual-outlet load banks that are switchable via network interface. These four outlets let you power connected equipment on and off remotely to reset or reboot connected equipment or to shed less significant loads to extend battery runtime for more critical equipment. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better The SMART1000RM2ULN filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. High Efficiency Helps the Environment and Your Cash Flow Operating with a high 95% line-mode efficiency, the SMART1000RM2ULN can save BTU heat output and energy costs. Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring The front-panel LCD information and configuration screen displays detailed UPS and site power status and operating data, as well as input and output voltage, operating mode, alarm function and additional options. An alarm sounds to warn you of power failure, low battery, overload, UPS fault and remote shutdown conditions. The LCD rotates to accommodate both rack-mount and tower configurations. |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Green Energy-Saving |
| Efficiency Detail | 95% (AC Mode) |
| Application/Usage |
|
| Surge Suppression | Yes |
| Features |
|
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 800 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 83 V AC - 147 V AC |
| Input Current | 9.20 A |
| Output Voltage |
|
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 570 J |
| Output Power Factor | 0.8 |

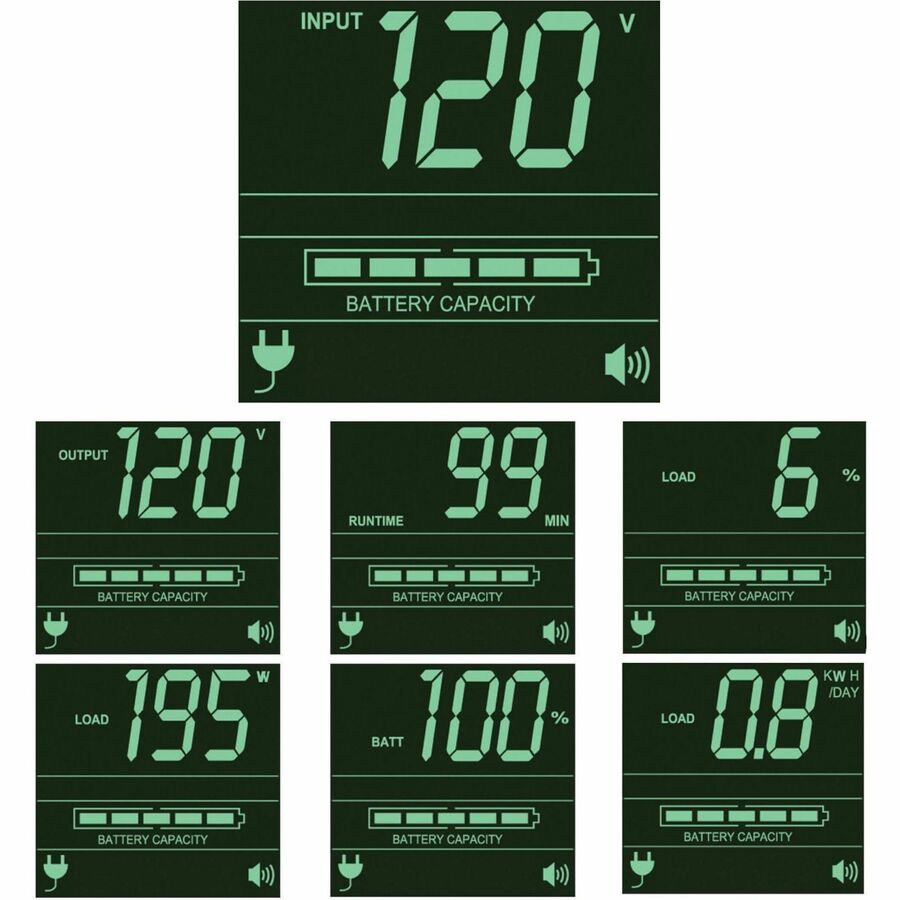

| Display | LCD |
| Network Management |
|
| Alarm |
|
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| DC System Voltage | 24 V DC |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Backup/Run Time (Full Load) | 8.30 Minute |
| Backup/Run Time (Half Load) | 20 Minute |
| Typical Battery Recharge Time | 2.70 Hour |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Sound Emission (A-Weighted) | 45.5 dB(A) |
| Thermal Dissipation | 141 BTU/h |
| Height | 3.50" (88.90 mm) |
| Width | 17.35" (440.69 mm) |
| Depth | 12.50" (317.50 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 16.30 lb (7393.56 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 037332296740 |
| Limited Warranty | 5 Year |
| Directly Connected Equipment Guarantee | $250000 Lifetime |
