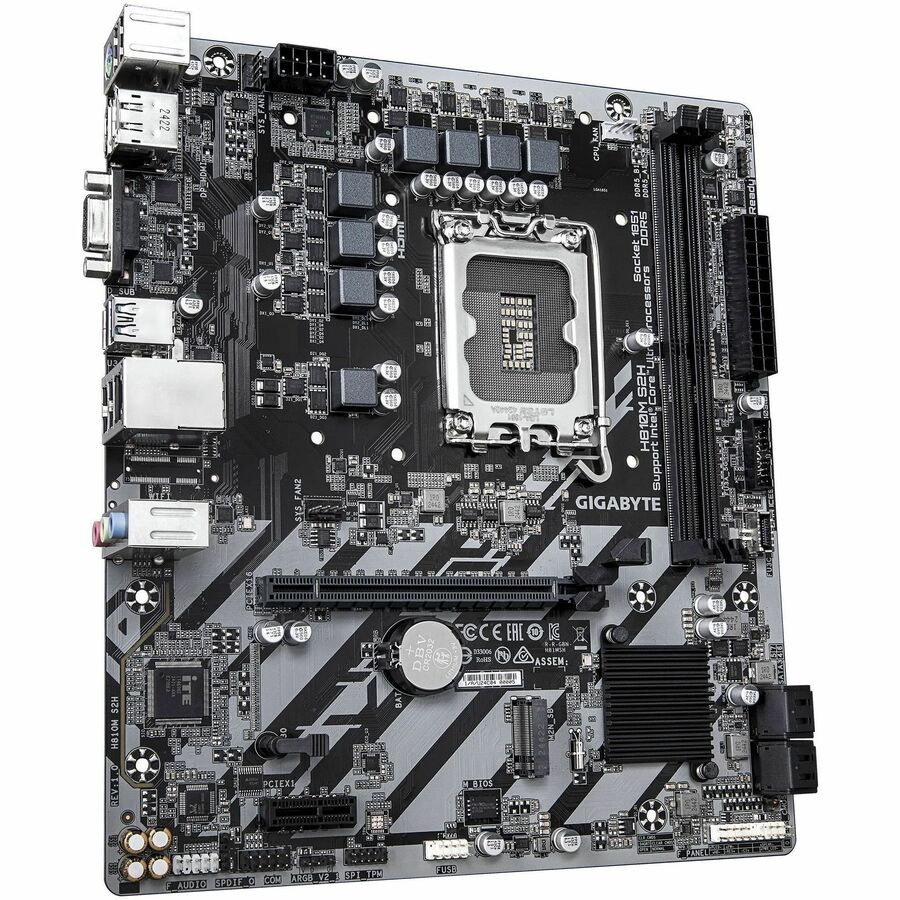

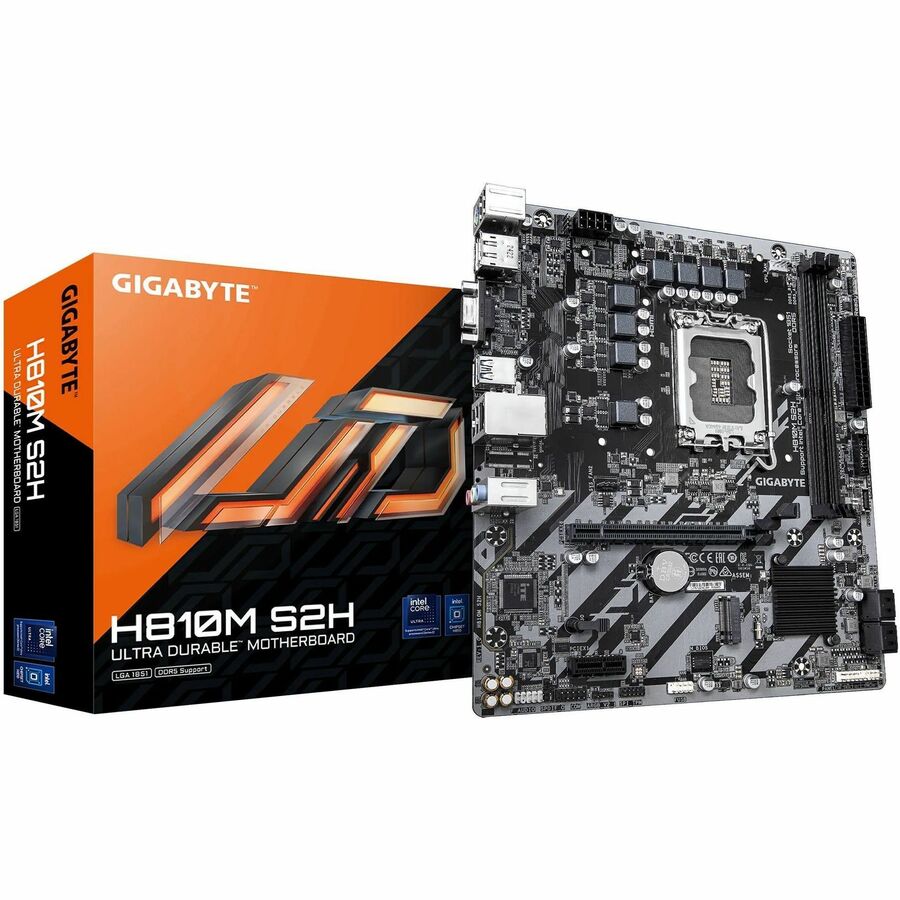

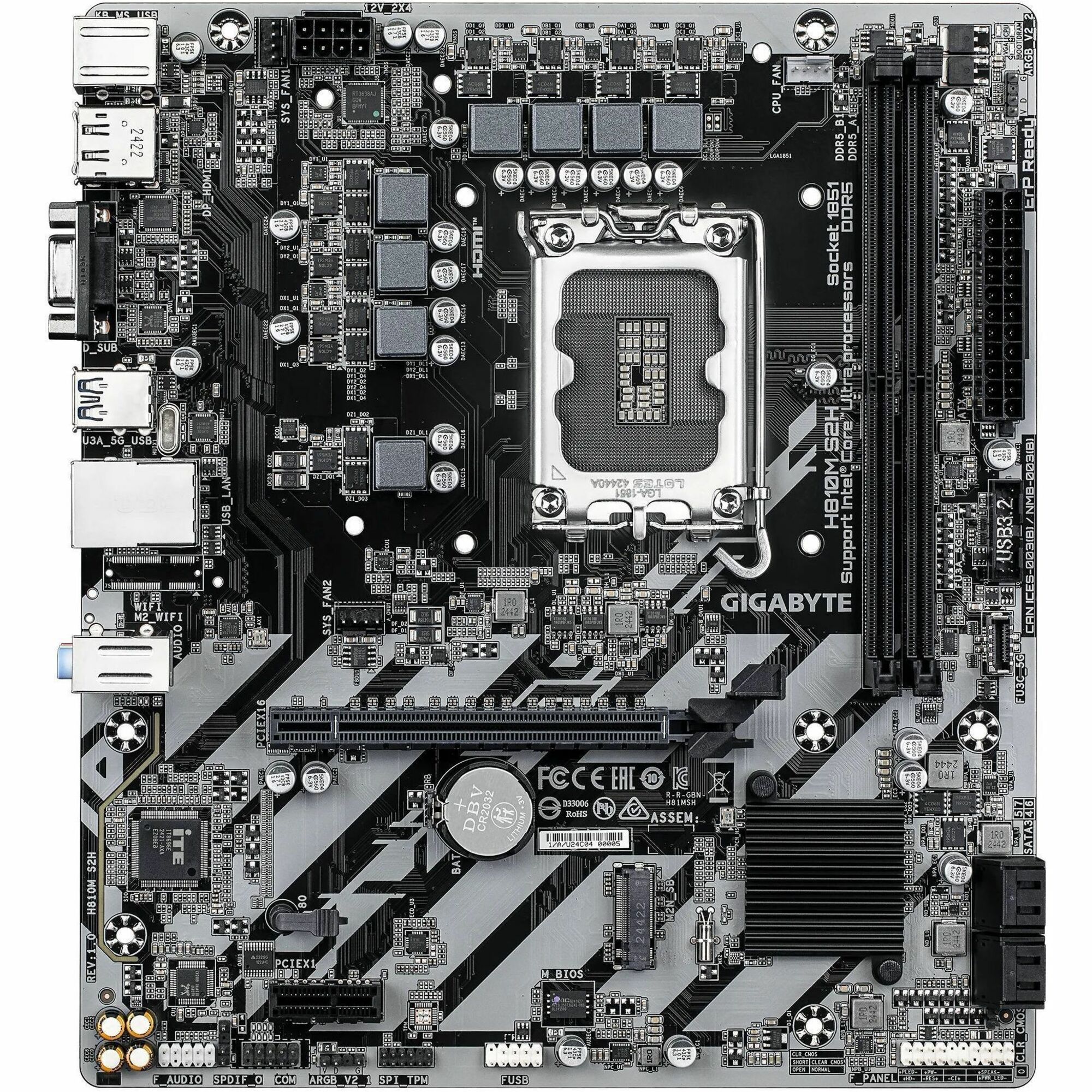

GIGABYTE Ultra Durable H810M S2H Gaming Desktop Motherboard - Intel H810 Chipset - Socket LGA-1851 - Micro ATX
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | H810M S2H |
| Brand Name | GIGABYTE |
| Product Line | Ultra Durable |
| Product Model | H810M S2H |
| Product Name | Ultra Durable H810M S2H Gaming Desktop Motherboard |
| Marketing Information | Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. Hybrid VRM Design The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability. Smart Fan 6Cool. Quiet. Customized. Superior cooling performance and whisper-quiet operation for your gaming rig. GbE LAN GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. PCIe 4.0 Hardware Design Featuring PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance. Hi-Fi AudioHigh-End Audio CapacitorsAudio Noise Guard Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. EZ Debug Zone Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer. EZ-Latch Designs User-friendly designs simplifying the assembly process. UC BIOS Restructured with user-centered and intuitive performance adjustment mechanisms. PCIe EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-FLASH Auto Scan The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually. |
| Product Type | Gaming Desktop Motherboard |
| Chipset Manufacturer | Intel |
| Chipset Model | H810 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Number of Memory Slots | 2 |
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported |
|
| Error Checking | ECC |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | Intel |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 5 |
| Number of USB 3.2 Gen 1 Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Form Factor | Micro ATX |
| Width | 9.61" (244 mm) |
| Depth | 8.46" (215 mm) |
| Brand Compatibility | Intel |
| Country of Origin | China |
| Environmental Compliance |
|
| Condition | No |
| UPC | 889523047996 |
| Limited Warranty | 3 Year |
