Gigabyte NVIDIA GeForce RTX 5060 Ti Graphic Card - 16 GB GDDR7

Part No. GV-N506TAERO OC-16GD

by GIGABYTE Technology, Inc

Gigabyte NVIDIA GeForce RTX 5060 Ti Graphic Card - 16 GB GDDR7

7680 x 4320 - 2.65 GHz Core - 128 bit Bus Width - PCI Express 5.0 - DisplayPort - 3 x DisplayPort - HDMI

Part No. GV-N506TAERO OC-16GD

by GIGABYTE Technology, Inc

$761.99
General Information
ManufacturerGIGABYTE Technology, Inc
Manufacturer Part NumberGV-N506TAERO OC-16GD
Brand NameGigabyte
Product LineAERO
Product ModelGV-N506TAERO OC-16GD
Product NameGeForce RTX 5060 Ti AERO OC 16G Graphic Card
Marketing Information

CORE CLOCK

2647 MHz (Reference card :2572 MHz)

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

AI-Enhanced Graphics and Performance

NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness

NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics

Full ray tracing with neural rendering

Digital Humans and AI Assistants

NVIDIA ACE

Accelerate Your Creativity

NVIDIA Studio creator tools and technology

Enhance Any Video with AI

NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability

NVIDIA app with Game Ready and Studio Drivers

The Ultimate Gaming Display Technologies

NVIDIA G-SYNC

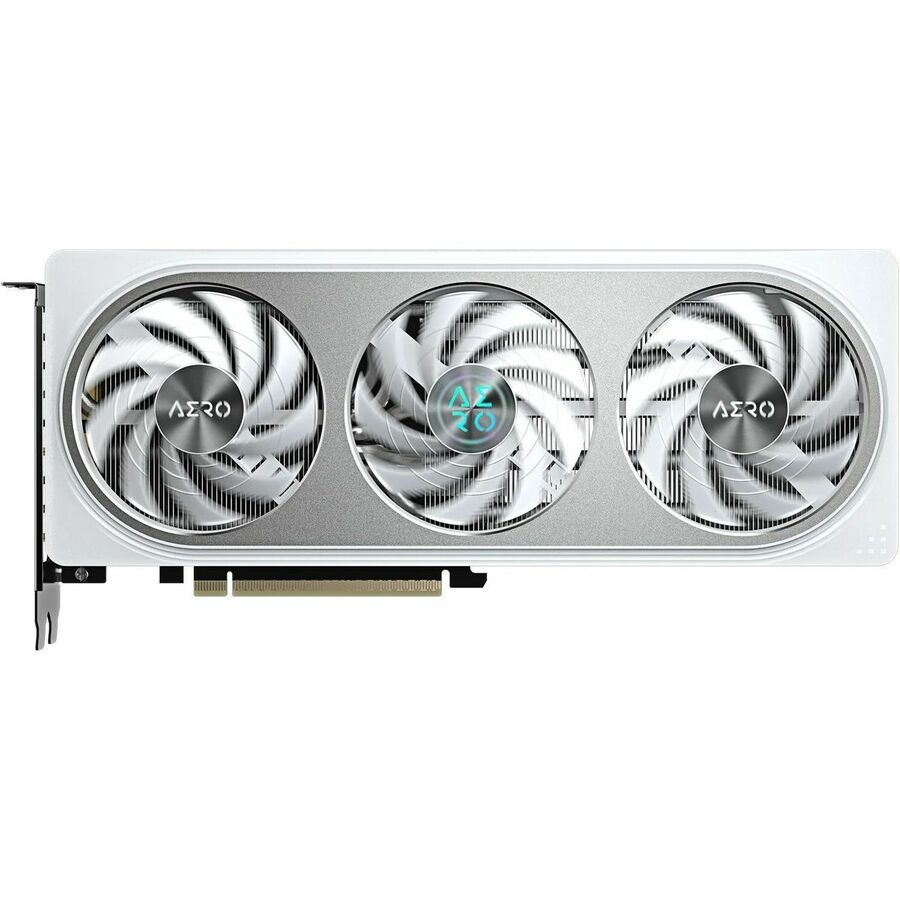

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

Product TypeGraphic Card
Technical Information
API Supported
  • DirectX 12
  • OpenGL 4.6
Number of Monitors Supported4
FeaturesTriple-fan Cooler
Maximum Digital Display Resolution7680 x 4320
CUDA Cores4608
AI-poweredYes
Processor & Chipset
Chipset ManufacturerNVIDIA
Chipset LineGeForce
Chipset SeriesRTX
Chipset ModelRTX 5060 Ti
GPU Clock2.65 GHz
Memory
Standard Memory16 GB
Memory TechnologyGDDR7
Bus Width128 bit
Interfaces/Ports
Host InterfacePCI Express 5.0

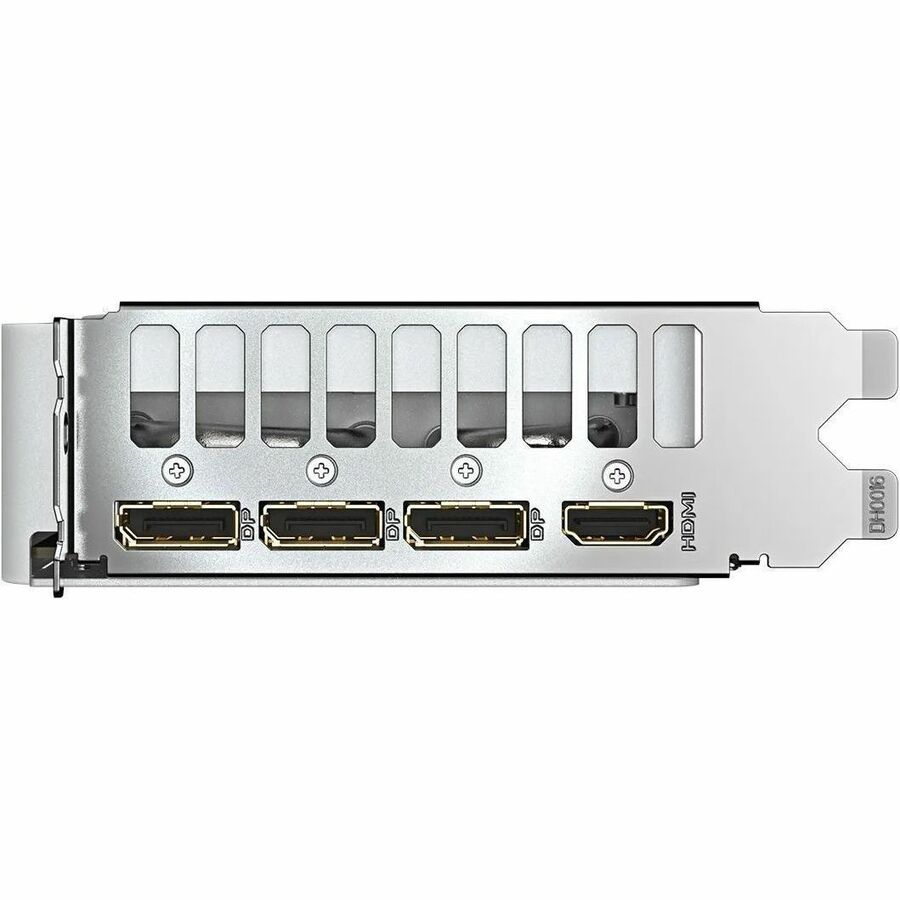

DisplayPortYes
Number of DisplayPort Outputs3
HDMIYes
Number of HDMI Outputs1
Power Description
Power Supply Wattage650 W
Power Connector1x 8-pin
Physical Characteristics
Form FactorPlug-in Card
Cooler TypeActive Cooler
Height1.57" (40 mm)
Width4.61" (117 mm)
Length11.06" (281 mm)
Miscellaneous
Platform SupportedPC
ConditionNo
UPC889523049310
