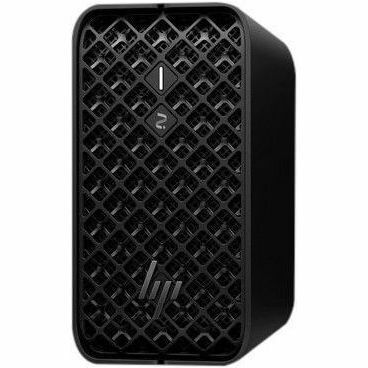

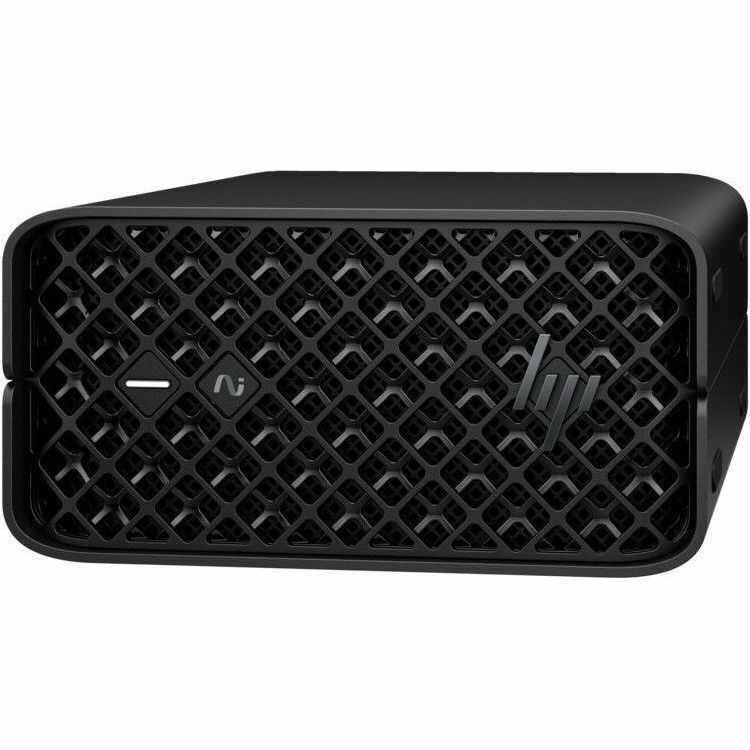

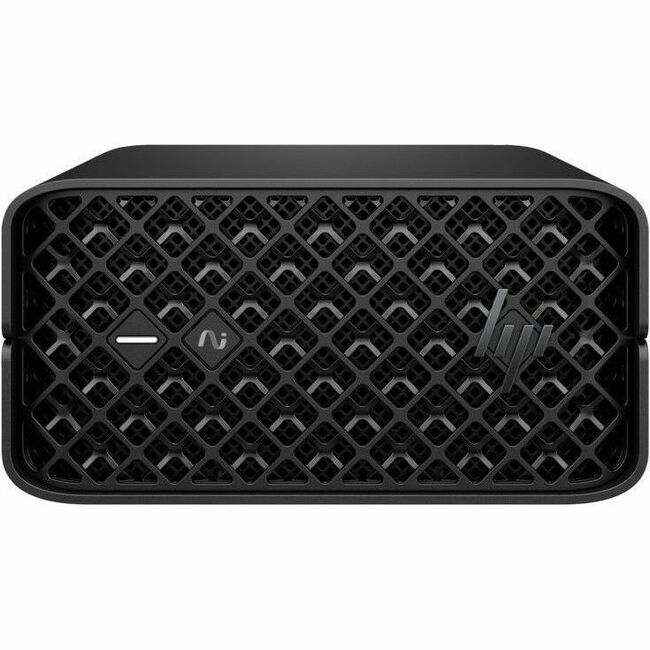

HP Z2 Mini G1a Workstation - 1 x AMD Ryzen AI MAX PRO 390 - 64 GB - 1 TB SSD - Mini PC - Jet Black

Part No. BN4G1UT#ABA

by HP Inc.

HP Z2 Mini G1a Workstation - 1 x AMD Ryzen AI MAX PRO 390 - 64 GB - 1 TB SSD - Mini PC - Jet Black

AMD Chip - Windows 11 Pro - AMD Radeon 8050S Graphics Graphics - NVMe Controller - 0, 1 RAID Levels - 2.5 Gigabit Ethernet - Wireless LAN

Part No. BN4G1UT#ABA

by HP Inc.

$4064.99
General Information
ManufacturerHP Inc.
Manufacturer Part NumberBN4G1UT#ABA
Brand NameHP
Product SeriesZ2 Mini G1a
Product NameZ2 Mini G1a Workstation Desktop PC Wolf Pro Security Edition
Marketing Information

Overview | Mini workstation. Transformative AI performance.

Unlock workflows previously not possible on a mini workstation. Transformative performance is packed into a compact Next Gen AI PC to take on complex AI accelerated projects like never before- simultaneously 3D design and render graphics-intensive projects or work locally with LLMs.

Next level performance to defy what's possible.

Tackle massive, new workflows locally on a mini workstation with an AMD Ryzen™ AI Max PRO processor, with desktop CPU cores, discrete-like integrated graphics, unified memory and the ability to assign memory to the GPU, handle graphics-heavy projects locally.

Next Gen AI PC mobile workstation.

Hardware AI accelerators deliver power to propel advanced workloads. Offload and run productivity tasks locally on up to 50 TOPS NPU while also tackling new and more demanding AI enhanced professional workflows.

Slim and sleek. Fits anywhere.

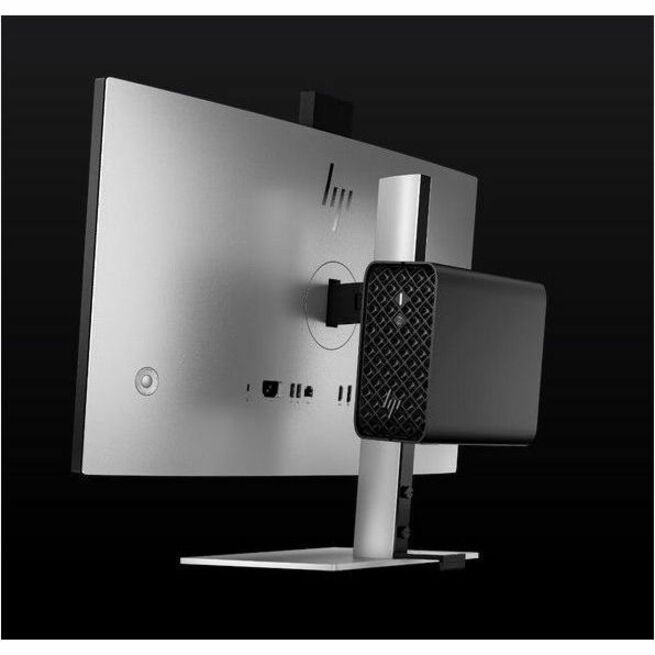

Create an ideal set-up with the compact Z2 Mini. Set it on a desk, mount it behind a monitor, or attach it under a desk. With an internal power supply, this PC cleanly fits in a rack, and its small size allows for 5 units across a 4U rack.

Designed with the planet in mind.

At HP, we care about the impact our products have on our people, communities, and planet. That's why this device is EPEAT® Gold with Climate+ and the outer box packaging is 100% sustainably sourced.

Features | HP recommends Windows 11 Pro for business

Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot.

AMD® Ryzen™ processor

Bring your ideas to life quickly and effectively with the latest AMD® Ryzen™ processors.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Rackable Design

Ideally designed to fit in a rack, you can maximize density with support for 5 Minis in 4U, now without external power bricks.

Multi-Display Support

See all your windows in perfect detail with support for up to 4 displays at 4K resolution.

Product TypeWorkstation
Technical Information
AI-poweredYes
Processor
Number of Processors Supported1
Number of Processors Installed1
Processor ManufacturerAMD
Processor TypeRyzen AI MAX PRO
Processor Model390
Processor CoreDodeca-core (12 Core)
Processor Speed3.20 GHz
L3 Cache64 MB
NPU ManufacturerAMD
NPU NameRyzen AI
NPU Performance50 TOPS
Processor SocketSocket BGA-2077
Processor Threads24
Chipset
Chipset ManufacturerAMD
Memory
Standard Memory64 GB
Memory TechnologyLPDDR5X
Error CheckingECC
Storage
Drive TypeSSD
Total Solid State Drive Capacity1 TB
Solid State Drive InterfacePCI Express NVMe 4.0 x4
Controllers
Controller TypeNVMe
RAID SupportedYes
RAID Levels0, 1
Display & Graphics
Graphics Controller ManufacturerAMD
Graphics Controller ModelRadeon 8050S Graphics
Graphics Memory AccessibilityShared
Network & Communication
Ethernet Technology2.5 Gigabit Ethernet
Wireless LANYes
BluetoothYes

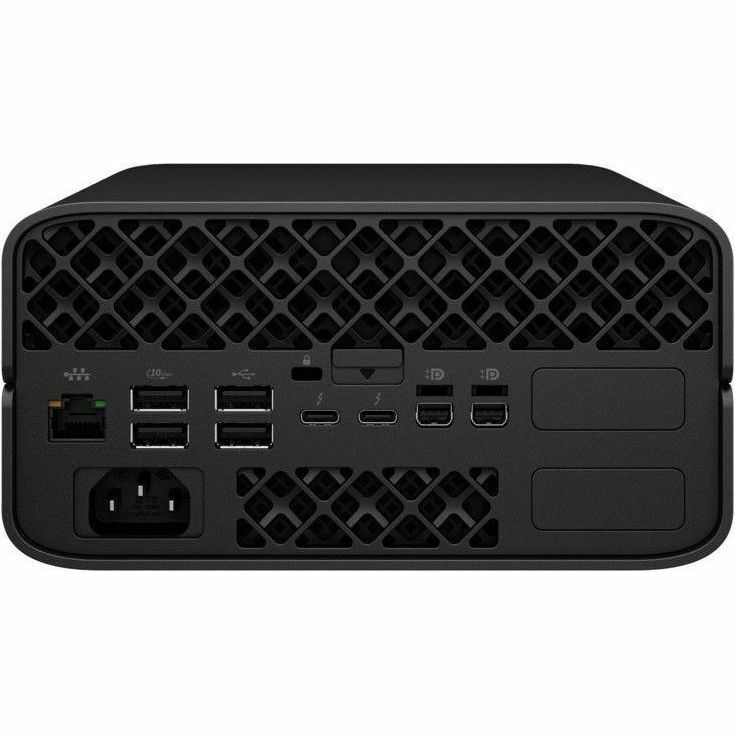

Interfaces/Ports
Total Number of USB Ports6
USB Type-CYes
USB Type-C Detail1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 2.1)
Mini DisplayPortYes
Number of Mini DisplayPort2
Number Of Ethernet Ports1
Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series.

Optional I/O

1st Flex IO (top side) - choose one of the following options: 1 Dual SuperSpeed USB Std-A 5Gbps, 1 Dual SuperSpeed USB Type-C® 10Gbps , (1) 1GbE NIC, (1) 1Gbps Fiber LC NIC , (1) 2.5GbE NIC , (1) 10GbE NIC , USB-based Serial port option; 2nd Flex IO (bottom side) - choose one of the following options: 1) 1GbE NIC, (1) 2.5GbE NIC , Serial port option, External Power Button, HP Remote System Controller

Operating System
Operating System PlatformWindows
Operating SystemWindows 11 Pro
Operating System LanguageEnglish
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage300 W
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Color FamilyBlack
Product ColorJet Black
Cooler TypeAir Cooler
Form FactorMini PC
Height7.87" (200 mm)
Width3.37" (85.50 mm)
Depth6.61" (168 mm)
Weight (Approximate)5.07 lb (2300 g)
Miscellaneous
Package Contents
  • Z2 Mini G1a Workstation Desktop PC Wolf Pro Security Edition
  • Keyboard
  • Mouse
Energy StarYes
TCO CertifiedYes
Environmentally FriendlyYes
Environmental Certification
  • Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
  • Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Energy Efficiency CertificationChina Energy Conservation Program (CECP)
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC0199251322129
Warranty
Additional Warranty Information

Support service included HP 1 Year Wolf Pro Security Edition Service.

;
