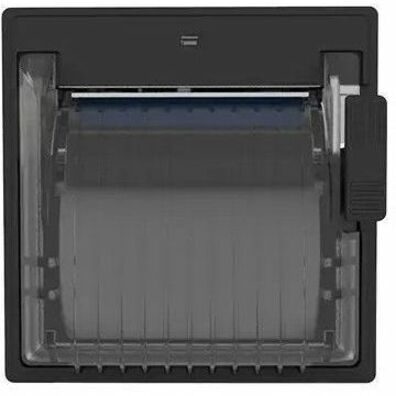

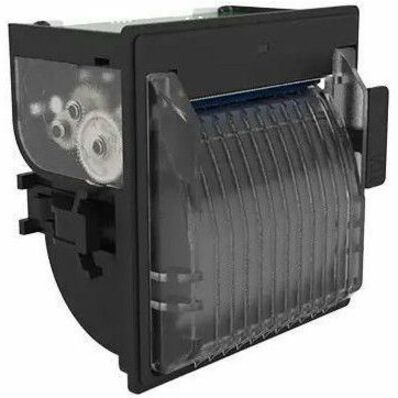

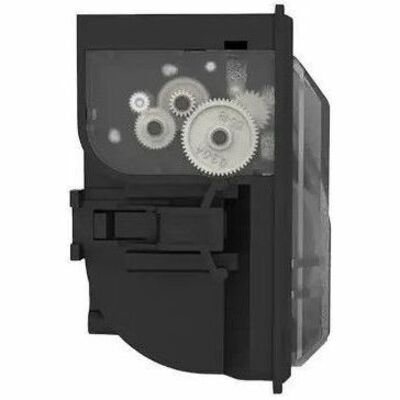

Custom PM2 Workshop Equipment, Medical Equipment, Cash Handling System, Taximeter, PC Control System, Industrial, Fire Detection System, Truck Tachograph Thermal Transfer Printer - Monochrome - Label Print - USB - Serial - Black

1.89" (48 mm) Print Width - 2.36 in/s (60 mm/s) Mono - 203 dpi - 2.24" (57 mm) Label Width - PLUS, FH190, Custom/POS Emulation

Part No. 915NB010100333

$189.99

General Information

Manufacturer	Custom S.p.A
Manufacturer Part Number	915NB010100333
Brand Name	Custom
Product Model	PM2
Product Name	PM2 Thermal Transfer Printer
Marketing Information	PM2 is the versatile and eco-friendly panel printer thanks to its energy efficient and paper saving features, with high printing quality, which is used in several backgorunds and tools. Thanks to the possibility of printing on linerless paper and the automotive ready function, it is able to meet the market needs. PM2 is also fully compatible with the previous model (PLUS2) both for hardware and software. CHARACTERISTICS 1. New ergonomic design with a simplified opening system 2. Paper saving functionality to reduce paper use 3. Automotive ready integrated anti-roll system 4. Linerless paper printing and black mark label management 5. Extended range 8-42 V voltage
Product Type	Thermal Transfer Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	2.36 in/s (60 mm/s)
Maximum Print Resolution (dpi)	203
Maximum Print Width	1.89" (48 mm)
Barcode Symbology Supported	UPC-E EAN-8 EAN-13 ITF Codabar Code 39 Code 128 Code 93 PDF417 QR Code 1D 2D UPC-A Code 32
Application/Usage	Workshop Equipment Medical Equipment Cash Handling System Taximeter PC Control System Industrial Fire Detection System Truck Tachograph
Features	Compact Paper Saving Mode Ergonomic
Character Sets	Turkish Cyrillic Hebrew Greek Arabic Katakana Nordic Portuguese International European Chinese (GB18030)
Print Head Life	100Km
Power Consumption	3.20 A
Print Technology	Thermal Transfer

Memory

Standard Memory	256 KB
Flash Memory	8 MB

Interfaces/Ports

Serial Port	Yes
USB	Yes

Media Types & Handling

Media Type	Linerless Label
Media Sensor	Head Temperature Sensor Paper Presence Sensor Black Mark Sensor
Media Thickness	3.3 mil (0.085000 mm)
Maximum Roll Diameter	2" (50 mm)
Maximum Label Width	2.24" (57 mm)

Fonts & Emulation

Language Emulation	PLUS FH190 Custom/POS

Physical Characteristics
