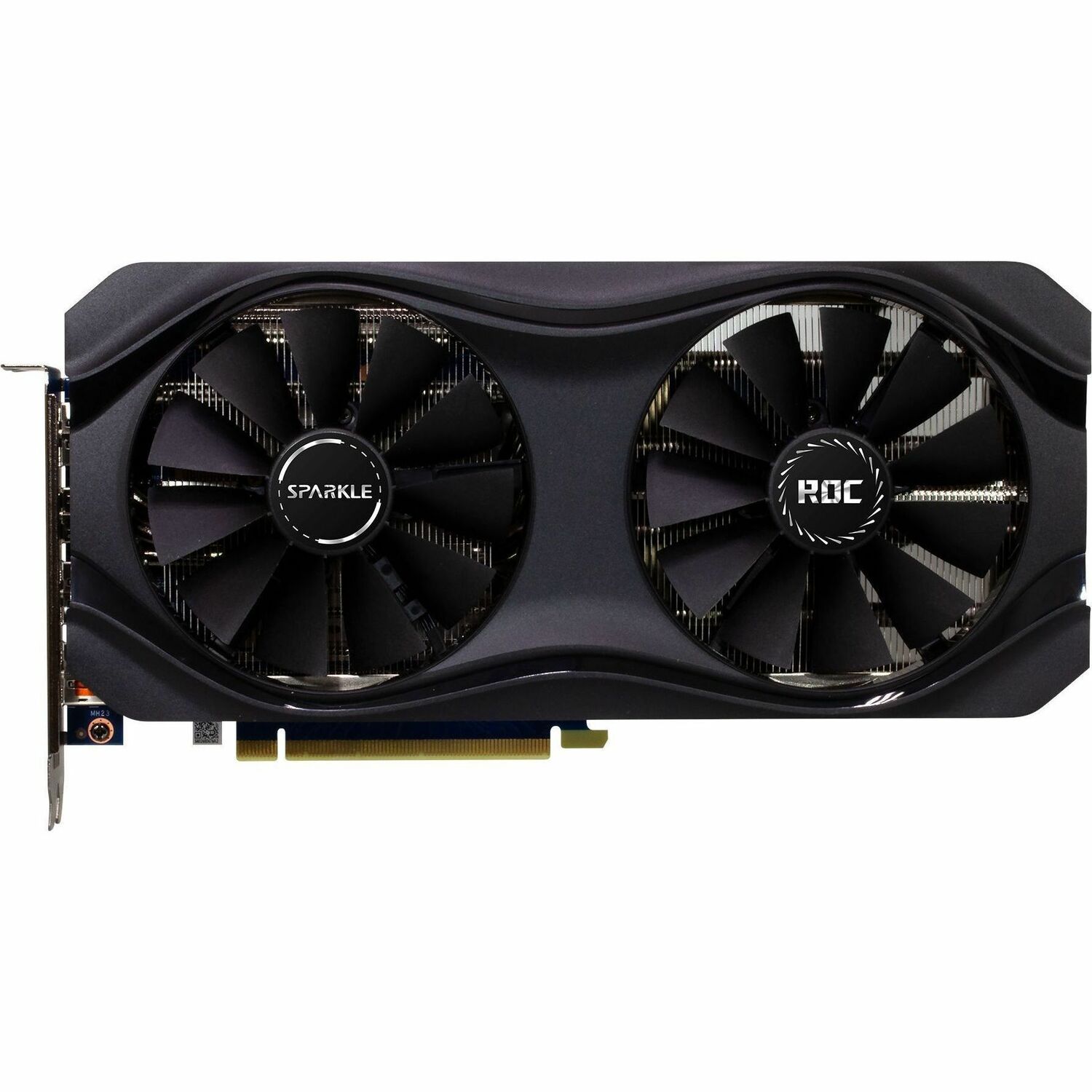

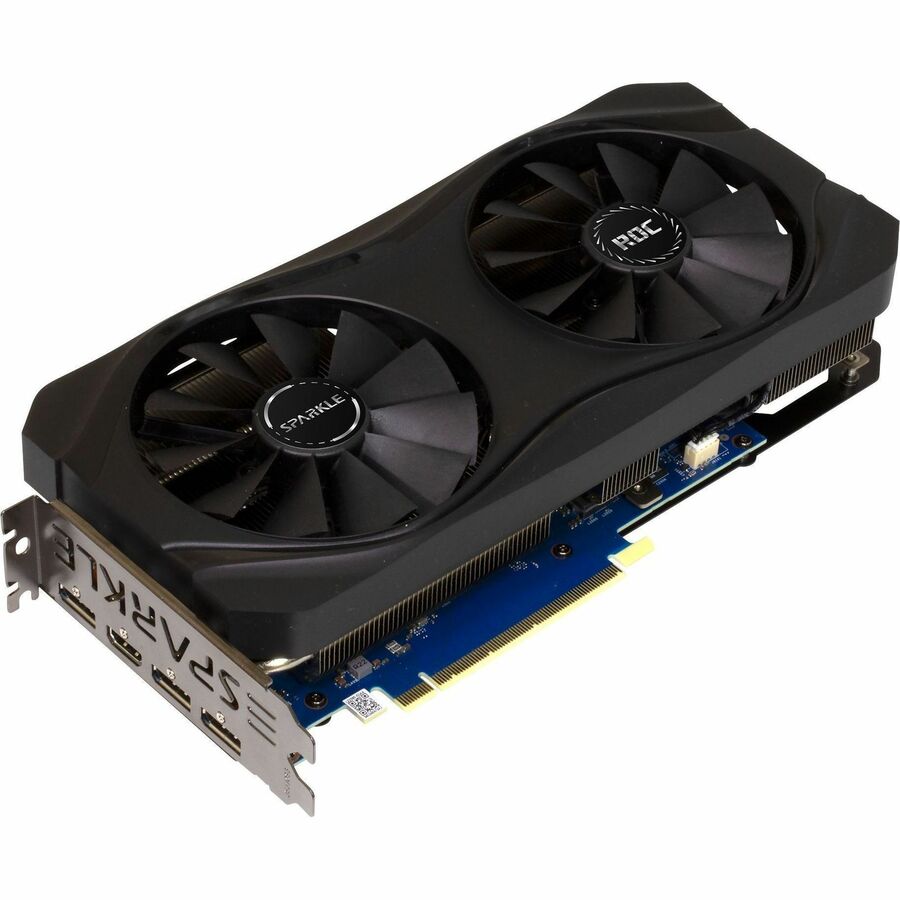

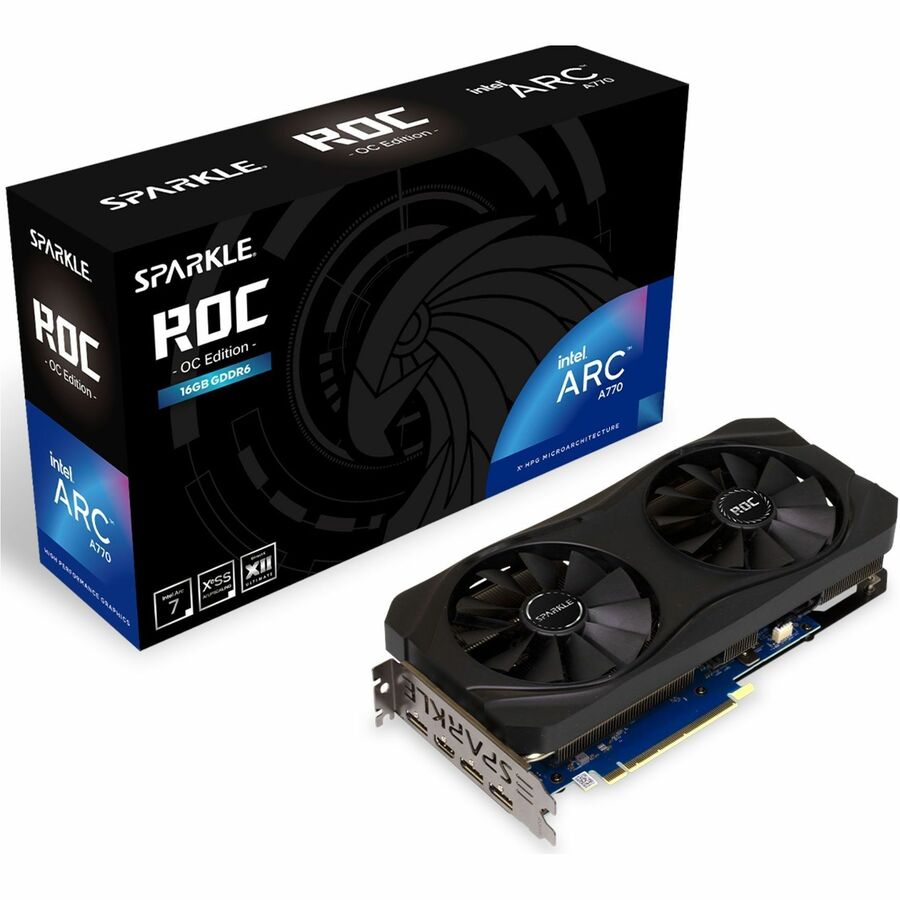

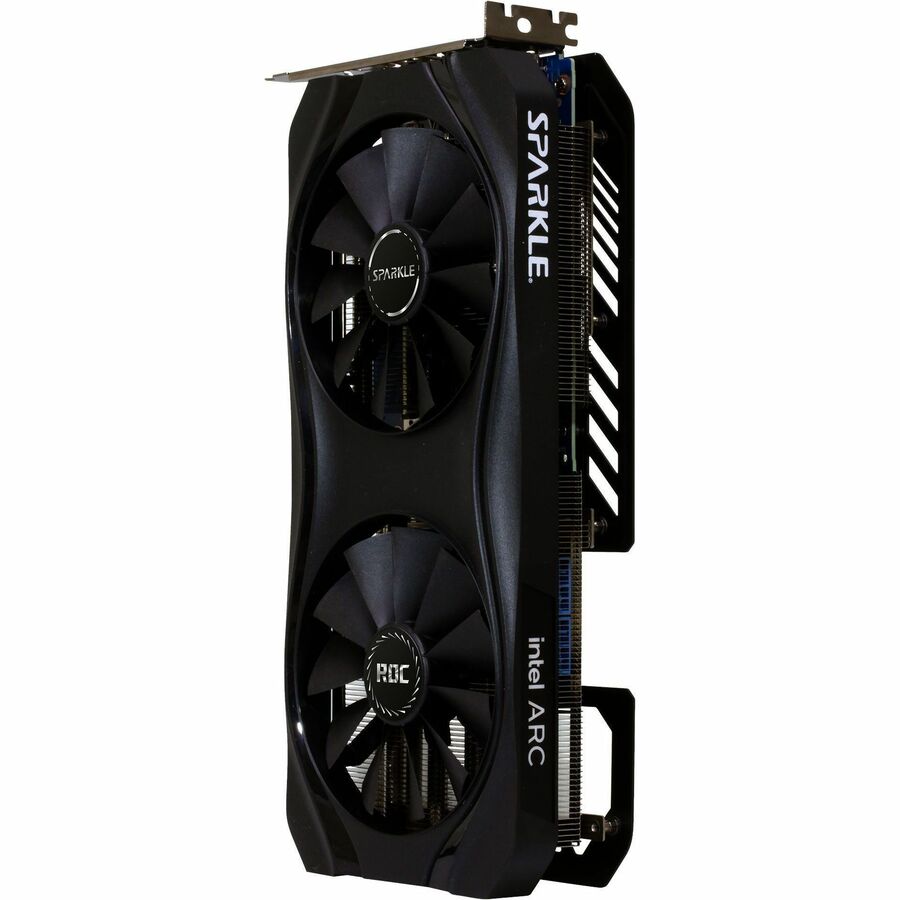

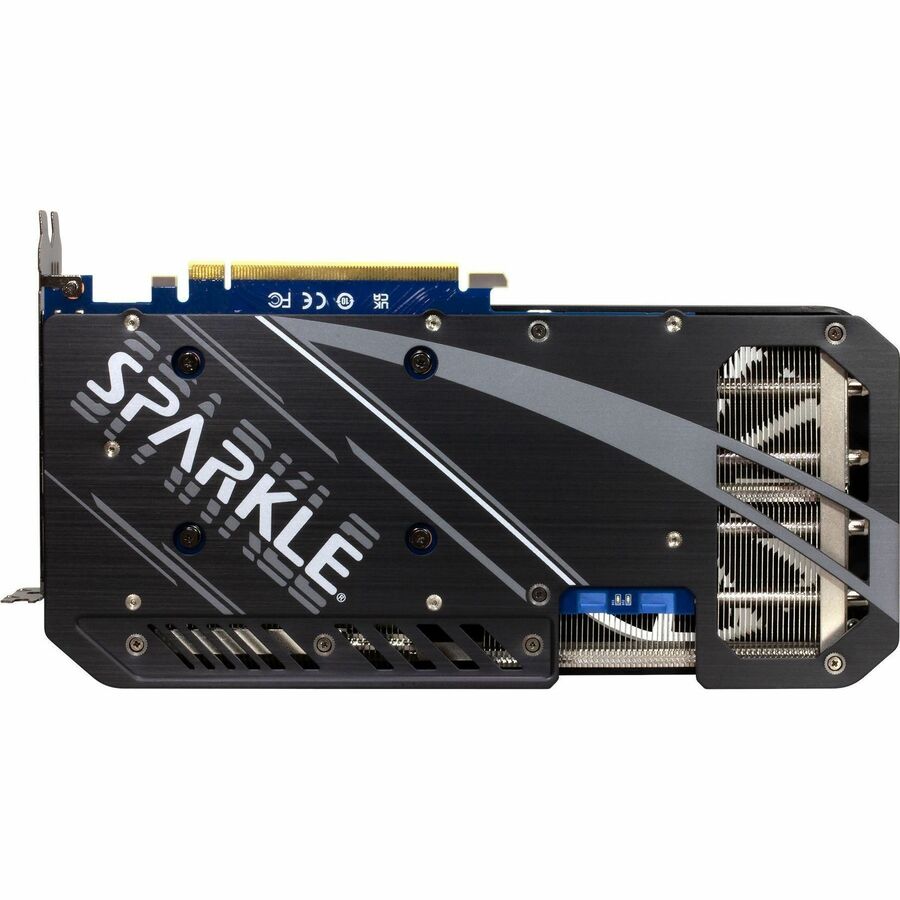

Sparkle Intel Arc A770 Graphic Card - 16 GB GDDR6
7680 x 4320 - 2.30 GHz Boost Clock - 256 bit Bus Width - PCI Express 4.0 x16 - DisplayPort - 3 x DisplayPort - HDMI - Triple Slot Space Required - Fan Cooler
$493.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | SPARKLE Computer Co. Ltd |
| Manufacturer Part Number | SA770R-16GOC |
| Brand Name | Sparkle |
| Product Name | Intel® Arc A770 ROC OC Edition, 16GB GDDR6 Graphic Card |
| Marketing Information | The SPARKLE Intel Arc A770 ROC OC Edition is the brand-new BEST choice of the series, comes with Intel Arc A770 and 16GB GDDR6. This card is designed for ultimate gaming experience and maximum productivity. ROC series equipped dual 100mm double-ball bearing fan with 2.5-slot heatsink design, reduce the length of card effetely and ready to fit into the compact system. Furthermore, 100mm DBB fans have brought the higher efficiency of cooling, lead to an ultra-silence experience without compromising performance. |
| Product Type | Graphic Card |
Technical Information
| API Supported |
|
| Features |
|
| Maximum Digital Display Resolution | 7680 x 4320 |
| AI-powered | Yes |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Line | Arc |
| Chipset Series | A |
| Chipset Model | A770 |
| GPU Boost Clock | 2.30 GHz |
Memory
| Standard Memory | 16 GB |
| Memory Technology | GDDR6 |
| Bus Width | 256 bit |
| Maximum Memory Bandwidth | 560 GB/s |

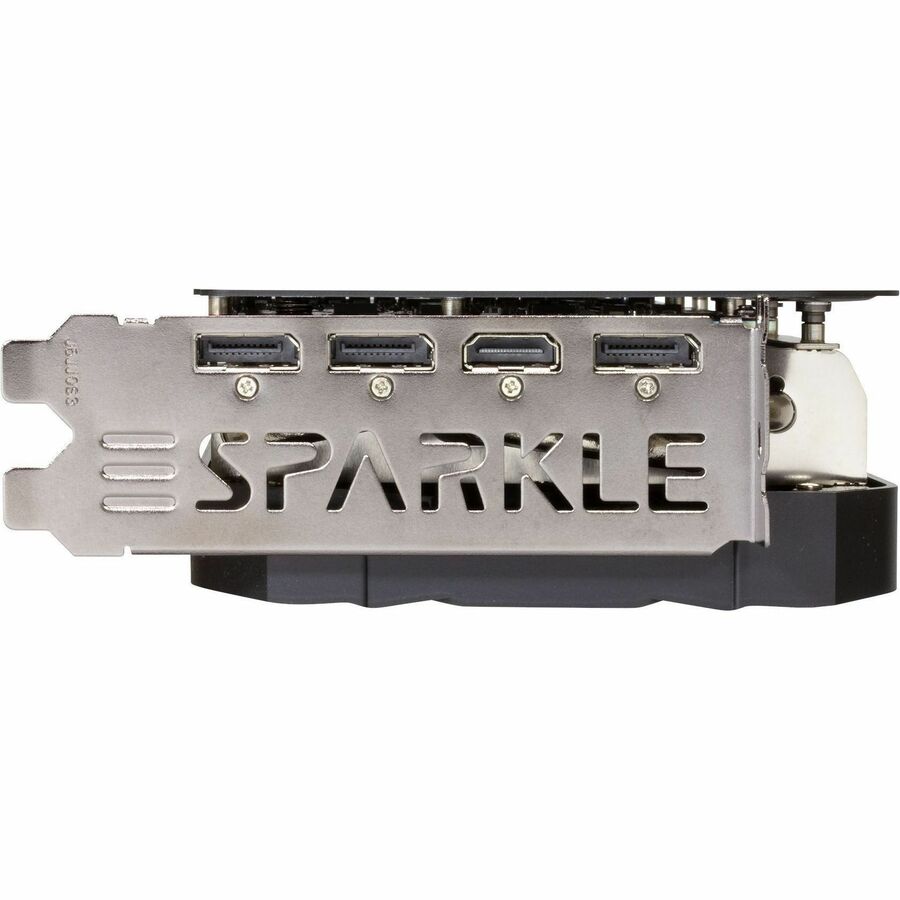

Interfaces/Ports
| Host Interface | PCI Express 4.0 x16 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
Power Description
| Power Supply Wattage | 650 W |
| Power Connector |
|
Physical Characteristics
| Slot Space Required | Triple |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 2.01" (51 mm) |
| Width | 5.16" (131 mm) |
| Length | 11.06" (281 mm) |
| Weight (Approximate) | 1.94 lb (880 g) |
Miscellaneous
| Platform Supported |
|
| Condition | No |
