SE10 1.90 GHz W11IoTLTSC 16.0GB 512GB PCIe

Part No. 12NK001JUT

by Lenovo Group Limited

SE10 1.90 GHz W11IoTLTSC 16.0GB 512GB PCIe

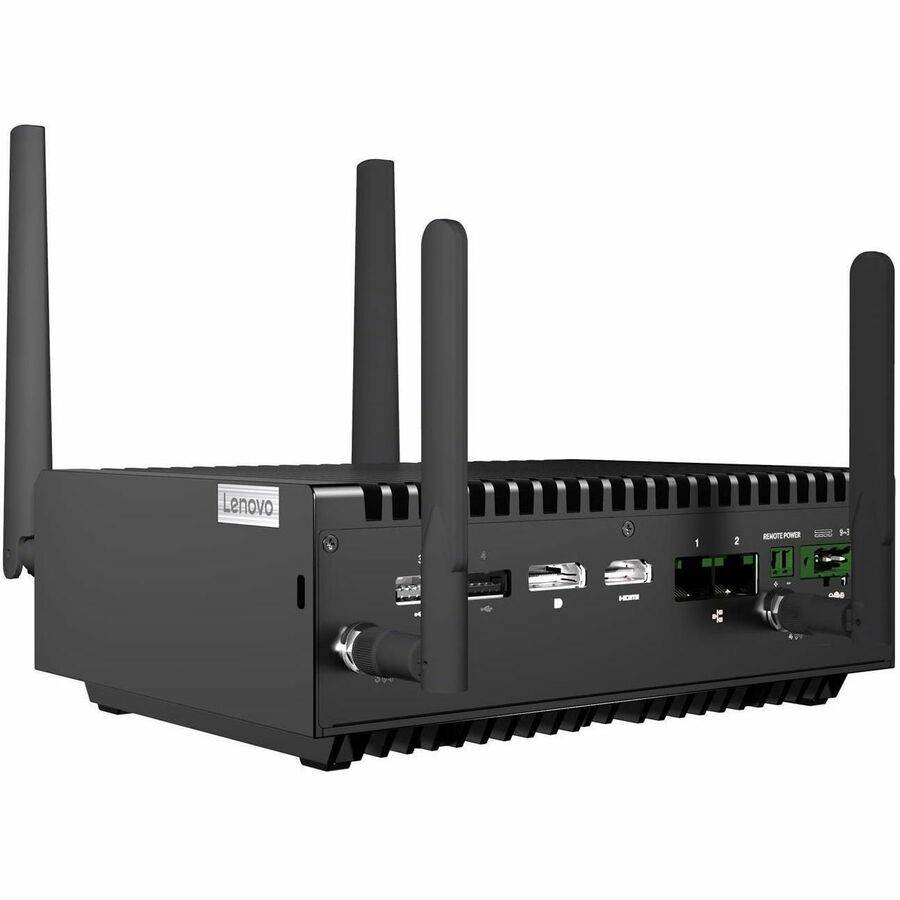

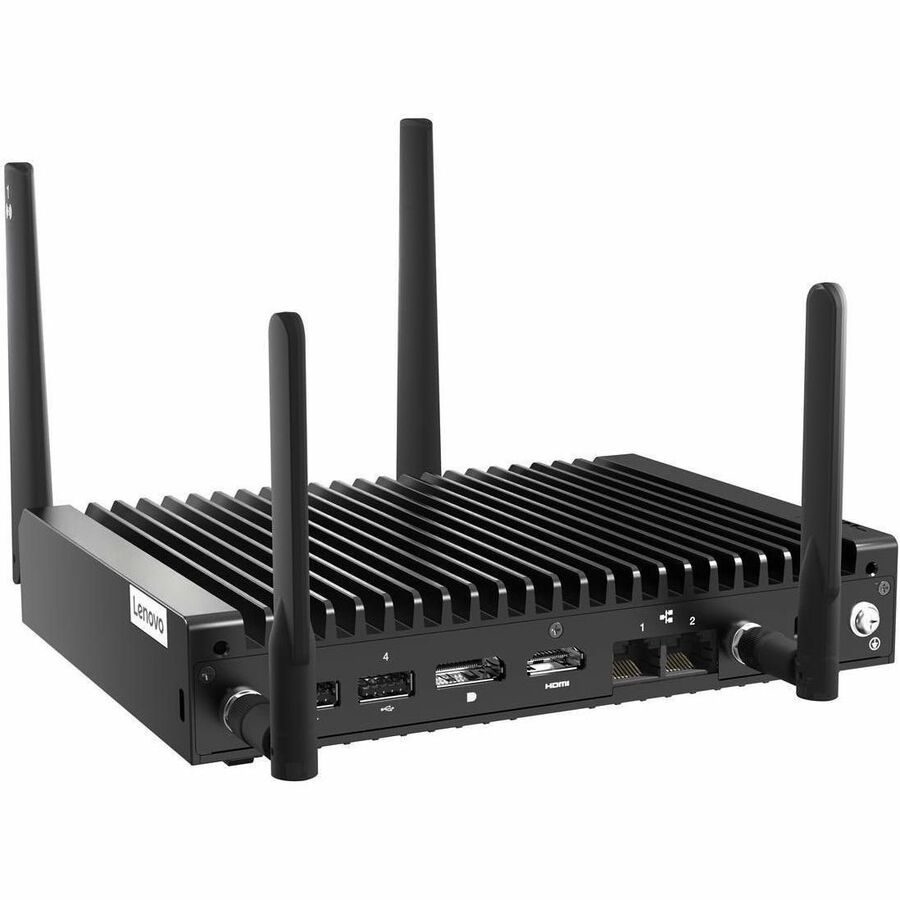

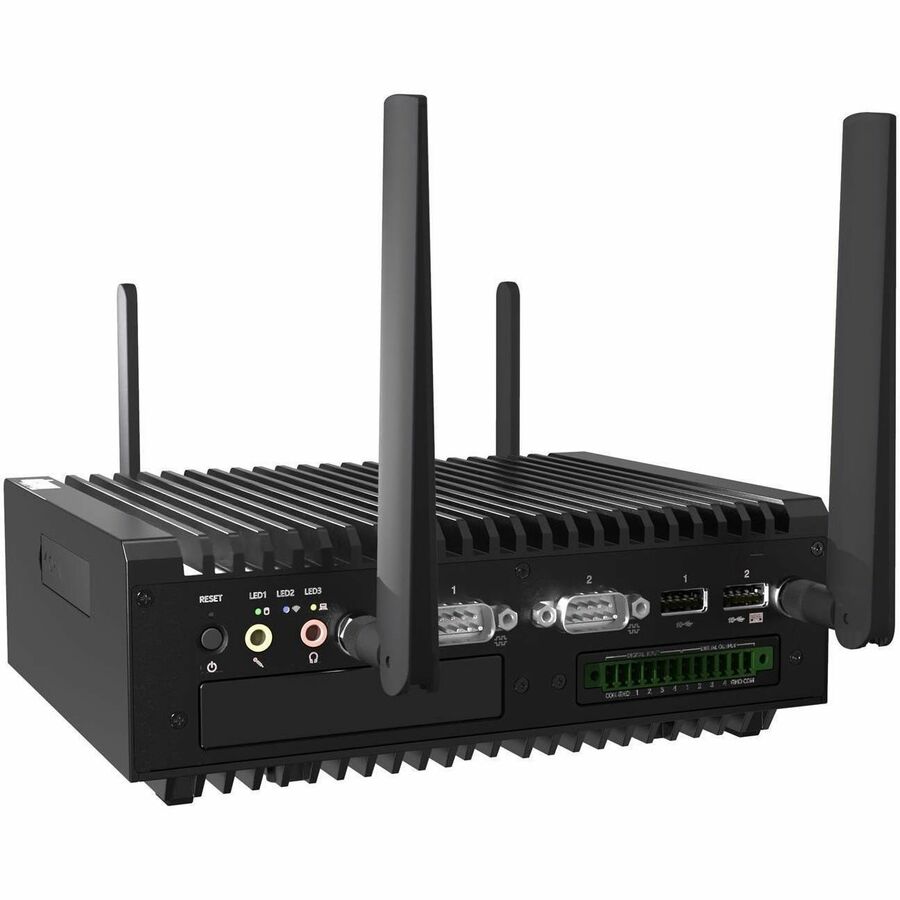

ThinkEdge SE10, Intel® Atom® x6425RE (1.90GHz, ), W11 IoT ETP LTSC 2024 ENG, 16.0GB, 1x512GB SSD M.2 2230 PCIe TLC Wide Temperature, Intel® UHD Graphics, EM05-G 4G,BT 5.1 or above,Wi-Fi 6E AX210, 3 Year On-site

Part No. 12NK001JUT

by Lenovo Group Limited

$1652.99
General Information
ManufacturerLenovo Group Limited
Manufacturer Part Number12NK001JUT
Brand NameLenovo
Product LineThinkEdge
Product SeriesSE10
Product Model12NK001JUT
Product NameThinkEdge SE10 12NK001JUT
Marketing Information

The most versatile product in our ThinkEdge portfolio.

These compact yet powerful devices balance environmental requirements with reliable performance and effortless deployment and maintenance. This technology was created to solve some of the toughest challenges you face when it comes to capturing data at the outermost edge for your business. From extreme temperatures to the most constrained spaces, SE10 users can now scale the spectrums of ruggedness and flexibility thanks to the ground up modular design.

Product TypeIndustrial Computer
Processor
Processor ManufacturerIntel
Processor TypeAtom
Processor Modelx6425RE
Processor CoreQuad-core (4 Core)
Processor Speed1.90 GHz
Cache1.50 MB
Chipset
Chipset ManufacturerIntel
Memory
Standard Memory16 GB
Maximum Memory Supported32 GB
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-3200/PC4-25600
Total Number of Memory Slots2
Number of Occupied Memory Slots1
Storage
Total Solid State Drive Capacity512 GB
Display & Graphics
Graphics Controller ManufacturerIntel
Graphics Controller ModelUHD Graphics
Graphics Memory TechnologyDDR4 SDRAM
Graphics Memory AccessibilityShared
Network & Communication
Ethernet Technology2.5 Gigabit Ethernet
Wireless LANYes
BluetoothYes
Cellular Generation4G
Cellular Data Connectivity TechnologyLTE
WWAN SupportedYes

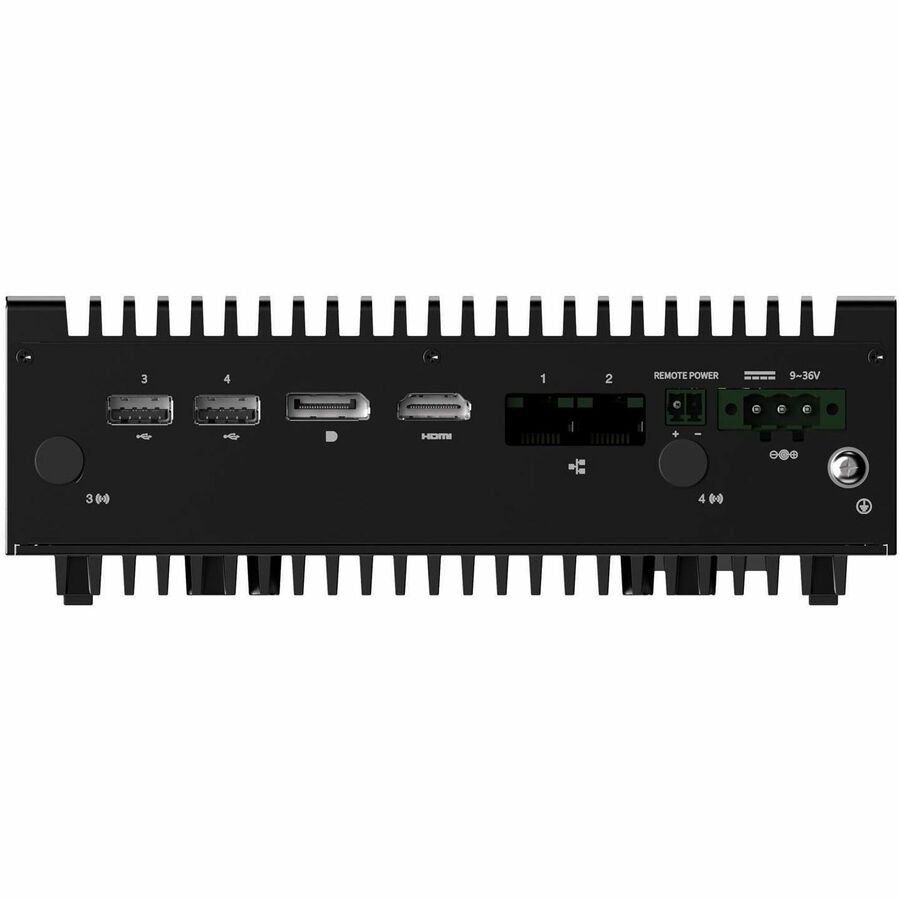

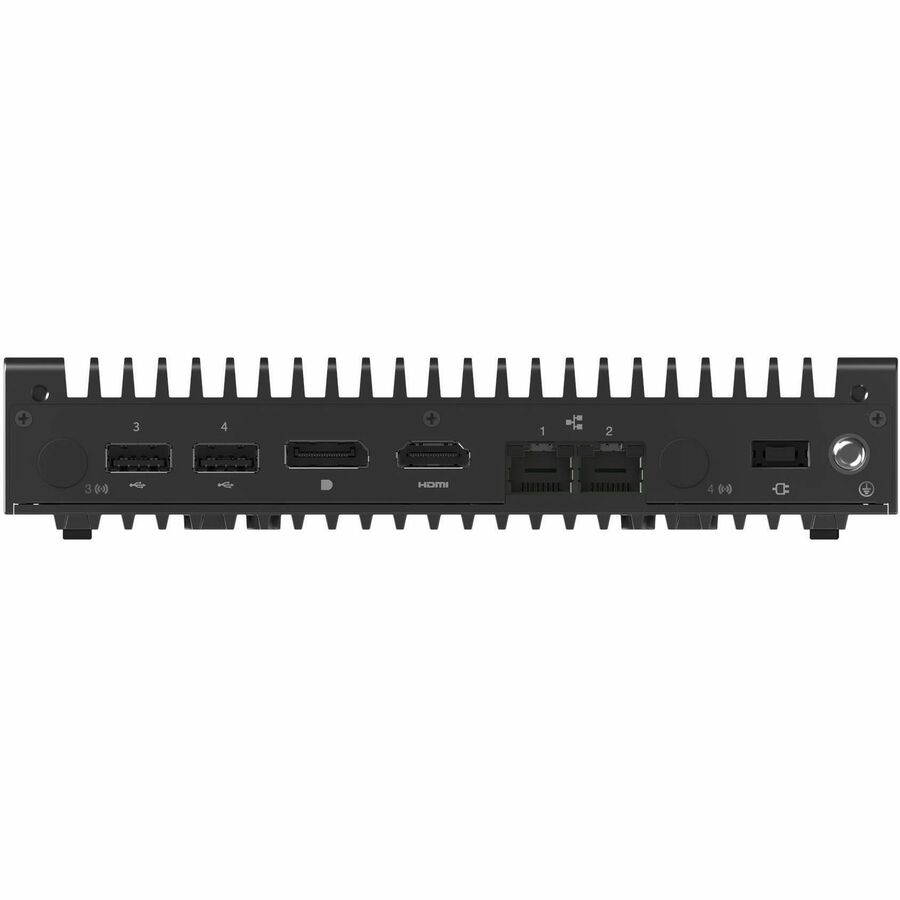

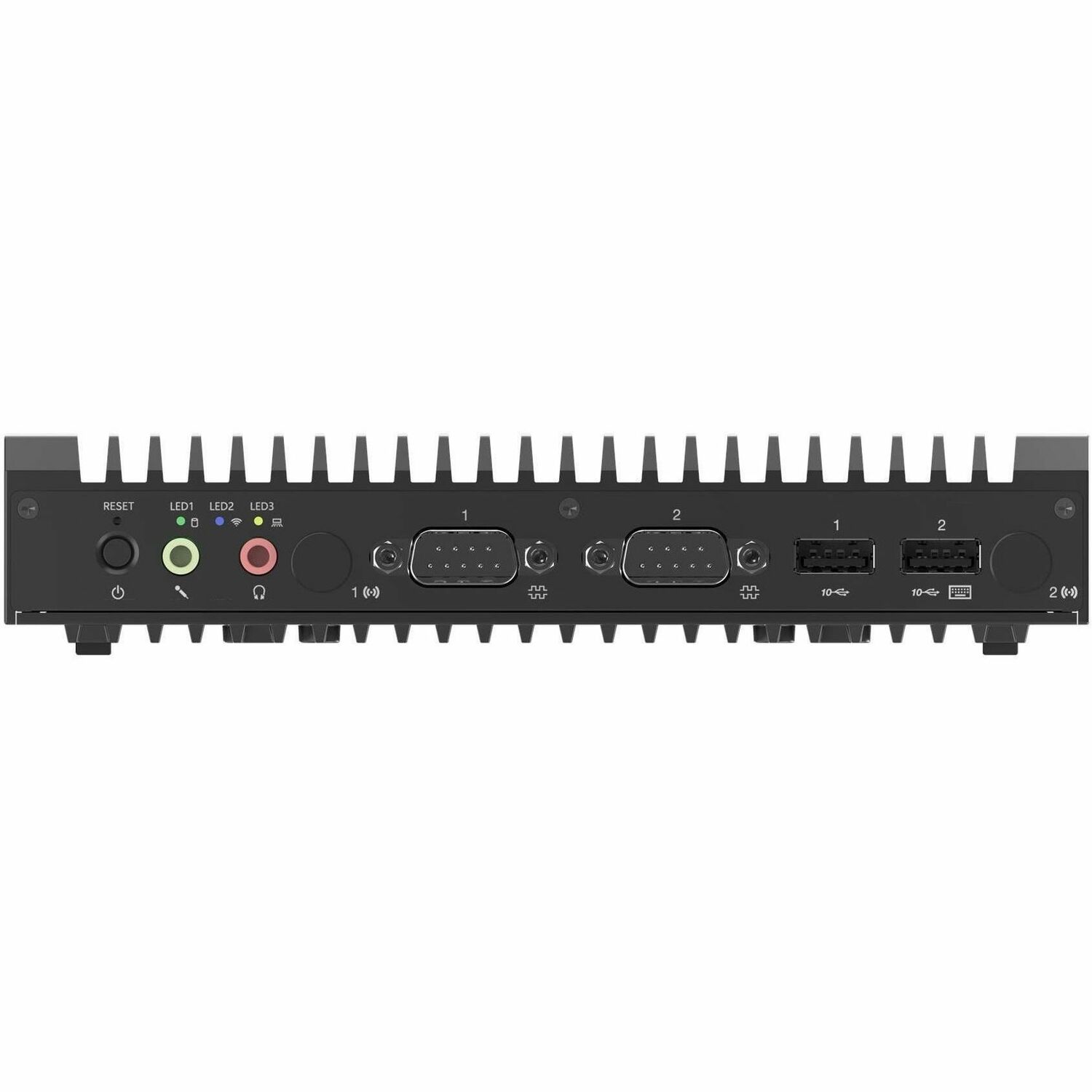

Interfaces/Ports
HDMI (Rear)Yes
Total Number of USB Ports4
Number of USB 2.0 Ports (Rear)2
Number of USB 3.2 Gen 2 Ports2
DisplayPort (Rear)Yes
Number of DisplayPort Outputs (Rear)1
Number of Network (RJ-45) Ports2
Serial PortYes
Operating System
Operating System PlatformWindows
Operating SystemWindows 11 IoT Enterprise LTSC 2024

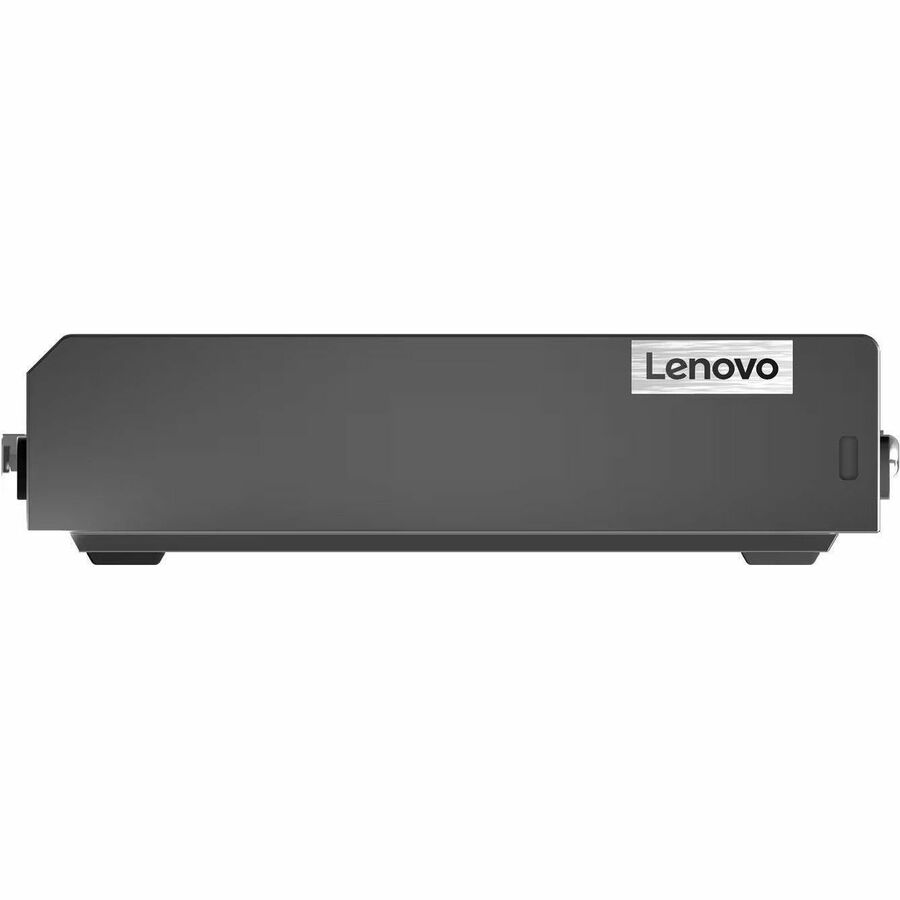

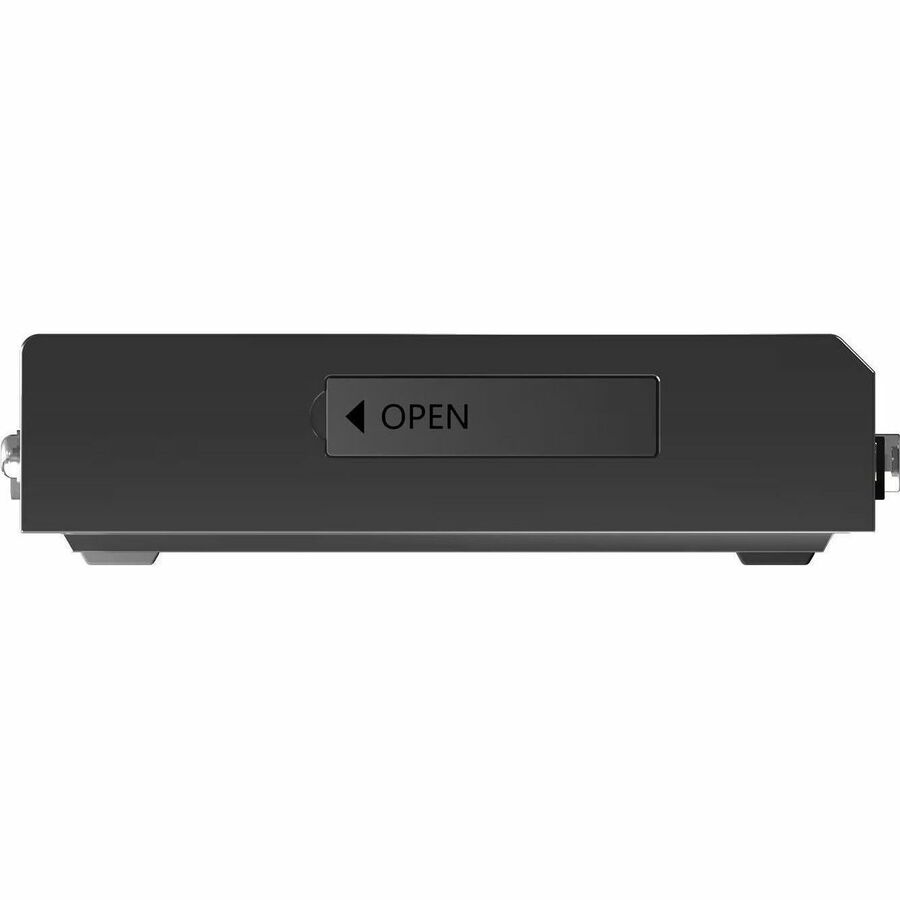

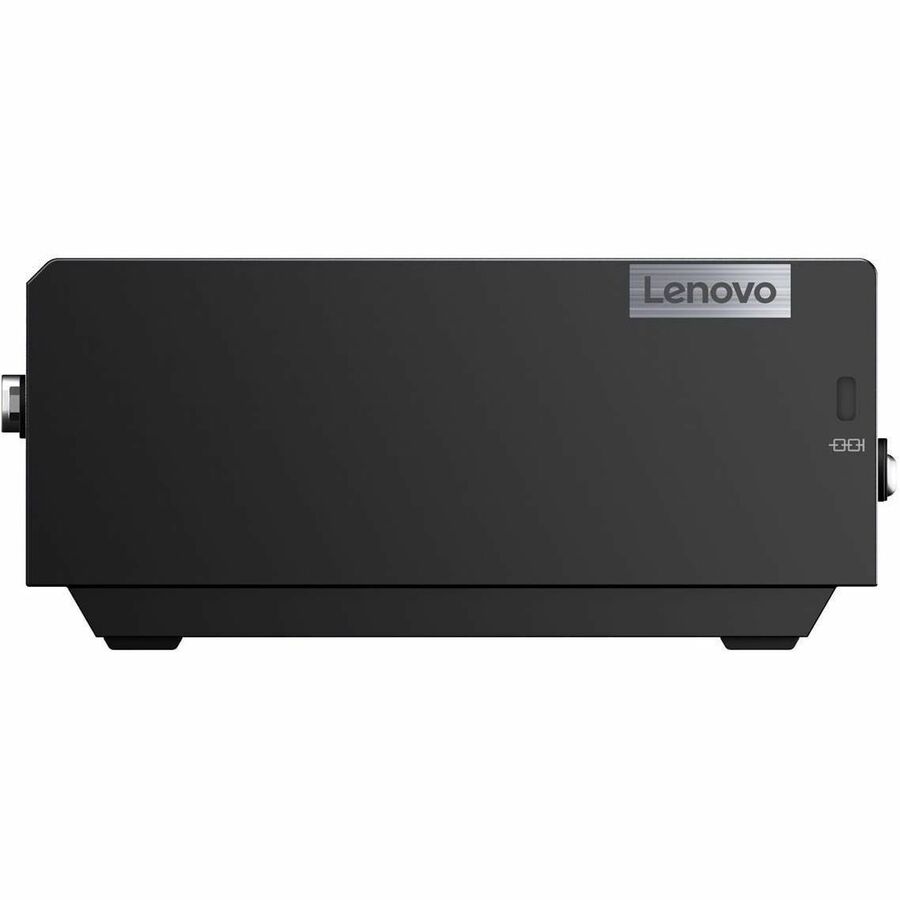

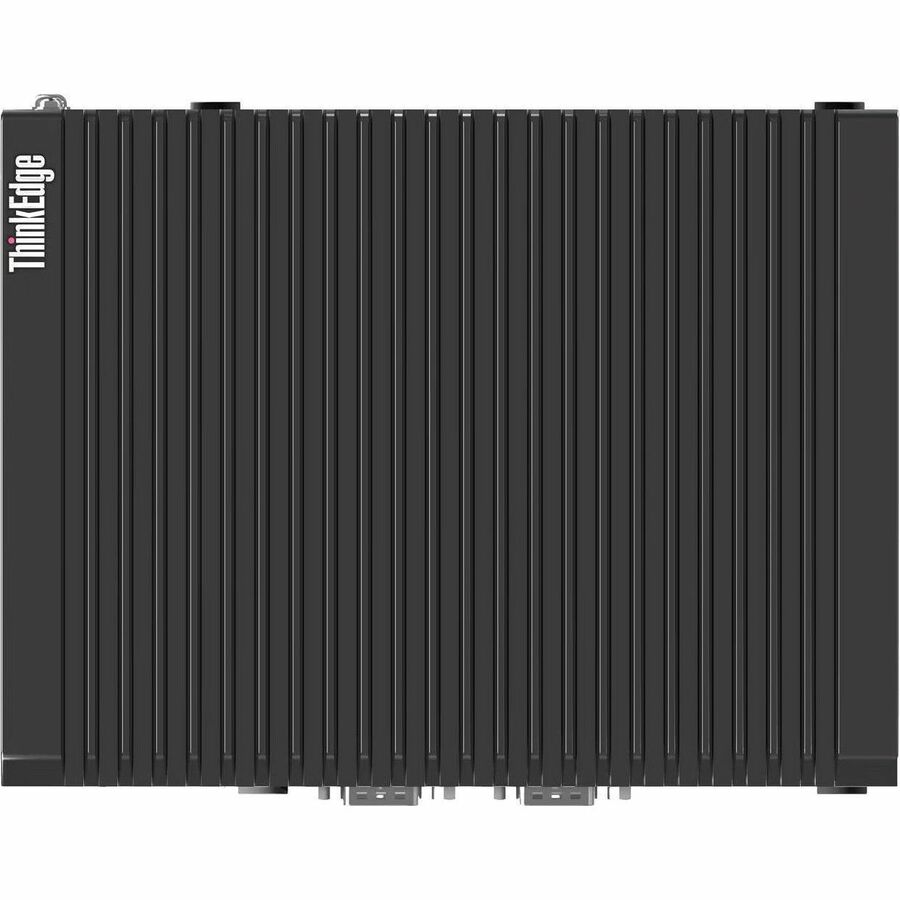

Physical Characteristics
Color FamilyBlack
Product ColorRaven Black
Height2.36" (60 mm)
Width7.05" (179 mm)
Depth5.31" (135 mm)
Weight (Approximate)4.41 lb (2000 g)
Miscellaneous
Package Contents
  • ThinkEdge SE10 12NK001JUT
  • 1x DIN Rail Mount
  • IP50 Dust Cover Kit
IP RatingIP50
Energy Efficiency Compliance
  • Energy-related Products Directive Lot 6 (ErP Lot 6)
  • Energy-related Products Directive Lot 26 (ErP Lot 26)
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • The ECO Declaration (TED)
ConditionNo
Warranty
Limited Warranty3 Year
Additional Warranty Information
    3 Year On-site
