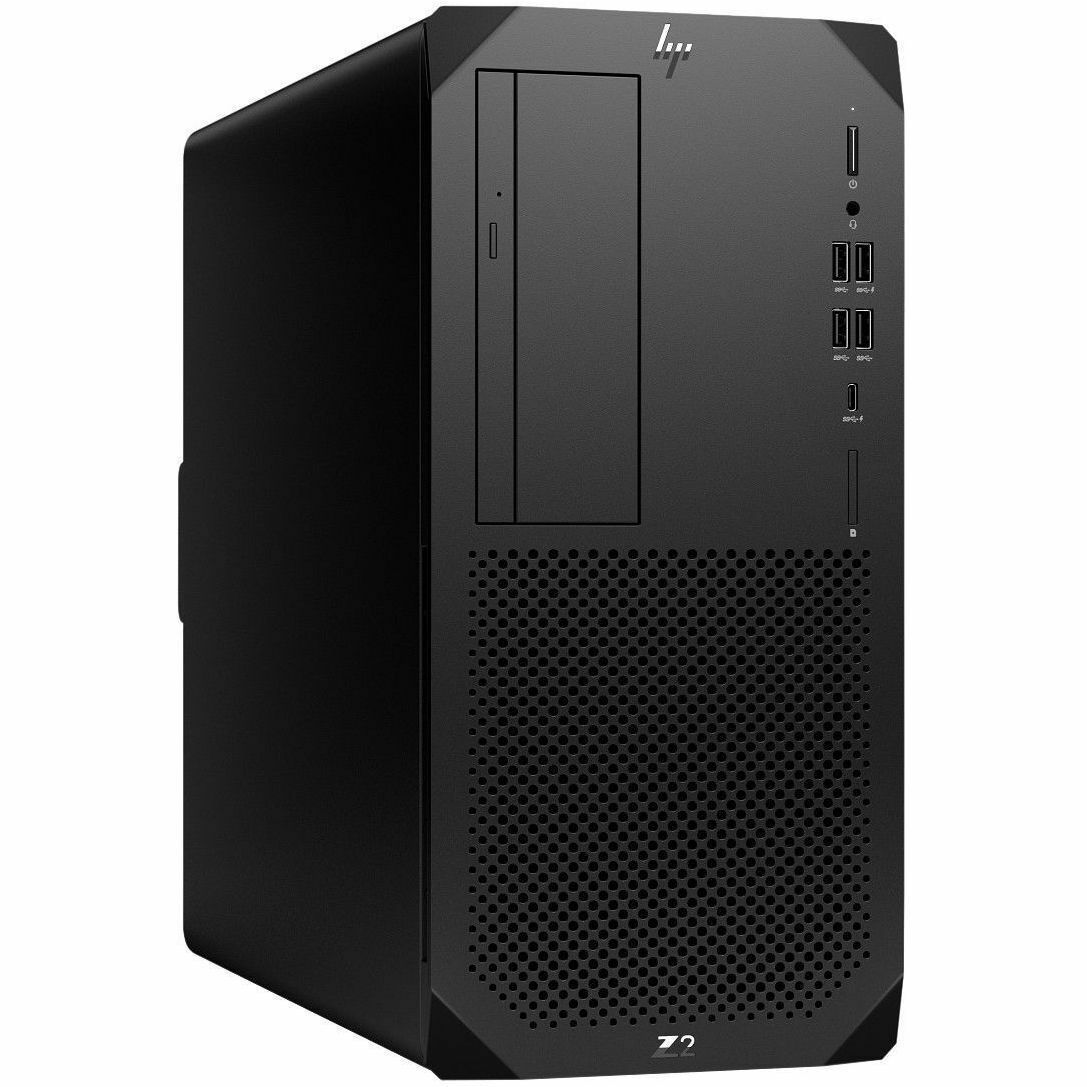

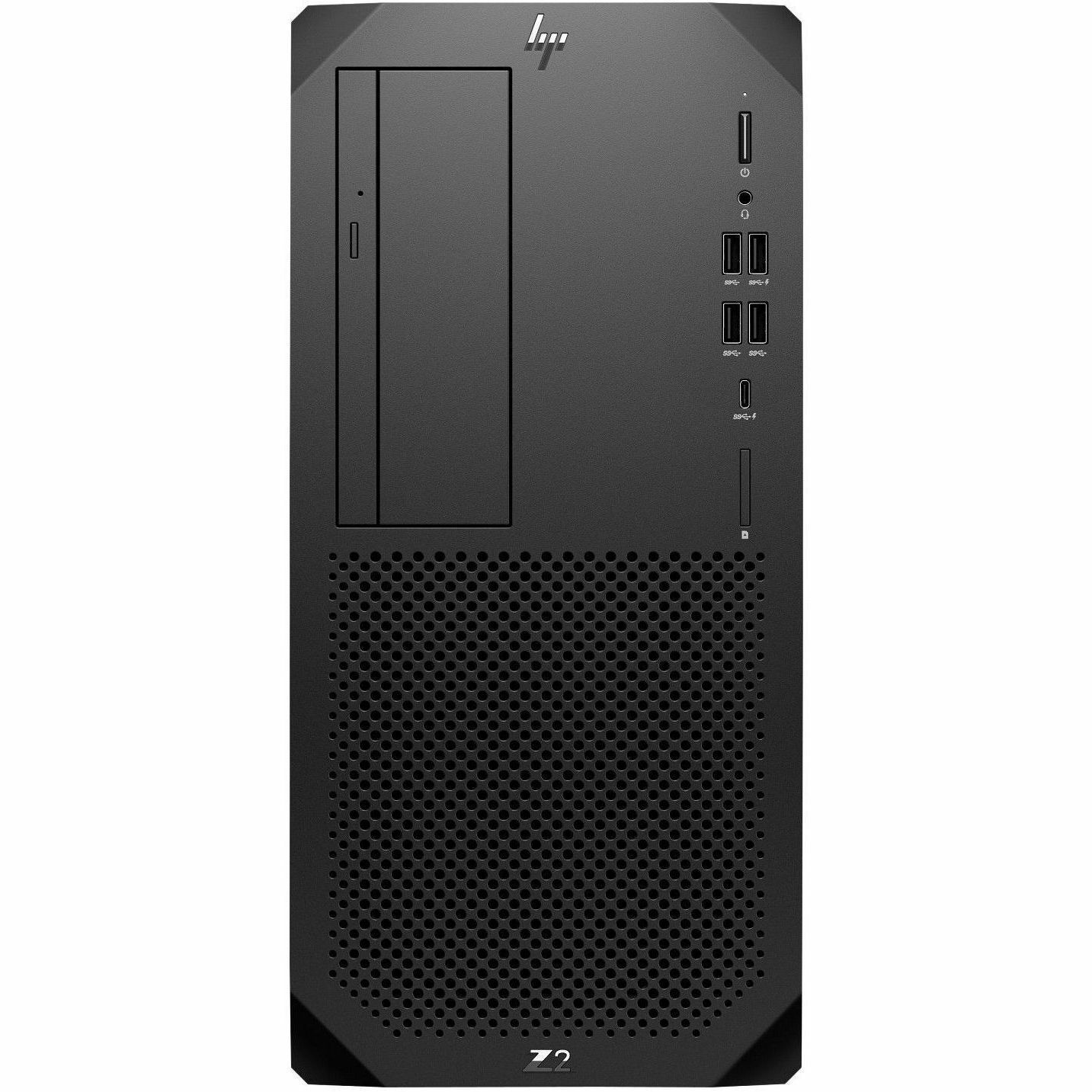

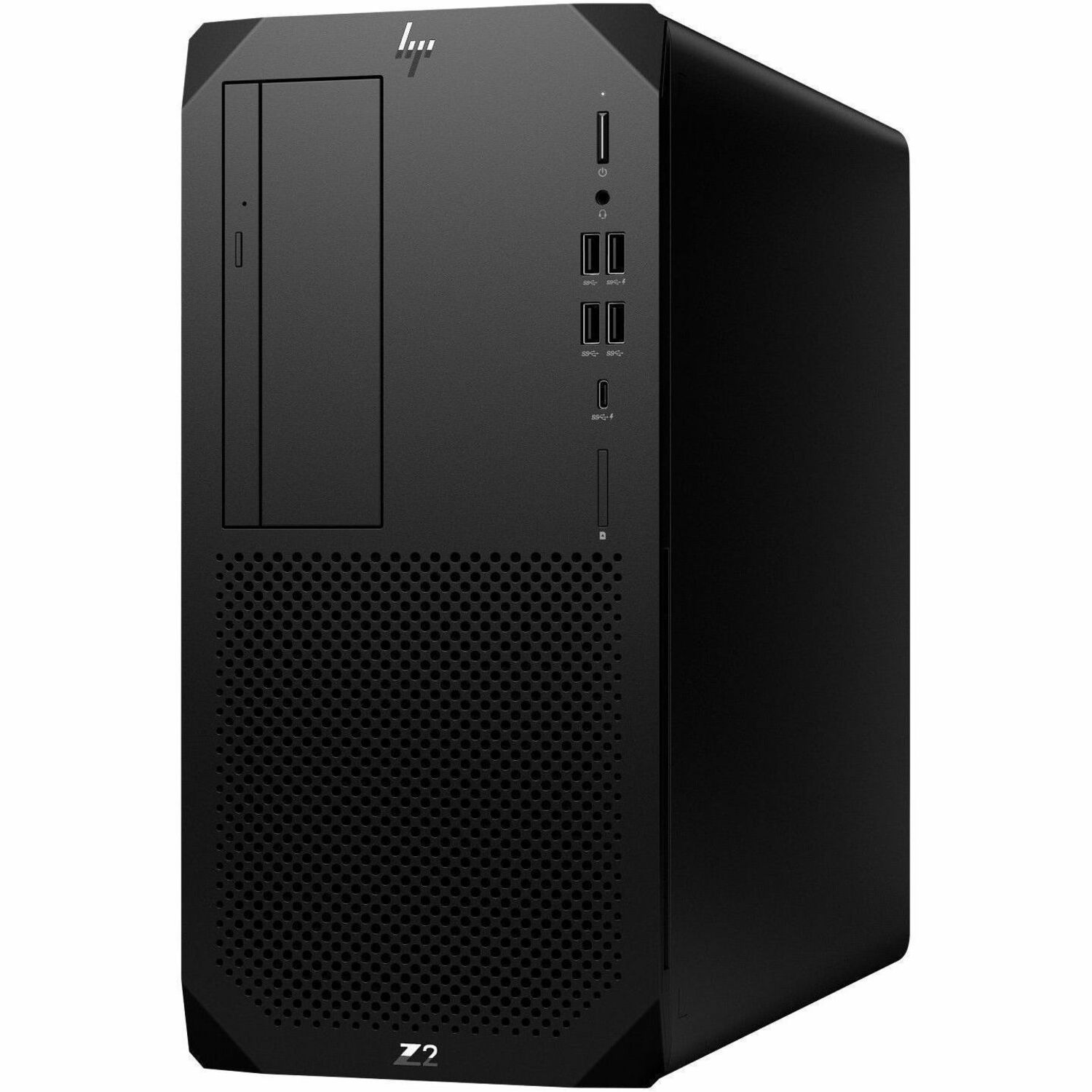

HP Z2 G9 Workstation - 1 x Intel Core i7 14th Gen i7-14700 - 64 GB - 512 GB SSD - Tower - Black

Part No. C2BZ2UP#ABA

by HP Inc.

HP Z2 G9 Workstation - 1 x Intel Core i7 14th Gen i7-14700 - 64 GB - 512 GB SSD - Tower - Black

Intel W680 Chip - Serial ATA/600, NVMe Controller - 0, 1 RAID Levels - Gigabit Ethernet

Part No. C2BZ2UP#ABA

by HP Inc.

$4081.99
General Information
ManufacturerHP Inc.
Manufacturer Part NumberC2BZ2UP#ABA
Brand NameHP
Product SeriesZ2 G9
Product NameZ2 Tower G9 Workstation Desktop PC
Marketing Information

Pro-power. Today and tomorrow

Experience a whole new level of performance for your professional workflow. The Z2 Tower is engineered to seamlessly run multi-threaded apps for fast rendering, simulation, and now real-time ray tracing. And when your demands change, you have impressive expandability to upgrade.

Your new benchmark for entry workstation power

Unleash the power of professional graphics and an Intel® Core™ processor, including K-Series, on intensive multi-threaded apps. Designed for zero throttling so you can render, simulate, and even real-time ray trace without overheating or slow downs. Prioritize your workflow by increasing performance up to 34% with just the flip of a BIOS setting using HP's High Performance Mode.

Built to expand. Power to grow

Need to upgrade graphics? Increase memory or storage? Add specialized PCIe cards? Go for it. With room to expand and tool-less access, you can easily upgrade and add components as your needs evolve. This is an investment that will last for years.

Industry-leading security. Reliability you can trust

Get peace of mind with a PC that's built to endure. The Z2 Tower undergoes 360K hours of rigorous testing, military-standard testing and is certified for pro apps. And with HP Wolf Security for Business , it's protected below, in and above the OS.

Product TypeWorkstation
Processor
Number of Processors Supported1
Number of Processors Installed1
Processor ManufacturerIntel
Processor TypeCore i7
Processor Generation14th Gen
Processor Modeli7-14700
Processor CoreIcosa-core (20 Core)
Processor Speed2.10 GHz
L3 Cache33 MB
Processor SocketSocket LGA-1700
Processor Threads28
Chipset
Chipset ManufacturerIntel
Chipset ModelW680
Memory
Standard Memory64 GB
Maximum Memory Supported128 GB
Memory TechnologyDDR5 SDRAM
Total Number of Memory Slots4
Signal ProcessingUnbuffered
Storage
Drive TypeSSD
Total Solid State Drive Capacity512 GB
Solid State Drive InterfacePCI Express NVMe 4.0 x4
Controllers
Controller Type
  • Serial ATA/600
  • NVMe
RAID SupportedYes
RAID Levels0, 1
Network & Communication
Ethernet TechnologyGigabit Ethernet
Interfaces/Ports
Total Number of USB Ports11
DisplayPortYes
Number Of Ethernet Ports1
Number of DisplayPort Outputs2
Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series

  • 1 Type-C® SuperSpeed USB 20Gbps signaling rate port (optional, charge supports up to 5V/3A)
  • 1 SuperSpeed USB Type-C® 10Gbps signaling rate (Power Delivery 15W, Alt Mode DisplayPort)
  • 1 Dual SuperSpeed USB Type-A 5Gbps signaling rate

Flex I/O module: choose one from the following:

  • (1) DisplayPort 1.4,
  • (1) HDMI 2.0b,
  • (1) VGA,
  • (1) Dual USBA 5Gbps port,
  • (1) USB-C® 10Gbps port (Power Delivery 15W,Alt Mode DisplayPort),
  • (1) 2nd 1 GbE LAN,
  • (1) Thunderbolt 3with USB-C® / USB4 40Gbps * (cabled to PCIe AIC**)
  • (1) 1GbpsFiber LC NIC
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Form FactorTower
Height14.02" (356 mm)
Width6.65" (169 mm)
Depth15.16" (385 mm)
Weight (Approximate)13.67 lb (6200 g)
Miscellaneous
Energy StarYes
TCO CertifiedYes
Energy Efficiency CertificationChina Energy Conservation Program (CECP)
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC199485304724
;
