Synology DiskStation DS725+ SAN/NAS Storage System

Part No. DS725+

by Synology, Inc

Synology DiskStation DS725+ SAN/NAS Storage System

1 x AMD R-Series R1600 Dual-core (2 Core) 2.60 GHz - 2 x HDD Supported - 2 x SSD Supported - 4 GB RAM DDR4 SDRAM - Serial ATA Controller - RAID Supported - 0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD RAID Levels - 2 x Total Bays - 2 x 2.5"/3.5" Bay - Gigabit Ethernet, 2.5 Gigabit Ethernet - 1 USB Port(s) - Network (RJ-45) - SMB 1.0, SMB 2.0, SMB 3.0, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPS, FTP, ... - Desktop

Part No. DS725+

by Synology, Inc

$1360.99
General Information
ManufacturerSynology, Inc
Manufacturer Part NumberDS725+
Brand NameSynology
Product LineDiskStation
Product ModelDS725+
Product NameDiskStation DS725+ SAN/NAS Storage System
Marketing Information

Compact and capable storage for home, small business, and edge | Take your data management to the next level | 2-bay with expansion

Up to 140 TB of raw storage with expansion unit

High-speed storage

Built-in 2.5GbE port and over 276/224 MB/s sequential read/write

Versatile applications

Back up multiple endpoints, manage 40 IP cameras, or safely sync and share files across sites

2.5GbE connectivity and diverse storage options

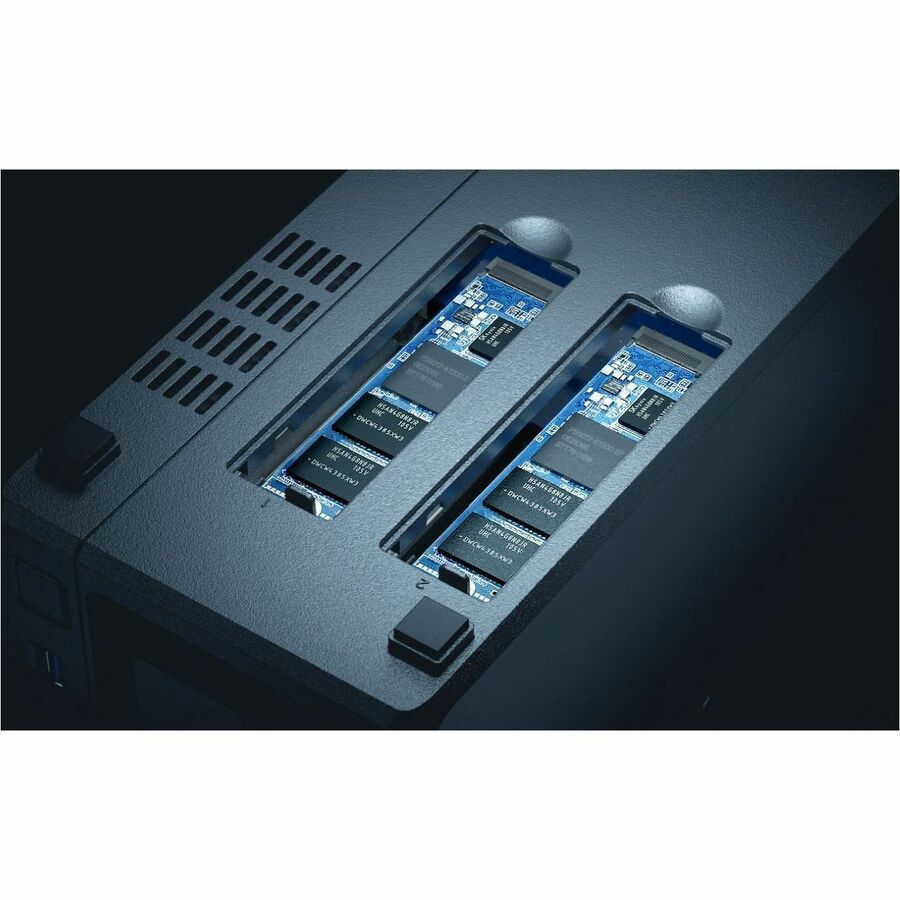

The DS725+ features built-in 2.5GbE networking and supports both SATA SSDs and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.

Packaged Quantity1
Product TypeSAN/NAS Storage System
Storage
Number of Hard Drives Supported2
Number of Solid State Drive Supported2
Processor & Chipset
Number of Processors Installed1
Processor ManufacturerAMD
Processor TypeR-Series
Processor ModelR1600
Processor CoreDual-core (2 Core)
Processor Speed2.60 GHz
Memory
Standard Memory4 GB
Memory TechnologyDDR4 SDRAM
Memory Form FactorSODIMM
Network & Communication
Ethernet Technology
  • Gigabit Ethernet
  • 2.5 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays2
Number of 2.5"/3.5" Bays2
Total Number of Expansion Slots2
Controllers
Controller TypeSerial ATA
RAID SupportedYes
RAID Levels0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD
Interfaces/Ports
Drive InterfaceSerial ATA
Total Number of USB Ports1
Number of USB 3.2 Gen 1 Ports1
Network (RJ-45)Yes
Number of Network (RJ-45) Ports2
Management & Protocols
Protocols
  • SMB 1.0
  • SMB 2.0
  • SMB 3.0
  • NFSv3
  • NFSv4
  • NFSv4.1
  • NFS
  • iSCSI
  • HTTP
  • HTTPS
  • FTP
  • SNMP
  • LDAP
  • CalDAV
  • NTFS
  • FAT
  • SMB
  • AFP
  • WEBDAV
  • RSync
Power Description
Maximum Power Supply Wattage65 W
Physical Characteristics
Cooling FanYes
Height6.54" (166 mm)
Width4.17" (106 mm)
Depth8.78" (223 mm)
Form FactorDesktop
Compatible Drive Bay Width
  • 2.5"
  • 3.5"
Weight (Approximate)3.33 lb (1510 g)
