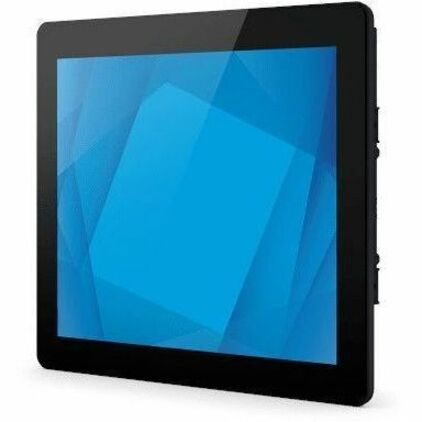

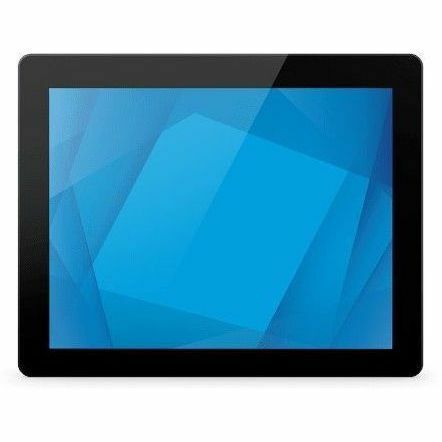

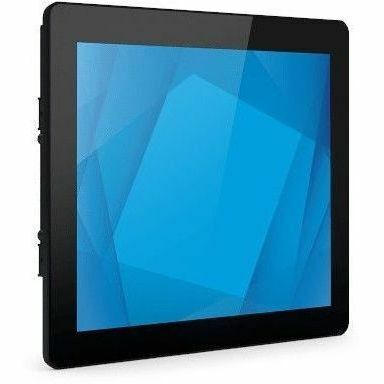

Elo 1590L 15" Class LED Touchscreen Monitor - 4:3 - 23 ms
In Stock Availability
- All Locations: (2+)
- Mississuaga, ON (2+)
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E295927 |
| Brand Name | Elo |
| Product Series | 90 |
| Product Model | 1590L |
| Product Name | 1590L 15" Open Frame Touchscreen |

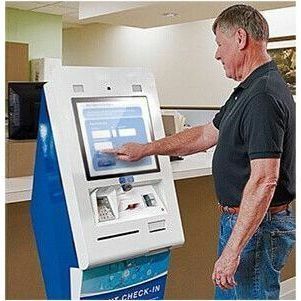

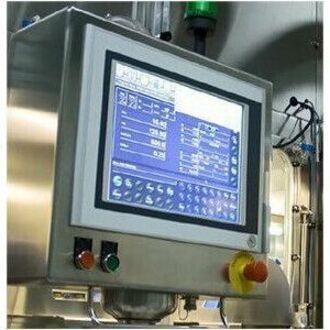

| Marketing Information | The Elo 1590L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, the 1590L open frame deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare. Enabling Partners to Build Smarter Kiosks With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box. Flexibility for Your Install The 1590L can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver. Touch Thru Glass Enabled with PCAP Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness's up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines. Built for Commercial Use We pride ourselves on being one of the best manufacturers in the market - We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI. |
| Product Type | LED Touchscreen Monitor |
| Screen Size Class | 15" |
| Viewable Screen Size | 15" |
| Screen Mode | XGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 23 ms |
| Aspect Ratio | 4:3 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 150° |
| Mount Type |
|
| Backlight Technology | LED |
| Features |
|
| Horizontal Frequency | 30 kHz to 60 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Ingress Protection (IP) Rating | IP65 |
| Impact Protection (IK) Rating | IK07 |
| Active Display Area (H x V) | 11.90" (302.26 mm) x 8.90" (226.06 mm) |
| Maximum Resolution | 1024 x 768 |
| Color Supported | 16.2 Million Colors |
| Native Contrast Ratio | 700:1 |
| Brightness | 270 cd/m² |
| Maximum Refresh Rate | 60 Hz |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| USB Type-B | Yes |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Maximum Power Consumption | 12.50 W |

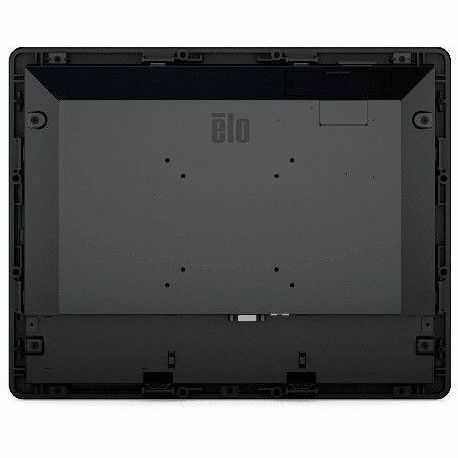

| VESA Mount Compatible | Yes |
| VESA Mount Standard |
|
| Color Family | Black |
| Product Color | Black |
| Height | 10.41" (264.41 mm) |
| Width | 13.24" (336.30 mm) |
| Depth | 1.65" (41.91 mm) |
| Weight (Approximate) | 6.40 lb (2902.99 g) |
| Package Contents |
|
| Environmental Compliance |
|
| Application/Usage |
|
| COO | CN |
| Condition | No |
| Limited Warranty | 3 Year |
