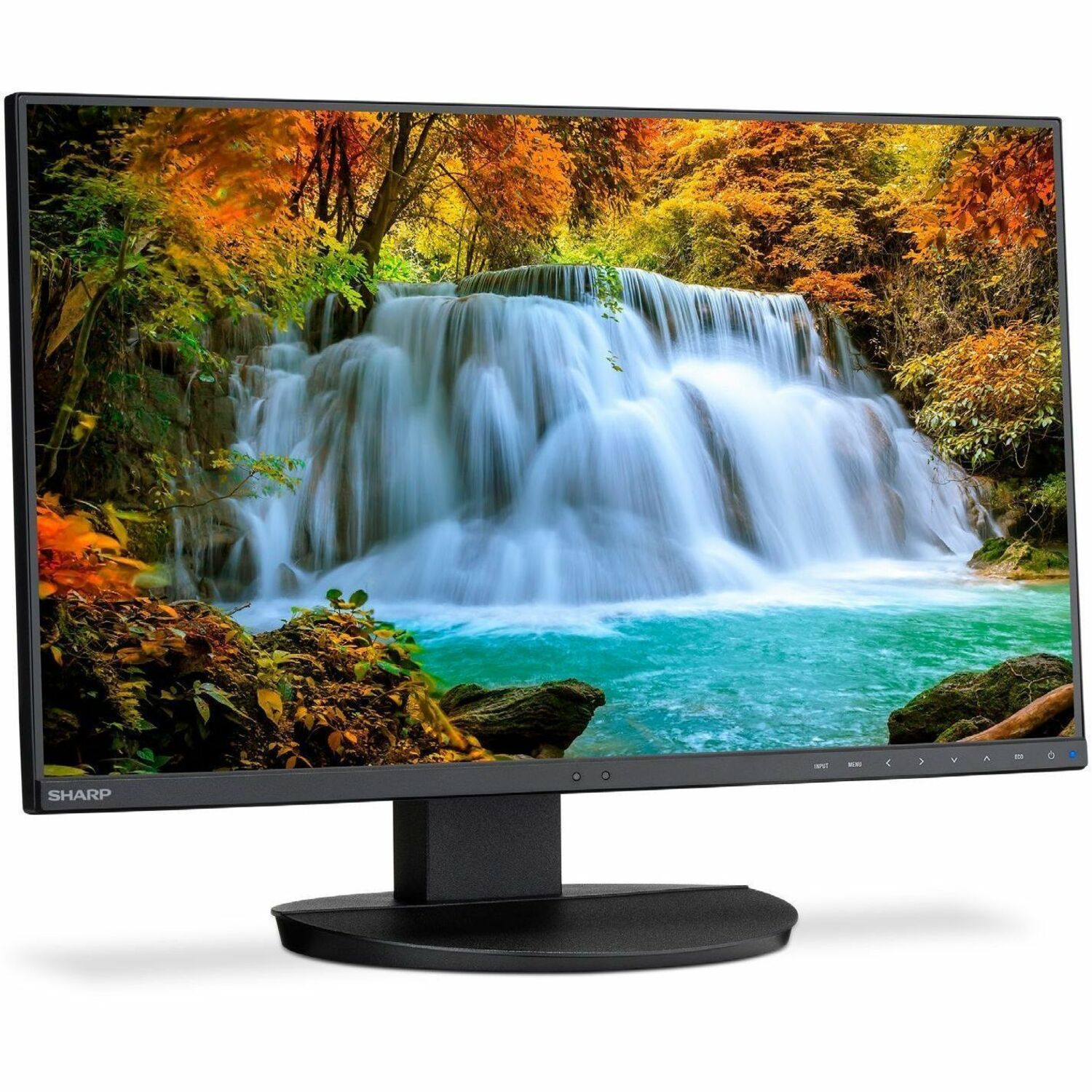

Sharp MultiSync DD-EA242F 24" Class Full HD LED Monitor - 16:9 - Black

Part No. DD-EA242F

by Sharp Electronics

Sharp MultiSync DD-EA242F 24" Class Full HD LED Monitor - 16:9 - Black

23.8" Viewable - In-plane Switching (IPS) Technology - LED Backlight - 1920 x 1080 - 16.7 Million Colors - 250 cd/m² - 6 ms - 75 Hz Refresh Rate - Speakers - Swivel, Height, Pivot, Tilt - USB Type-C - HDMI - VGA - DisplayPort - VESA Mount Compatible - USB Hub

Part No. DD-EA242F

by Sharp Electronics

$582.99
General Information
ManufacturerSharp Electronics
Manufacturer Part NumberDD-EA242F
Brand NameSharp
Product LineMultiSync
Product ModelDD-EA242F
Product Name24" FHD Advanced Business-Class Desktop Monitor, USB-C (65W)
Marketing Information

The 24" Class (23.8" diagonal) Sharp MultiSync® EA242F is a Full HD ultra-narrow bezel IPS desktop monitor ideal for demanding commercial environments. Designed with professional color and image quality standards, this 16:9 widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA242F allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, USB-C, VGA and 3-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment. With DisplayPort ouput the EA242F is ideal for multiple monitor configurations and includes ControlSync™ technology which allows users to control up to six EA242F displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor.

Features

  • FHD (1920x1080) Resolution
  • IPS screen technology allows for optimal viewing angle
  • Brightness 250 cd/m2
  • Full connectivity, including DisplayPort, HDMI, USB-C and VGA inputs
  • Supports multi-monitor configurations with DisplayPort output for video passthrough
  • USB-C input delivers 65W of power as well as video and USB over one cable
  • USB Hub (2 Up / 3 Down)
  • Integrated speakers (stereo 1W + 1W)
  • Touch-sensitive OSD® controls are integrated into the bezel
  • Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power

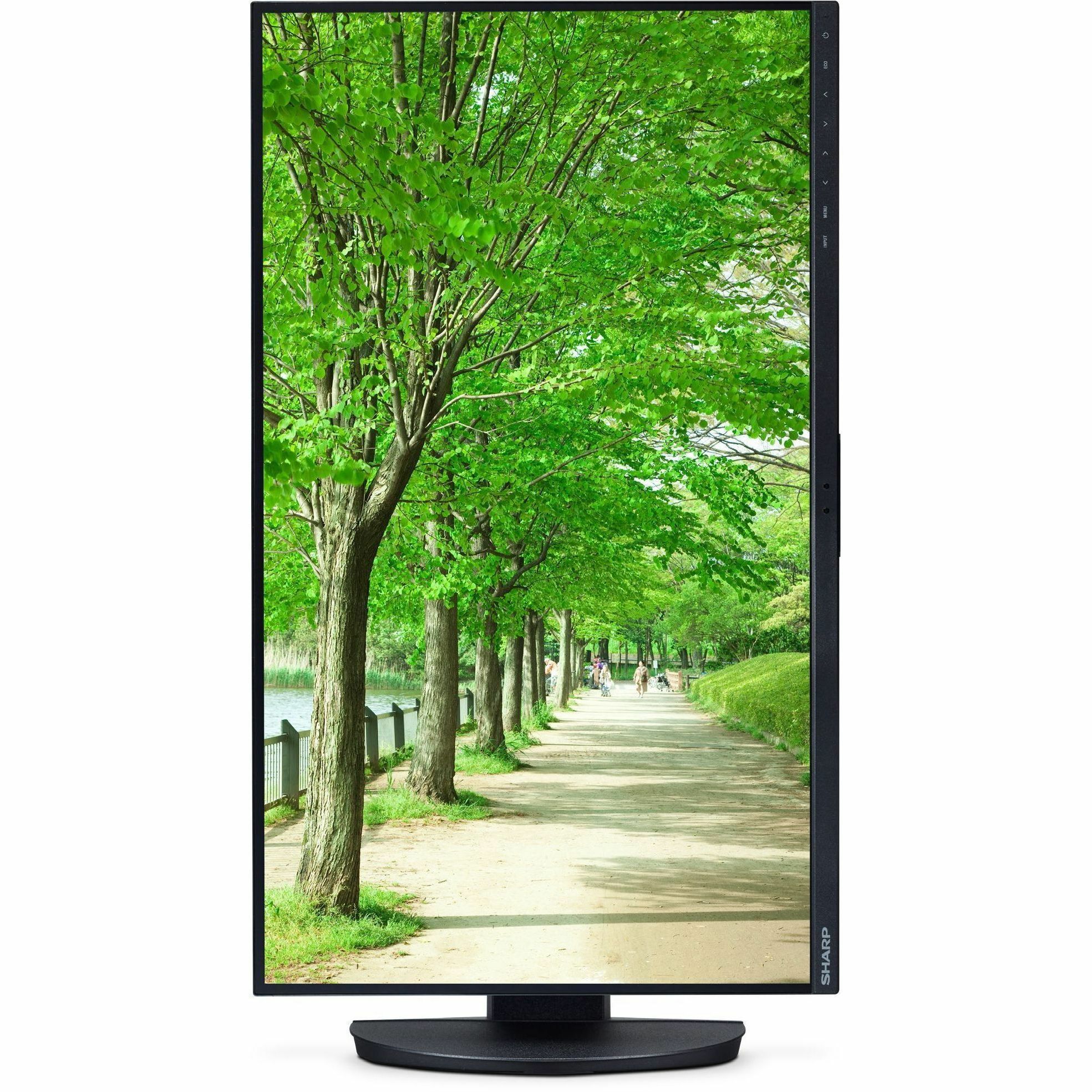

  • Height-adjust stand, pivot, tilt and swivel capabilities
  • ENERGY STAR 8.0 and TCO 9.0
  • ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
  • 3 Year Warranty


Product TypeLED Monitor
Technical Information
Number of Screens1
Screen Size Class24"
Viewable Screen Size23.8"
Screen ModeFull HD
Panel TechnologyIn-plane Switching (IPS) Technology
Response Time6 ms
Aspect Ratio16:9
Pixel Pitch0.28000 mm x 0.28000 mm
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
Backlight TechnologyLED
Features
  • Ambient Lighting
  • Narrow Bezel
  • Wide Viewing Angle
  • Ergonomic Design
  • On-screen Display (OSD)
  • Eco Mode
  • Separate Sync
Horizontal Frequency31.50 kHz to 83 kHz
Vertical Frequency50 Hz to 75 Hz
Adjustable StandYes
Stand Adjustments
  • Swivel
  • Height
  • Pivot
  • Tilt
Stand IncludedYes
Active Display Area (H x V)20.75" (527 mm) x 11.67" (296.50 mm)
Video
Maximum Resolution1920 x 1080
Standard Refresh Rate75 Hz
Color Supported16.7 Million Colors
Native Contrast Ratio1,000:1
Brightness250 cd/m²
Color Gamut
  • 73.6% Adobe RGB
  • 75.3% Adobe RGB
  • 69.5% NTSC
  • 72% NTSC
  • 101.6% sRGB
  • 95.1% sRGB
Pixel Per Inch (PPI)93
Audio
Number of Speakers2
SpeakersYes
Interfaces/Ports
HDMIYes
USBYes
VGAYes
DisplayPortYes
USB Type-CYes
Number of USB 3.1 Downstream Ports3
Number of USB 3.1 Ports3
USB Type-BYes
Built-in Devices
Built-in DevicesUSB Hub
Environmental Conditions
Operating Temperature Range41°F (5°C) to 95°F (35°C)
Operating Humidity Range20% to 80% (Non-condensing)
Maximum Operating Altitude16404 ft (4999.94 m)
Maximum Non-operating Altitude40000 ft (12192 m)
Power Description
Standby Power Consumption300 mW
Frequency
  • 50 Hz
  • 60 Hz
Maximum Power Consumption19 W
Physical Characteristics
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Color FamilyBlack
Product ColorBlack
Height12.56" (319.10 mm)
Width21.17" (537.70 mm)
Depth1.80" (45.60 mm)
Height with Stand19.16" (486.60 mm)
Width with Stand21.17" (537.70 mm)
Depth with Stand9.84" (250 mm)
Compressed Height with Stand13.25" (336.60 mm)
Extended Height with Stand19.16" (486.60 mm)
Weight (Approximate)9.92 lb (4500 g)
Weight with Stand (Approximate)15.43 lb (7000 g)
Miscellaneous
Package Contents
  • 24" FHD Advanced Business-Class Desktop Monitor, USB-C (65W)
  • Setup sheet
  • User manual
  • Power cord
  • DisplayPort cable
  • USB A-B cable
  • ISB-C cable
  • ControlSync cable
  • Stand
Energy StarYes
TCO CertifiedYes
Application/UsageBusiness
Environmentally FriendlyYes
Environmental CertificationTCO Certified 9.0
Energy Efficiency CertificationENERGY STAR 8.0
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
Warranty
Limited Warranty3 Year
