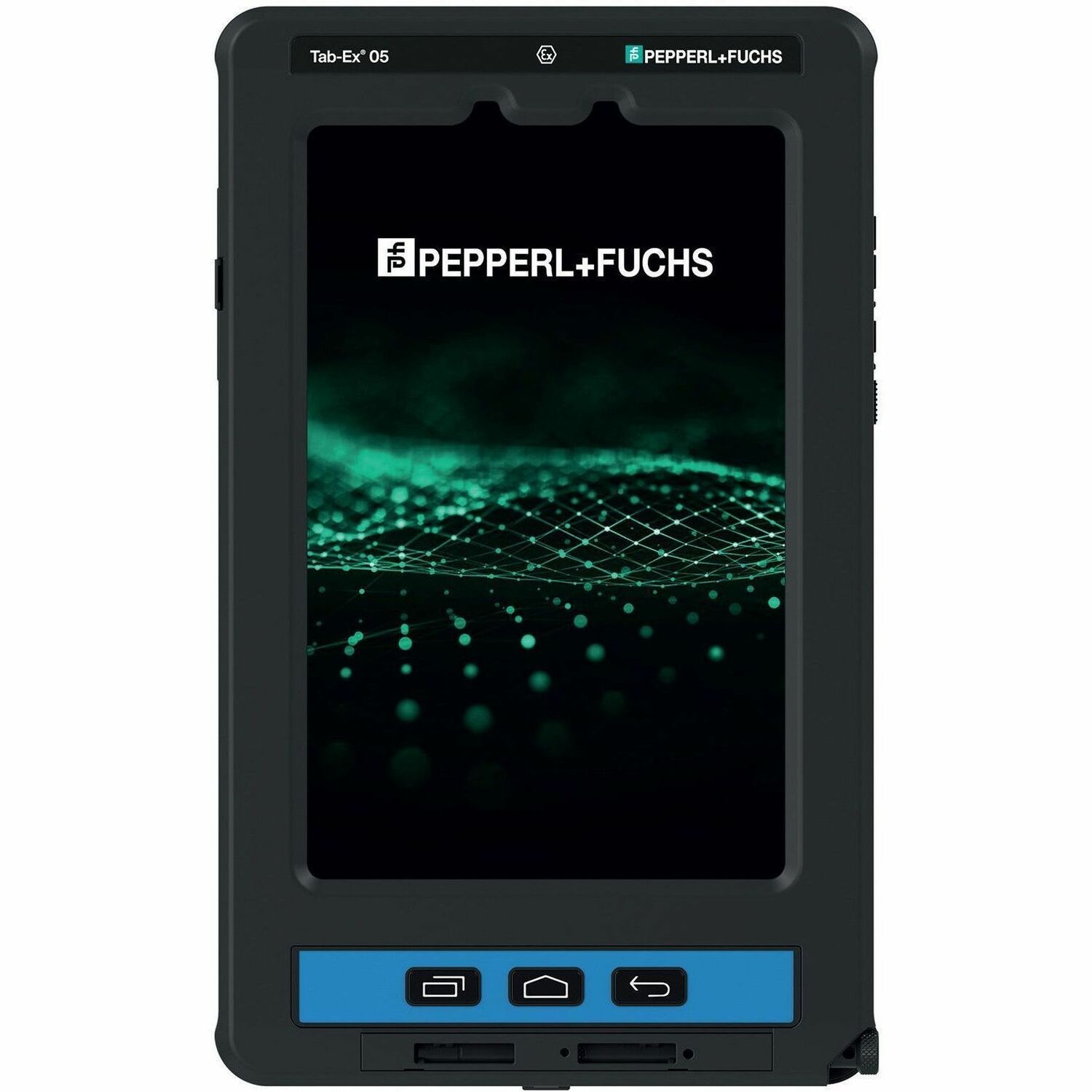

PEPPERL+FUCHS Tab-Ex 05 DZ1 Rugged Tablet - 8" WUXGA - Samsung Exynos 1380 (S5E8835) Octa-core - 6 GB - 128 GB Storage - 5G
Cortex A78 Quad-core (4 Core) 2.40 GHz + Cortex A55 Quad-core (4 Core) 2 GHz - Upto 1 TB Memory Card Supported Capacity - microSD Supported - 600 cd/m² - 1920 x 1200 - Cellular Phone Capability - EDGE, GPRS, LTE - Wi-Fi 6 - 5 Megapixel Front Camera - 14 Hours Maximum Battery Run Time
$4865.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Pepperl+Fuchs |
| Manufacturer Part Number | 480996-100016 |
| Brand Name | PEPPERL+FUCHS |
| Product Series | Tab-Ex 05 |
| Product Model | DZ1 |
| Product Name | Tab-Ex 05 DZ1 Tablet |
| Marketing Information | Rugged Android™ tablet for use in hazardous areas |
| Product Type | Tablet |
Technical Information
| Release Year | 2025 |
Processor
| Combined Processor Core | Octa-core |
| Processor Manufacturer | ARM |
| Processor Type | Cortex A78 |
| Processor Speed | 2.40 GHz |
| Processor Core | Quad-core (4 Core) |
| 2nd Processor Manufacturer | ARM |
| 2nd Processor Type | Cortex A55 |
| 2nd Processor Speed | 2 GHz |
| 2nd Processor Core | Quad-core (4 Core) |
| NPU Manufacturer | Samsung |
| NPU Name | AI Engine |
| NPU Performance | 4.9 TOPS |
Chipset
| Chipset Manufacturer | Samsung |
| Chipset Model | Exynos 1380 (S5E8835) |
Memory
| Standard Memory | 6 GB |
| Memory Technology | LPDDR4X |
| Memory Card Supported | microSD |
| Memory Card Supported Capacity | 1 TB |
Storage
| Flash Memory Capacity | 128 GB |
Display & Graphics
| Screen Size | 8" |
| Display Screen Type | TFT |
| Aspect Ratio | 16:10 |
| Screen Mode | WUXGA |
| Screen Resolution | 1920 x 1200 |
| Brightness | 600 cd/m² |
| Standard Refresh Rate | 120 Hz |
| Pixel Density (ppi) | 283 |
| Graphics Controller Manufacturer | ARM |
| Graphics Processor Core | Penta-core (5 Core) |
Network & Communication
| WWAN Supported | Yes |
| SIM Size Supported | Nano |
| Cellular Phone Capability | Yes |
| Cellular Network Supported |
|
| Cellular Generation | 5G |
| Cellular Data Connectivity Technology |
|
| GPS | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g |
| Wi-Fi Generation | Wi-Fi 6 |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Near Field Communication | Yes |
Interfaces/Ports
| USB Type-C | Yes |
| USB Type-C Detail | USB 2.0 (Type-C) |
Built-in Devices
| Sensor Type |
|
| Front Camera | Yes |
| Front Camera Aperture | f/2.2 |
| Front Camera Resolution | 5 Megapixel |
| Rear Camera | Yes |
| Rear Camera Aperture | f/1.9 |
| Rear Camera Resolution | 13 Megapixel |
| Focus Modes | Auto-focus |
| Digital Zoom | 8x |
Operating System
| Operating System Platform | Android |
Battery Information
| Battery Capacity | 5050 mAh |
| Maximum Battery Run Time | 14 Hours |
Physical Characteristics
| Rugged | Yes |
| Form Factor | Slate |
| Height | 10.34" (262.75 mm) |
| Width | 6.36" (161.50 mm) |
| Depth | 1.01" (25.75 mm) |
| Weight (Approximate) | 2.47 lb (1122 g) |
Miscellaneous
| Package Contents |
|
| Charger Included | Yes |
| Certifications & Standards |
|
| Features |
|
| Ingress Protection (IP) Rating | IP68 |
| Condition | No |
