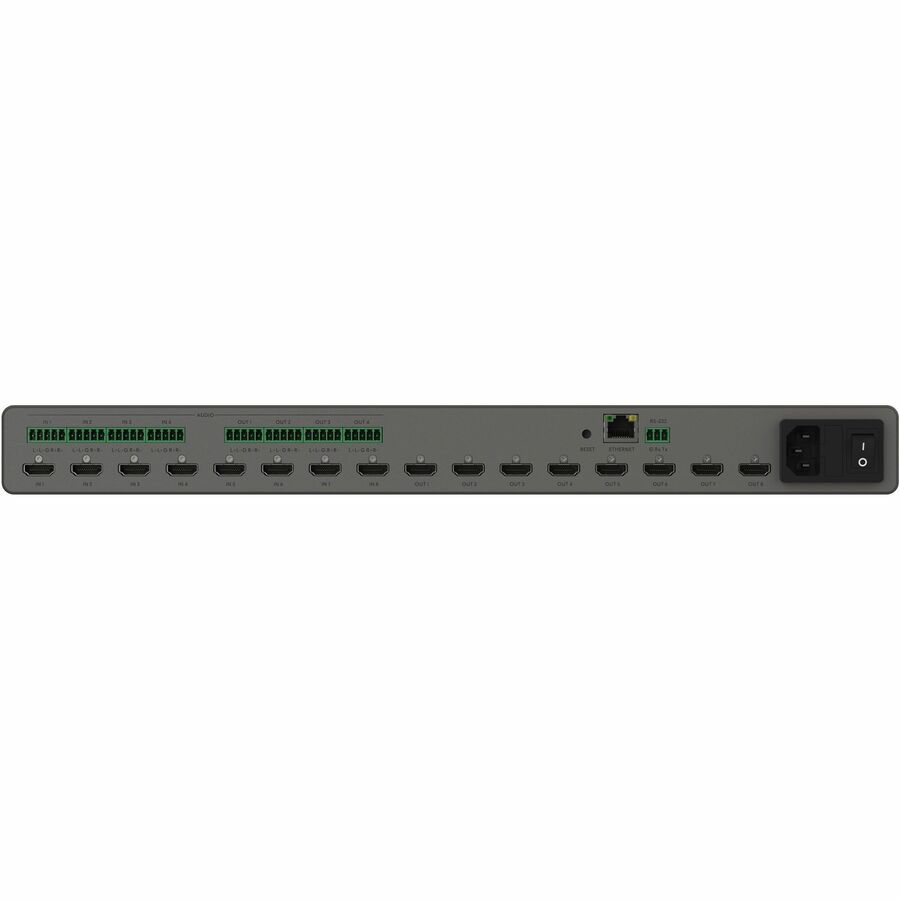

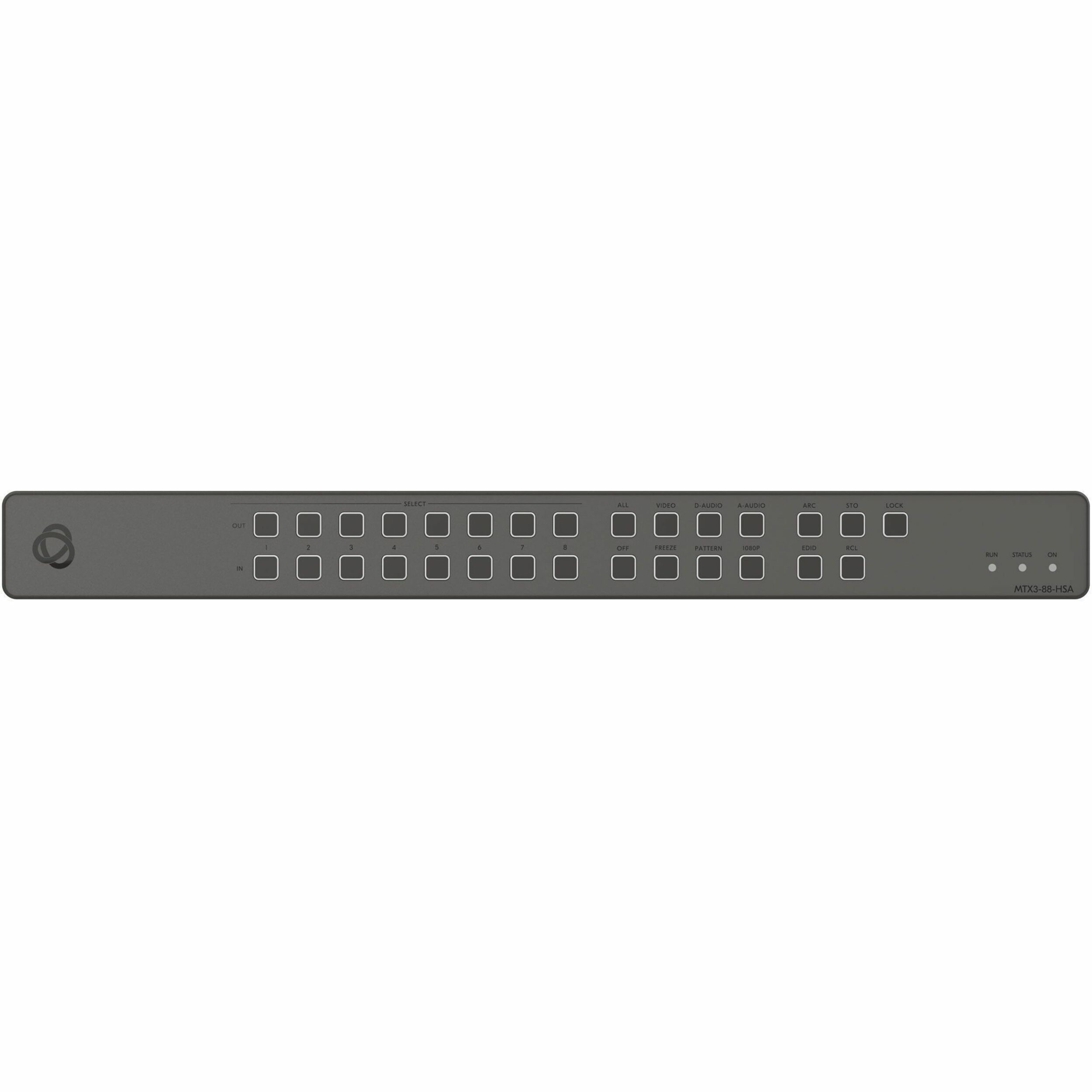

MTX3-88-HSA is a high-quality scaler-based matrix with eight HDMI inputs independently routable to eight HDMI outputs. The video scaling processor provides a fast and clean (<1sec) switching time. Each HDMI output supports down or up scaling to account for any sink / source capability difference. The integrated audio matrix, with four analog audio input and four analog audio output ports support routing of any digital or analog audio source to sink including ARC (Audio Return Channel) sources.

• Flexible and Safe Matrix Routing - Clean and fast switching between inputs, with smooth and safe transition between presented content on displays, for convenient presentation experience of end-users.
• Auto Switcher Ease of Use - Automatically plays the switched source signal on the connected display according to user-configured preferences, such as priority or last-connected input.
• HDMI Signal Switching - HDCP 2.3 compliant, supporting deep color, ARC, up to 7.1 uncompressed audio channels, and 3D, as specified in HDMI 2.0b.
• Multiview support - Each HDMI output can display content from two inputs in several layouts including picture-in-picture and side-by-side
• Splash screens support - Up to 16 pre-loaded images can be selected to any HDMI output. This provides a simple implementation of useful features like room welcome screens, emergency announcement screens and more.
• OSD - User defined information may be defined and displayed in OSD format on any output
• IP Gateway support - CEC control messages to sinks or sources as well as GPIO control messages may be defined and generated using the IP control gateway mechanism.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Individual EDID management per input for flexibly capturing and storing EDID from output-connected displays or custom files. Intelligent EDID handling and processing ensures plug & play operation for HDMI source and display systems.
• Independent Audio Breakaway and Routing - The digital audio signals passing through to the selectable outputs, and ARC (Audio Return Channel) signals from the output-connected displays, are extracted, converted to analog audio signals, and input to the built-in audio matrix. Flexible matrix routing enables insertion of any audio input signal, either the breakaway input signals or from the matrix input ports, to any AV matrix output port or audio matrix analog balanced ports. This allows playing the audio on a locally connected professional audio system (such as DSP) and speakers, in parallel to playing it on the speakers connected to the AV acceptor devices (such as TVs with speakers).
• Simple Control - The unit is controlled over secured IP integrated web GUI or alternatively by any controller supporting Kramer's P3K API commands.
• Supports legacy controllers using RS-232 protocol with P2K API commands.

• 100 V AC
• 240 V AC

• 8x8 4K60 4:4:4 HDMI+Audio Scaler Based Matrix/Switcher
• Rack Ears
• Power Cord
