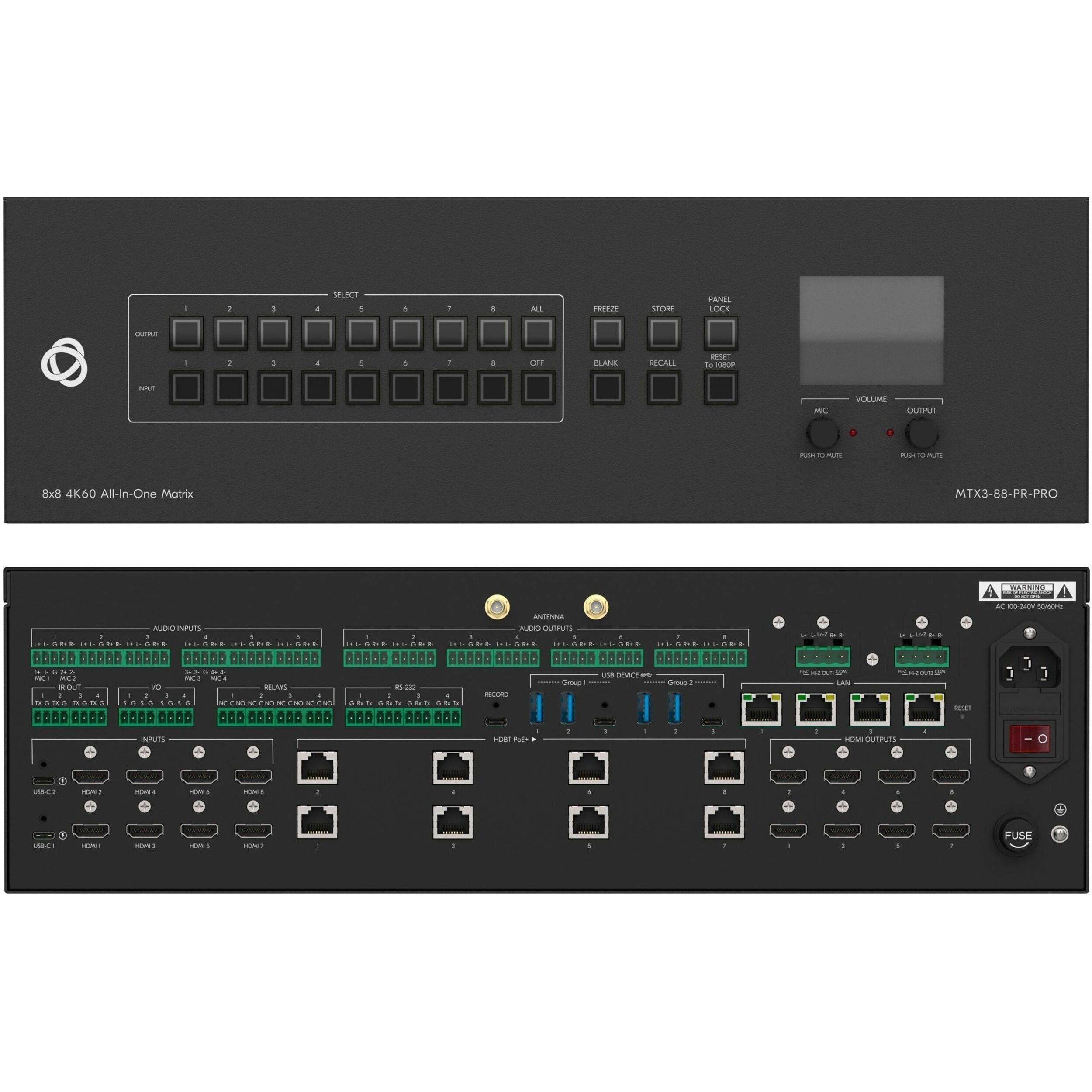

MTX3-88-PR-PRO is a high-performance video processing and fast-switching scaling matrix, with independent audio-visual (AV) and USB routing. The matrix has unmatched flexibility with USB-C, HDMI, HDBaseT 3.0 ports, air-casting inputs and network stream output.

The unit is enhanced with audio capabilities including an integrated DSP, integrated dual-zone power amplifier, DANTE and USB audio routing.

The flexibility and processing power of the MTX3-88-PR-PRO makes it a perfect system for numerous deployment scenarios.

• Premium All-in-one Matrix - High-resolution scaling matrix with multi-signal routing of wired user interfaces.
• Dual-screen USB-C routing capability allowing to connect any Alt-mode DP capable laptop with an extended desktop to be displayed on any selected pair of outputs.
• Eight HDBaseT 3.0 extension ports with PoE remote device powering. Each HDBaseT 3.0 port has configurable direction (input or output) and can extend multi-signals over twisted-pair copper infrastructures for un-matched system flexibility.
• Advance video processing capabilities with several Multiview presentation layouts and two independent video wall presentations.
• Rich set of audio interface options including analog (line, microphone and speaker), Dante and USB audio devices.
• A sophisticated audio DSP configured by an intuitive graphic dash-board style user interface. The audio DSP allows mixing, condensing, expanding, noise filtering and echo cancelling to ensure echo-free, noise-free, and crystal-clear sound distribution.
• Fast <1sec AV Routing - Clean and instantaneous routing between matrix inputs and outputs, with smooth and uninterrupted transition between presented content on local and remote displays.
• Hybrid-meeting Collaborative Sessions - Controllable multi-signals routing of both AV and USB host inputs. AV and USB routing may be performed independently or in USB-follow-AV mode.
• Six local USB device ports divisible into two groups for enhanced host - device USB routing flexibility.
• 60W charging for USB-C connected devices.
• High-Performance Scaling Experience - Built-in ProcAmp & high-resolution scaling technology for optimal up - or down image scaling.
• Open Standard Streaming and Recording - Session content sharing and recording via the popular H264/5 open streaming standard over IT Lan and WAN networks.
• Room Control - Includes gateways and a rich set of relays, RS-232 and GPIOs to reduce the systems complexity offering the end-user a smooth and sophisticated room control experience.

• Interactive Display
• Amplifier

• 85 V AC
• 240 V AC

• 8x8 4K60 All in one Hybrid Presentation Matrix
• 2 x Power Cords
• 1 x Multi-signal USB-C Cable (1m)
• 2 x Fuses
• 1 x Set of Rack Ears

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
