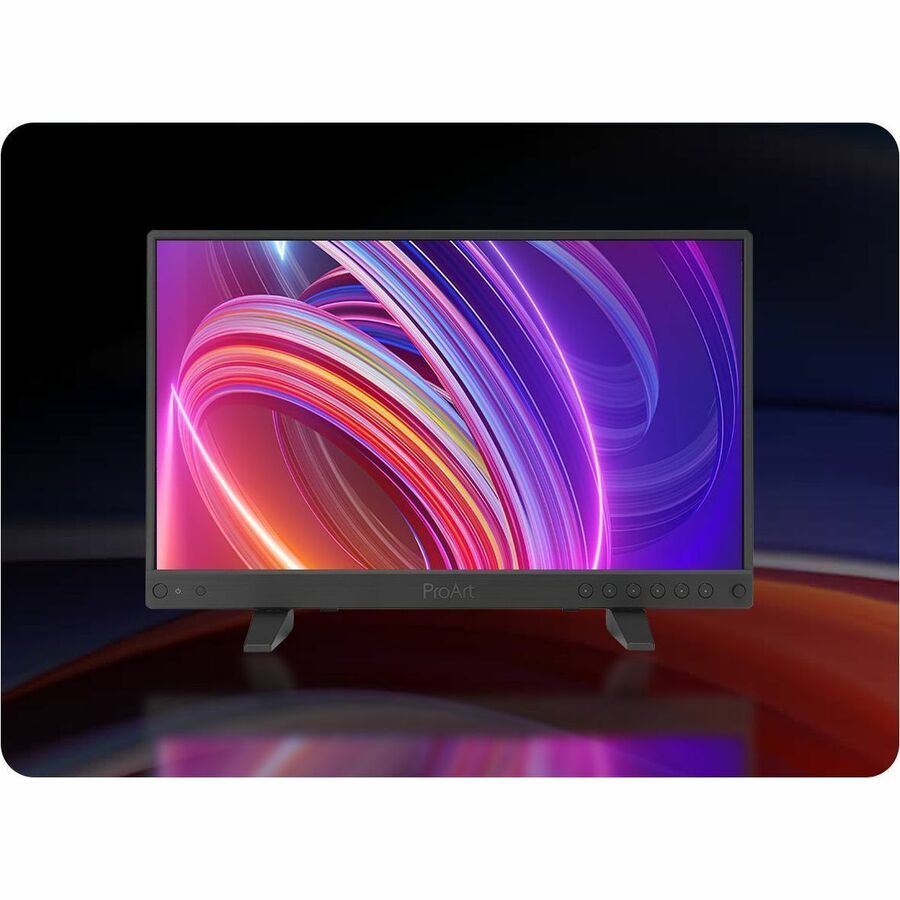

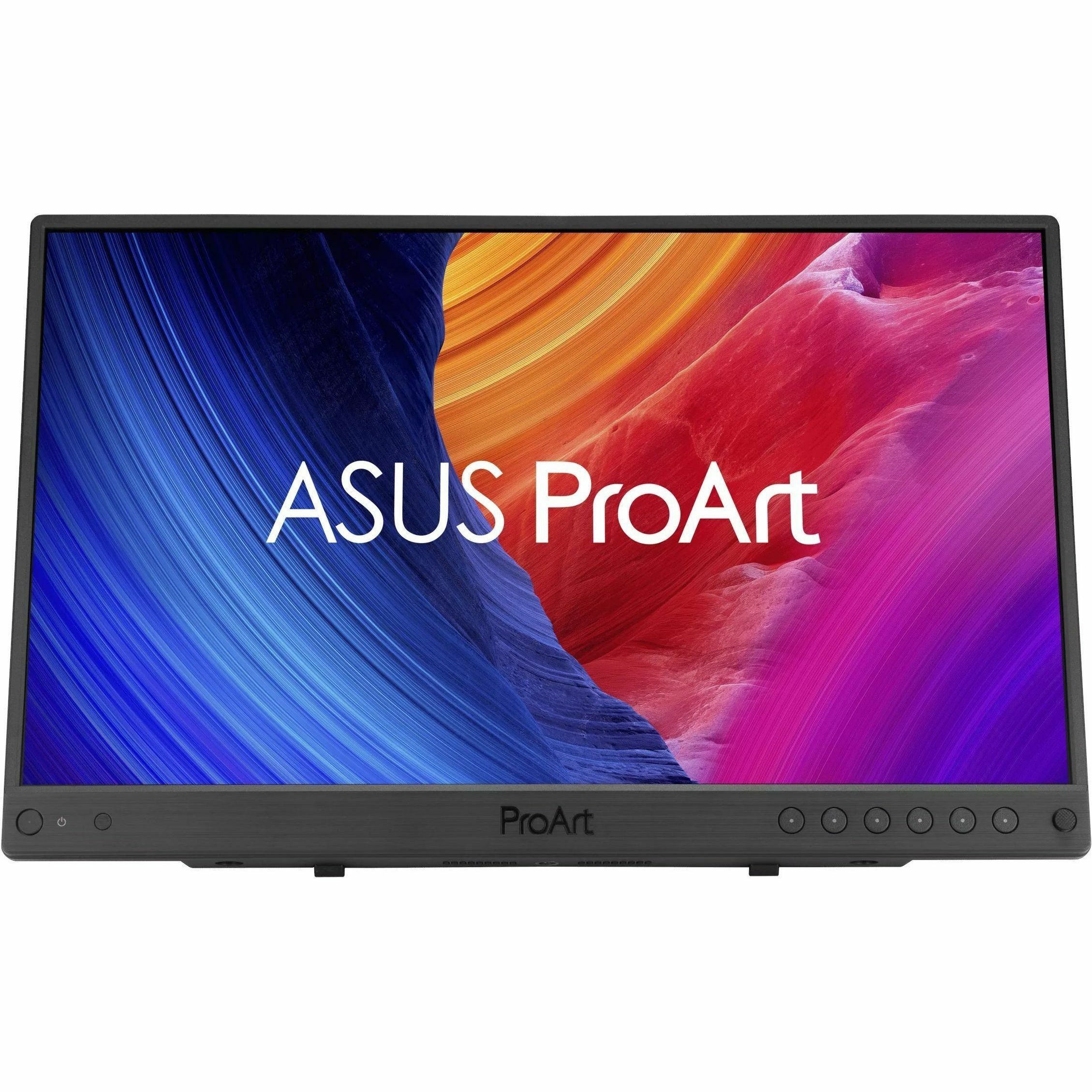

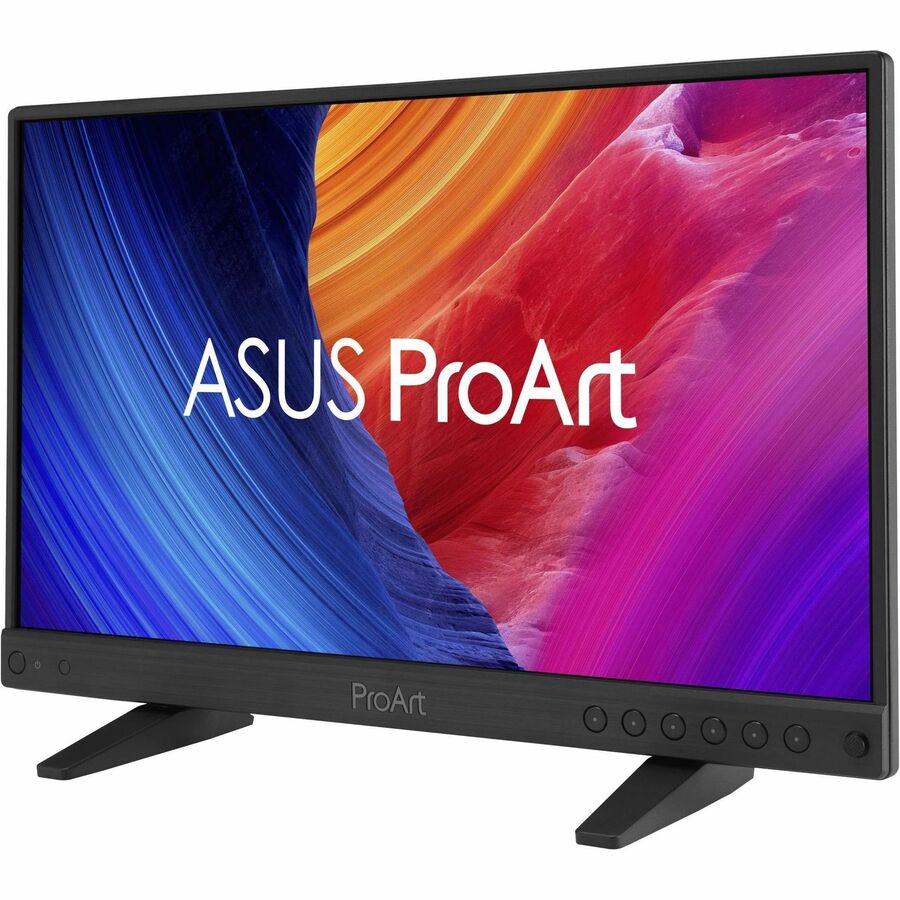

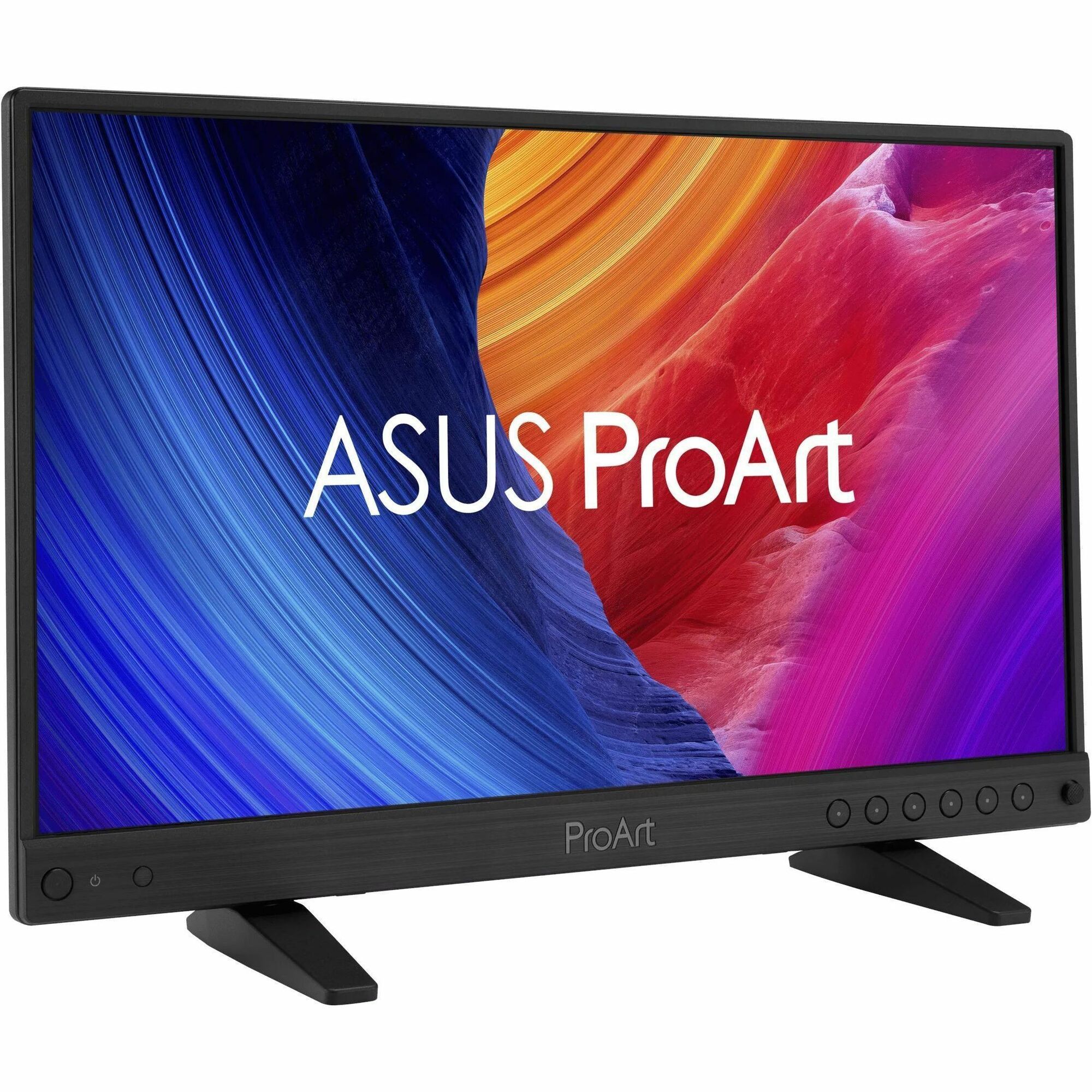

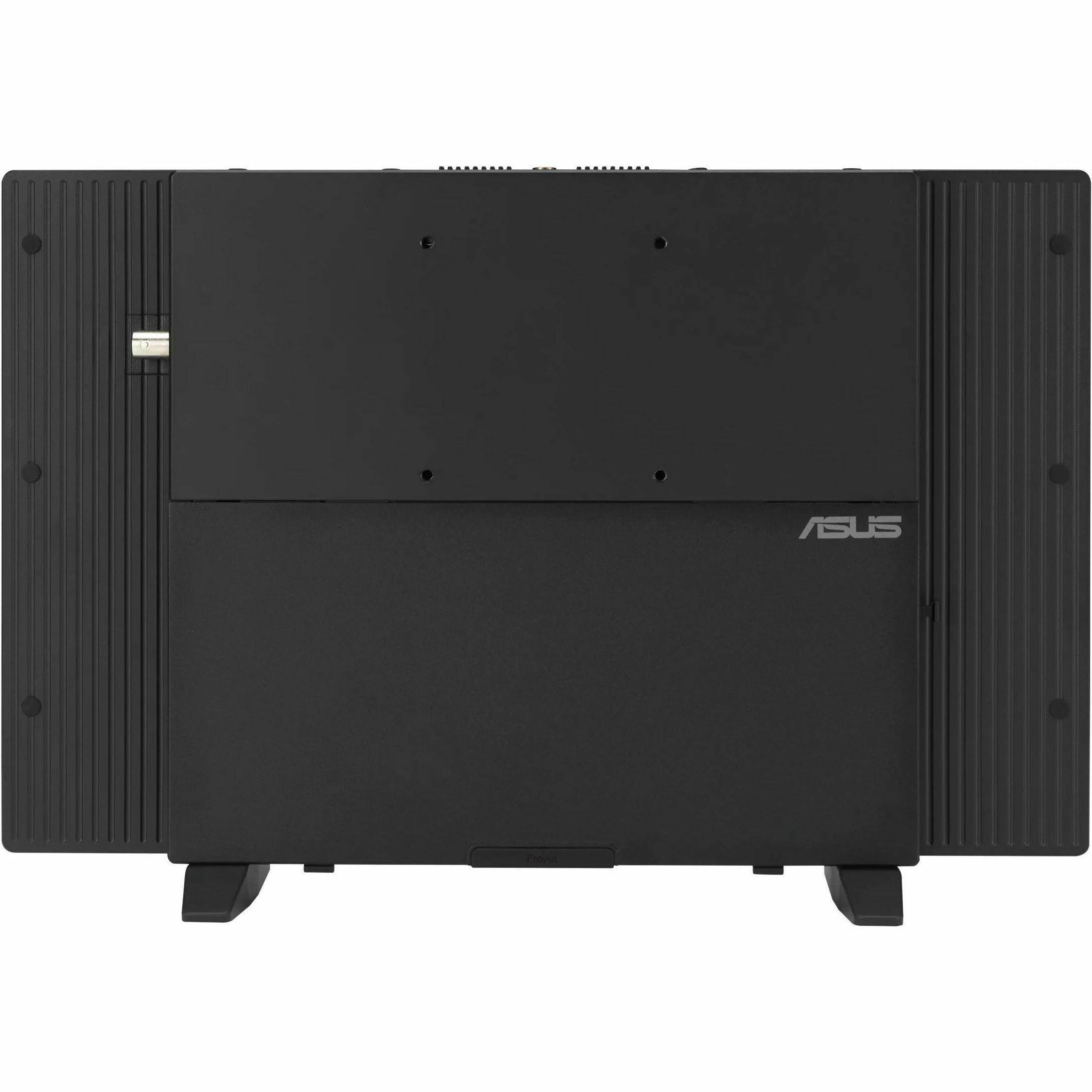

Asus ProArt PA16USV 16" Class 4K UHD LED Monitor - 16:9 - Black

15.6" Viewable - In-plane Switching (IPS) Technology - LED Backlight - 3840 x 2160 - 16.7 Million Colors - 400 cd/m² - 5 ms - 60 Hz Refresh Rate - Tilt - USB Type-C - HDMI - VESA Mount Compatible - USB Hub

Part No. PA16USV

by ASUS Computer International

$1530.99

User Manual

Specifications

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	PA16USV
Brand Name	Asus
Product Line	ProArt
Product Model	PA16USV
Product Name	ProArt PA16USV Widescreen LED Monitor

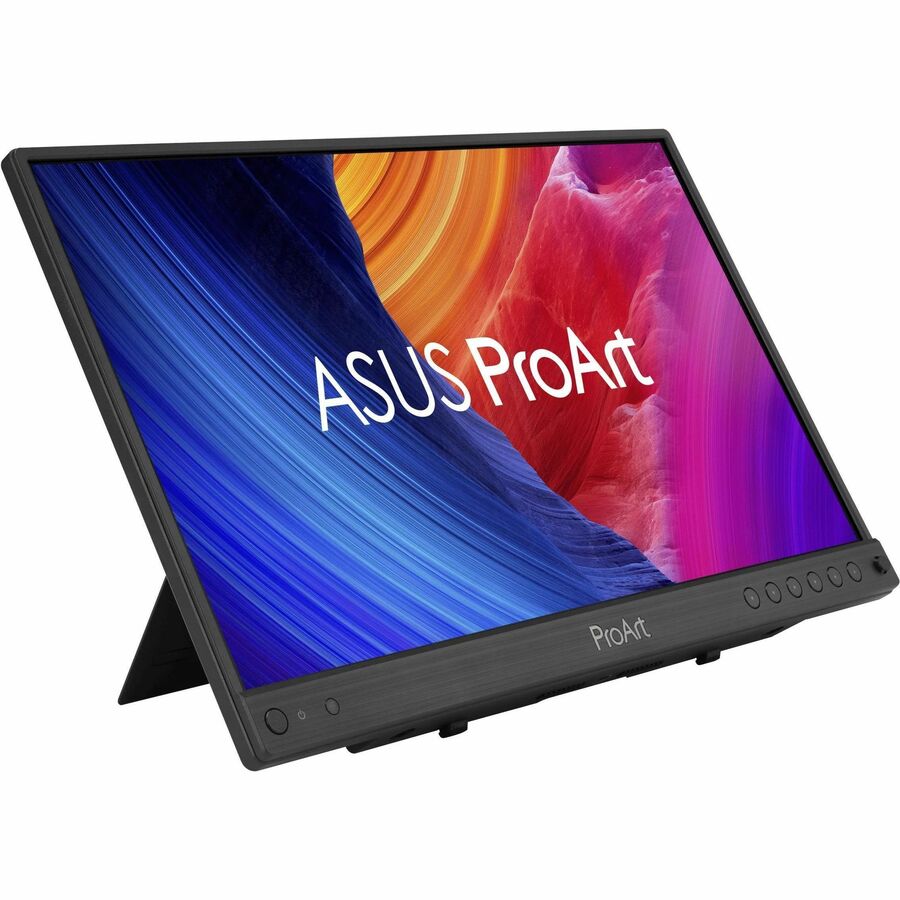

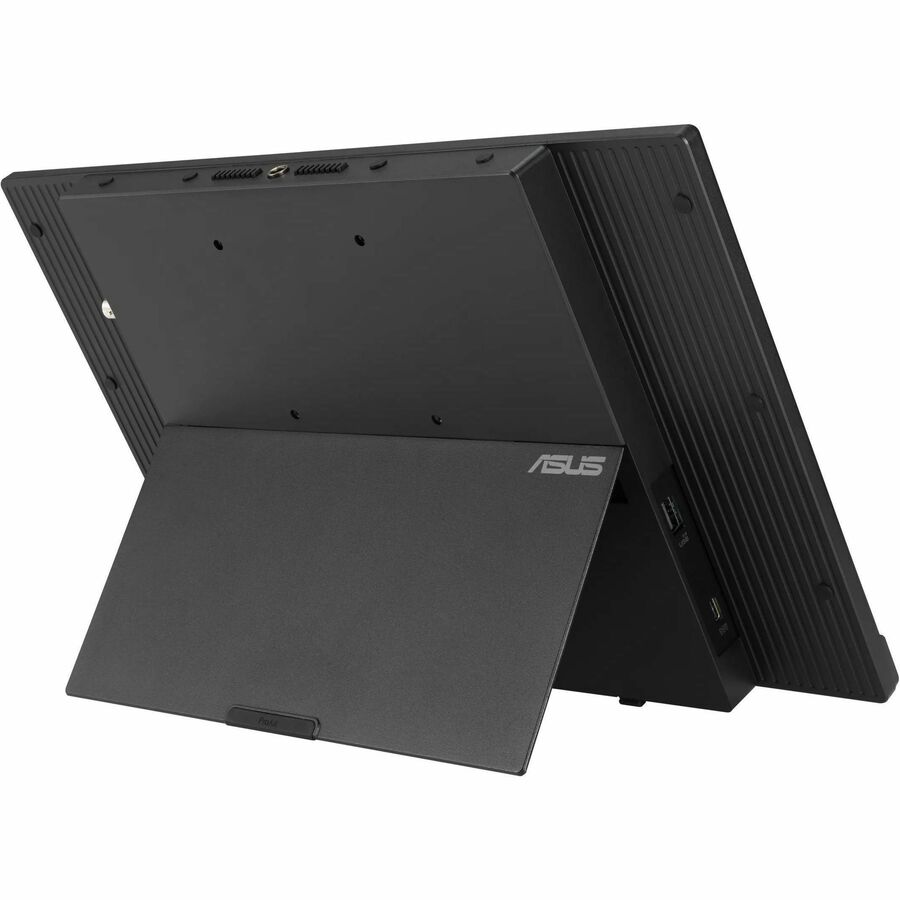

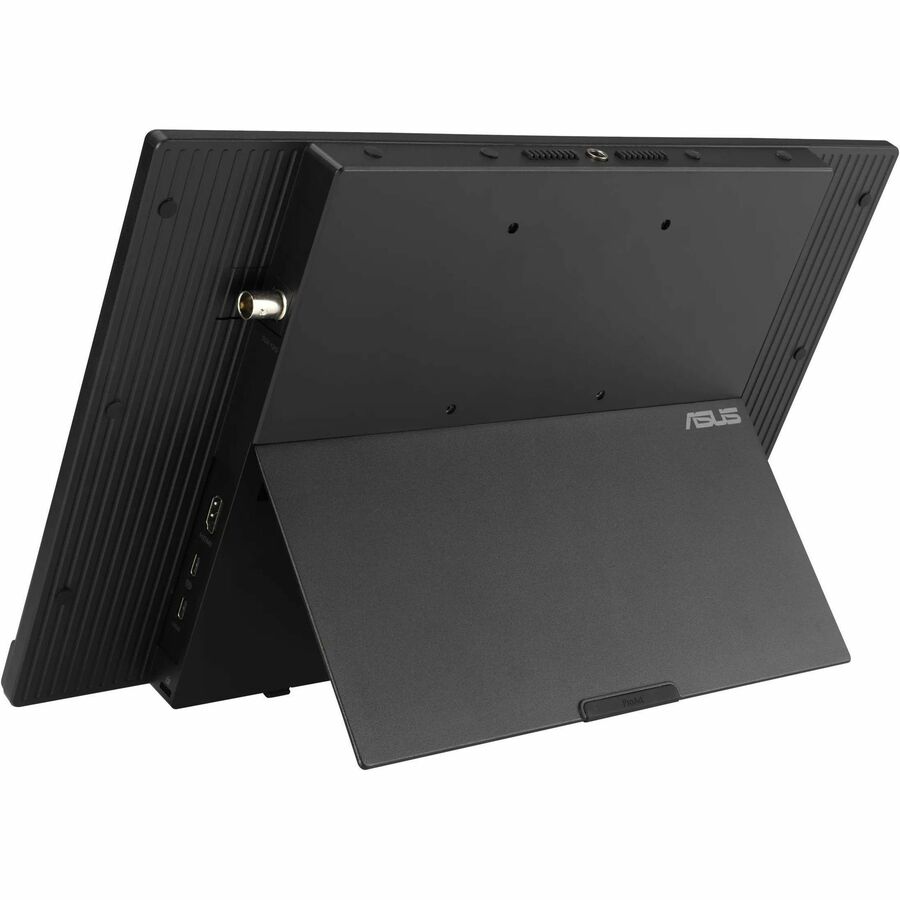

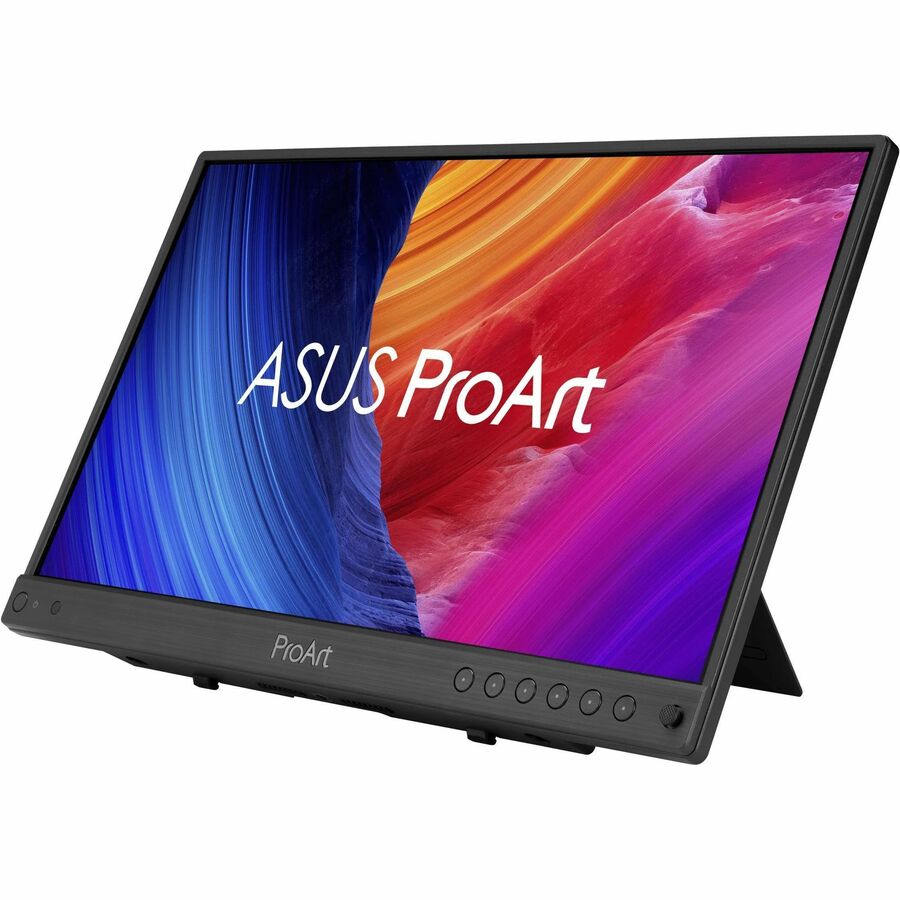

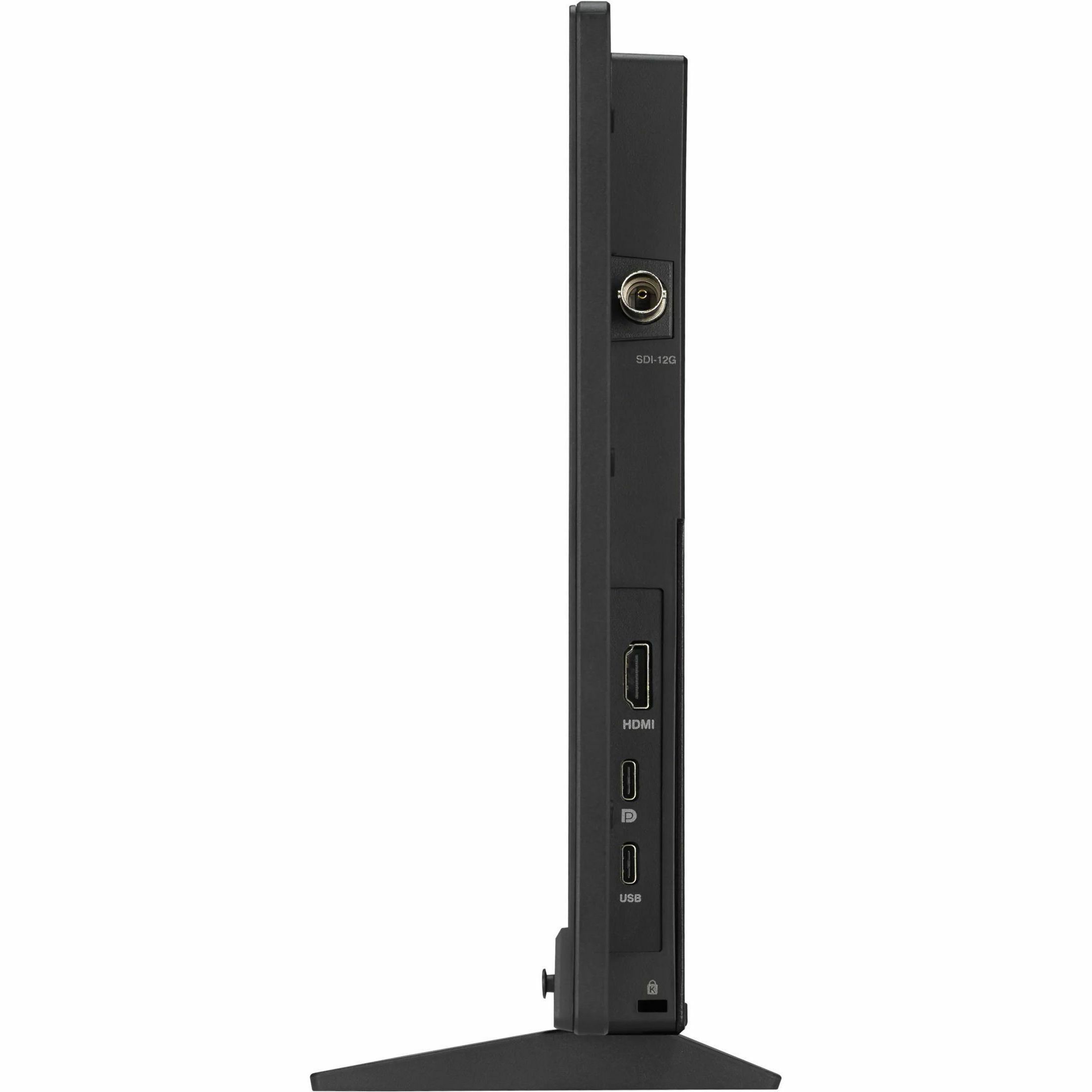

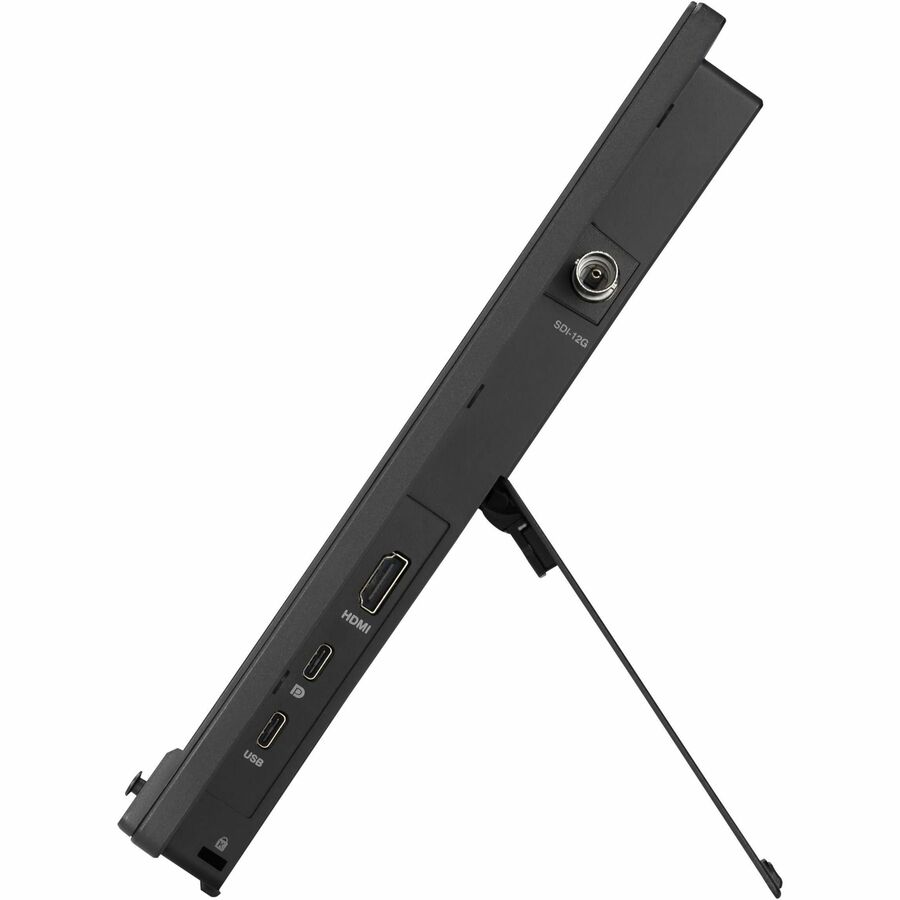

Marketing Information	ASUS ProArt Display PA16USV Professional Monitor - 15.6-inch, 4K UHD (3840 x 2160), IPS, HDR-10, 100% sRGB / Rec.709, E < 2, Calman Verified, 12G-SDI, HDMI, USB-C, Carton reusable as monitor hood, Green Sustainability 15.6-inch 4K HDR (3840 x 2160) IPS panel with 400 nits peak brightness Wide color gamut with 100% sRGB and 100% Rec.709 coverage Calman Verified and factory calibrated to Delta E < 2 color accuracy 12G-SDI supports 4K@60Hz real-time playback without any compression Extensive connectivity including 12G-SDI input, USB-C (DP Alt Mode), HDMI and USB hub for the most flexibility Includes mini stand and kickstand two options to suit any scenario or setup Green Sustainability: paper packaging and carton reusable as monitor hood, energy-efficient environmental standards ProArt Display PA16USV \| On-set SDI Portable Monitor ProArt Display PA16USV is 15.6-inch 4K HDR monitor offers 282 high PPI IPS panel with 100% sRGB / Rec.709 coverage to deliver highly accurate colors that bring out the finest details in your creations. 12G-SDI input can receive video signals up to 4K@60Hz and support PiP/PbP function. Versatile design includes a mini stand and a kickstand, offering two convenient options to perfectly fit any scenario. Additionally, it features VESA wall-mount compatibility and dual tripod holes for ultimate flexibility in positioning. Empowering Content Creators \| Digital Imaging Technician (DIT) Designed for on-set color grading and production workflow management. 12G-SDI input allows direct connection of SDI PCIe capture cards or boxes, delivering 4K uncompressed video for precise image performance. It ensures accurate color reproduction and detail, presenting them to directors and customers. Director Monitoring Directors need a high-quality SDI monitor for on-set review and decision-making. It should provide precise color reproduction, allowing directors to see what the camera captures and make informed decisions on lighting and framing. Focus Puller / Camera Assistant Focus pullers require a reliable SDI monitor with excellent resolution and color accuracy. It should provide clear images for precise focus adjustments during shooting, ensuring sharpness and clarity in dynamic scenes. Uncompressed 4K Video 15.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail. ProArt Display PA16USV features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency. Lifelike Views With Wide View Angle Frameless IPS panel provides wide viewing angles, both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.
Product Type	LED Monitor

Technical Information

Number of Screens	1
Screen Size Class	16"
Viewable Screen Size	15.6"
Screen Mode	4K UHD
Screen Surface	Anti-glare
Panel Technology	In-plane Switching (IPS) Technology
Response Time	5 ms
Response Time Details	5 ms GTG
Aspect Ratio	16:9
Pixel Pitch	0.08900 mm x 0.08900 mm
Horizontal Viewing Angle	170°
Vertical Viewing Angle	170°
Mount Type	Wall Mountable
Backlight Technology	LED
HDCP Supported	Yes
Features	Anti-glare sRGB Wide Viewing Angle HDR10 Flicker-free Trace Free Technology ProArt Palette Color Temperature Selection QuickFit Plus DisplayWidget Center Picture by Picture Picture in Picture Low Blue Light Multiple HDR Mode Ambient Light Sensor Kensington Lock Tripod Socket Calman Verified Portable Mercury-free Eco Mode High Dynamic Range (HDR) Blue Light Filter
Horizontal Frequency	27 kHz to 135 kHz - Digital
Vertical Frequency	30 Hz to 60 Hz - Digital
Adjustable Stand	No
Stand Adjustments	Tilt
Active Display Area (H x V)	13.55" (344.20 mm) x 7.62" (193.60 mm)

Video

Maximum Resolution	3840 x 2160
Standard Refresh Rate	60 Hz
Color Supported	16.7 Million Colors
Native Contrast Ratio	1,200:1
Brightness	400 cd/m²
Color Gamut	100% sRGB 100% Rec. 709
Pixel Per Inch (PPI)	282

Audio

Speakers	No

Interfaces/Ports

Network (RJ-45)	No
HDMI	Yes
HDMI Version	2

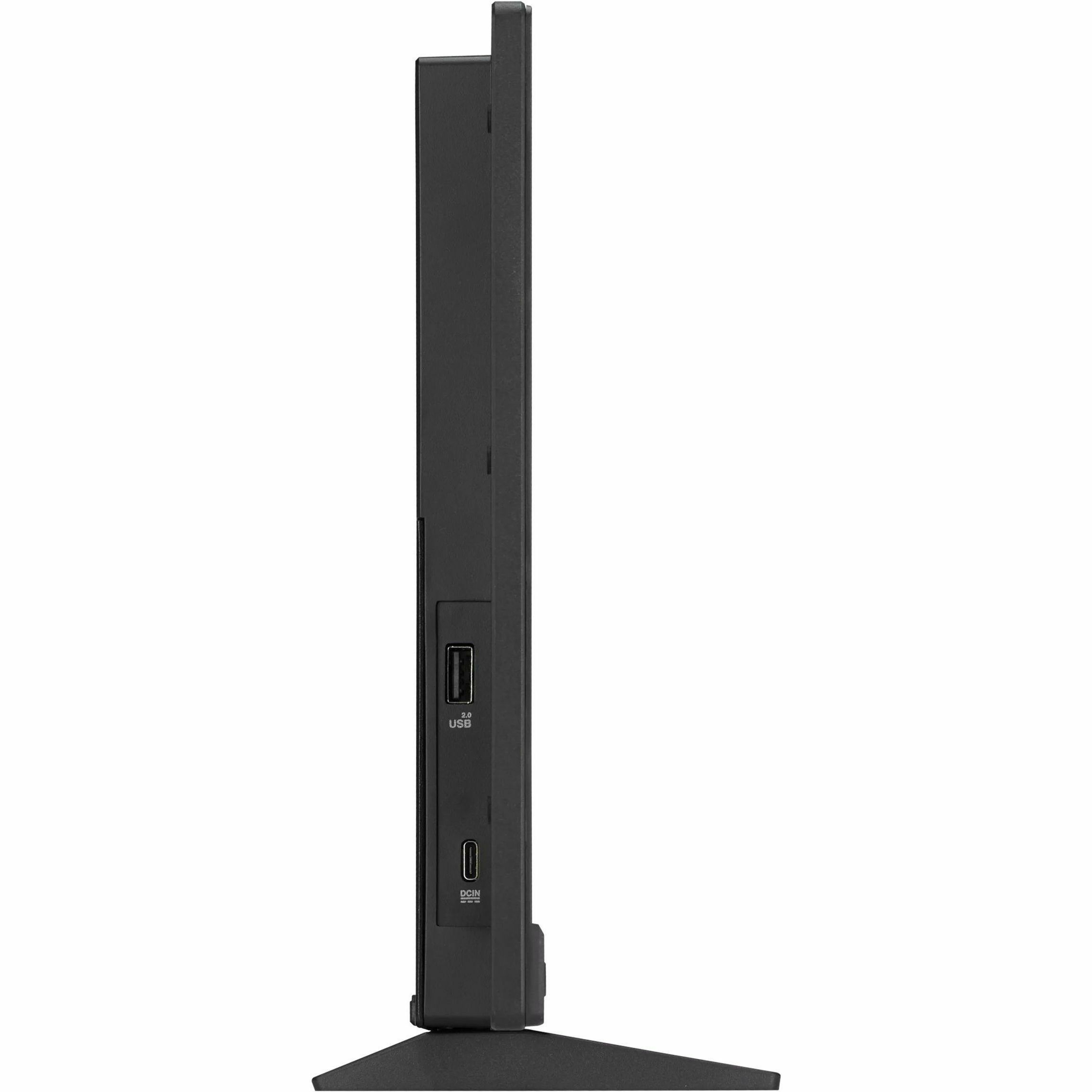

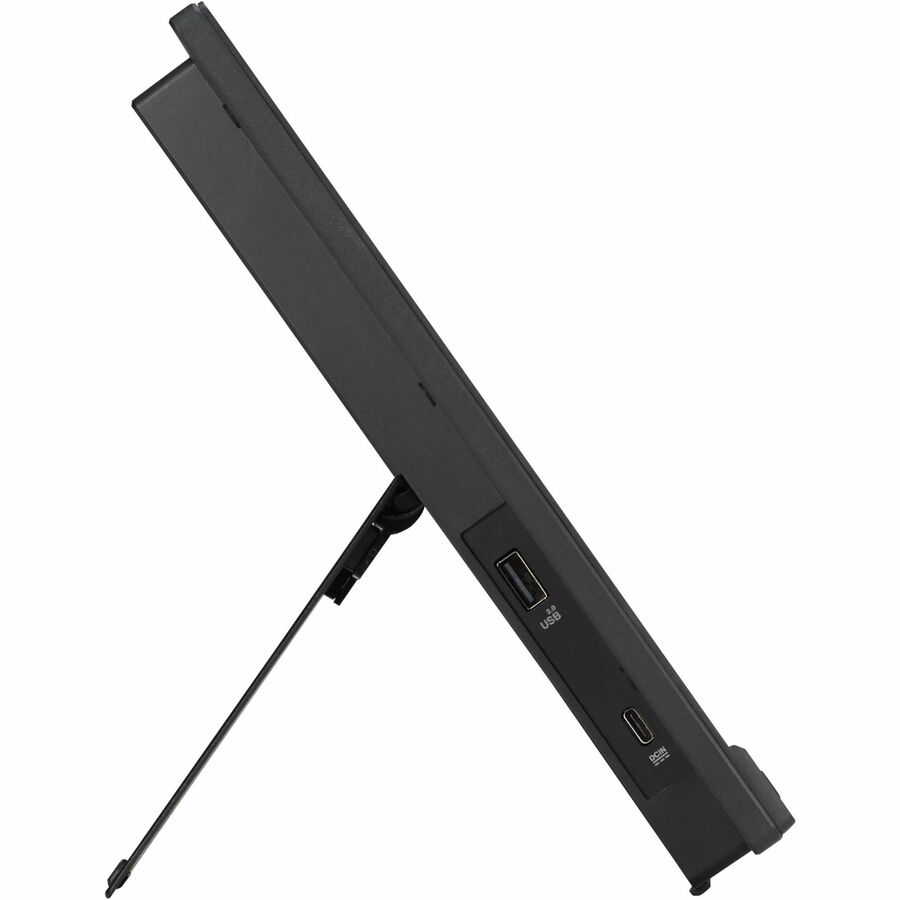

USB	Yes
USB Type-C	Yes
Total Number of HDMI Ports	1
Number of USB Ports	2
Number of USB Type-C 3.2 Gen 1 Ports	1
Total Number of USB Type-C Ports	1
Number of HDMI 2.0 Ports	1

Built-in Devices

Built-in Devices	USB Hub

Power Description

Frequency	50 Hz 60 Hz

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75
Color Family	Black
Product Color	Black
Height	8.85" (224.90 mm)
Width	14.07" (357.40 mm)
Depth	1.05" (26.60 mm)
Height with Stand	9.55" (242.50 mm)
Width with Stand	14.07" (357.40 mm)
Depth with Stand	4.30" (109.30 mm)
Weight (Approximate)	2.87 lb (1300 g)
Weight with Stand (Approximate)	3.09 lb (1400 g)

Miscellaneous

Package Contents	ProArt PA16USV Widescreen LED Monitor Color Pre-Calibration Report HDMI Cable Mini Stand Power Adapter Power Cord Quick Start Guide USB-C Cable Warranty Card Welcome Card
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Condition	No
UPC	197105406131

Warranty

Limited Warranty	3 Year
