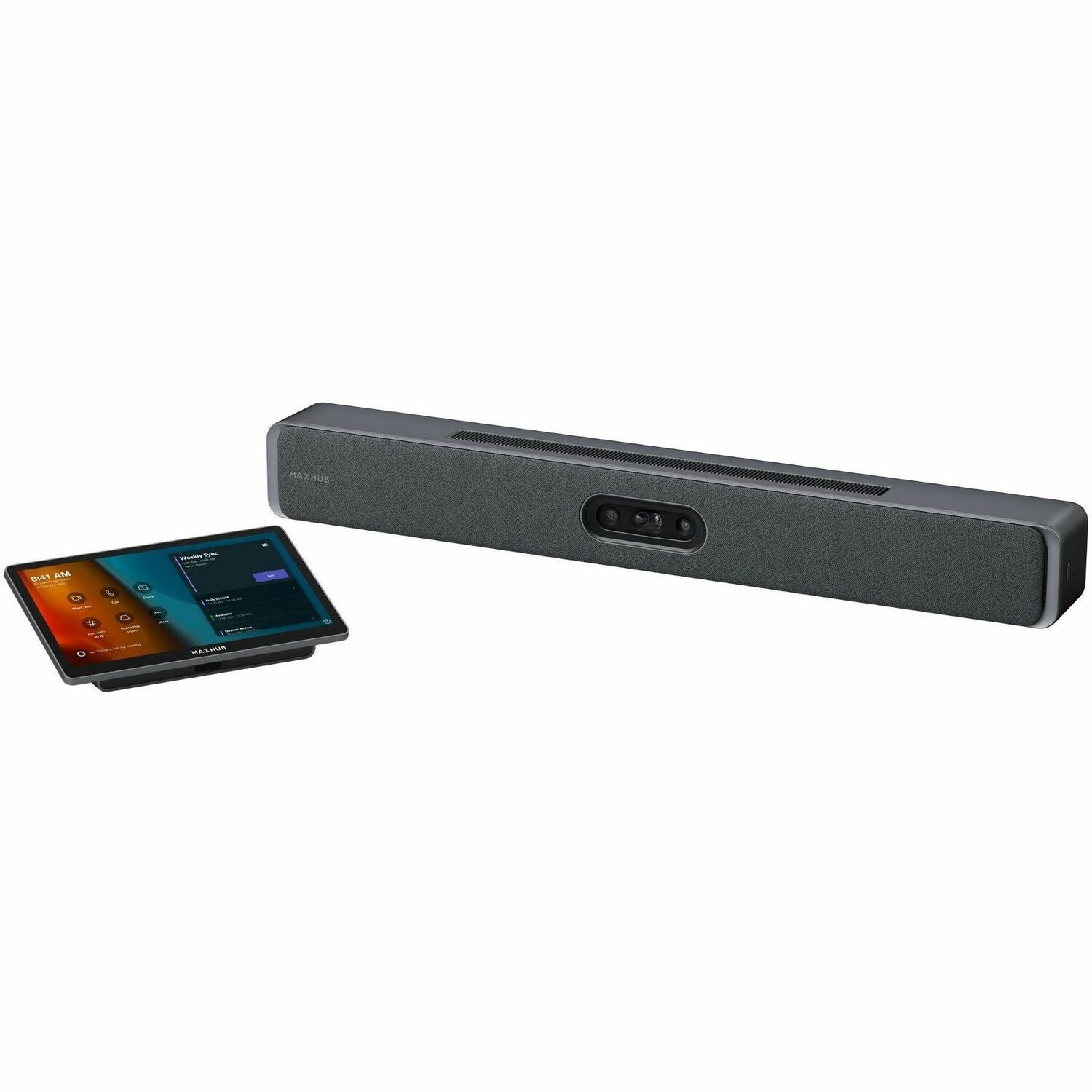

The MAXHUB XBar V70 is an all-in-one Android-based videobar designed for premium medium to large meeting rooms. Equipped with a 200MP quad-camera system and studio-grade dual speakers, it delivers exceptional audiovisual performance. Enhanced by AI noise reduction, the built-in 16-microphone array ensures crystal-clear audio experience. It can eliminate background interference like keyboard clicks or air conditioning

Featuring a dedicated AI chipset, the XBar V70 supports advanced functionalities including Auto Framing, Speaker Tracking, Intelligent Focus and Smart Gathering. Its plug-and-play deployment simplifies installation and remote maintenance, while design for Microsoft Device Ecosystem Platform (MDEP) ensures seamless integration.

• Video Conference Equipment
• Meeting Room

• HDMI
• USB Type A
• Network (RJ-45)
• USB Type C
• USB
• USB Type B

XBar V70:

• Product Dimension (L×W×H) 840.6 × 117.6 × 104 mm / 33.1 × 4.6 × 4.1 in
• Net Weight 4.3 kg / 9.7 lb
• Camera Sensor: 1/1.55 inch

Panel AP30

• Display Size: 11.6 inch
• Product Dimension (L×W×H) 278 × 164 × 82.4 mm / 11 × 6.4 × 3.2 inch
• Product Weight 1.16 kg / 2.56 lb

XBar V70: | Camera

Camera Quantity 4

Pixel 50MP × 4

Aperture F/2.4

Aperture F/2.4

Resolution & Frame Rate:

H.264 / MJPEG 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720, 1024 × 576, 960 × 540, 800 × 600, 640 × 360.

YUY2 1920 × 1080, 1280 × 720, 640 × 360

ZOOM 8x hybrid Zoom

Wide Camera 130° (D), 125° (H), 50° (V)

Telephoto Camera 52° (D), 42° (H), 32° (V)

Privacy Shutter Electric and automatical lens shutter

AI Feature Auto Framing Speaker Tracking Intelligent Focus Smart Gathering Video Fence

Power: Power Adapter AC 100-240 V Input and DC 19V/4.5A Output

Audio Speaker:

Speaker Quantity 2

Sound Channel 2.0

Total Power (Max.) 20W + 20W

Sound Pressure (Max.) 88dB (+/-2dB) SPL@1W/ 1/2meter

Frequency Range 80 Hz ~ 20 KHz

Microphone:

Microphone Quantity 16-mic array

Pickup Range 10 m

Frequency Range 20 Hz ~ 16 KH

Sensitivity -36 ± 1 dBFS

Sampling 48 KHz

Expansion Supports 2 expansion microphones

AI Feature Noise Reduction Echo Cancellation Anti-Reverberation AGC Algorithm Full-Duplex

Input/Output Port:

USB-A (2.0) × 1 For firmware update and debug.

HDMI In × 1 Up to 4K@60Hz

HDMI Out × 2 Up to 4K@60Hz, CEC supported

USB-B 3.0 (Device) × 1 For BYOD Mode

DC In × 1 For 19V power supply.

Audio In × 1 To connect third-party device for audio input.

RJ45 (Internet) × 1 For network connection.

RJ45 (M Link) × 1 To connect to the panel.

RJ45 (Ext) × 1 To connect expansion device (microphone, camera, etc.)

USB-A (3.0) × 1 For firmware update and debug.

Audio Out × 1 To connect third-party device for audio output.

Panel AP30:

Display

Size 11.6 inch

Resolution 1920 × 1080

Frequency Refresh Rate 60 Hz

Backlight Unit ELED

Brightness With Glass 250 nits (Min.) 300 nits (Max.)

Life Time ≥ 20000 hours

Input/Output Port:

RJ45 (Internet) × 1

RJ45 (Ext) × 1

DC In (Power) × 1

Type-C (Ingest) × 1

USB 2.0 (Pairing Wireless Dongle)

Power: Power Input 19V DC 4.5A Power Output Type-C PD 65W (Max.)

Touch System: Type Capacitive touch Surface Treatment Anti-fingerprint, Anti-glare

Sensor Motion Sensor: PIR sensor for automatic wake-up

• 1 x XBar V70
• 1 x Power Adapter
• 1 x AC Cable (1.5 m / 4.9 ft)
• 2 x HDMI Cable (3 m / 9.8 ft)
• 1 x Ethernet Cable (3 m / 9.8 ft)
• 1 x Mounted Components
• 1 x Panel AP30
• 1 x Type-C Cable (1.5 m / 4.92 ft)
• 1 x Ethernet Cable (7.5 m / 24.61 ft)
• 1 x Screwdriver
• 1 x Power Adapter
• 1 x AC Cable (1.5 m / 4.9 ft)
