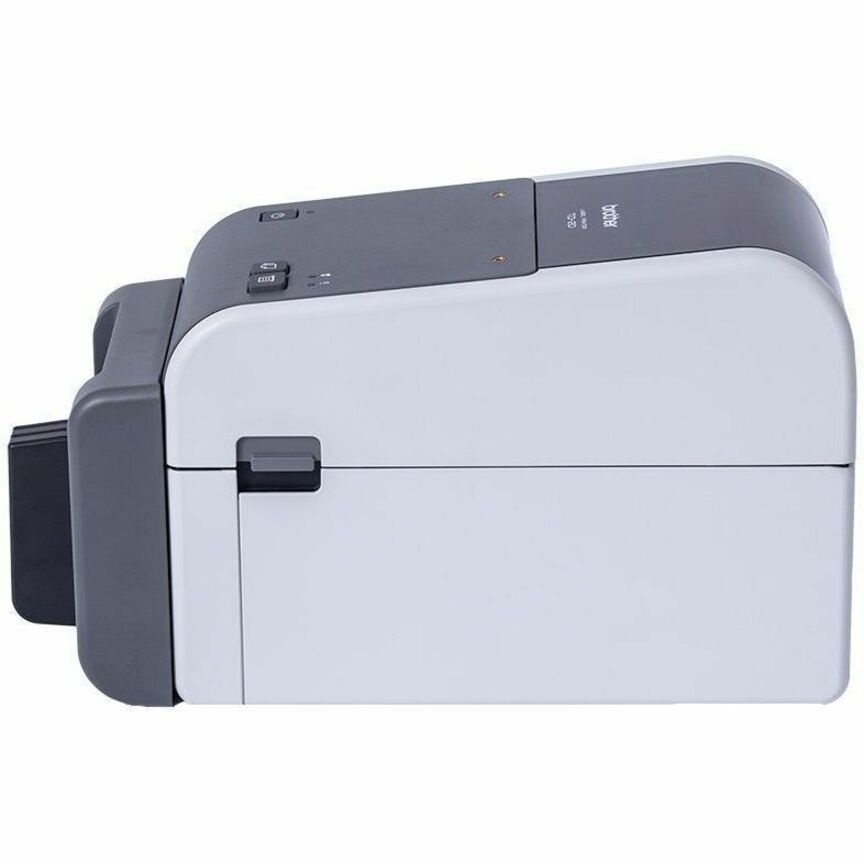

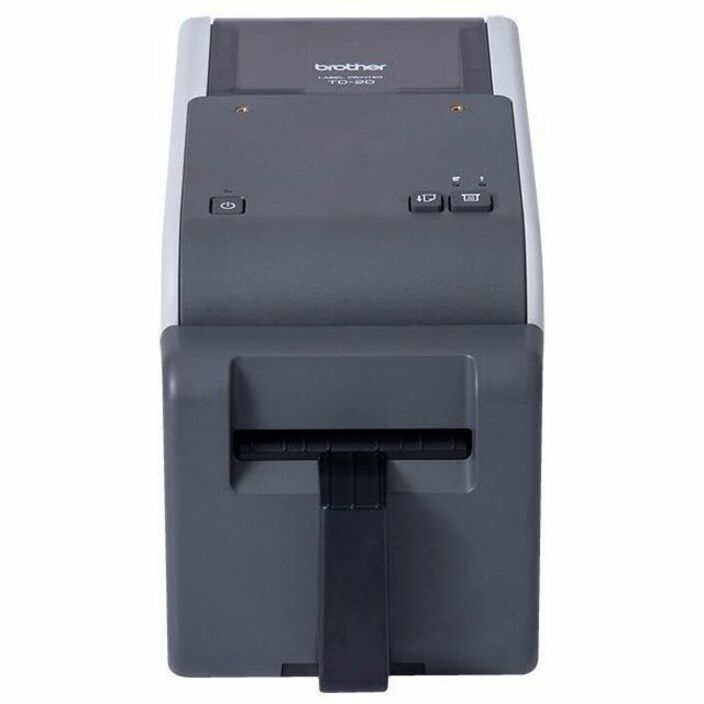

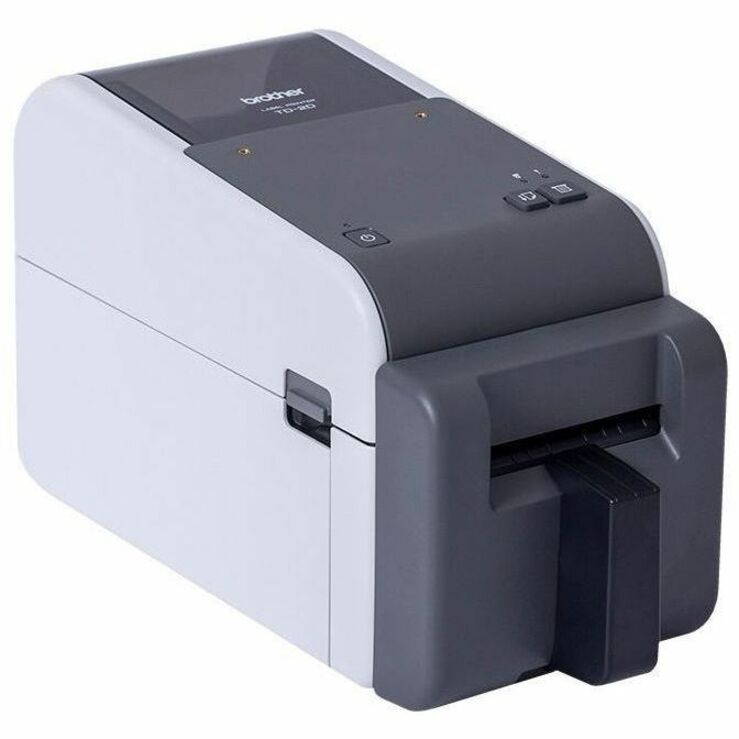

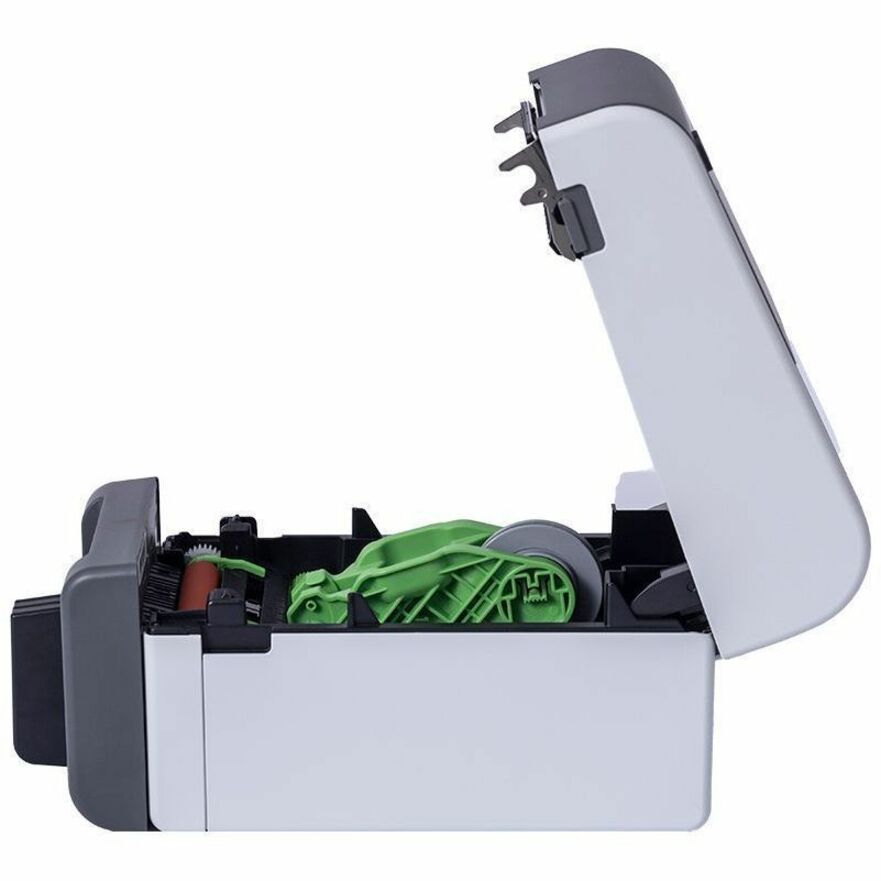

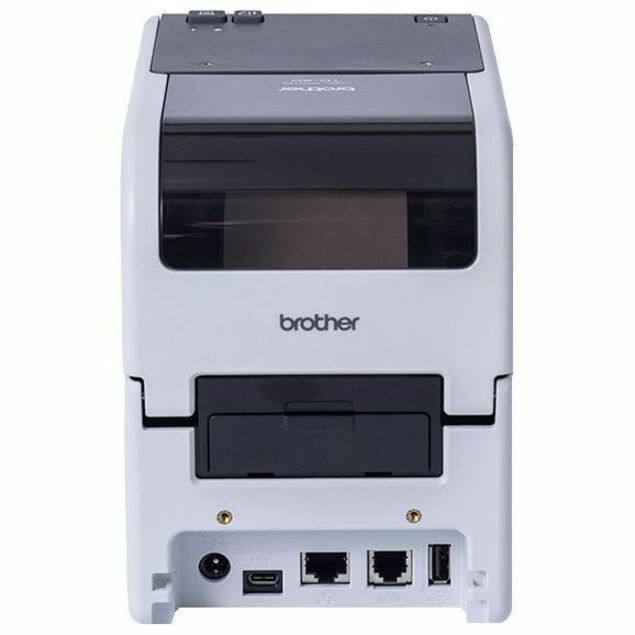

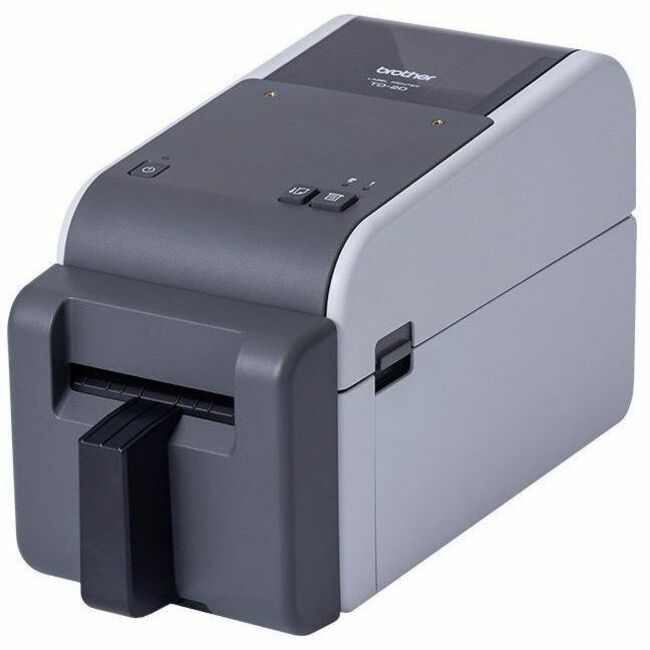

Brother TD-2320DFC203 Desktop, Retail, Logistic, Manufacturing, Healthcare, Warehouse Direct Thermal Printer - Desktop - Label Print - Fast Ethernet - USB - USB Host - Serial

Part No. TD2320DFC203

by Brother Industries, Ltd

Brother TD-2320DFC203 Desktop, Retail, Logistic, Manufacturing, Healthcare, Warehouse Direct Thermal Printer - Desktop - Label Print - Fast Ethernet - USB - USB Host - Serial

118.11" (3000 mm) Print Length - 2.32" (59 mm) Print Width - 203 dpi - 2.48" (63 mm) Label Width - Raster, P-touch Template, ESC/P, ZPL2, CPCL, DPL, EPL2 Emulation

Part No. TD2320DFC203

by Brother Industries, Ltd

$703.99
General Information
ManufacturerBrother Industries, Ltd
Manufacturer Part NumberTD2320DFC203
Brand NameBrother
Product SeriesTD-2D
Product ModelTD-2320DFC203
Product NameProfessional 2-Inch Direct Thermal Label Printers
Marketing Information

TD-2D Series

Increasing productivity and reducing costs are priorities in any workplace. And when it comes to label printing, the TD-2D printers combine proven desktop printer performance with new levels of efficiency to help you do more for less.

With a range of specialised features and print resolution of up to 300dpi, the TD-2D is the perfect label printer for retail, healthcare, warehousing, logistics and manufacturing - plus any other sector where you need to be able to print high-quality receipts or labels at your desk or on the move.

Product TypeDirect Thermal Printer
Technical Information
Recommended UseLabel Print
Maximum Print Resolution (dpi)203
Maximum Print Length118.11" (3000 mm)
Maximum Print Width2.32" (59 mm)
Barcode Symbology Supported
  • Code 39
  • ITF I-2/5
  • EAN-13 (JAN13)
  • EAN-8 (JAN8)
  • UPC-A
  • UPC-E
  • Codabar (NW-7)
  • Code 128
  • GS1-128 (UCC/EAN-128)
  • GS1 DataBar Omnidirectional
  • GS1 DataBar Truncated
  • GS1 DataBar Limited
  • GS1 DataBar Expanded
  • QR Code
  • Maxi Code
  • Micro PDF-417
  • Data Matrix
  • AZTEC
  • PDF417
  • UPC 2 and 5 Digit Extension
  • EAN 2 or 5 Digit Extension
  • Industrial 2 of 5
  • Code 11
  • GS1-128
  • Code 93
  • POSTNET
  • RSS14 Stacked Omni
  • RSS14 Stacked
  • Standard 2 of 5
Application/Usage
  • Desktop
  • Retail
  • Logistic
  • Manufacturing
  • Healthcare
  • Warehouse
Connectivity TechnologyWired
Fonts Included
  • Letter Gothic Bold
  • Gothic
  • Brussels
  • Helsinki
  • Letter Gothic Regular
  • San Diego
  • Brougham
  • OCR-A
  • OCR-B
Print TechnologyDirect Thermal
Memory
Standard Memory256 MB
Flash Memory64 MB
Interfaces/Ports
Serial PortYes
USB HostYes
USBYes
Network & Communication
EthernetYes
Ethernet TechnologyFast Ethernet
Media Types & Handling
Media Type
  • Label
  • Linerless
Maximum Roll Diameter5" (127 mm)
Maximum Label Width2.48" (63 mm)
Fonts & Emulation
Language Emulation
  • Raster
  • P-touch Template
  • ESC/P
  • ZPL2
  • CPCL
  • DPL
  • EPL2
Software
Operating System Supported

Linux

Microsoft:

  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Power Description
Power Source
  • Power Adapter
  • AC
Physical Characteristics
Form FactorDesktop
Weight (Approximate)3.95 lb (1790 g)
Miscellaneous
Package Contents
  • Professional 2-Inch Direct Thermal Label Printers
  • AC power cord & adaptor
  • USB (A-C) cable
  • Documentation
  • Media discs
  • Label support
Cables Included
  • AC
  • USB
ConditionNo
UPC012502677307
batteries (1)

Part No. PA-BT-004

Brother Battery - For Label Printer - Battery Rechargeable - Proprietary Battery Size

BROTHER LI-ION BATTERY: RECHARGEABLE, TD2320D, TD2350D, TD2350DSA

chargers (1)

Part No. PA-BC-004

Brother PA-BC-004 - Single Slot Battery Charger - For Mobile Printer - 1 - Proprietary Battery Size

BROTHER SINGLE BATTERY CHARGING STATION (EXPANDABLE X3 FOR USE WITH PA-BT-004 BATTERY, REQUIRES PA-AD-005 AC ADAPTER SUPPLIED SEPARATELY)

ink/toner cartridges (2)

Part No. PA-HU2-002

Brother Original Direct Thermal Printhead Pack

BROTHER 203DPI REPLACEMENT PRINTHEAD KIT (FOR USE WITH TD2300 SERIES DESKTOP PRINTERS)

Part No. PA-HU3-002

Brother Original Thermal Inkjet Printhead Pack

BROTHER 300DPI REPLACEMENT PRINTHEAD KIT (FOR USE WITH TD2300 SERIES DESKTOP PRINTERS)

power adapters (1)

Part No. PA-AD-005

Brother AC Adapter - 86.40 W - 120 V AC, 230 V AC Input - 24 V DC Output - 3.60 A

BROTHER AC ADAPTER FOR TD2300D SERIES, INPUT: 100-240VAC 50/60HZ 1.5A , DC OUTPUT: 24V DC 3.6A

printer cutters (2)

Part No. PA-LCU-001

Brother PA-LCU-001 - 2" Linerless Cutter Unit

BROTHER AUTO LINERLESS CUTTER KIT REPLACEMENT (FOR USE WITH TD2320DFC AND TD2350DFC DESKTOP PRINTERS)

Part No. PA-CU-007

Brother Auto-Cutter Kit for TD 2300 Printers

BROTHER AUTO CUTTER KIT (FOR USE WITH TD2320D, TD2350D & TD2350DSA DESKTOP PRINTERS)

printer parts & components (3)

Part No. PA-LP-008

Brother PA-LP-008 - Label Peeler

BROTHER LABEL PEELER KIT (FOR USE WITH TD2320D, TD2350D & TD2350DSA DESKTOP PRINTERS)

Part No. PA-BB-004

Brother Printer Battery Base

BROTHER BATTERY BASE UNIT (FOR USE WITH TD2320D, TD2350D & TD2350DSA DESKTOP PRINTERS)

Part No. PA-PR2-002

Brother Linerless Platen Roller

BROTHER PLATEN ROLLER KIT, 203DPI (FOR USE WITH TD2300 SERIES DESKTOP PRINTERS)

serial/parallel adapters (1)

Part No. PA-SCA-002

Brother Serial Interface Adapter for TD 2300 Series - 1 x Number of Serial Ports External

BROTHER SERIAL INTERFACE ADAPTER (FOR USE WITH TD2300D SERIES DESKTOP PRINTERS)
