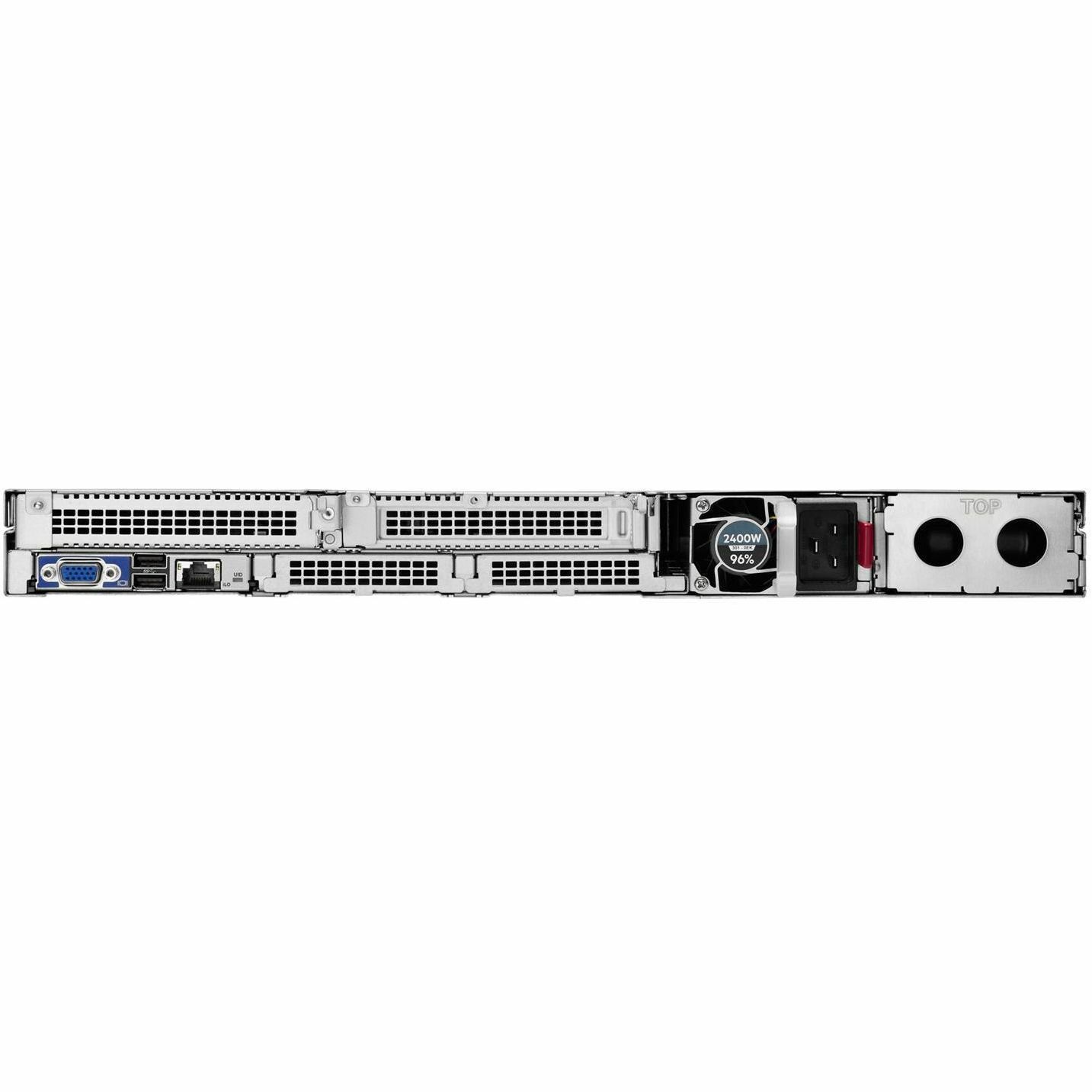

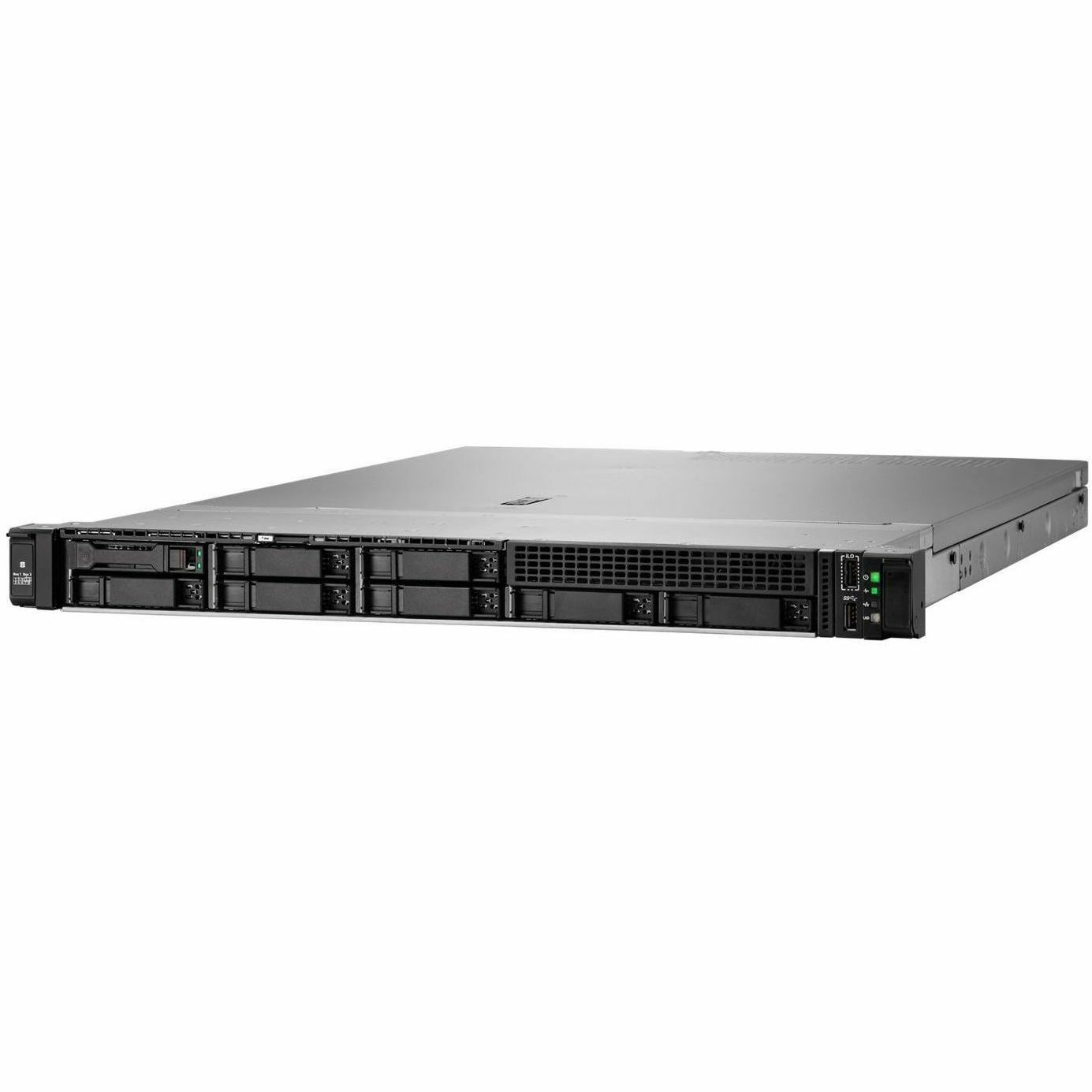

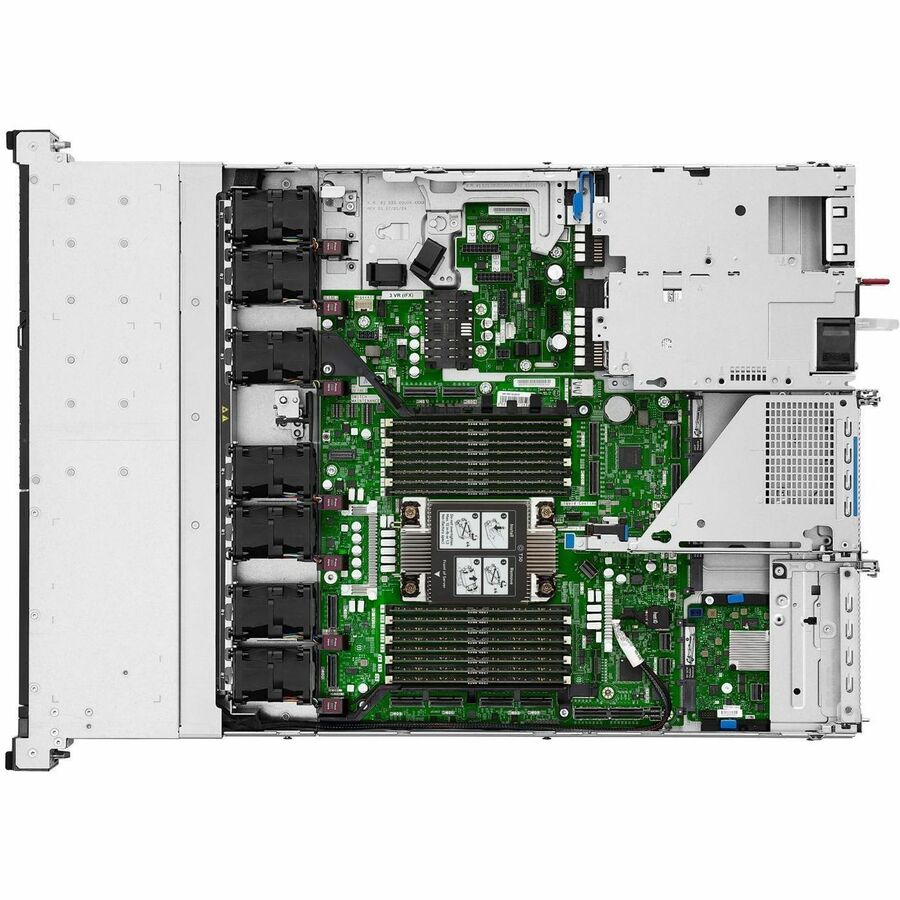

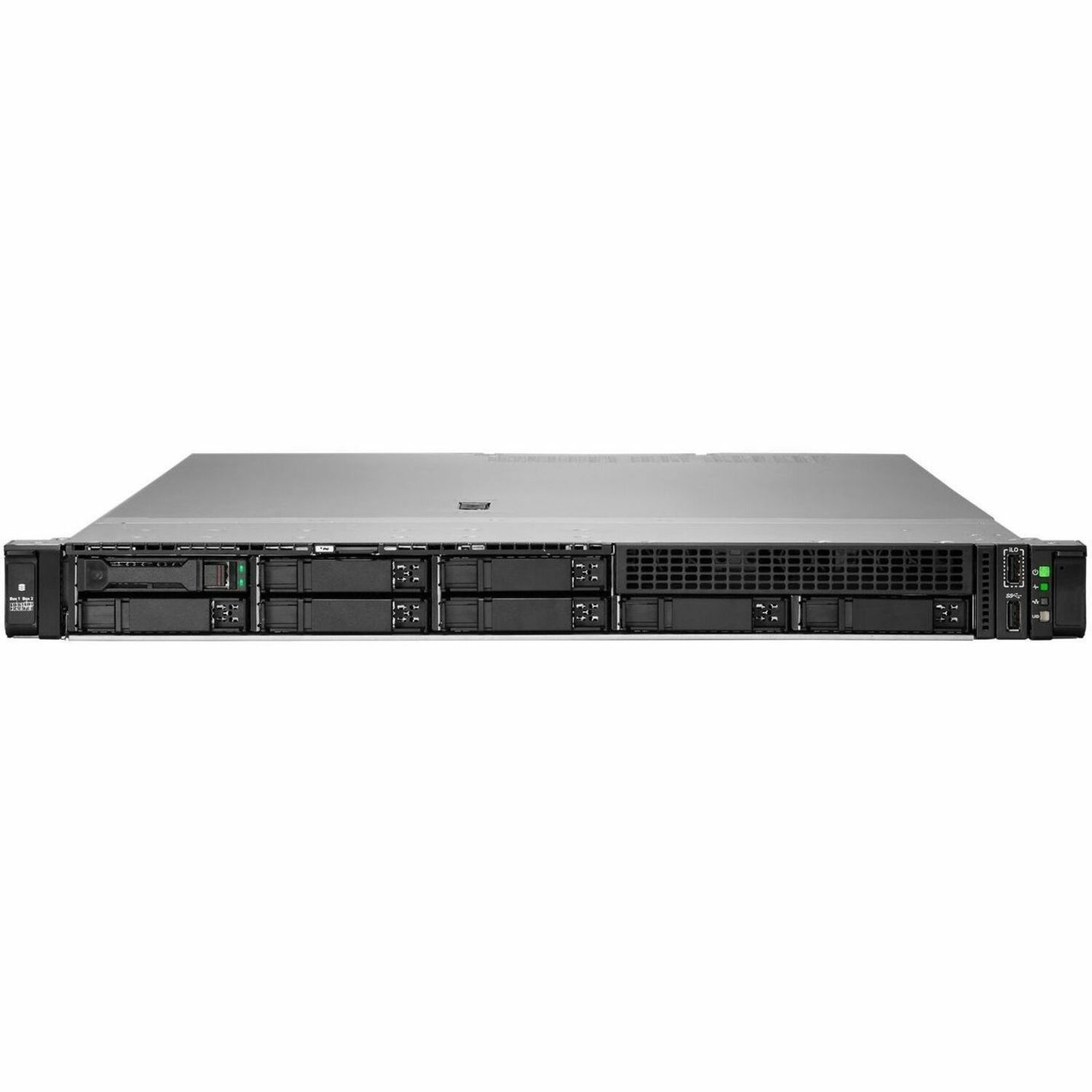

HPE ProLiant Compute DL320 Gen12 1U Rack Server - 1 x Intel Xeon 6 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P87790-005 |
| Brand Name | HPE |
| Product Line | ProLiant Compute |
| Product Series | DL320 Gen12 |
| Product Name | ProLiant Compute DL320 Gen12 Server |
| Marketing Information | HPE ProLiant Compute DL320 Gen12 Based on industry-standard modular server design, the HPE ProLiant Compute DL320 Gen12 provides a right-sized, efficient compute solution. It is a 1U 1P server that provides best-in-class performance, with maximum I/O capabilities for cloud-native, Infrastructure-as-a-Service (IaaS), and general purpose workloads while consuming considerably less energy than 2P systems. The HPE ProLiant Compute DL320 Gen12 is purpose-built for edge computing, delivering exceptional performance and optimized economics and is an excellent choice for both virtualized and containerized workloads. The HPE ProLiant Compute DL320 Gen12 is powered Intel® Xeon® 6 Processors with up to 144 cores - including Intel Rich I/O options, increased memory capability (up to 4 TB 6400 MT/s), and high-speed PCIe Gen5. It supports up to four single-wide GPUs (or two double-wide) with front or rear-facing I/O, and capacity for up to 20 EDSFF drives. The HPE ProLiant Gen12 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward. |
| Product Type | Server |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon 6 |
| Processor Model | 6505P |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.20 GHz |
| Cache | 48 MB |
| Chipset Manufacturer | Intel |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Total Number of Memory Slots | 16 |
| Number of Occupied Memory Slots | 1 |
| Signal Processing | Registered (Buffered) |
| Number of Solid State Drives | 2 |
| Total Solid State Drive Capacity | 960 GB |
| Solid State Drive Interface | Serial ATA/600 |
| Solid State Drive Configuration | 2 x 480GB |
| Controller Type |
|
| Controller Model | MR408i-o Gen11 |
| RAID Supported | Yes |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details |
|
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | Gigabit Ethernet |
| Total Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO6 |
| Input Voltage |
|
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1 kW |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Power Source | Power Supply |
| Color Family | Dual Color |
| Product Color |
|
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.80 mm) |
| Width | 17.11" (434.60 mm) |
| Depth | 23.92" (607.50 mm) |
| Weight (Approximate) | 38.03 lb (17250 g) |
| Package Contents |
|
| Security Features |
|
| Energy Star | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Condition | No |
| UPC | 0190017827315 |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response. |
