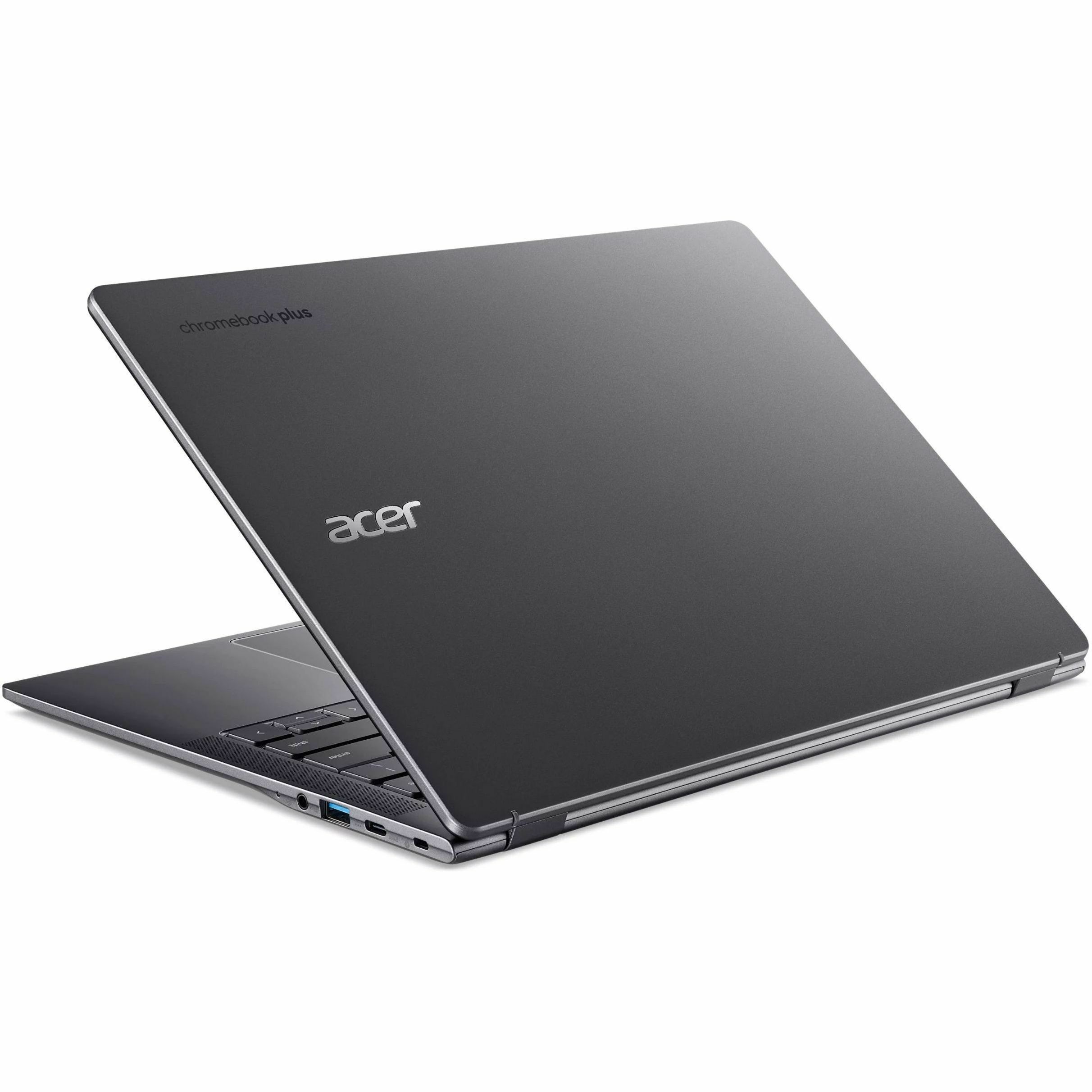

Acer Chromebook Plus 514 CBE594-3 CBE594-3-37N4 14" Clamshell Chromebook - WUXGA - 60 Hz - Intel Core 3 N355 - 8 GB - 256 GB PCI Express NVMe 4.0 SSD - English (US) Keyboard - Iron

Intel Chip - 1920 x 1200 - ChromeOS - Intel - In-plane Switching (IPS) Technology - Front Camera/Webcam - 15 Hours Battery Run Time - IEEE 802.11be Wireless LAN Standard - Wi-Fi 7

Part No. NX.JJSAA.004

by Acer, Inc

$1366.99

User Manual

Specifications
Product Overview

General Information

Manufacturer	Acer, Inc
Manufacturer Part Number	NX.JJSAA.004
Brand Name	Acer
Product Line	Chromebook Plus 514
Product Series	CBE594-3
Product Model	CBE594-3-37N4
Copilot+ PC	No
Product Name	Chromebook Plus 514 CBE594-3-37N4 Chromebook
Product Type	Chromebook

Technical Information

Response Time Details	20ms
AI-powered	No

Processor

Processor Manufacturer	Intel
Processor Type	Core 3
Processor Model	N355
Processor Series	Core N-series
Processor Core	Octa-core (8 Core)
Processor Threads	8
Processor Speed	1.90 GHz
Maximum Turbo Speed	3.90 GHz
Cache	6 MB
64-bit Processing	Yes
Passively Cooled (Fanless)	No

Chipset

Chipset Manufacturer	Intel
Chipset Type	Integrated

Memory

Standard Memory	8 GB
Maximum Supported System Memory	16 GB
System Memory Technology	LPDDR5X
System Memory Speed	4800 MHz
System Memory Speed (MT/s)	4.80 GT/s
System Memory Form Factor	On-board
Number of Free Memory Slots	0
Memory Card Reader	No

Storage

Drive Type	SSD
Total Solid State Drive Capacity	256 GB
Solid State Drive Interface	PCI Express NVMe 4.0
Solid State Drive Configuration	1 x 256GB PCI Express NVMe 4.0
SSD Form Factor	M.2
Number of Free Solid State Drive Slots	1

Display & Graphics

Screen Size	14"
Display Screen Type	Active Matrix TFT LCD
Display Screen Technology	In-plane Switching (IPS) Technology
Aspect Ratio	16:10
Standard Refresh Rate	60 Hz
Ultra HD Resolution	No
Screen Mode	WUXGA
Screen Resolution	1920 x 1200
Brightness	300 cd/m²
Color Gamut	45% NTSC
Contrast Ratio	1000:1
Pixel Density (ppi)	161.7
Screen-to-body Ratio	83.5%
Color Depth	6-bit+FRC
Touchscreen	No
HDCP Supported	Yes
Graphics Controller Manufacturer	Intel
Graphics Memory Accessibility	Shared
Display Features	Anti-glare 45% NTSC Color Gamut ComfyView (Matte)

Network & Communication

Wireless LAN	Yes
Wireless LAN Manufacturer	Intel
Wireless LAN Model	WIFI 7 2x2 BE+BT_SD
Wireless LAN Standard	IEEE 802.11be
Wi-Fi Generation	Wi-Fi 7
Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.3 or above
Near Field Communication	No

Built-in Devices

Camera Privacy Shutter	Yes
Front Camera/Webcam	Yes
Front Camera/Webcam Video Resolution	1920 x 1080
Camera Features	UFC with Double T-Type USB FHD Camera Compatible with Chromebook only 1920 x 1080 resolution 1080p video with Temporal Noise Reduction Staggered High Dynamic Range (SHDR) 86 x 3.2 (4.2) x 3 mm Blue glass lens Dual Mic (33 mm + 33 mm)
Microphone	Yes
Number of Microphones	2
Finger Print Reader	No
Speakers	Yes
Number of Speakers	2
Audio Features	Basic Noise Suppresion
Audio System	DTS Audio
Active Stylus	No
Active Stylus Dockable	No

Interfaces/Ports

HDMI	Yes
HDMI Version	1.4
Number of HDMI Outputs	1
DVI	No
Total Number of USB Ports	4
Number of USB 3.2 Gen 1 Type-A Ports	2
Number of USB 3.2 Gen 1 Type-C Ports	2
USB Type-C	Yes
USB Type-C Details	Two USB Type-C™ ports USB Type-C™ port supporting: USB 3.2 Gen 1 (up to 5 Gbps) USB charging 5 V; 3 A DC-in port 5 or 9 or 15 or 20 V; 65 W
Network (RJ-45)	No
Audio Line In	Yes
Audio Line Out	Yes
DisplayPort	No
Headphone/Microphone Combo Port	Yes
Docking Connector Type	USB Type-C Dock D501
Docking Capability	USB Type C

Operating System

Operating System Platform	ChromeOS
Operating System	ChromeOS
Chrome Automatic Update Policy	Until Jun 2035

Input Devices

Keyboard	Yes
Numeric Pad	No
Keyboard Backlight	Yes
Keyboard Localization	English (US)
Pointing Device Type	TouchPad
TouchPad Features	OceanGlass Touchpad
Key Travel Distance	61.02 mil (1.55 mm)
Keyboard Features	Chrome Super Insert White Backlight

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	53 Wh
Maximum Battery Run Time	15 Hours
Battery Life Detail	For models with WUXGA Panel + SSD Up to 12 hours (based on video playback test results) Up to 15 hours (based on web browsing test results) Battery life based on Power Qualification Test v2 for ChromeOS:

Power Description

Maximum Power Supply Wattage	65 W
Power Plug Type	Type C
Included Charger Power	65 W

Physical Characteristics

Color Family	Other
Product Color	Iron
Rugged	No
Form Factor	Clamshell
Height (Front)	0.71" (17.95 mm)
Height (Rear)	0.73" (18.50 mm)
Height	0.73" (18.50 mm)
Width	12.40" (315 mm)
Depth	8.96" (227.60 mm)
Weight (Approximate)	3.09 lb (1400 g)

Miscellaneous

For Country/Region	United States
Package Contents	Chromebook Plus 514 CBE594-3-37N4 Chromebook Lithium Ion (Li-Ion) Battery Power Adapter Power Cord
Charger Included	Yes
Features	Anti-glare Screen
Security Features	Camera shutter Kensington lock (Nano-type) Discrete H1 Trusted Platform Module (TPM) solution for Chromebook
Energy Star	Yes
Country of Origin	Vietnam
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) Type	Hardware
Antimicrobial	No
Component Door	No
Kensington Security Slot	Yes
EPEAT Version	1
EPEAT Registered Date	31/03/2025
EPEAT Registered Countries	United States Canada
EPEAT Climate+	No
Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Energy Efficiency Certification	ENERGY STAR 9.0
Product Carbon Footprint (PCF) Report Available	Yes
Product Carbon Footprint (PCF) Standard Deviation (+/- kg CO2e)	54
Product Carbon Footprint (PCF) Mean (kg CO2e)	244
Product Carbon Footprint (PCF) 5th Percentile (kg CO2e)	139
Product Carbon Footprint (PCF) 95th Percentile (kg CO2e)	521
Typical Energy Consumption (Yearly TEC)	9.9 kWh
Condition	No
UPC	0195133181648

Warranty

Limited Warranty	12 Month
Additional Warranty Information	1y_PA Acer warranty card

;
