WPL305 Barcode Printer
Monochrome - 5 in/s Mono - 203 dpi - USB, Serial, Parallel
$725.99
In Stock Availability
- All Locations: (94+)
- Mississuaga, ON (94+)
General Information
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633808402006 |
| Brand Name | Wasp |
| Product Model | WPL305 |
| Product Name | WPL305 Barcode Printer |

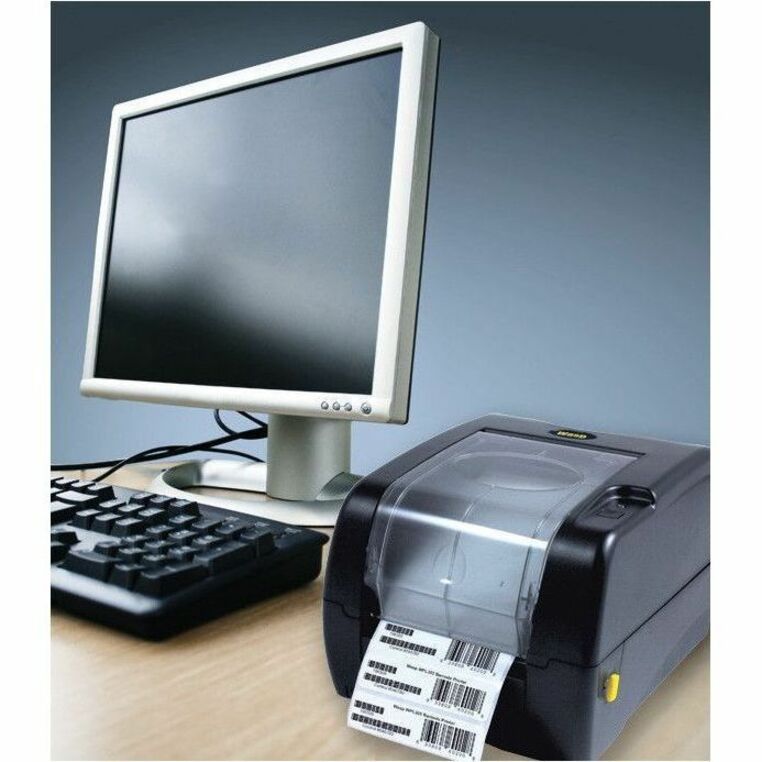

| Marketing Information | WPL305 Desktop Barcode Printer The Wasp WPL305 is a compact, powerful desktop barcode printer designed to meet your light- to medium-duty barcode printing requirements. Its durable construction, speed, and dual printing technologies make the WPL305 a leader in its class and one of the most popular printers in the Wasp line. Perfect for printing 4x6 shipping labels . The WPL305 offers both direct thermal and thermal transfer printing in one printer, reducing the need for additional printers for different printing processes. With print speeds up to 5" inches per second at 203 dpi resolution, the WPL305 is a cost effective way to print barcode labels of all types, including shipping labels, stock labels, asset tags, medical labels, and location labels. Print speed is supported by 8 MB of SDRAM, 4 MB of FLASH memory and multiple connectivity options including parallel, USB, and RS232. ZPL, EPL, and WPL emulation are also included to ensure application compatibility. The WPL305 includes a 2-year manufacturer's warranty covering material defects. If you would like to upgrade this coverage, WaspProtect extended service plans cover accidental breakage and can provide coverage beyond the original warranty. Part Numbers: 633808402006, 633808402020, 633808402013 |
| Product Type | Direct Thermal/Thermal Transfer Printer |
Technical Information
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5 in/s (127 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 4.25" (107.95 mm) |
| Barcode Symbology Supported |
|
| Application/Usage | Desktop |
| Print Technology | Direct Thermal /Thermal Transfer |
Memory
| Standard Memory | 8 MB |
| Memory Technology | SDRAM |
| Flash Memory | 4 MB |
Interfaces/Ports
| Parallel Port | Yes |
| Serial Port | Yes |
| USB | Yes |
Media Types & Handling
| Media Type | Label |
| Media Size | Custom Size - 4.40" (111.76 mm) |
| Media Sensor | Reflective Media Sensor |
| Maximum Roll Diameter | 5" (127 mm) |
| Maximum Label Width | 4.40" (111.76 mm) |
| Maximum Label Length | 39" (990.60 mm) |
| Label Core Size | 3" (76.20 mm) |
| Ribbon Core Size | 1" (25.40 mm) |
Fonts & Emulation
| Language Emulation |
|
Software
| Operating System Supported |
|
Power Description
| Power Source | AC Supply |
| Input Voltage |
|
Physical Characteristics
| Height | 7.40" (187.96 mm) |
| Width | 8.40" (213.36 mm) |
| Depth | 12.40" (314.96 mm) |
| Weight (Approximate) | 6.61 lb (2998.25 g) |
Miscellaneous
| Additional Information |
Sensors:
|
| Platform Supported | PC |
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| COO | TW |
| Condition | No |
Warranty
| Limited Warranty | 1 Year |
