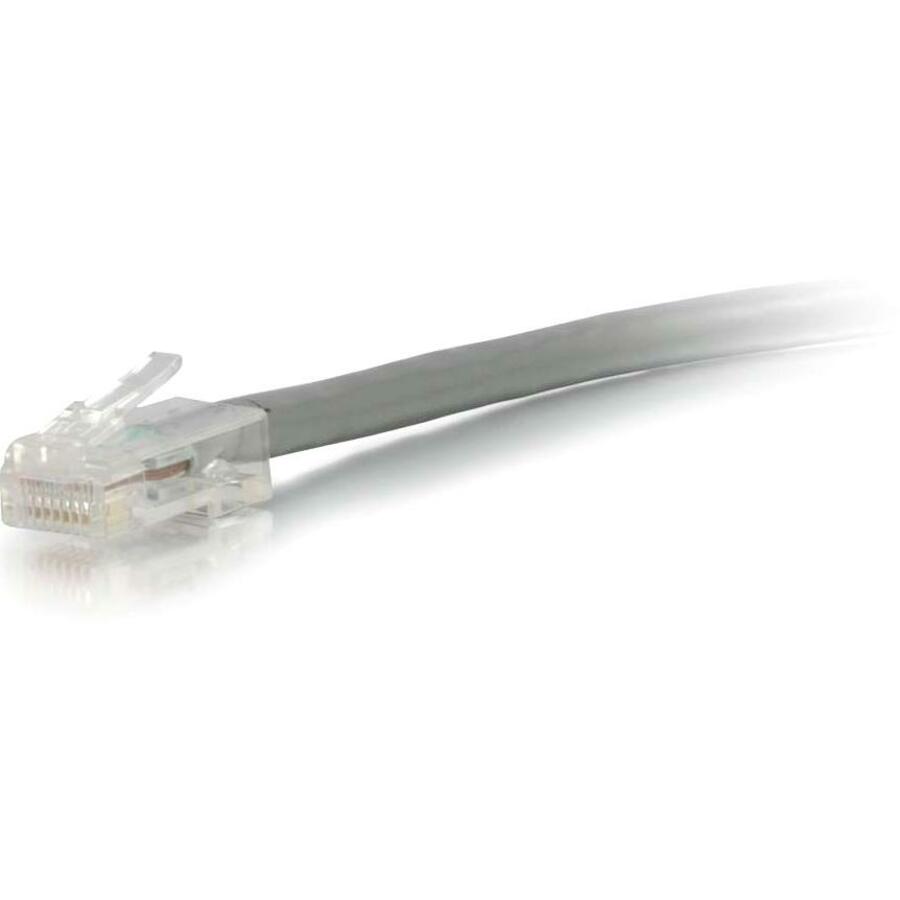

C2G Cat5e Patch Cable

Part No. 22702

by Legrand Group

C2G Cat5e Patch Cable

RJ-45 Male Network - RJ-45 Male Network - 7.62m - Gray

Part No. 22702

by Legrand Group

$13.99
General Information
ManufacturerLegrand Group
Manufacturer Part Number22702
Brand NameC2G
Product Name25 ft Cat5e Non Booted UTP Unshielded Network Patch Cable - Gray
Marketing InformationThis non-booted Unshielded Cat5e patch cable is ideal for network adapters, hubs, switches, routers, and HDBaseT applications. It is also ideal for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code your network installation.
Connector 1: (1) RJ-45 Male
Connector 2: (1) RJ-45 Male
Package TypeRetail
Product TypeNetwork Cable
Technical Information
Cable TypeCategory 5e
Cable CharacteristicPatch Cable
Cable Length25 ft (7.62 m)
Connector Type on First EndRJ-45 Network - Male
Connector on First End Details1 x RJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Connector on Second End Details1 x RJ-45 Network - Male
ConductorCopper
Physical Characteristics
Color FamilyGray
Product ColorGray
Jacket MaterialPolyvinyl Chloride (PVC)
Weight (Approximate)9.12 oz (258.55 g)
Miscellaneous
Additional InformationApplications:
  • 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3)
  • 4/16 Mbps Token Ring (IEEE 802.5)
  • 100 VG-AnyLAN
  • 100 Mbps TP-PMD (ANSI X3T9.5)
  • 55/155 Mbps ATM
  • Voice
Compatibility
  • Hub
  • Switch
  • Router
  • Network Adapter
  • Modem DSL/Cable
  • Patch Panel And other twisted pair applications
Certifications & Standards
  • TIA/EIA-568
  • UL Listed
Country of OriginChina
ConditionNo
UPC757120227021
Warranty
Limited WarrantyLifetime
