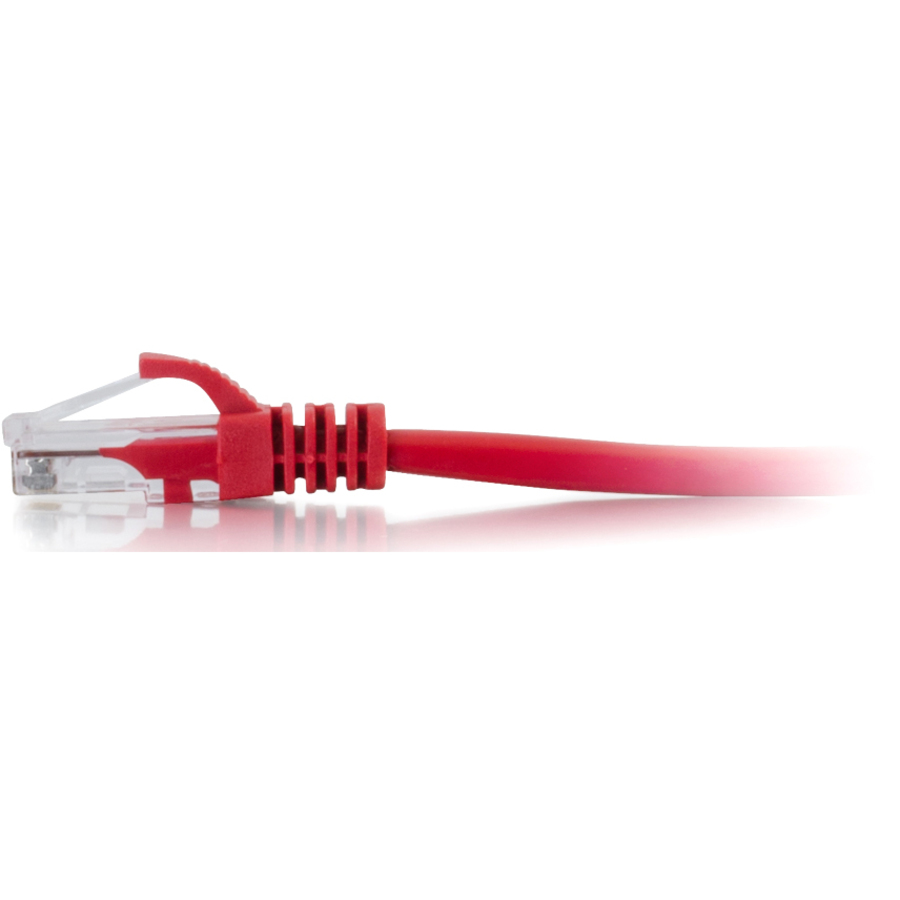

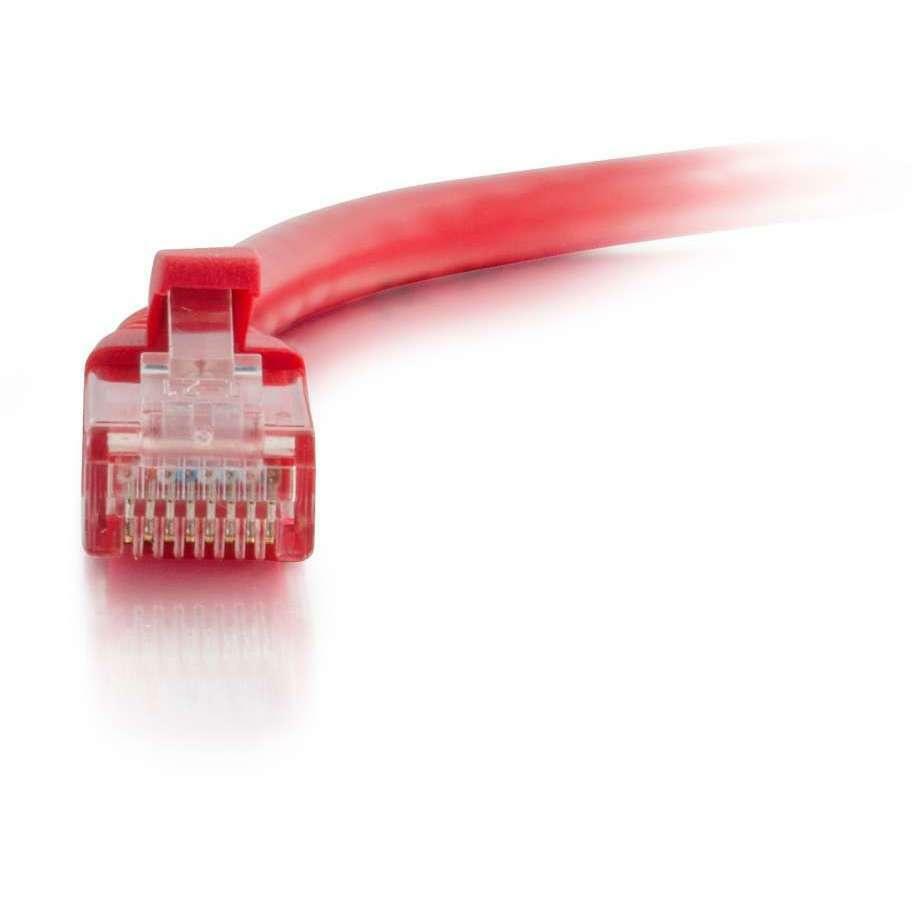

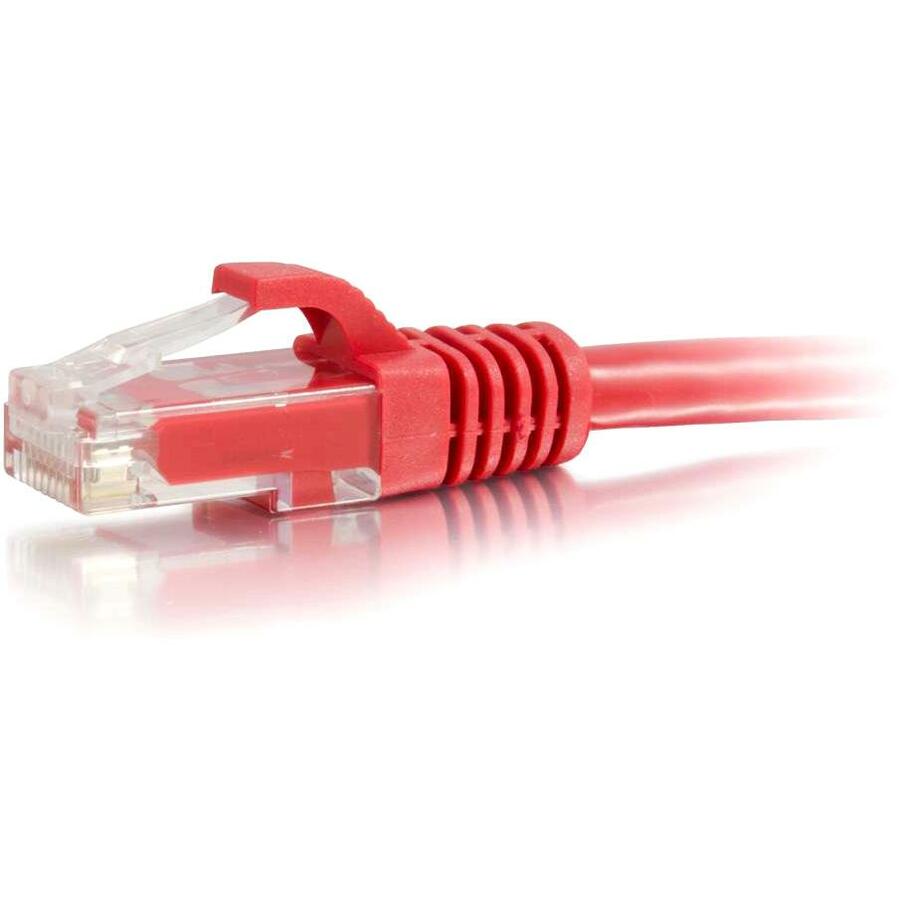

C2G Cat6 Patch Cable

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

Connector 1: (1) RJ-45 Male
Connector 2: (1) RJ-45 Male

• Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3)
• 4/16 Mbps Token Ring (IEEE 802.5)
• 100 VG-AnyLAN
• 100 Mbps TP-PMD (ANSI X3T9.5)
• 55/155 Mbps ATM
• Voice
• T1
• High bandwidth applications such as 622 ATM, Wideband

• Hub
• Switch
• Router
• Network Adapter
• Modem DSL/Cable
• Patch Panel And other twisted pair applications

• TIA/EIA-568-B-2.1
• Draft 9
• UL Listed
