C2G Fiber Optic Duplex Patch Cable - (Plenum)

Part No. 37770

by C2G

C2G Fiber Optic Duplex Patch Cable - (Plenum)

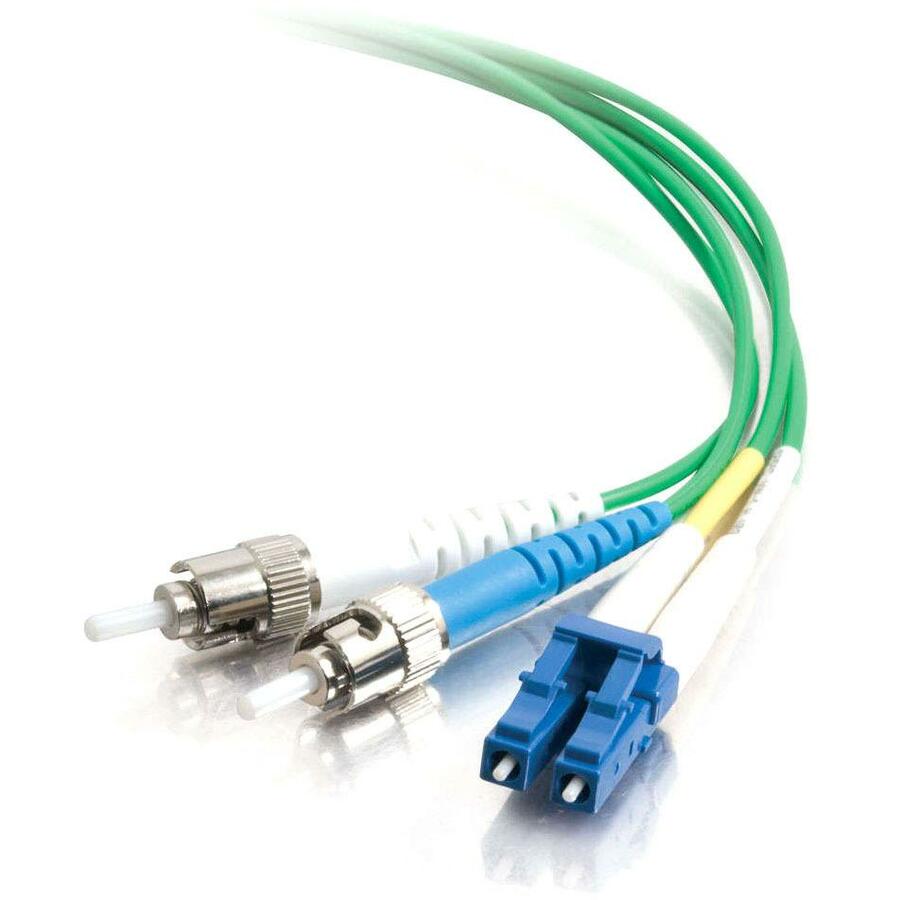

3.3 ft Fiber Optic Network Cable - First End: 2 x LC - Male - Second End: 2 x ST - Male - Patch Cable - 9/125 µm - Green

Part No. 37770

by C2G

$73.99
General Information
ManufacturerLegrand Group
Manufacturer Part Number37770
Brand NameC2G
Product NameFiber Optic Duplex Patch Cable - (Plenum)
Marketing Information

C2G (formerly Cables To Go), a division of Lastar, Inc., is an industry leader in high performance cabling and connectivity solutions. Founded in 1984, the company provides end-to-end connectivity solutions serving a variety of markets - including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application.

Product TypeNetwork Cable
Technical Information
Cable TypeFiber Optic
Cable CharacteristicPatch Cable
Fiber Optic ModeSingle-mode
Fiber Optic Cable Core/Cladding Specification9/125 µm
Cable Length3.3 ft
Connector Type on First EndLC - Male
Connector on First End Details2 x LC - Male
Connector Type on Second EndST - Male
Connector on Second End Details2 x ST - Male
Jacket TypePlenum
Physical Characteristics
Color FamilyGreen
Product ColorGreen
Weight (Approximate)0.80 oz (22.68 g)
Miscellaneous
Additional Information
  • A cost effective solution that provides higher bandwidth and support for longer distances
  • Perfect for use in Gigabit Ethernet applications
  • Provides the fire protection required to run these cables within walls and air plenums without the need for conduit
  • Color-coded connector keys available in red, blue, green and black
  • Jacket OD: 3.0 mm
  • Buffer OD: 900 µm
  • Attenuation @1310 nm: 1.0 dB/km
  • Attenuation @1550 nm: 0.75 dB/km
  • Maximum tensile load: 100 N/cm
  • Loaded min. bend radius: 5 cm
  • Unloaded min. bend radius: 3 cm
  • Crush resistance: 750 N/cm
  • Impact resistance: 1000 cycles
  • Flex resistance: 5000 cycles
Certifications & Standards

CMP Rated

ConditionNo
UPC757120377702
Warranty
Limited WarrantyLifetime
