C2G Fiber Optic Duplex Patch Cable - Plenum-Rated

Part No. 34539

by Legrand Group

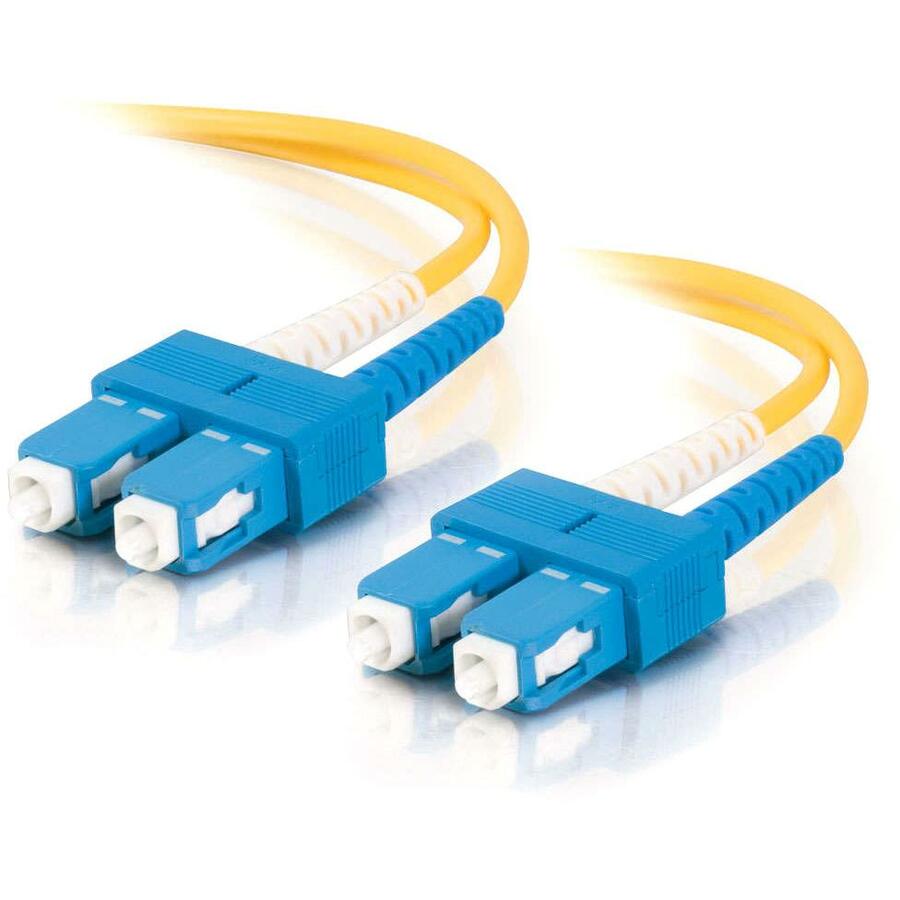

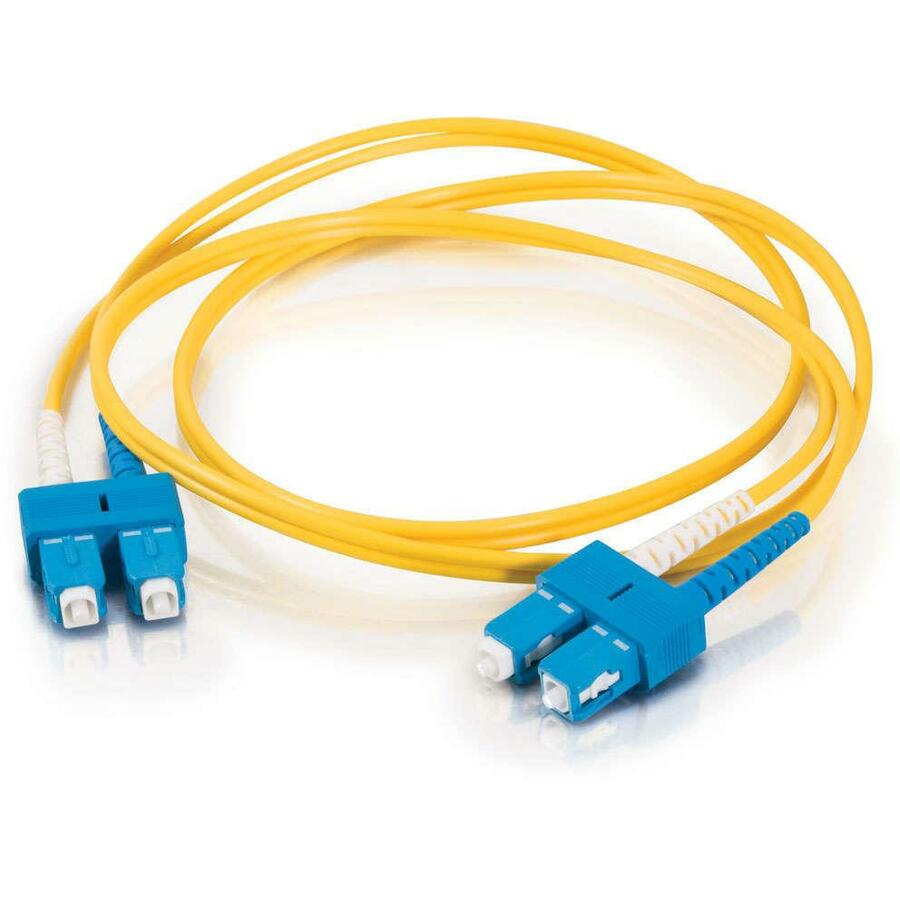

C2G Fiber Optic Duplex Patch Cable - Plenum-Rated

6.6 ft Fiber Optic Network Cable for Network Device - First End: 2 x SC Network - Male - Second End: 2 x SC Network - Male - Patch Cable - Plenum - 9/125 µm - Yellow

Part No. 34539

by Legrand Group

$55.99
General Information
ManufacturerLegrand Group
Manufacturer Part Number34539
Brand NameC2G
Product NameFiber Optic Duplex Patch Cable - Plenum-Rated
Marketing Information

C2G (formerly Cables To Go), a division of Lastar, Inc., is an industry leader in high performance cabling and connectivity solutions. Founded in 1984, the company provides end-to-end connectivity solutions serving a variety of markets - including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application.

Product TypeNetwork Cable
Technical Information
Cable TypeFiber Optic
Cable CharacteristicPatch Cable
Fiber Optic ModeSingle-mode
Fiber Optic Cable Core/Cladding Specification9/125 µm
Cable Length6.6 ft
Connector Type on First EndSC Network - Male
Connector on First End Details2 x SC Network - Male
Connector Type on Second EndSC Network - Male
Connector on Second End Details2 x SC Network - Male
Jacket TypePlenum
Device SupportedNetwork Device
Physical Characteristics
Color FamilyYellow
Product ColorYellow
Weight (Approximate)1.60 oz (45.36 g)
Miscellaneous
Additional Information
  • Buffer OD: 900 µm
  • Jacket OD: 3.0 mm
  • Attenuation @1310 nm: 1.0 dB/km
  • Attenuation @1550 nm: 0.75 dB/km
  • Maximum tensile load: 100 N/cm
  • Loaded min. bend radius: 5 cm
  • Unloaded min. bend radius: 3 cm
  • Crush resistance: 750 N/cm
  • Impact resistance: 1000 cycles
  • Flex resistance: 5000 cycles
Certifications & Standards

CMP Rated

Environmentally FriendlyYes
ConditionNo
UPC757120345398
Warranty
Limited WarrantyLifetime
