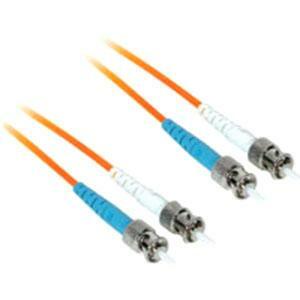

C2G Fiber Optic Duplex Patch Cable - LSZH

Part No. 36305

by Legrand Group

C2G Fiber Optic Duplex Patch Cable - LSZH

16.4 ft Fiber Optic Network Cable - First End: 2 x ST - Male - Second End: 2 x ST - Male - Patch Cable - 50/125 µm - Orange

Part No. 36305

by Legrand Group

$64.99
General Information
ManufacturerLegrand Group
Manufacturer Part Number36305
Brand NameC2G
Product NameFiber Optic Duplex Patch Cable - LSZH
Marketing Information

C2G (formerly Cables To Go), a division of Lastar, Inc., is an industry leader in high performance cabling and connectivity solutions. Founded in 1984, the company provides end-to-end connectivity solutions serving a variety of markets - including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application.

Product TypeNetwork Cable
Technical Information
Cable TypeFiber Optic
Cable CharacteristicPatch Cable
Fiber Optic ModeMulti-mode
Fiber Optic Cable Core/Cladding Specification50/125 µm
Cable Length16.4 ft
Connector Type on First EndST - Male
Connector on First End Details2 x ST - Male
Connector Type on Second EndST - Male
Connector on Second End Details2 x ST - Male
Physical Characteristics
Color FamilyOrange
Product ColorOrange
Weight (Approximate)1.92 oz (54.43 g)
Miscellaneous
Additional Information
  • Buffer OD: 900 µm
  • Jacket OD: 3.0 mm
  • Attenuation @850 nm: 3.75 dB/km
  • Attenuation @1310 nm: 1.5 dB/km
  • Min. bandwidth @850 nm: 160 kHz/km
  • Min. bandwidth @1310 nm: 500 kHz/km
  • Maximum tensile load: 100 N/cm
  • Loaded min. bend radius: 5 cm
  • Unloaded min. bend radius: 3 cm
  • Crush resistance: 750 N/cm
  • Impact resistance: 1000 cycles
  • Flex resistance: 5000 cycles
Environmentally FriendlyYes
ConditionNo
UPC757120363057
Warranty
Limited WarrantyLifetime
