StarTech.com M.2 SATA SSD to 2.5in SATA Adapter Converter

Part No. SAT32M225

by StarTech.com

StarTech.com M.2 SATA SSD to 2.5in SATA Adapter Converter

Convert an M.2 SSD into a 7mm high 2.5in SATA 6Gbps Open Frame SSD - M.2 SSD to 2.5in SATA Adapter - Supports B key M.2 SSDs - 2.5 SATA Adapter - M.2 SSD to SATA - 2.5" Sata Adapter - M.2 SSD to 2.5in SATA Adapter - 7mm SSD to SATA Adapter

Part No. SAT32M225

by StarTech.com

$28.99
General Information
ManufacturerStarTech.com
Manufacturer Part NumberSAT32M225
Brand NameStarTech.com
Product NameM.2 NGFF SSD to 2.5in SATA SSD Converter
Marketing Information

Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.

Boost System Performance

Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.

Hassle-Free Setup

This M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation.

Open-Frame Design

The M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation.

SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity1 Each
Product TypeM.2 to SATA Adapter
Physical Characteristics
Color FamilyGreen
Product ColorGreen
Height0.30" (7.62 mm)
Width2.80" (71.12 mm)
Length3.90" (99.06 mm)
Weight (Approximate)1.27 oz (36 g)
Miscellaneous

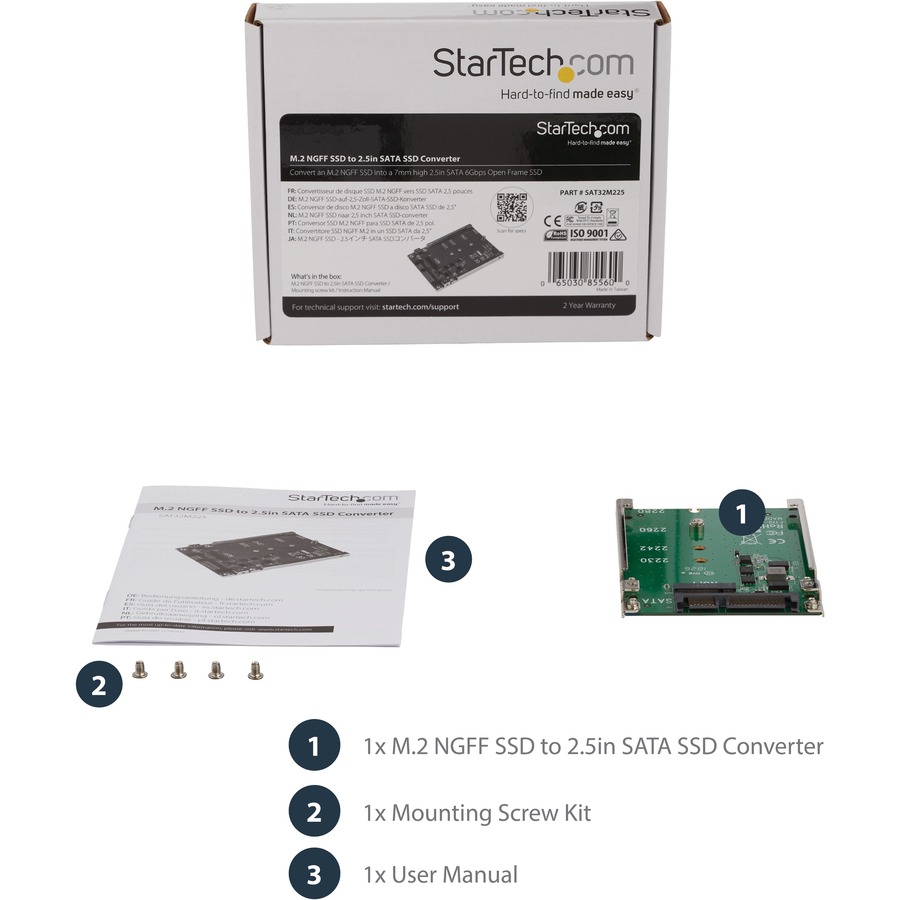

Package Contents
  • M.2 SATA SSD to 2.5in SATA Adapter Converter
  • 1 x Mounting Screw Kit
  • 1 x Installation Manual
Additional Information
  • Drive Connectors: 1 - M.2 (SATA, B-Key, NGFF)
  • Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)
  • Interface: SATA
  • Number of Drives: 1
  • Compatible Drive Types: M.2 (SATA, B-Key, NGFF)
  • Drive Installation: Fixed

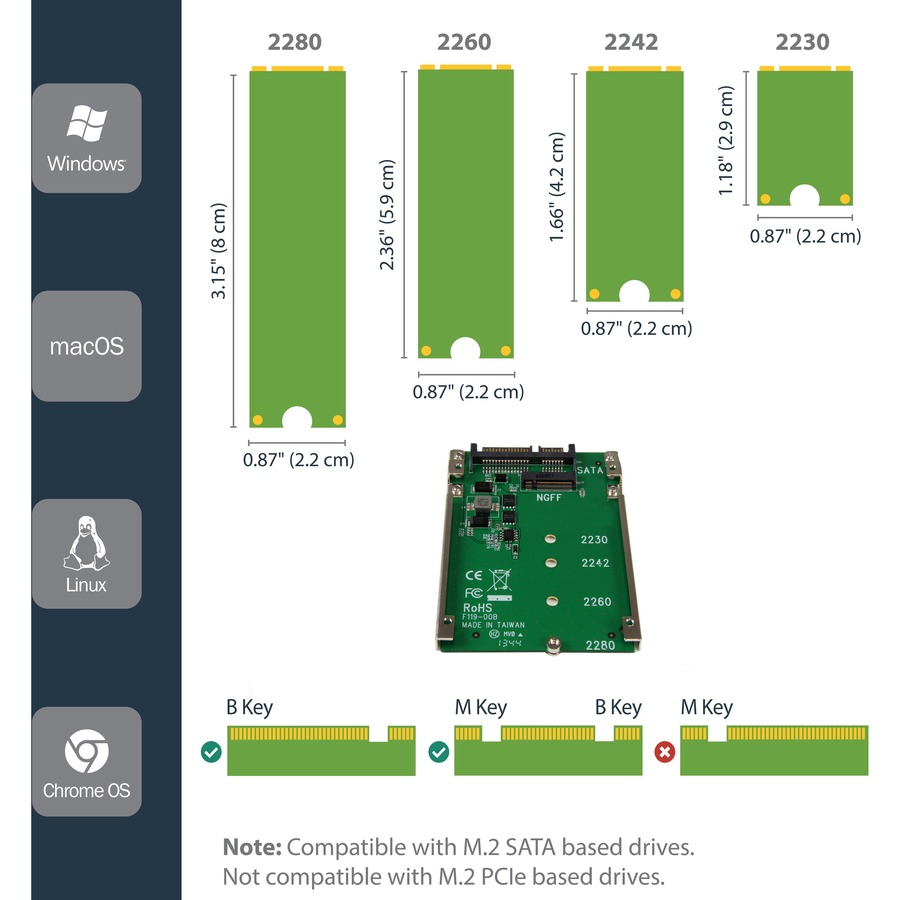

  • Supported Drive Height(s): 2230; 2242; 2260; 2280
Compatibility
  • Supports 7mm or larger 2.5" SATA bays
  • Supports full length M.2 SSD Solid State Drives (2230, 2242, 2260, 2280)
Certifications & Standards
  • CE
  • FCC
Country of OriginTaiwan
TAA CompliantYes
Environmentally FriendlyYes
ConditionNo
UPC0065030855600
Warranty
Limited Warranty2 Year
