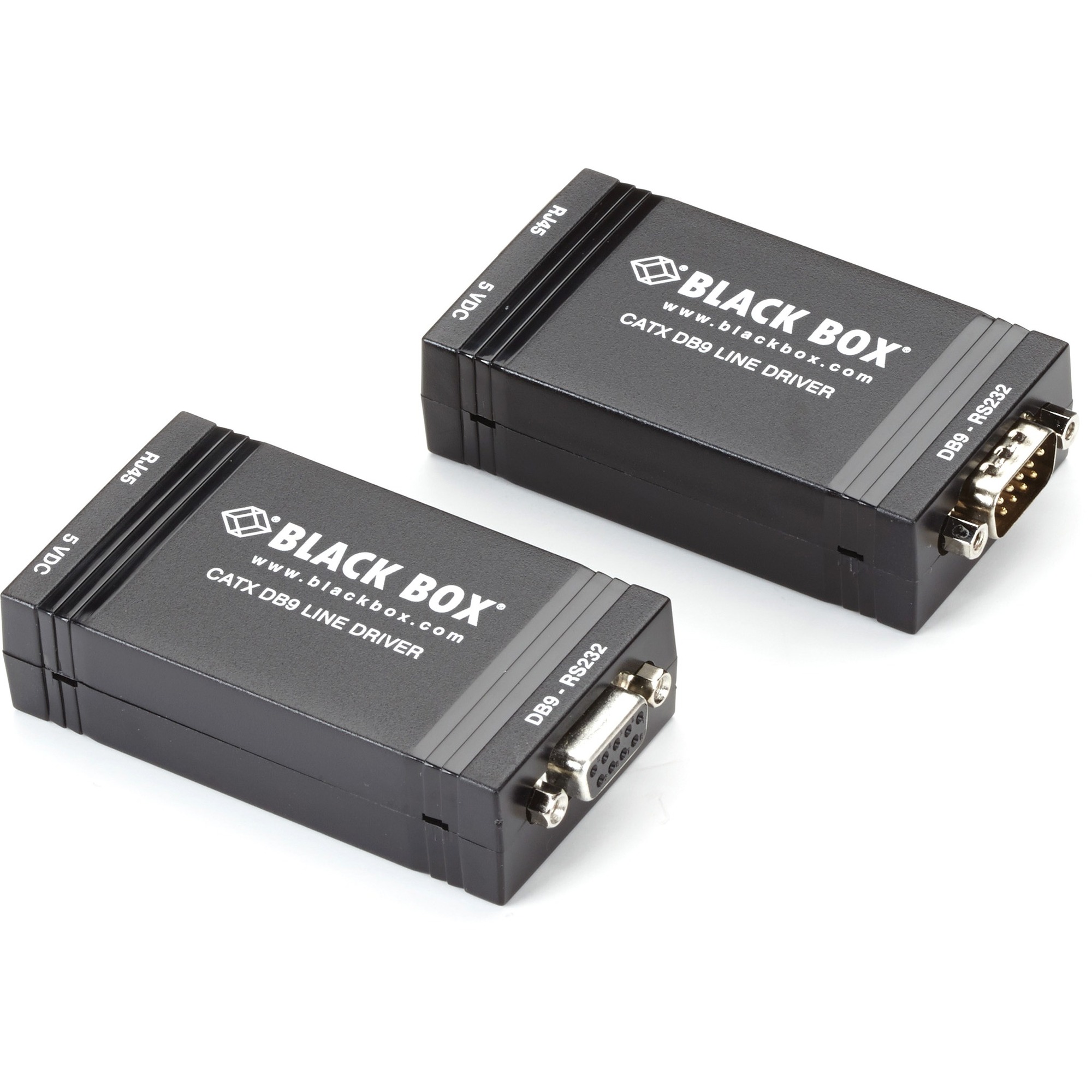

Black Box Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block
Network (RJ-45) - 4000 ft (1219200 mm) Extended Range
$563.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ME890A-R2 |
| Brand Name | Black Box |
| Product Name | Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block |
| Marketing Information |
These CATx Line Drivers enable the user to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device; the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD, RXD, RTS, and CTS signals to allow application to use hardware handshake signals if neccessary. |
| Product Type | Serial Extender |
Technical Information
| Maximum Extended Range | 4000 ft (1219200 mm) |
| Maximum Data Transfer Rate | 31.25 kB/s |
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Height | 0.80" (20.32 mm) |
| Width | 1.70" (43.18 mm) |
| Depth | 3.20" (81.28 mm) |
Miscellaneous
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 822088078654 |
Warranty
| Limited Warranty | 1 Year |
