Monoprice Mini DisplayPort/VGA/DVI/HDMI Audio/Video Cable

Part No. 12799

by Monoprice, Inc

Monoprice Mini DisplayPort/VGA/DVI/HDMI Audio/Video Cable

6" DVI/HDMI/Mini DisplayPort/VGA A/V Cable for Audio/Video Device - First End: 1 x Mini DisplayPort 1.2a Digital Audio/Video - Male - Second End: 1 x 15-pin HD-15 - Female, 1 x DVI (Single-Link) Digital Video - Female, 1 x HDMI Digital Audio/Video - Female - Supports up to 3840 x 2160 - Black

Part No. 12799

by Monoprice, Inc

$48.99
General Information
ManufacturerMonoprice, Inc
Manufacturer Part Number12799
Brand NameMonoprice
Product NameMini DisplayPort/VGA/DVI/HDMI Audio/Video Cable

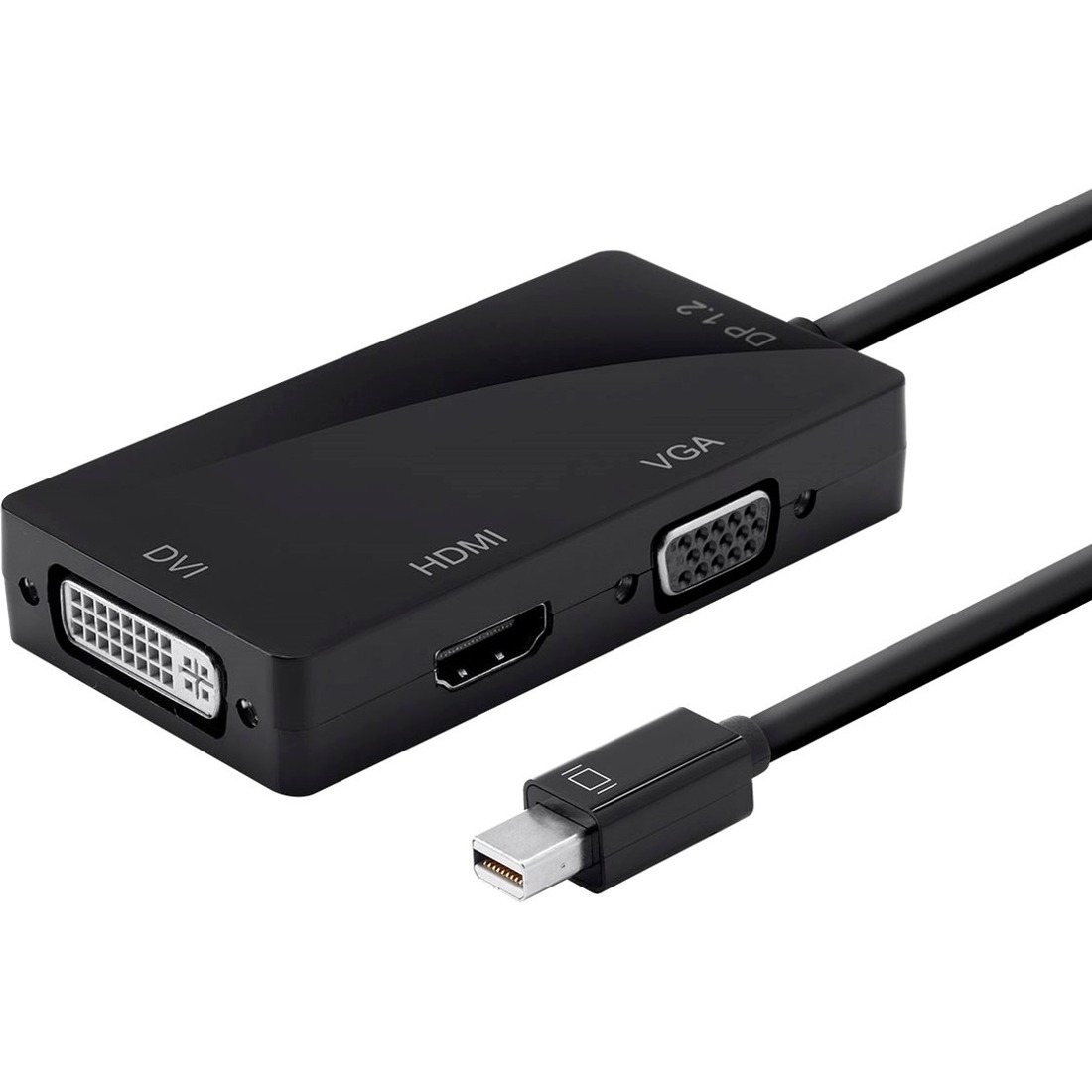

Marketing InformationMini DisplayPort 1.2a / Thunderbolt™ to 4K HDMI®, DVI, and VGA Passive Adapter, Black

Connect your Mini DisplayPort or Thunderbolt™ equipped PC or Mac® to a 4K HDMI®, Single Link DVI, or VGA video display using this Mini DisplayPort 1.2a / Thunderbolt to 4K HDMI, DVI, and VGA Passive Adapter from Monoprice!

This adapter is designed to allow you to connect an HDMI, DVI, or VGA display to a Mini DisplayPort or Thunderbolt video output. It conforms to the DisplayPort 1.2a standard and supports HDMI resolutions up to 4K (3840x2160p) @30Hz, Single Link DVI resolutions up to 1920x1080p @60Hz, and VGA resolutions up to 1920x1080p @60Hz. Being a passive adapter, it is NOT compatible with the AMD® Eyefinity or nVidia® Surround multidisplay modes. Note that only one of the three video outputs can be used at any given time.

It features a true 6" cable length with polycarbonate connector heads. The VGA and DVI connectors have panel screw holes, so you can secure the cable to the connector. The MDP connector head measures 14.0mm thick, 16.0mm wide, and 24.0mm long. The multi-output connector head measures 20.0mm thick, 50.0mm wide, and 90.0mm long.

Product TypeA/V Cable
Technical Information
Cable TypeDVI/HDMI/Mini DisplayPort/VGA
Cable Length6"
Connector Type on First EndMini DisplayPort 1.2a Digital Audio/Video - Male
Connector on First End Details1 x Mini DisplayPort 1.2a Digital Audio/Video - Male
Connector Type on Second End
  • HD-15 - Female
  • DVI (Single-Link) Digital Video - Female
  • HDMI Digital Audio/Video - Female
Connector on Second End Details
  • 1 x 15-pin HD-15 - Female
  • 1 x DVI (Single-Link) Digital Video - Female
  • 1 x HDMI Digital Audio/Video - Female
Device SupportedAudio/Video Device
Supported Resolution3840 x 2160
FeaturesPassive
Physical Characteristics
Product ColorBlack
