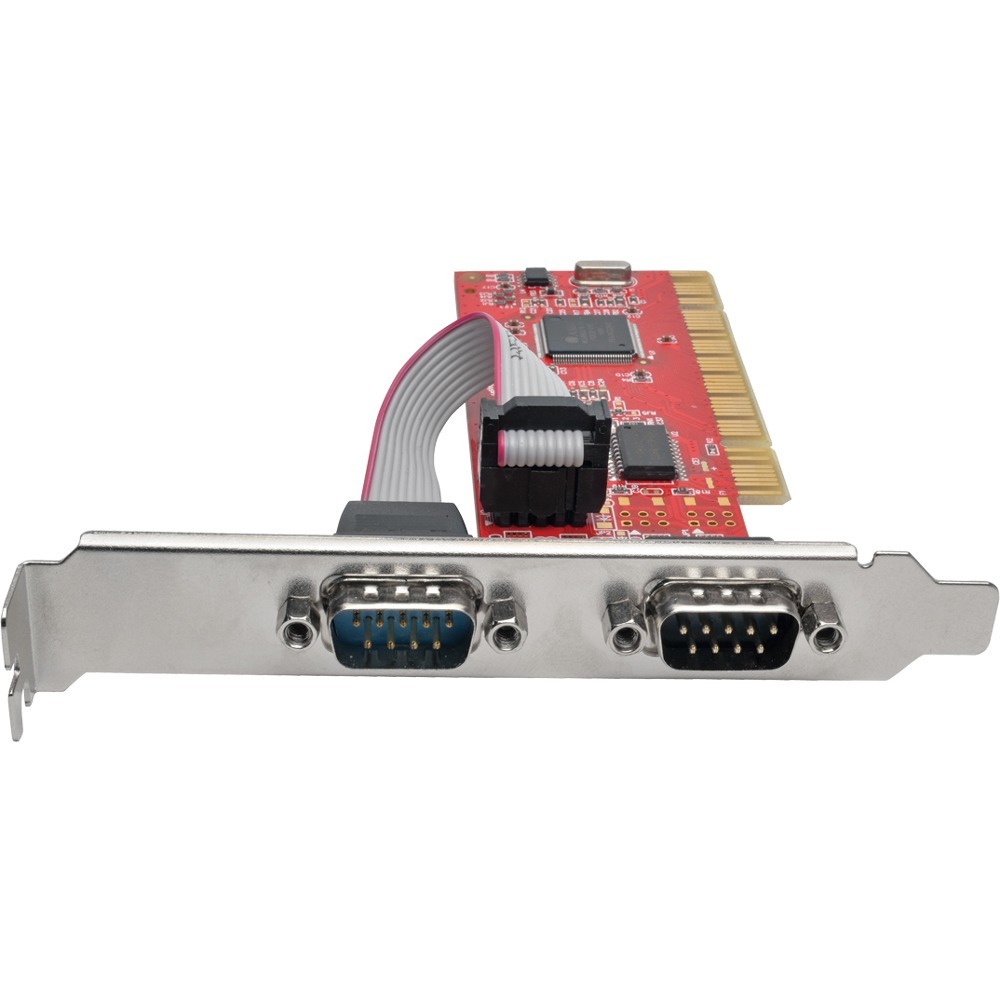

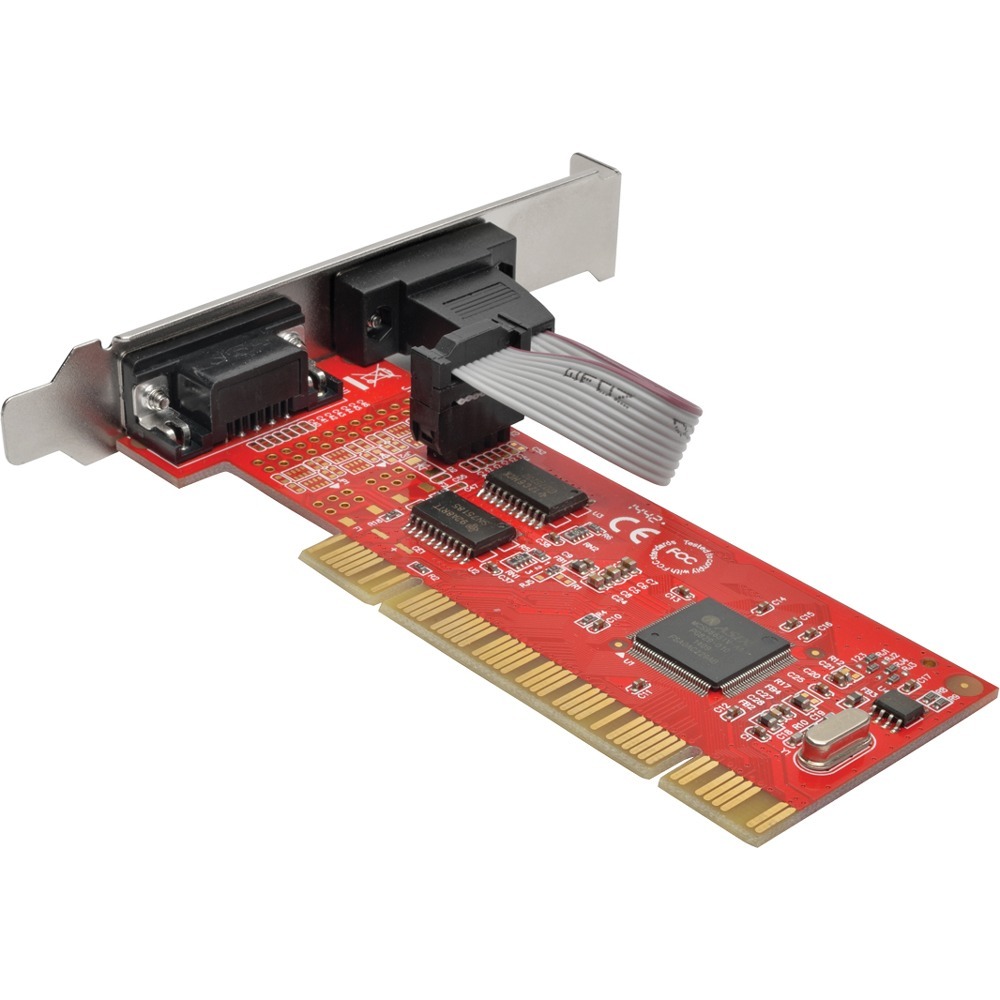

Tripp Lite by Eaton PCI-D9-02 2-Port DB9 Serial PCI Card with 16550 UART, Full Profile
Full-height Plug-in Card - PCI - PC, Linux - 2 x Number of Serial Ports External
$33.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PCI-D9-02 |
| Brand Name | Tripp Lite by Eaton |
| Product Model | PCI-D9-02 |
| Product Name | PCI-D9-02 2-Port DB9 Serial PCI Card with 16550 UART, Full Profile |
| Marketing Information | The PCI-D9-02 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02 to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer.Perfect for home or office, the PCI-D9-02 supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The standard bracket's interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive(a driver CD is included if they don't), and connect DB9 serial extension cables(such as Tripp Lite's P520-006) to the card's DB9 connectors.The PCI-D9-02 is fully compliant with PCI Local Bus Specification Revision 2.3 and compatible with industrial standard 16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; PCI IRQ sharing and PCI power management; 5-, 6-, 7-, 8- and 9-bit serial formats; Even, Odd, None, Space and Mark parity; and 1- or 2-stop bit operation. |
| Product Type | Serial Adapter |
Technical Information
| Host Interface | PCI |
| Platform Supported |
|
Interfaces/Ports
| Number of Serial Ports (External) | 2 |
Physical Characteristics
| Form Factor | Plug-in Card |
| Card Height | Full-height |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Condition | No |
| UPC | 0037332193681 |
Warranty
| Limited Warranty | 2 Year |
