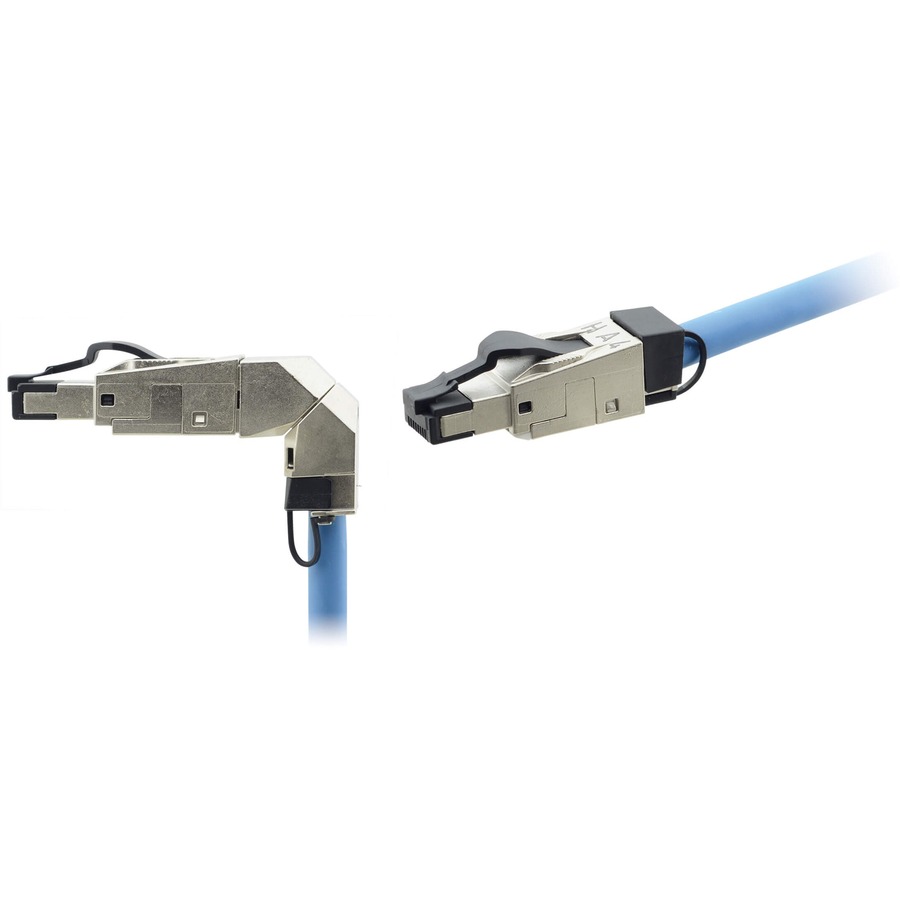

The CON-FIELD is a high-bandwidth, shielded RJ-45 connector used for terminating Kramer LAN cables. This connector requires no crimping tool to install, and provides fast and reliable termination of shielded twisted-pair cables in the field. The connector is suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE) and HDBaseT.

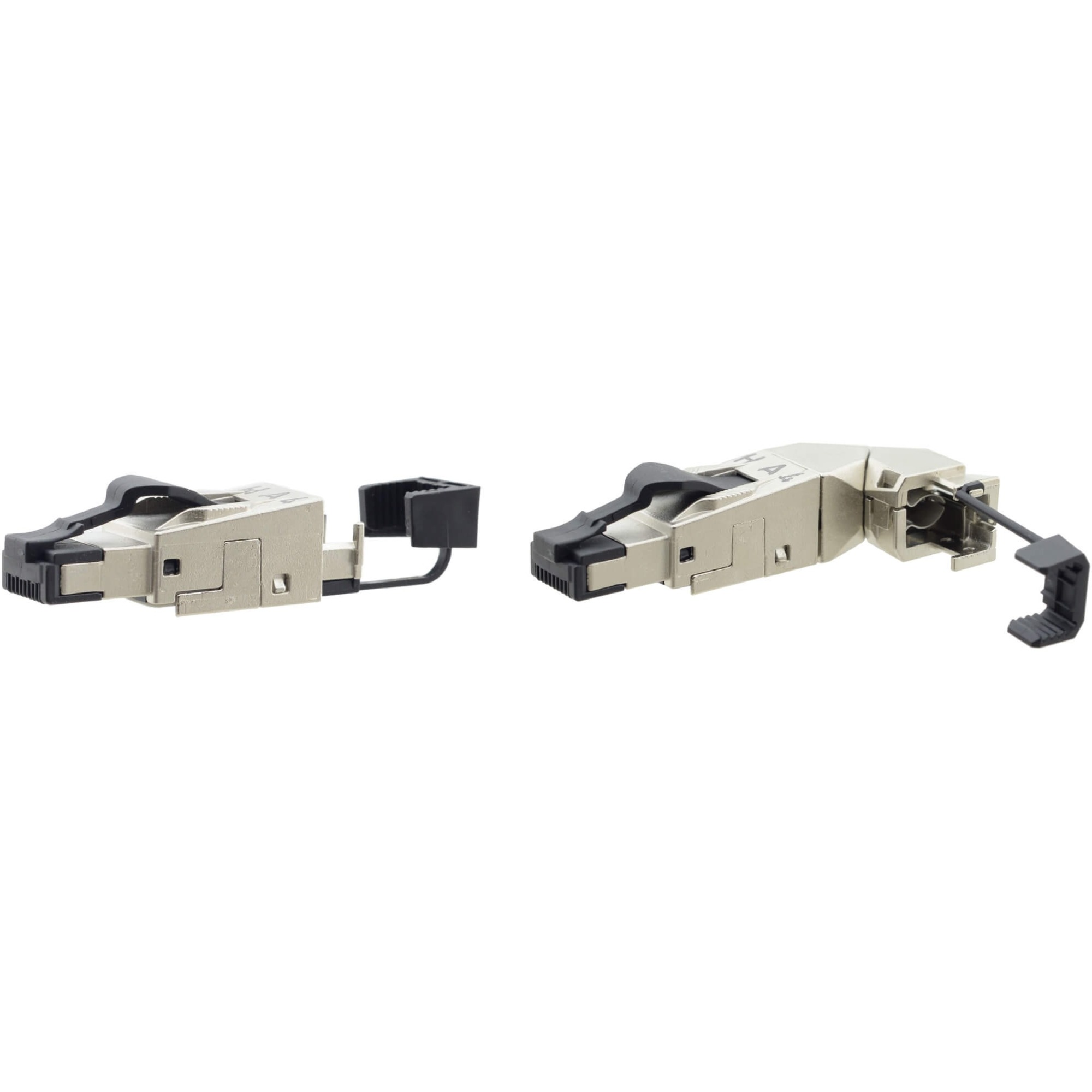

• CON-FIELD - Fixed connector
• CON-FIELD-360 - With variable cable entry, 8 positions possible.
• Robust Zinc Die-cast Housing - For industrial use and a protected latch.
• Compact Design - Makes the connector multiport-capable while being fully shielded.
• Easy Assembly - Strain relief snapped on directly to stuffer cap and protected catch, no crimping tool needed.
• Reconnectable for Reuse.
• Transmission Characteristics - CAT 6A per ISO/IEC 11801 Ed.2.2:2011-06.
• Wide Uses - Suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT.
• Availability - Both connectors sold in packages of 10.

• PoE
• PoE+
• Latch
• Strain Relief
• 180° Angled Connector

• Die-cast Zinc
• Copper
• Plastic

• Tinned Bronze
• Nickel
• Gold

Die-cast Zinc - Housing
Plastic - Latch
