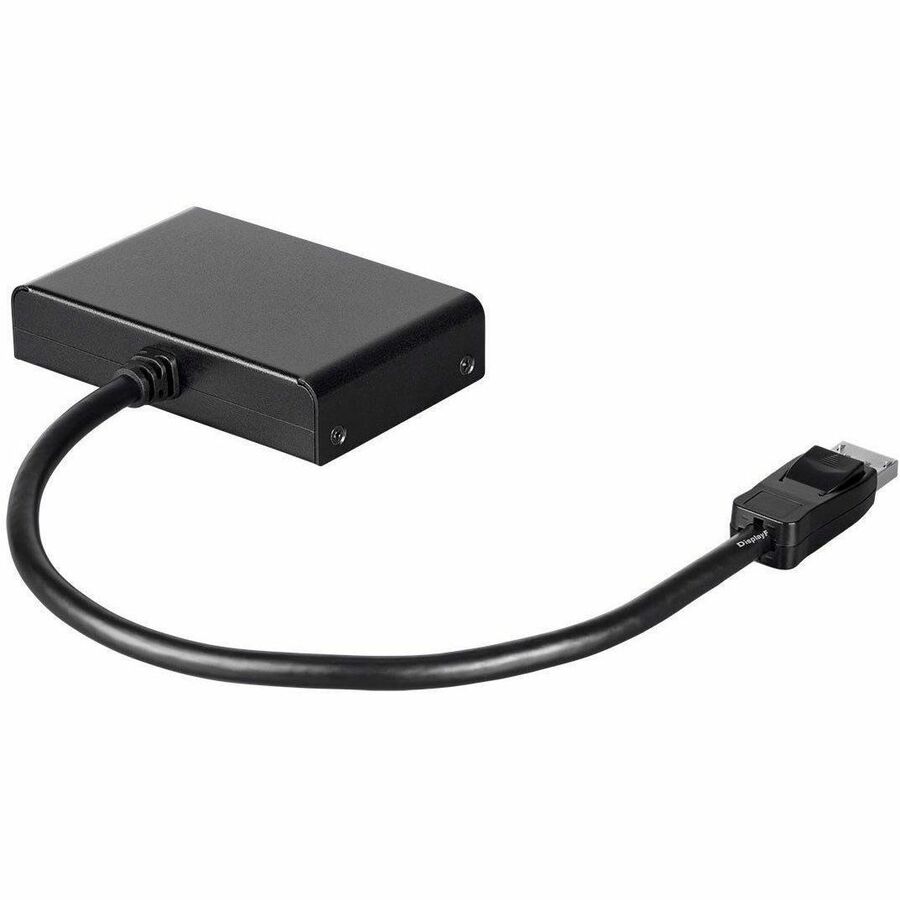

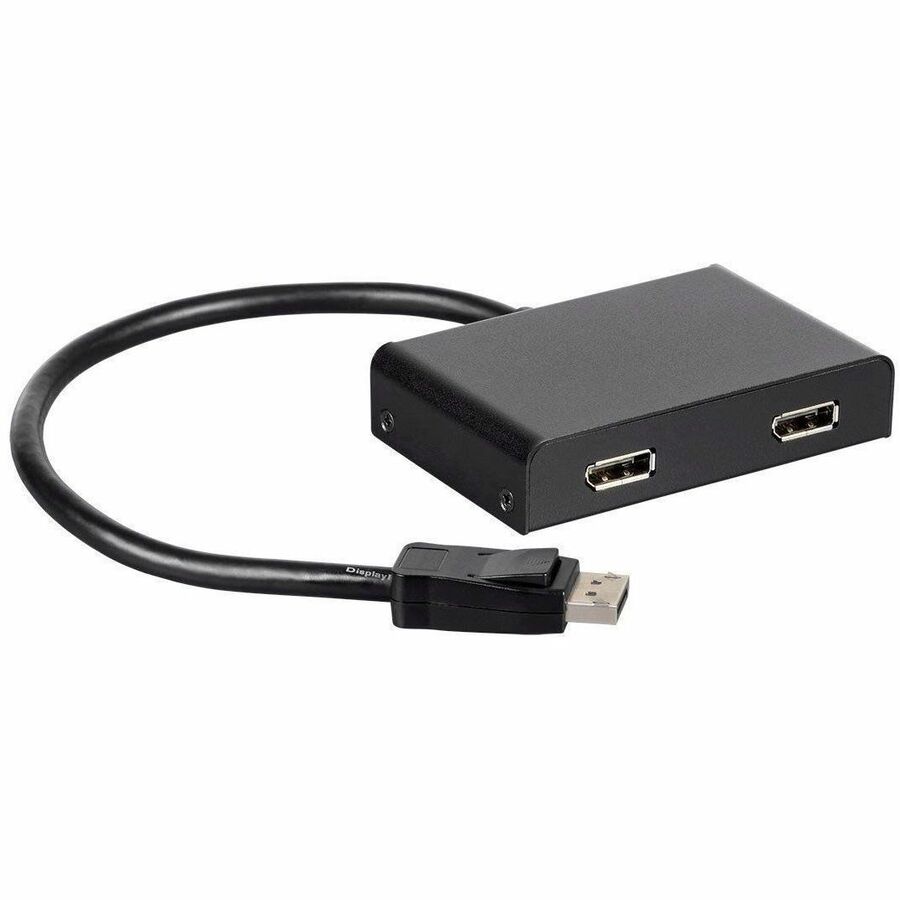

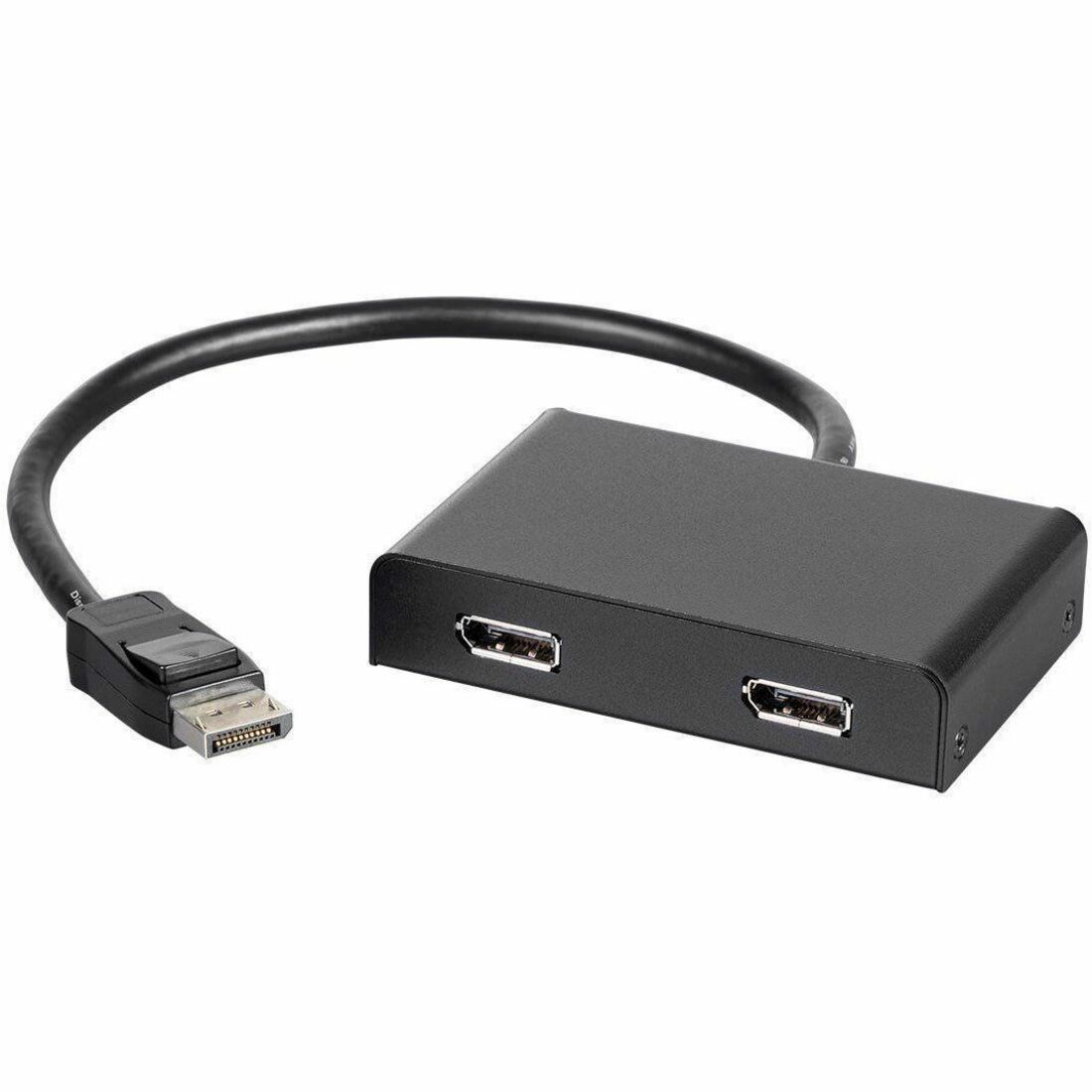

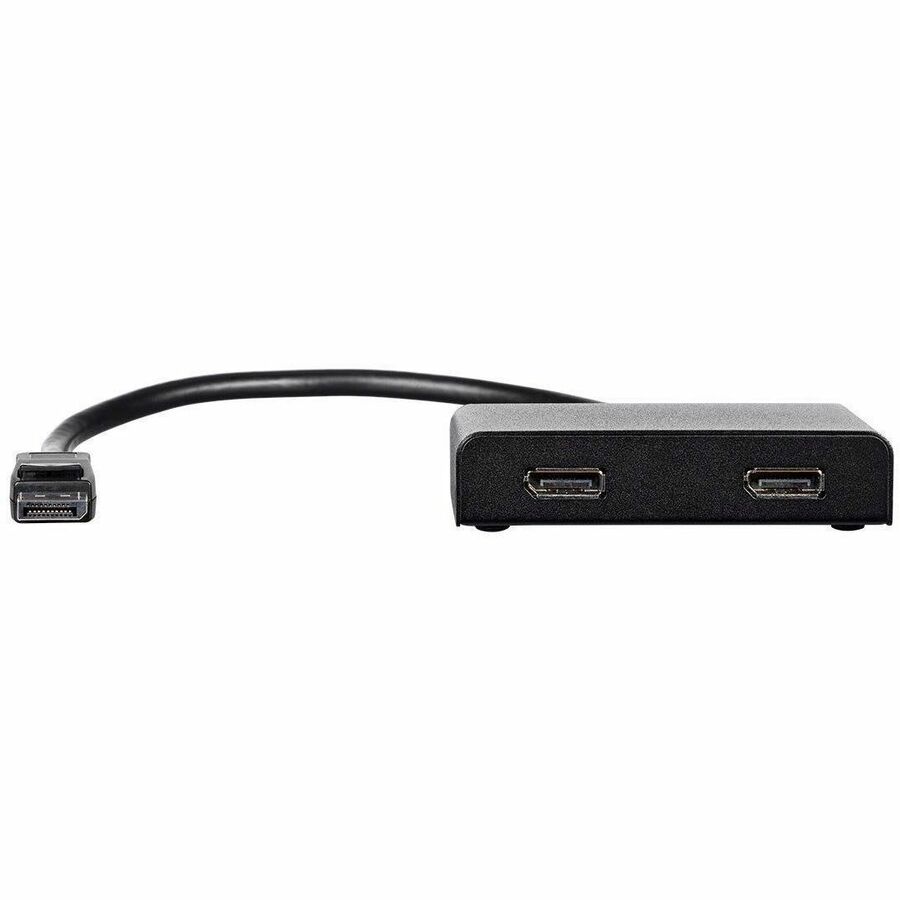

Monoprice 2-Port DisplayPort 1.2 to DisplayPort Multi-Stream Transport (MST) Hub
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Monoprice, Inc |
| Manufacturer Part Number | 21972 |
| Brand Name | Monoprice |
| Product Model | 21972 |
| Product Name | 2-Port DisplayPort 1.2 to DisplayPort Multi-Stream Transport (MST) Hub |

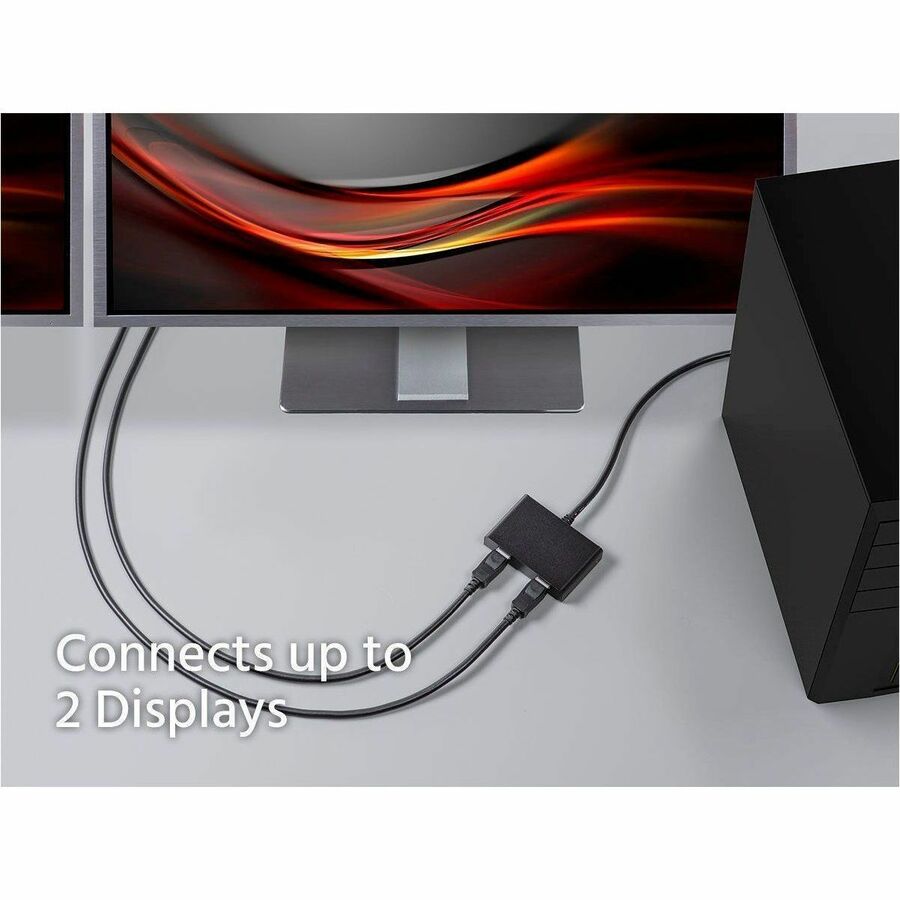

| Marketing Information | This 2-Port DisplayPort® 1.2 to DisplayPort Multi-Stream Transport (MST) Hub enables two different display modes on up to two monitors connected to a single DisplayPort output. You can connect a single display at resolutions up to 4K@60Hz to mirror your computer's desktop. Alternatively, you can connect two monitors and the hub will extend the image to span the two displays at resolutions up to 4K@30Hz for each display. This hub is ideal for digital signage and large video displays in schools, churches, conference rooms, at trade shows, and in retail outlets. Multi-Stream Transport (MST) Hub: An MST Hub enables three different display modes on up to four monitors connected to a single Mini DisplayPort® output. Duplicate Mode: You can connect a single display at resolutions up to 4K@60Hz to mirror your computer's desktop. Extended Desktop Mode: Connect two monitors and the hub will automatically extend the image to span the two displays at resolutions up to 4K@30Hz for each display. |
| Product Type | A/V Adapter |
| Adapter Type | DisplayPort |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 2 x DisplayPort Digital Audio/Video - Female |
| Maximum Resolution Supported | 3840 x 2160 |
| Features | Multi-Stream Transport (MST) Support |
| Cable Length | 11.8" (299.72 mm) |
| Device Supported |
|
| Condition | No |
| UPC | 889028052792 |
| Limited Warranty | 1 Year |
