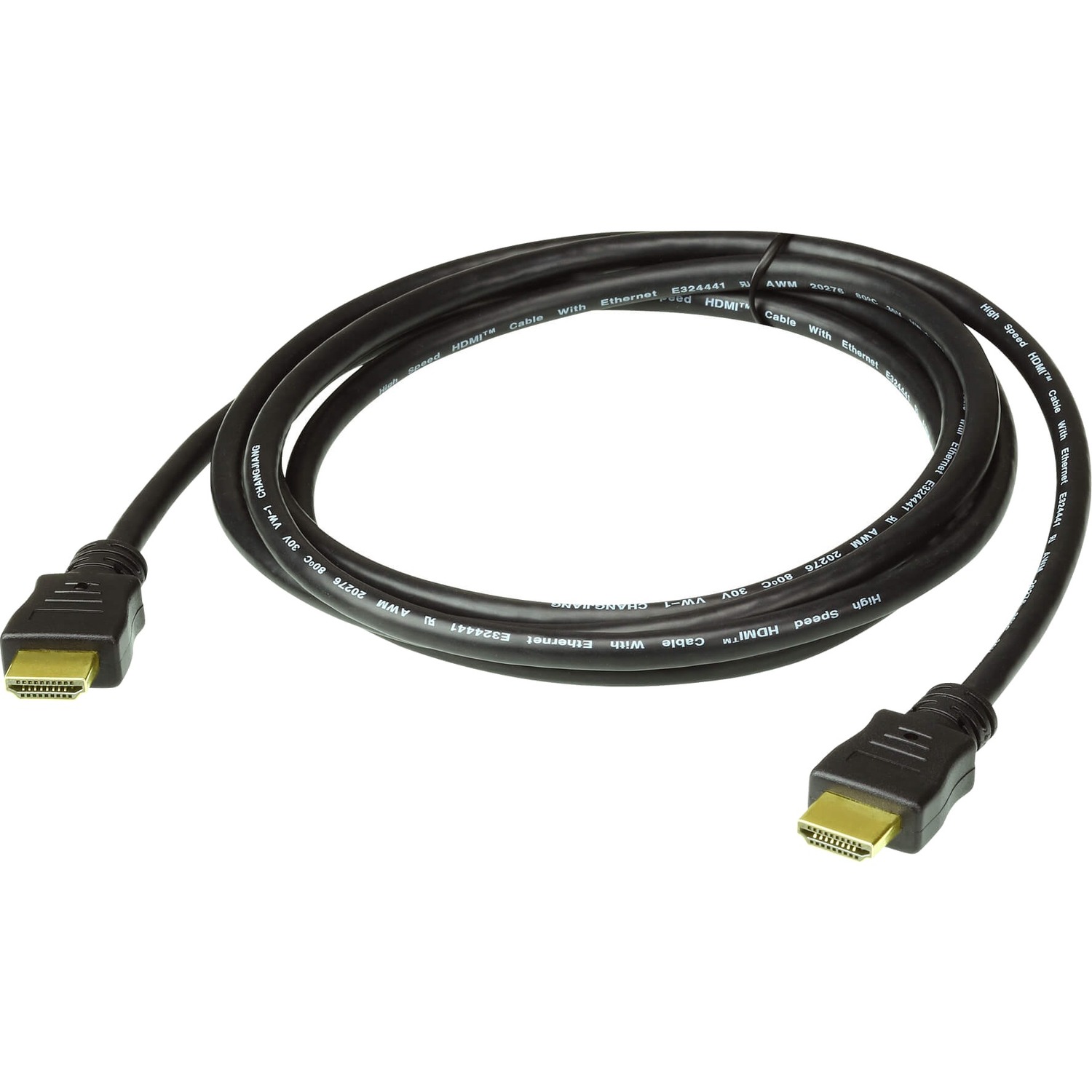

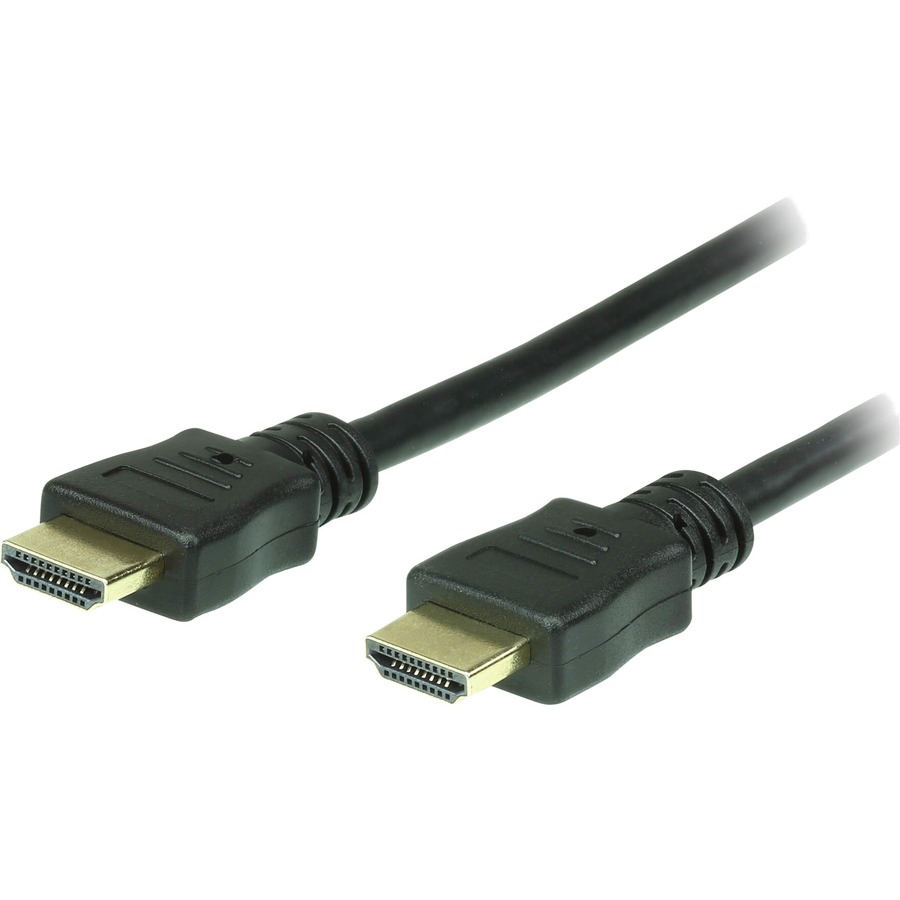

ATEN 1m High Speed HDMI Cable with Ethernet

Part No. 2L-7D01H

by ATEN Technology, Inc

ATEN 1m High Speed HDMI Cable with Ethernet

3.3 ft (1 m) HDMI A/V Cable for Audio/Video Device, Transmitter, Splitter, Switch, Receiver - First End: 1 x 19-pin HDMI Digital Audio/Video - Male - Second End: 1 x 19-pin HDMI Digital Audio/Video - Male - Supports up to 4096 x 2160 - Shielding - Gold Plated Connector - 30 AWG - Black - 1

Part No. 2L-7D01H

by ATEN Technology, Inc

$23.99
General Information
ManufacturerATEN Technology, Inc
Manufacturer Part Number2L-7D01H
Brand NameATEN
Product Model2L-7D01H
Product Name1m High Speed HDMI Cable with Ethernet
Marketing Information

ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 1 to 20 meters with resolutions up to True 4K (4096 x 2160 @60Hz).

Packaged Quantity1
Product TypeA/V Cable
Technical Information
Cable TypeHDMI
Cable Length3.3 ft (1 m)
Connector Type on First EndHDMI Digital Audio/Video - Male
Connector on First End Details1 x 19-pin HDMI Digital Audio/Video - Male
Connector Type on Second EndHDMI Digital Audio/Video - Male
Connector on Second End Details1 x 19-pin HDMI Digital Audio/Video - Male
Connector PlatingGold
ShieldingYes
Device Supported
  • Audio/Video Device
  • Transmitter
  • Splitter
  • Switch
  • Receiver
American Wire Gauge30 AWG
Supported Resolution4096 x 2160
Features
  • HDCP 2.2
  • HDMI Ethernet Channel (HEC)
Physical Characteristics
Product ColorBlack
Jacket MaterialPolyvinyl Chloride (PVC)
Miscellaneous
Compatibility

Aten Products:

  • VC081 True 4K HDMI EDID Emulator
  • VE2812EUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate
  • VE2812UST HDMI & VGA HDBaseT Transmitter with US Wall Plate
  • VE814A HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
  • VS481C 4-Port True 4K HDMI Switch
  • VM0808HB 8 x 8 True 4K HDMI Matrix Switch
  • VM0404HB 4 x 4 True 4K HDMI Matrix Switch
  • VE8950T 4K HDMI over IP Transmitter
  • VE8950R 4K HDMI over IP Receiver
  • VE8900T HDMI over IP Transmitter
  • VE8900R HDMI over IP Receiver
  • VM7814 4-Port 4K HDMI Input Board
  • VM8814 4-Port 4K HDMI Output Board with Scaler
  • VM6809H 8 x 9 4K HDMI Matrix Switch with Scaler
  • VM51616H 16 x 16 HDMI Matrix Switch with Scaler
  • KE8952R 4K HDMI Single Display KVM over IP Receiver with PoE
  • KE8952 4K HDMI Single Display KVM over IP Extender with PoE
  • KE8950R 4K HDMI Single Display KVM over IP Receiver
  • KE8950T 4K HDMI Single Display KVM over IP Transmitter
  • KE8950 4K HDMI Single Display KVM over IP Extender
  • VE814AR HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)
  • VE814AT HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A)
  • VE2812T HDMI & VGA HDBaseT Transmitter (4K@100m) (HDBaseT Class A)
  • VE1812T HDMI HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A)
  • VE1812R HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)
  • VE1812 HDMI HDBaseT Extender with POH (4K@100m) (HDBaseT Class A)
  • VS0108HB 8-Port True 4K HDMI Splitter
  • VE813A 4K HDMI HDBaseT Extender with ExtremeUSB® (4K@100m) (HDBaseT Class A)
  • UC3008 USB-C to 4K HDMI Adapter
  • VM0808HA 8x8 4K HDMI Matrix Switch
  • VM0404HA 4x4 4K HDMI Matrix Switch
  • VE849R Multicast HDMI Wireless Receiver (1080p@30m)
  • VE849T Multicast HDMI Wireless Transmitter (1080p@30m)
  • VM3909H 9 x 9 4K HDMI HDBaseT-Lite Matrix Switch
  • VM3404H 4 x 4 4K HDMI HDBaseT-Lite Matrix Switch
  • VS1912 12-Port DP Video Wall Media Player
  • VE849 Multicast HDMI Wireless Extender (1080p@30m)
  • VC986 DisplayPort to 4K HDMI Active Adapter
  • VC981 Mini DisplayPort to 4K HDMI Active Adapter
  • VC985 DisplayPort to HDMI Adapter
  • VM6404H 4x4 4K HDMI Matrix Switch with Scaler
  • VE805R HDMI HDBaseT-Lite Receiver with Scaler (1080p@70m) (HDBaseT Class B)
  • VE802R HDMI HDBaseT-Lite Receiver with POH (4K@40m) (HDBaseT Class B)
  • VE802T HDMI HDBaseT-Lite Transmitter with POH (4K@40m) (HDBaseT Class B)
  • VE802 HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)
  • VE812R HDMI HDBaseT Receiver (4K@100m) (HDBaseT Class A)
  • VE812T HDMI HDBaseT Transmitter (4K@100m) (HDBaseT Class A)
  • VE800AR HDMI Cat 5 Receiver (1080p@40m)
  • VE801T HDMI HDBaseT-Lite Transmitter (4K@40m) (HDBaseT Class B)
  • VE801R HDMI HDBaseT-Lite Receiver (4K@40m) (HDBaseT Class B)
  • VE801 HDMI HDBaseT-Lite Extender (4K@40m) (HDBaseT Class B)
  • VM8804 4-Port HDMI Output Board with Scaler
  • VM7804 4-Port HDMI Input Board
  • VS481B 4-Port 4K HDMI Switch
  • VE800A HDMI Cat 5 Extender (1080p@40m)

https://www.aten.com/gb/en/products/cables/hdmi-cables/2l-7d01h/

Country of OriginChina
ConditionNo
UPC672792005657
