Brainboxes PCIe 4+1xRS232 + 1xLPT Printer Port
PCI Express x1 - 4 x DB-9 RS-232 - Serial, Via Fan-out Cable, 1 x DB-9 RS-232 - Serial, Via Cable, 1 x DB-25 - Parallel, Via Cable - Plug-in Card - TAA Compliant
$573.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | PX-306 |
| Brand Name | Brainboxes |
| Product Name | PCIe 4+1xRS232 + 1xLPT Printer Port |

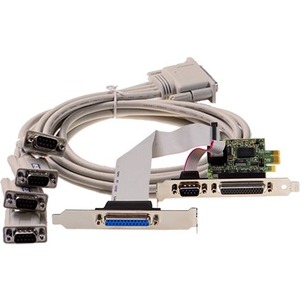

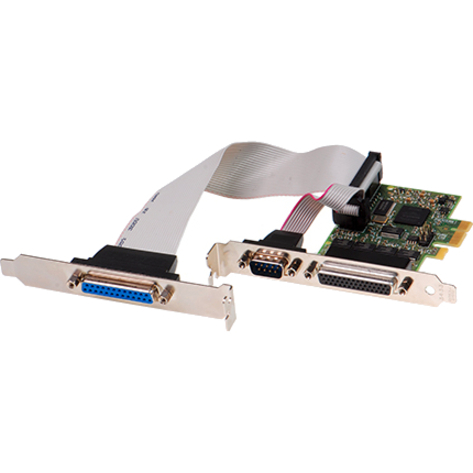

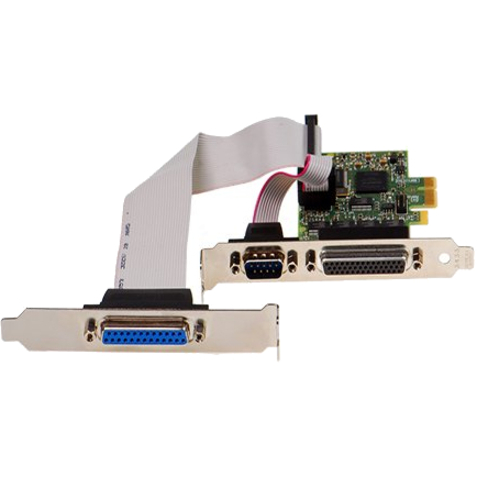

| Marketing Information | PCI Express Card providing five RS232 serial ports and one LPT port (5 industry standard 9 pin D RS232 ports via a quad cable and 1 x 9 Pin D on a fly lead plus a 25 pin D LPT port on a flylead). Brainboxes' own BB16C958 UART provides data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Linux. |
| Product Type | Multiport Serial/Parallel Adapter |
Technical Information
| Host Interface | PCI Express x1 |
| UART Type | BB16C958 |
| Protocols | RS-232 |
| Platform Supported |
|
Interfaces/Ports
| Number of Serial Ports | 1 |
| Ports Expandability |
|
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 2.36" (60 mm) |
| Width | 9.45" (240 mm) |
| Thickness | 6.69" (170 mm) |
| Weight (Approximate) | 653 g |
Miscellaneous
| Package Contents |
|
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 837324002942 |
Warranty
| Limited Warranty | Lifetime |
