ATEN 4-Port USB 2.0 Cat 5 Extender over LAN

Part No. UEH4102

by ATEN Technology, Inc

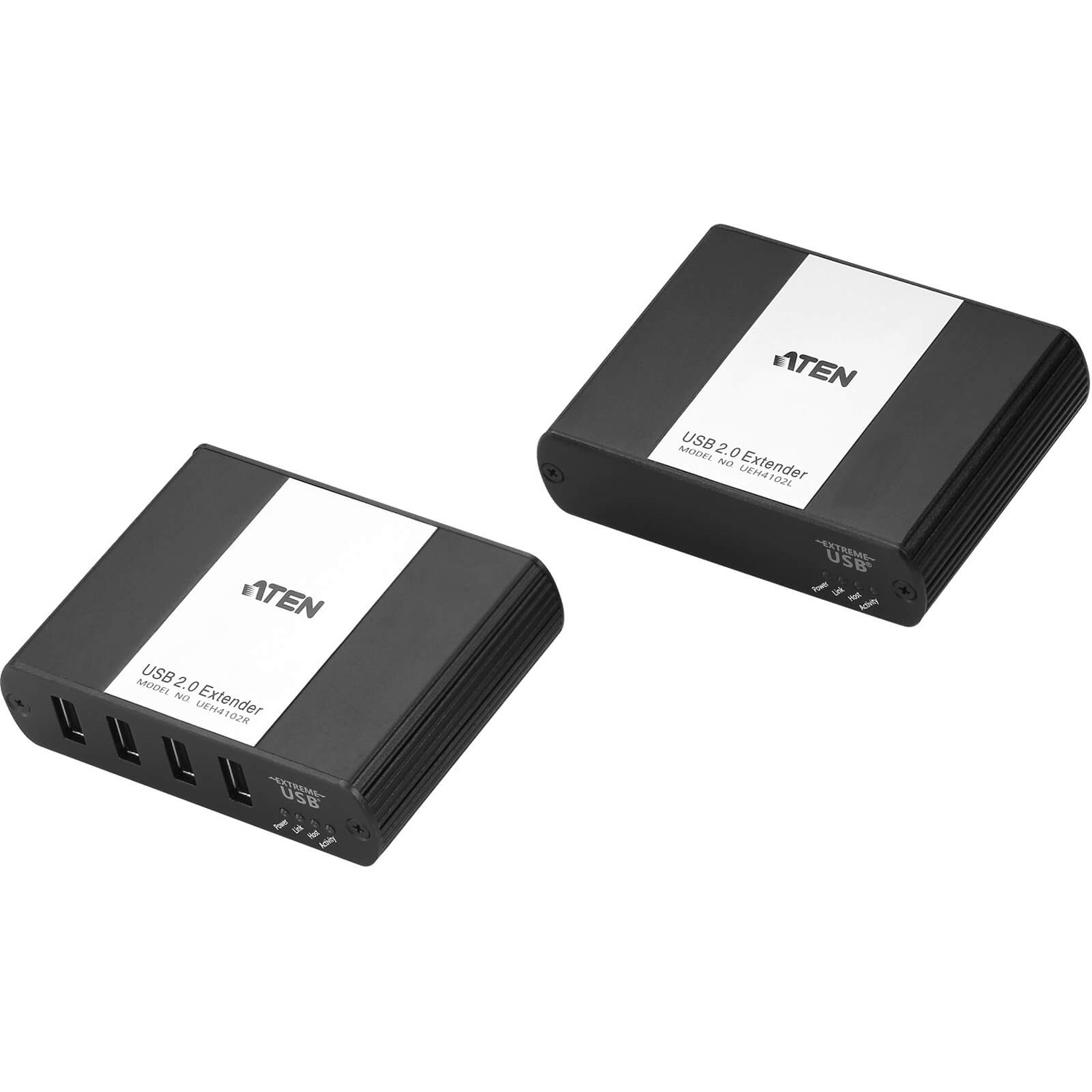

ATEN 4-Port USB 2.0 Cat 5 Extender over LAN

1 x Network (RJ-45) - 4 x USB - 328.08 ft (100000 mm) Extended Range - Metal

Part No. UEH4102

by ATEN Technology, Inc

$825.99
General Information
ManufacturerATEN Technology, Inc
Manufacturer Part NumberUEH4102
Brand NameATEN
Product Name4-Port USB 2.0 Cat 5 Extender over LAN
Marketing Information

The UEH4102 4-port USB 2.0 Extender over LAN incorporates patented ExtremeUSB® technology that enables users to extend beyond the standard 5 meter cable limit for USB peripheral devices.

UEH4102 provides true USB 2.0 extension at up to 480 Mbps across a Gigabit Ethernet Local Area Network (LAN). The Local and Remote units are pre-paired with each other through MAC address - no pairing action required during installation.

A true plug-and-play solution, the UEH4102 is compatible with all leading operating systems, and supports all USB peripherals, such as keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB device. The UEH4102 harnesses the full capability of the USB 2.0 standard that provides a durable, reliable and high-quality data communication.

More from the Manufacturer

Product TypeUSB Extender
Technical Information
Maximum Extended Range328.08 ft (100000 mm)
Maximum Data Transfer Rate60 MB/s
Interfaces/Ports
Network (RJ-45)Yes
Number of Network (RJ-45) Ports1
USBYes
Number of USB Ports4
Power Description
Input Voltage120 V AC
Physical Characteristics
Product MaterialMetal
Height1.02" (26 mm)
Width2.99" (76 mm)
Length3.94" (100 mm)
Transmitter Weight (Approximate)6.70 oz (190 g)
Receiver Weight (Approximate)6.70 oz (190 g)
Miscellaneous
Package Contents
  • 1x UEH4102L 4-Port USB 2.0 Cat 5 Extender over LAN (Local unit)
  • 1x UEH4102R 4-Port USB 2.0 Cat 5 Extender over LAN (Remote unit)
  • 1x Power Adapter
  • 1x USB 2.0 Type-A to Type-B Cable
  • 1x User Instructions
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC672792008405
