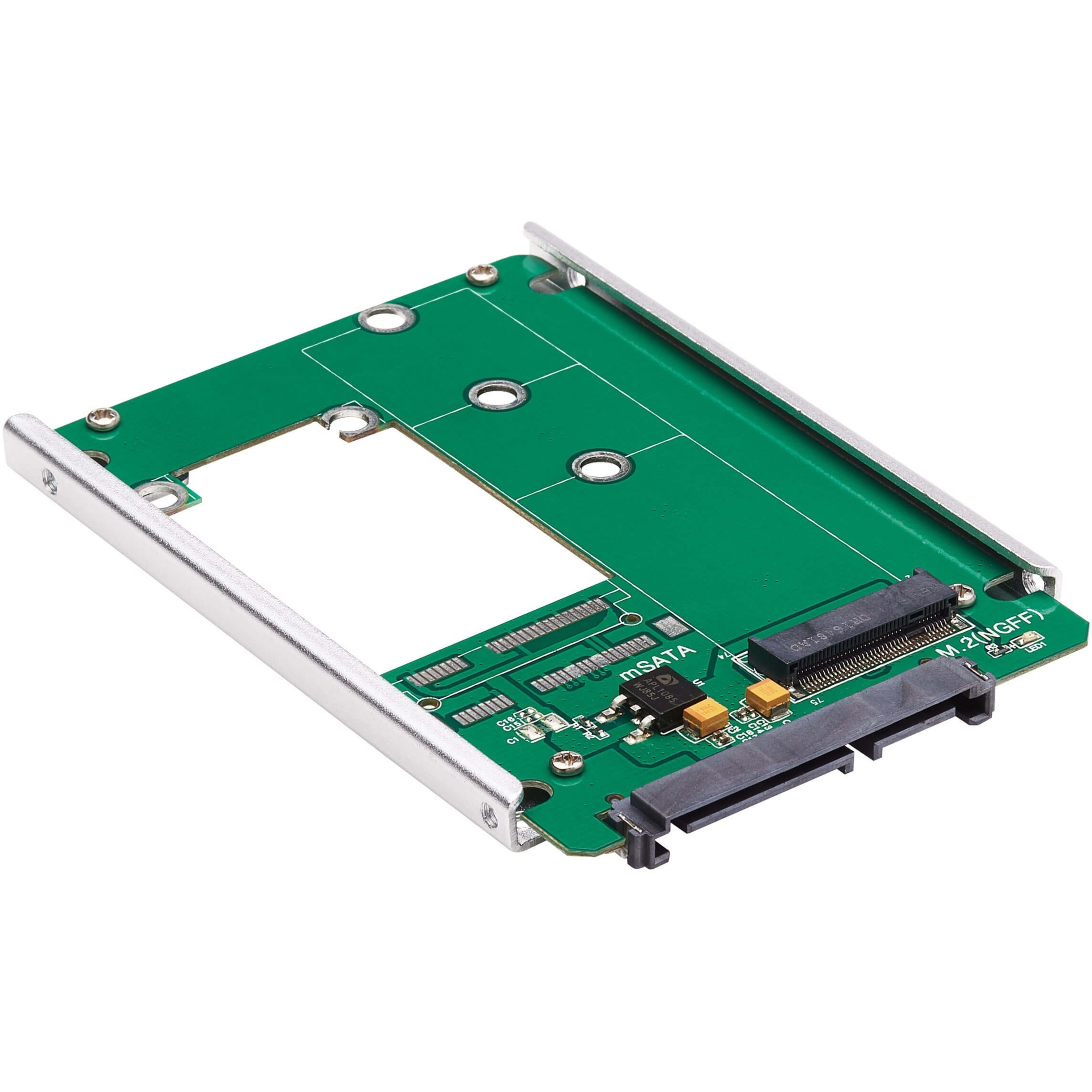

SSD to SATA Adapter Improves Performance of Your SATA Computer

This adapter converts your M.2 NGFF SSD drive into a 2.5-inch SATA SSD for use with a standard SATA-enabled computer. The open-frame P960-001-M2-NE supports mount drive heights of 2242, 2260 and 2280, as well as data transfer rates up to 6 Gbps. Adding an M.2 NGFF SSD to your application can reduce your computer's power consumption and boost performance.

Open-Frame Housing Helps Keep the Intricate Electronic Components Cool

The open frame is designed for maximum heat dissipation, keeping the adapter cool to boost its performance potential. To share data, simply connect the SATA drive to the M.2 NGFF connector and then the SATA connector to your computer's SATA port.

Just Plug and Play for Immediate Use Right Out of the Package

No software, drivers or external power supply is required. Mounting hardware is included. The P960-001-M2-NE is compatible with all major operating systems, including Windows, Mac and Linux.

• M.2 NGFF SSD (B-Key) to 2.5 in. SATA Open-Frame Housing Adapter
• Mounting Hardware
• Screw Driver
• Owner's Manual

ENVIRONMENTAL

• Operating Temperature Range: 50 to 122°F (10 to 50°C)
• Storage Temperature Range: 32 to 149°F (0 to 65°C)
• Relative Humidity: 10% to 80% RH, Non-Condensing

CONNECTIONS

• Side A - Connector 1 M.2 NGFF SATA (B-Key)
• Side B - Connector 1 22 PIN SATA + POWER (FEMALE)

FEATURES & SPECIFICATIONS

• Driver Required No
• Technology SATA/eSATA

• CE
• FCC

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
