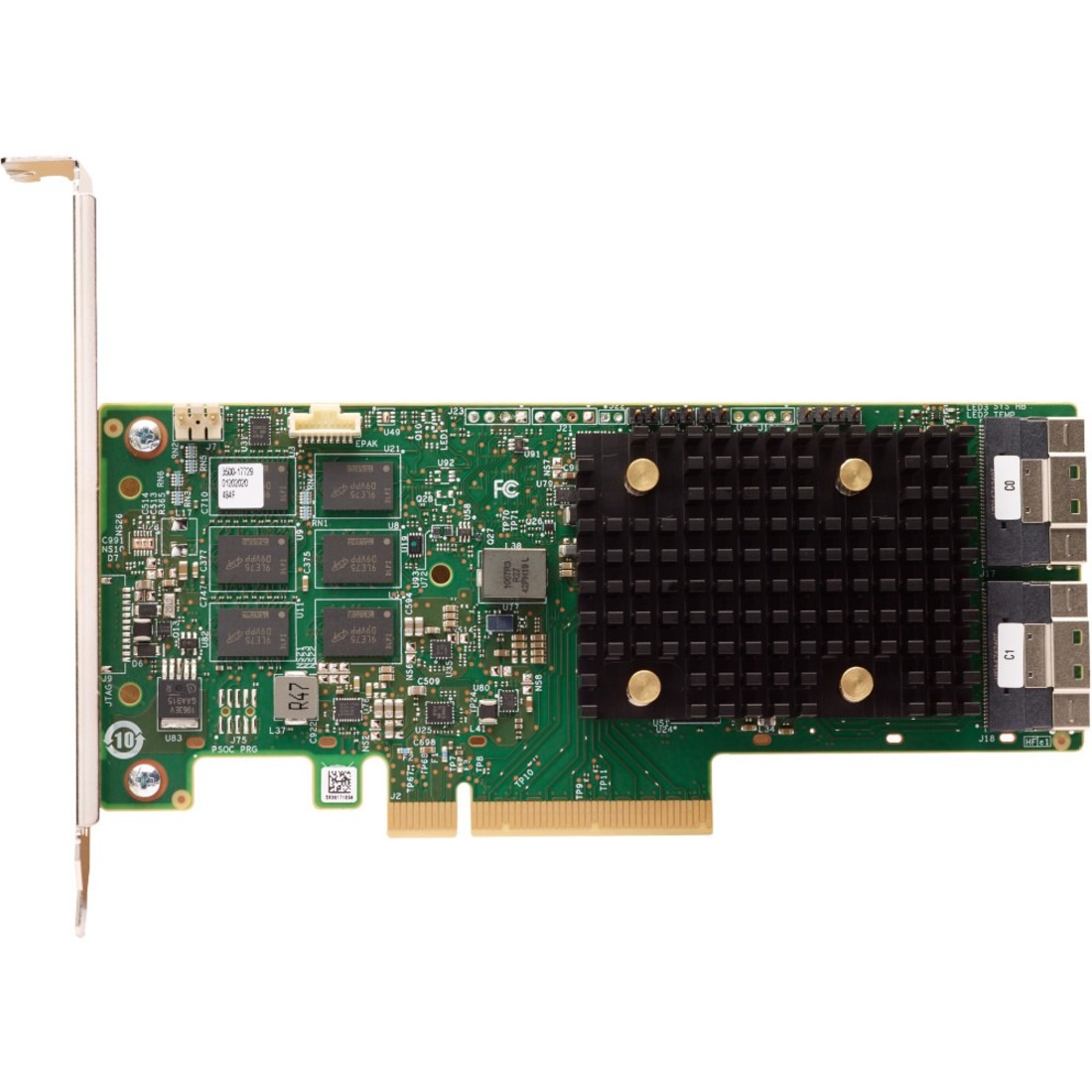

Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter
12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Level - Two x8 SFF-8654 - 16 Total SAS Port(s) - 16 SAS Port(s) Internal - PC - 8 GB Flash Backed Cache
$13933.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4Y37A09730 |
| Brand Name | Lenovo |
| Product Model | RAID 940-16i |
| Product Name | ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter |
| Marketing Information | The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features. |
| Product Type | SAS Controller |
Technical Information
| Host Interface | PCI Express 4.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels |
|
| Data Backup Type | Flash Backed Cache |
| Device Supported | Server |
| Operating System Supported |
|
Memory
| Cache Memory | 8 GB |
Interfaces/Ports
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | Two x8 SFF-8654 |
Physical Characteristics
| Form Factor | Plug-in Card |
Miscellaneous
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0889488525034 |
Warranty
| Limited Warranty | 1 Year |
| Additional Warranty Information | The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades. |
