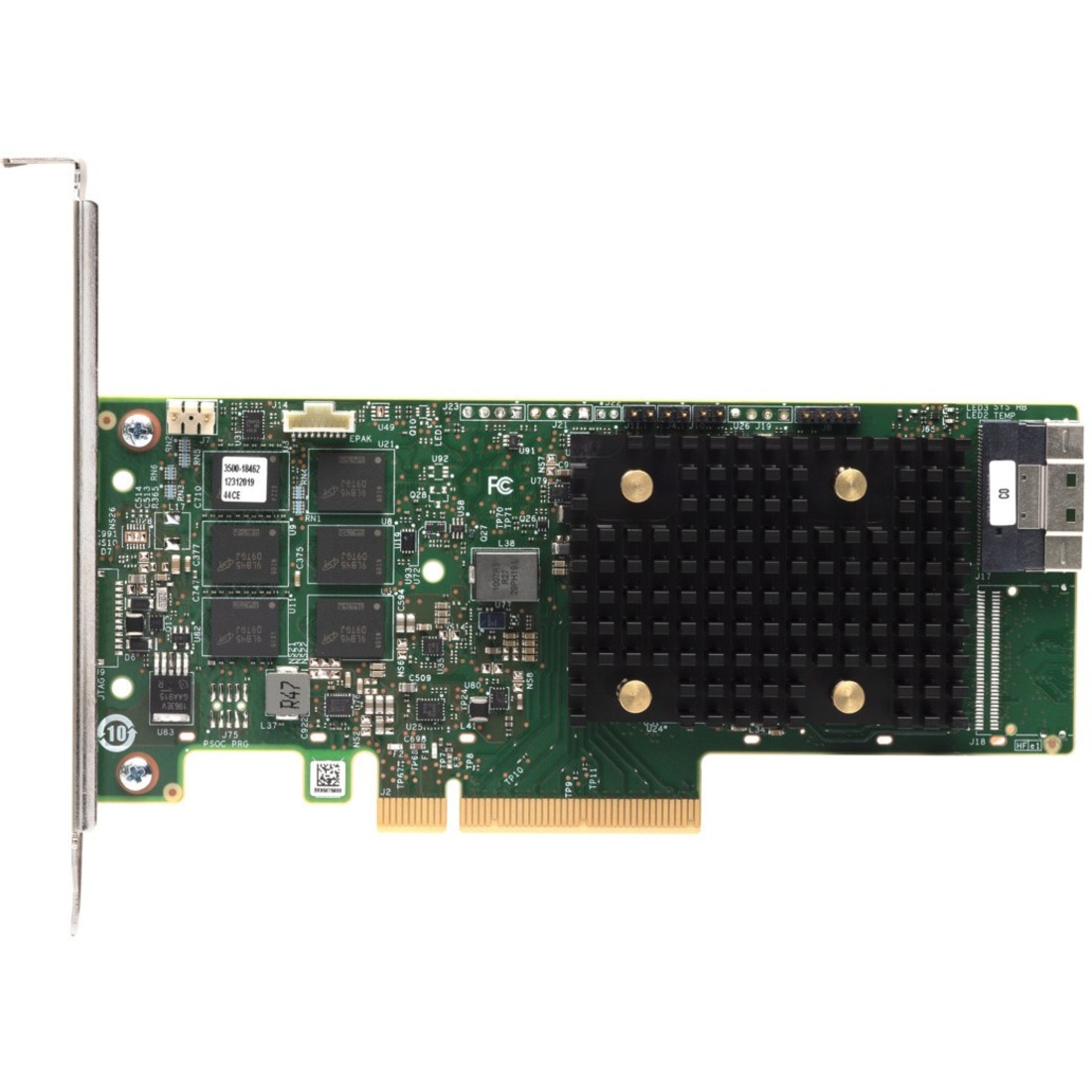

Lenovo ThinkSystem RAID 940-8i 4GB Flash PCIe Gen4 12Gb Adapter
12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Level - One x8 SFF-8654 - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux - 4 GB Flash Backed Cache
$7822.99
In Stock Availability
- All Locations: (2+)
- Halifax, NS (1+)
- Mississauga, ON (1+)
General Information
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4Y37A09728 |
| Brand Name | Lenovo |
| Product Model | 940-8i |
| Product Name | ThinkSystem RAID 940-8i 4GB Flash PCIe Gen4 12Gb Adapter |
| Marketing Information | The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features. |
| Product Type | SAS Controller |
Technical Information
| Host Interface | PCI Express 4.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels |
|
| Data Backup Type | Flash Backed Cache |
| Device Supported | Server |
| Operating System Supported |
|
Memory
| Cache Memory | 4 GB |
Interfaces/Ports
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | One x8 SFF-8654 |
| SATA Connector Details | One x8 SFF-8654 |
Physical Characteristics
| Form Factor | Plug-in Card |
Miscellaneous
| Platform Supported |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0889488526505 |
Warranty
| Limited Warranty | 1 Year |
