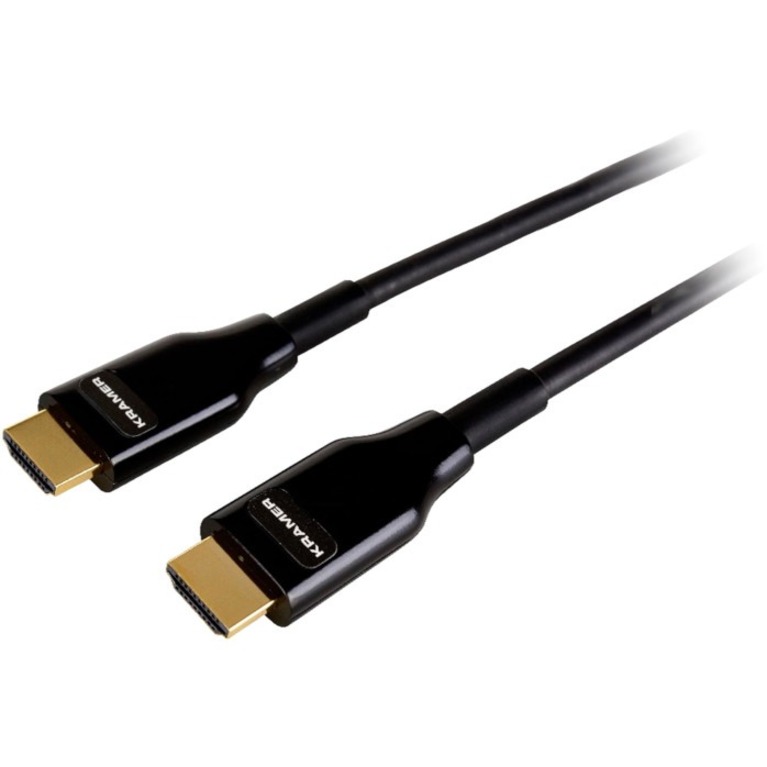

Kramer Active Optical Armored 4K HDMI Cable

33 ft (10.06 m) Fiber Optic A/V Cable for Network Device - First End: 1 x HDMI Type A Digital Audio/Video - Male - Second End: 1 x HDMI Type A Digital Audio/Video - Male - 18 Gbit/s - Supports up to 4096 x 2160 - Gold Plated Connector - Armored, LSHF - 50/125 µm - Black

Part No. CRS-PLUGNVIEW-H-33

by Kramer Electronics LTD

$433.99

Specifications

General Information

Manufacturer	Kramer Electronics LTD
Manufacturer Part Number	CRS-PLUGNVIEW-H-33
Brand Name	Kramer
Product Model	CRS-PlugNView-H-33
Product Name	Active Optical Armored 4K HDMI Cable

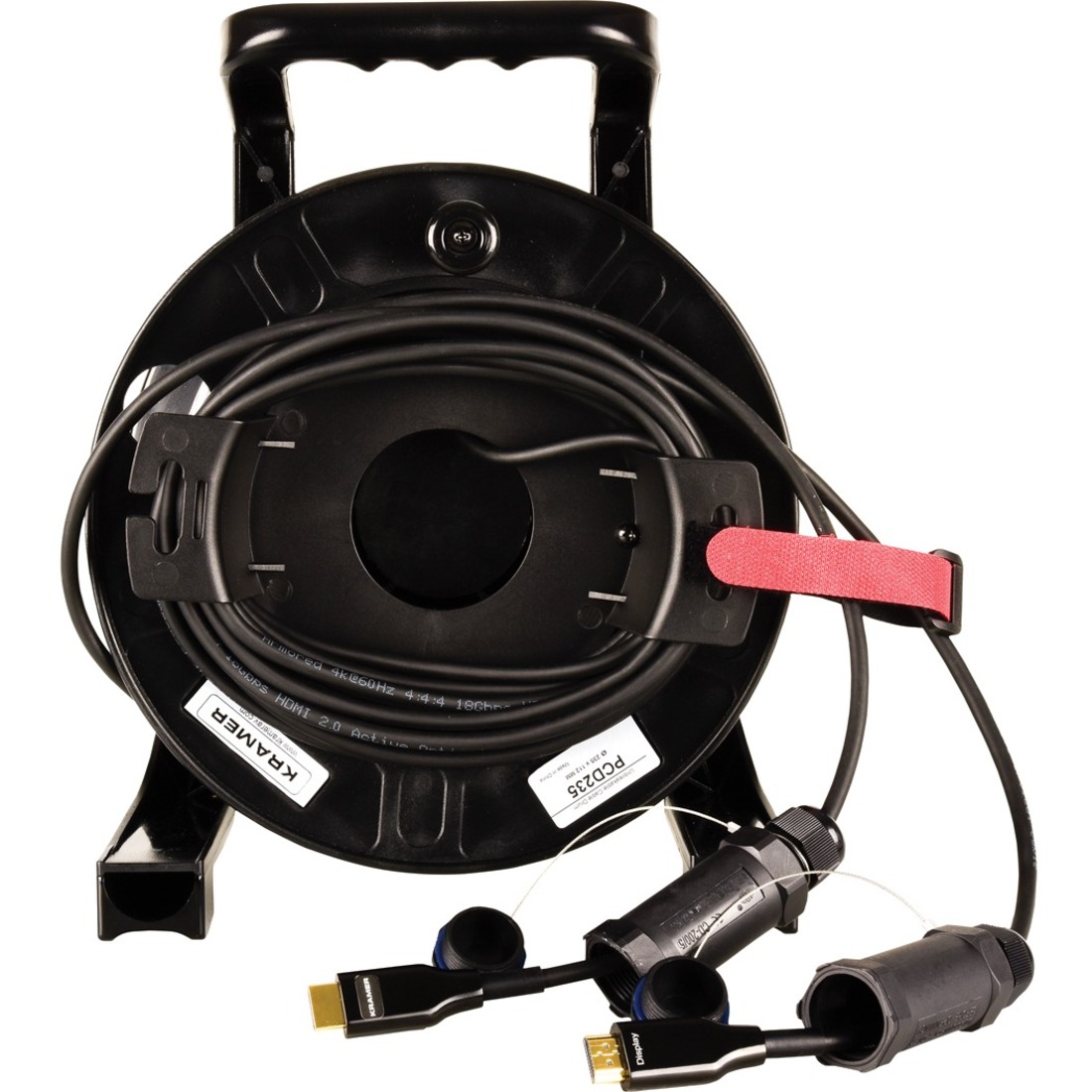

Marketing Information	CRS-PLUGNVIEW-H cable is a high-speed HDMI active optical cable (AOC) designed with heavy-duty durability perfectly suited for the harshest use and abuse expected from rental and road applications. CRS-PlugNView-H supports resolutions up to 4K@60 (4:4:4) 18 Gbps over long cable runs up to 100 meters without the need for an external power supply or additional extenders. High Resolution over Long Range - Active cable supports resolutions up to 4K@60 (4:4:4) over long cable runs up to 100 meters. High Data Transfer Rate - Up to 18 Gbps. No External Power Needed - Powers the active units via the HDMI connector with a power consumption of only 0.25W:50mA @5V. Comprehensive HDMI Support - HDCP 2.2, HDR-10, HLG, Dolby Vision™, deep color, x.v.Color™, 5.1/7.1 lossless Dolby® TrueHD, DTS-HD Master Audio®, EDID and CEC. Extremely Durable - integrated. stainless steel, corrugated tube with Kevlar reinforcement protects the internal optical fibers. A TPU jacket, heavy duty connectors and robust waterproof & impact resistant connector covers ensure high pulling strength and compression load. Dispensed from a solid, mobile plastic spool. Varied Selection of Lengths - Available in versions from 10 to 100m (33 to 328ft).
Product Type	A/V Cable

Technical Information

Cable Type	Fiber Optic
Fiber Optic Mode	Multi-mode
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Cable Length	33 ft
Connector Type on First End	HDMI Type A Digital Audio/Video - Male
Connector on First End Details	1 x HDMI Type A Digital Audio/Video - Male
Connector Type on Second End	HDMI Type A Digital Audio/Video - Male
Connector on Second End Details	1 x HDMI Type A Digital Audio/Video - Male
Connector Plating	Gold
Jacket Type	Armored LSHF
Device Supported	Network Device
Data Transfer Rate	18 Gbit/s
Supported Resolution	4096 x 2160
Features	Crush Resistant Bendable Heavy Duty Water Proof Impact Resistant Halogen Free AOC Technology HDCP 2.2 HDR Support x.v.Color Extended Display Identification Data (EDID) Consumer Electronics Control (CEC)

Physical Characteristics

Color Family	Black
Product Color	Black
Jacket Material	Thermoplastic Polyurethane (TPU)
Weight (Approximate)	11.46 lb (5200 g)

Miscellaneous

Environmentally Friendly	Yes
Condition	No
