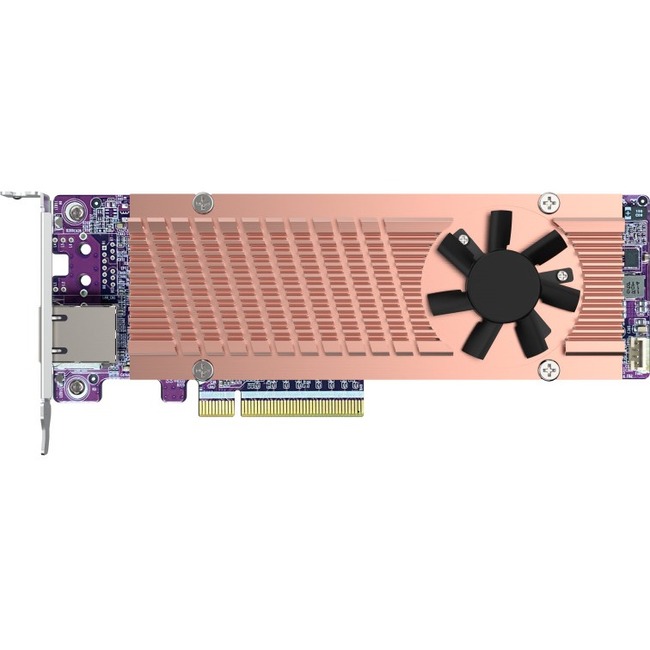

QNAP Dual M.2 2280 PCIe Gen4 NVMe SSD & Single-port 10GbE Expansion Card

Part No. QM2-2P410G1T

by QNAP Systems

QNAP Dual M.2 2280 PCIe Gen4 NVMe SSD & Single-port 10GbE Expansion Card

QNAP QM2 SERIES, 2 X PCIE 2280 M.2 SSD SLOTS, PCIE GEN4 X 8, 1 X AQC113C 10GBE NBASE-T PORT

Part No. QM2-2P410G1T

by QNAP Systems

$951.99
General Information
ManufacturerQNAP Systems
Manufacturer Part NumberQM2-2P410G1T
Brand NameQNAP
Product SeriesQM2
Product ModelQM2-2P410G1T
Product NameDual M.2 2280 PCIe Gen4 NVMe SSD & Single-port 10GbE Expansion Card
Marketing Information

The QM2-2P410G1T allows you to easily add M.2 NVMe SSDs and 10GbE RJ45 connectivity to your QNAP NAS, with no driver installation required. The QM2-2P410G1T features a Broadcom® controller, with PCIe 4.0 interface providing higher bandwidth to deliver faster computing speed and data access.

Tackle performance bottlenecks

The QM2-2P410G1T boosts performance by adding M.2 PCIe Gen4 NVMe SSDs. It doesn't occupy any 3.5-inch drive bays, allowing you to maximize both your storage capacity and performance.

Future-proof 10GbE network environments

The QM2-2P410G1T features a 10GBASE-T Multi-Gigabit (10G/5G/2.5G/1G/100M) network port to empower your QNAP NAS with 10GbE high-speed connectivity for bandwidth-demanding tasks.With QNAP's various 10GbE switches, you can easily upgrade to a high-speed network environment.

Product TypeM.2 to PCI Express Adapter
Physical Characteristics
Height0.76" (19.35 mm)
Width2.71" (68.90 mm)
Length7.36" (187 mm)
Miscellaneous
Additional Information
  • Controller : Marvell AQC113C
  • Connector : 2 x M.2 2280 PCIe (Gen4 x4) NVMe SSD slots
  • PCIe and Lanes : PCIe Gen4 x8
  • Bracket : Low-profile (default). Low-profile flat and Full-height brackets are also included.
  • Dimensions (L x W x H) : 187 × 68.9 × 19.35 mm
  • Form factor : Low-profile
  • Cable : RJ-45; over CAT-6 class cable
Compatibility
  • [4 Bays]
    • TVS-472XT
  • [6 Bays]
    • TS-h686
    • TVS-672N
    • TVS-672X
    • TVS-672XT
    • TVS-h674
  • [8 Bays]
    • TS-h886
    • TVS-872N
    • TVS-872X
    • TVS-872XT
    • TVS-h874
  • [10 Bays]
    • TS-h1090FU
  • [12 Bays]
    • TS-h1290FX
    • TVS-h1288X
  • [16 Bays]
    • TVS-h1688X
  • [24 Bays]
    • TDS-h2489FU
    • TS-h2490FU
  • [28 Bays]
    • TS-2888X
  • [30 Bays]
    • TS-h3088XU-RP
ConditionNo
UPC885022022403
