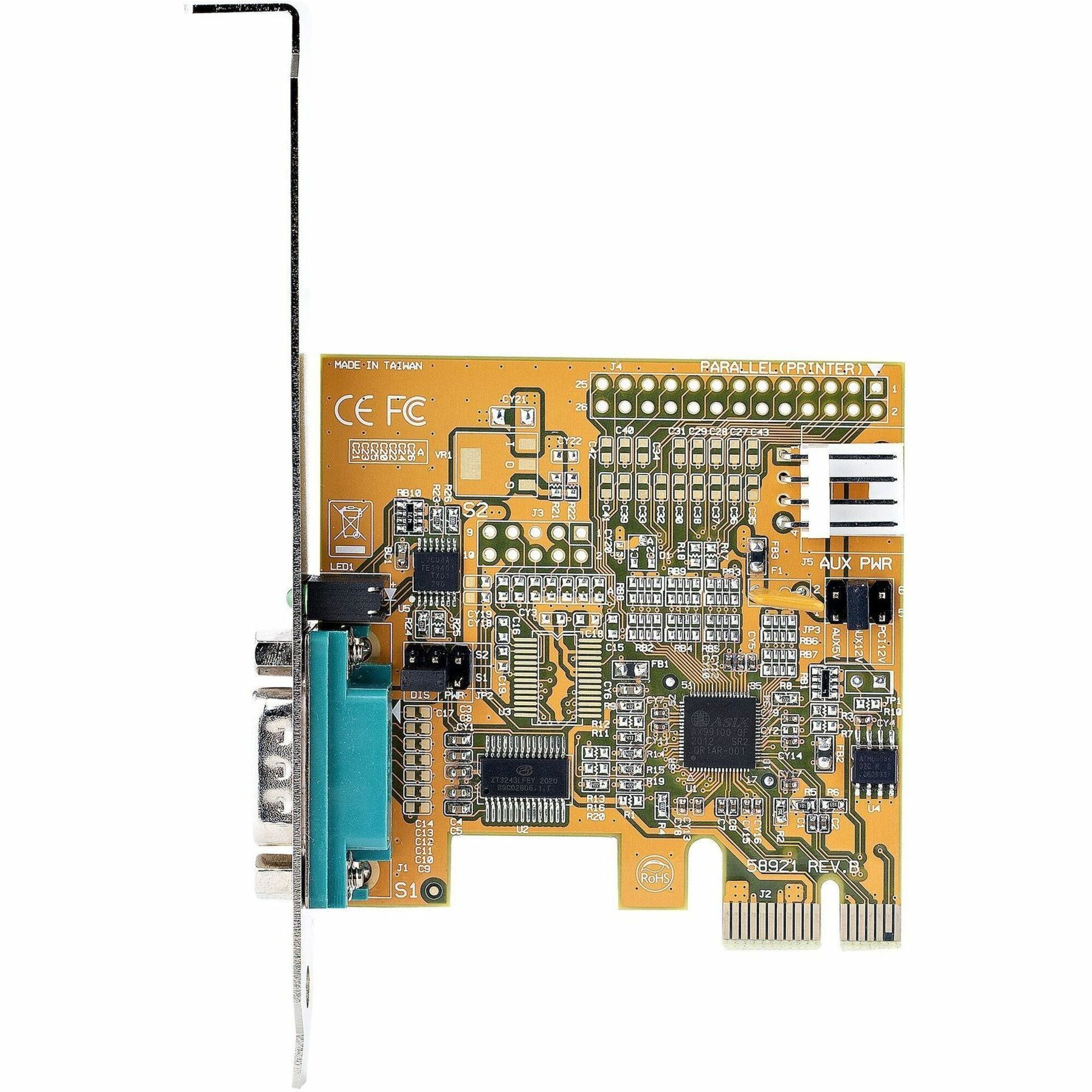

StarTech.com 1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, 16C1050 UART, COM Retention, Low Profile, Win & Linux

Part No. 11050-PC-SERIAL-CARD

by StarTech.com

StarTech.com 1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, 16C1050 UART, COM Retention, Low Profile, Win & Linux

Connect a serial RS232 (DB9) device using this PC Serial Card. Supports 16C1050 UART. LED lights to monitor activity on the PCI express DB9 card - The UART PCIe card supplies 5/12V over pin 9. Continue using legacy hardware with this RS232 PCIe card

Part No. 11050-PC-SERIAL-CARD

by StarTech.com

$72.99
General Information
ManufacturerStarTech.com
Manufacturer Part Number11050-PC-SERIAL-CARD
Brand NameStarTech.com
Product NamePCIe Serial Card
Marketing Information

Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.

Legacy Connectivity

Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.

Connect with Ease

The RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.

11050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

More from the Manufacturer

More from the Manufacturer

Product TypeSerial Adapter
Technical Information
Host InterfacePCI Express x1
Platform Supported
  • PC
  • Linux
Interfaces/Ports
Number of Serial Ports (External)1
Physical Characteristics
Form FactorPlug-in Card
Card HeightLow-profile
Height0.70" (17.78 mm)
Width2.60" (66.04 mm)
Depth2.60" (66.04 mm)
Weight (Approximate)0 oz (0 g)
Miscellaneous
Package Contents
  • PCIe Serial Card
  • 1 x Low-Profile Bracket
  • 1 x Quick-Start Guide
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of OriginTaiwan
ConditionNo
UPC0065030894777
Warranty
Limited Warranty2 Year
Additional Warranty Information

2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
