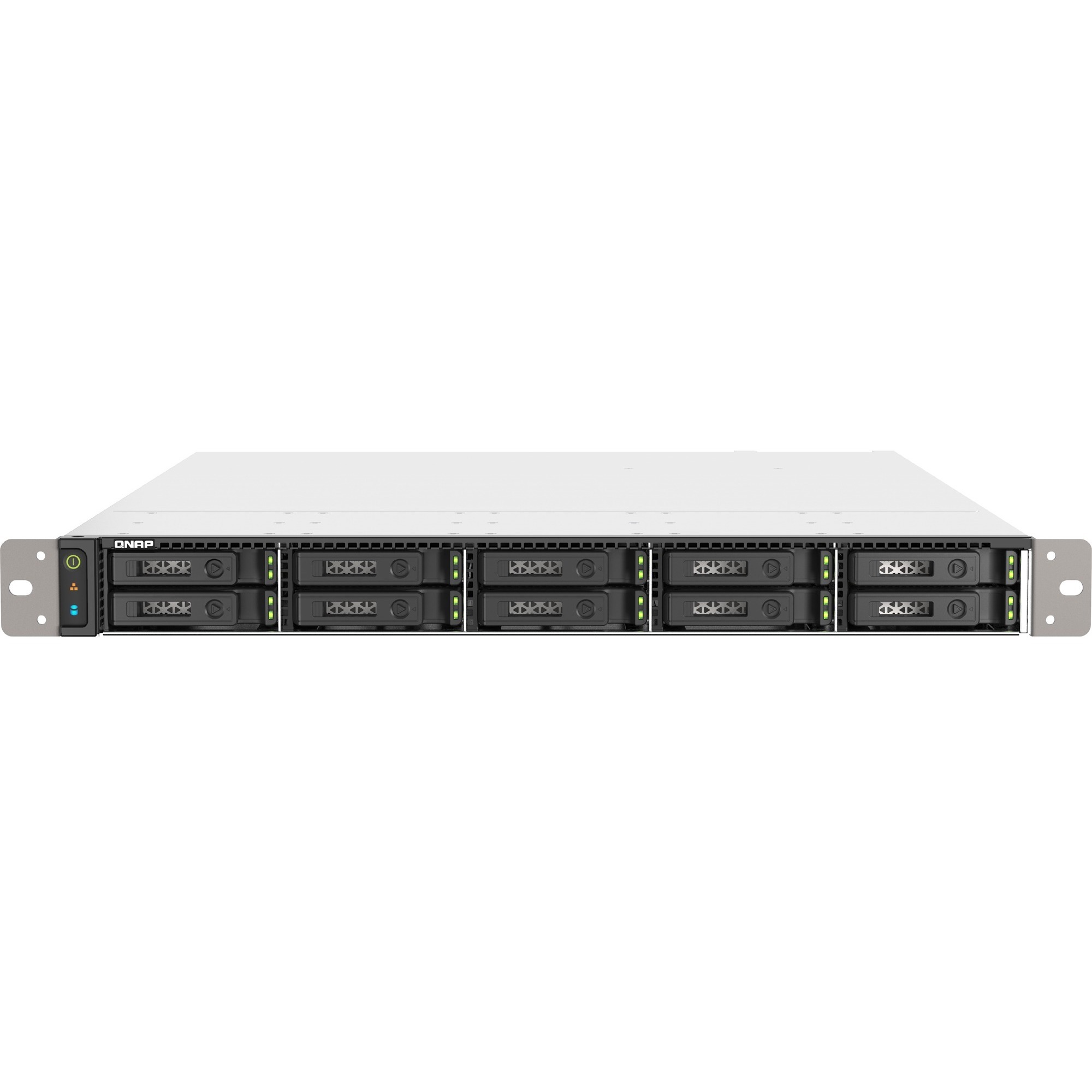

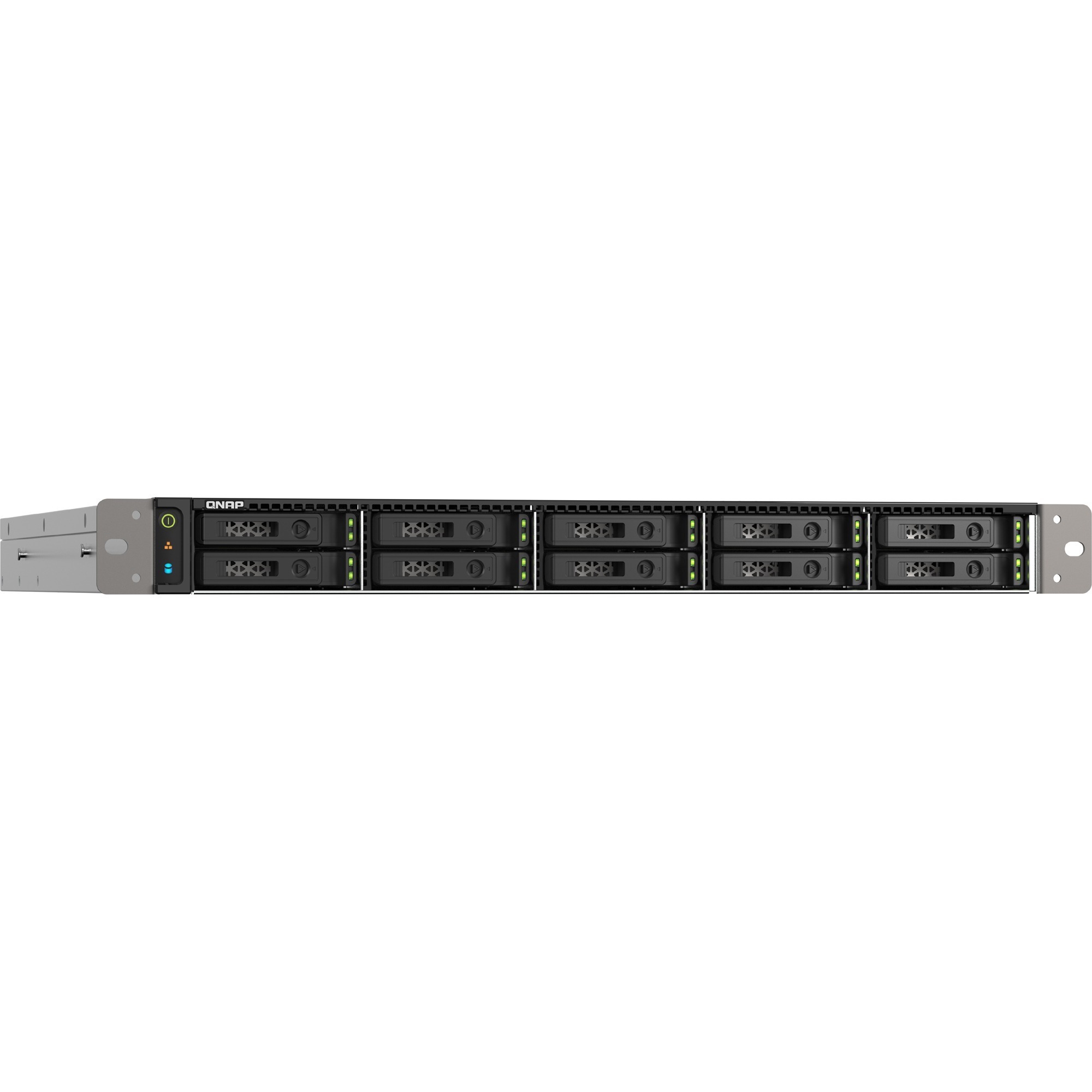

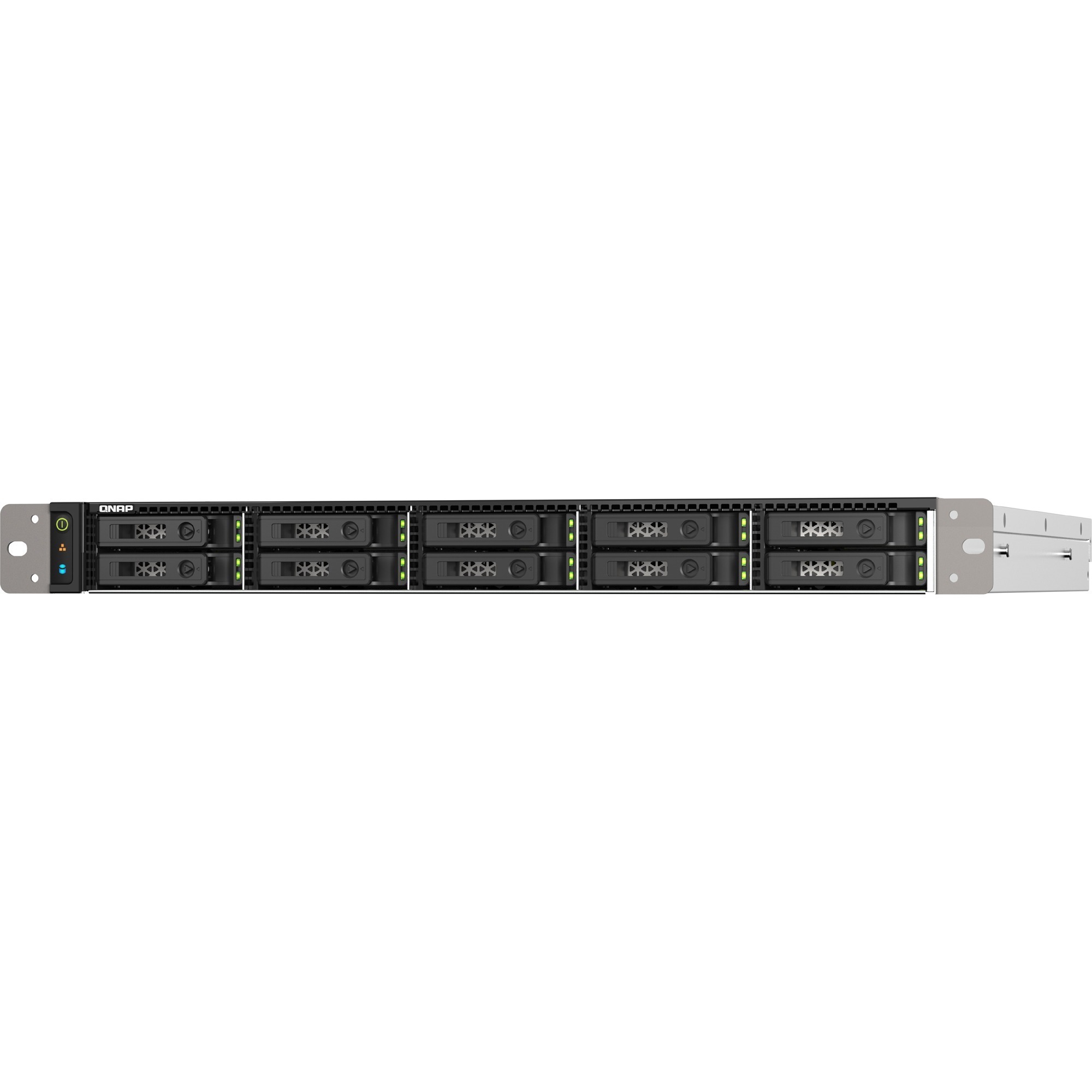

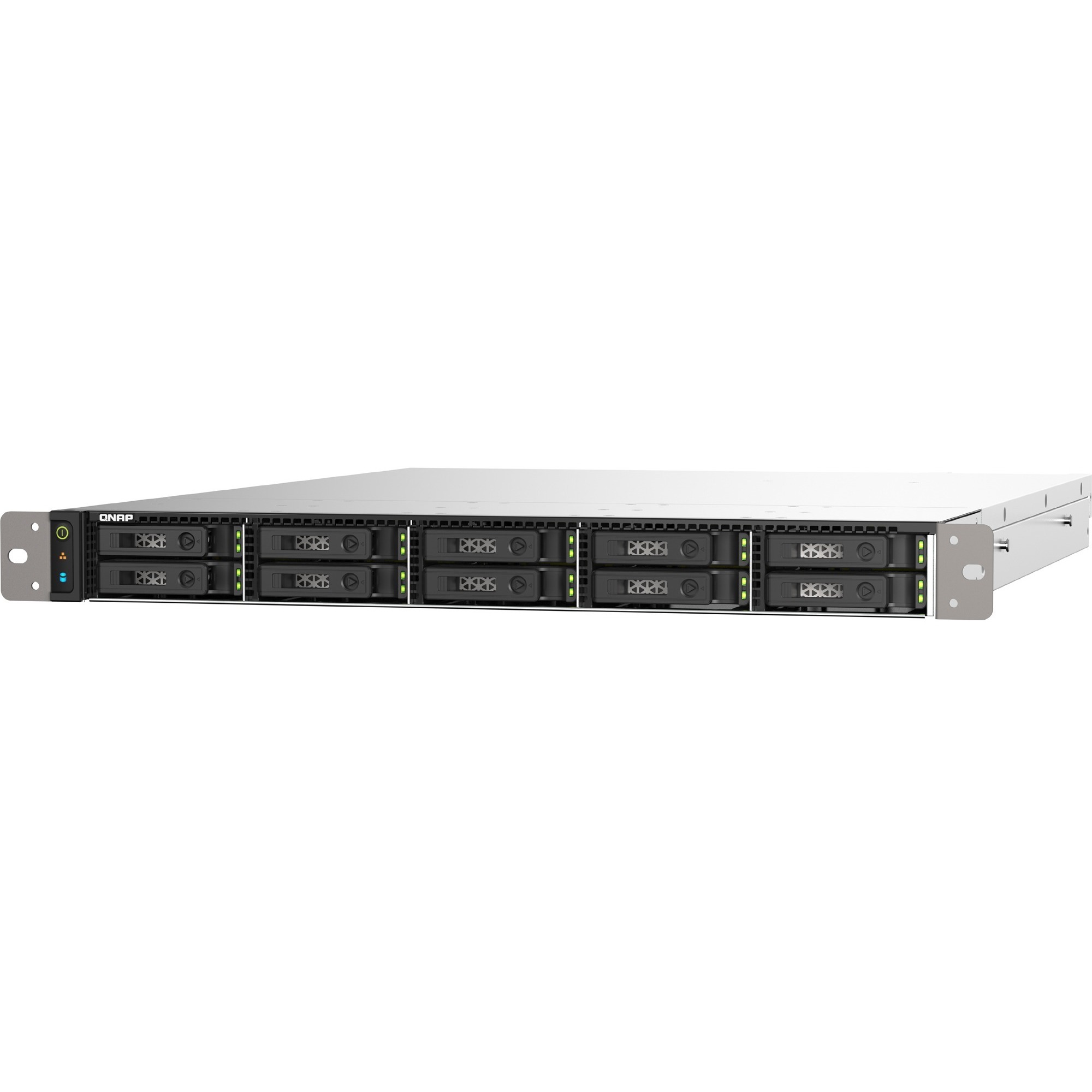

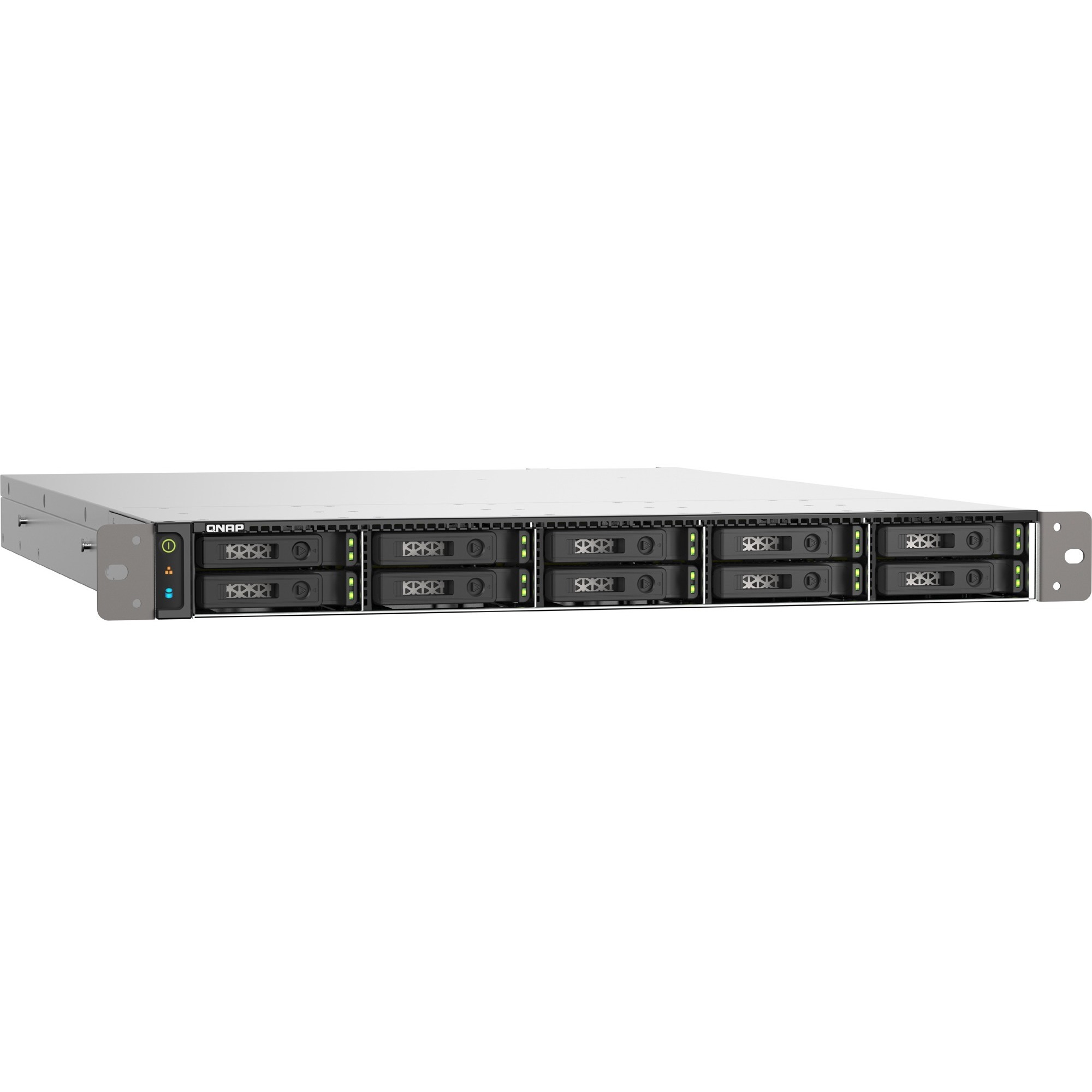

QNAP TS-H1090FU-7302P-256G SAN/NAS Storage System
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-H1090FU-7302P-256G-US |
| Brand Name | QNAP |
| Product Model | TS-H1090FU-7302P-256G |
| Product Name | TS-H1090FU-7302P-256G SAN/NAS Storage System |
| Marketing Information | TS-h1090FU ZFS-based, 1U high-density U.2 NVMe PCIe Gen 4 / SATA 6Gbps SSD all-flash storage built for low-latency file servers, virtualized workloads, data centers, and 4K/8K streams The TS-h1090FU high-density NVMe all-flash storage is designed for providing extreme performance with high cost-efficiency. Featuring ten U.2 NVMe Gen 4 x4 SSD bays, the TS-h1090FU delivers remarkable random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Ideal for I/O-intensive and latency-sensitive applications, the TS-h1090FU eliminates productivity bottlenecks in virtualization, modern data centers, multimedia storage, and mission-critical backup/restore tasks?suitable for Tier 2 storage workloads with an ideal low cost-per-GB. High-density all flash storageSpace-efficient with only 58cm depth compared to 80+cm depth in a 1U rackmount server; accommodates ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive bays. Optimized SSD performance and lifespanInline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan. 25GbE future-proof connectivityAccelerates virtualization, intensive file access, media transfer, and large backup/restoration tasks. High-speed PCIe Gen 4 slotsAllows installing 10/25/40/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance. Virtualization applicationsSupports virtualization storage, virtual machines with SR-IOV support, and containerized apps. Flexible storage expansionScalable design to grow with your business by connecting QNAP's economical expansion enclosures. Build high-performance storage infrastructure for IOPS-demanding applications Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI). Data CentersDelivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data. Media and Entertainment (M&E) productionSatisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency. |
| Product Type | SAN/NAS Storage System |
| Number of Hard Drives Supported | 10 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 10 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 5 GB |
| Processor Type | EPYC |
| Processor Model | 7302P |
| Processor Core | Hexadeca-core (16 Core) |
| Standard Memory | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Ethernet Technology |
|
| Number of Total Expansion Bays | 10 |
| Number of 2.5" Bays | 10 |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express 4.0 x16 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Operating System | QTS 5.0.1 |
| Protocols |
|
| Maximum Power Supply Wattage | 550 W |
| Height | 1.73" (44 mm) |
| Width | 16.93" (430 mm) |
| Depth | 22.83" (580 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Weight (Approximate) | 22.97 lb (10420 g) |
| Package Contents |
|
| Condition | No |
| UPC | 0885022024490 |
| Limited Warranty | 5 Year |
| Additional Warranty Information | The TS-h1090FU is backed by a 5-year warranty at no extra cost. |
