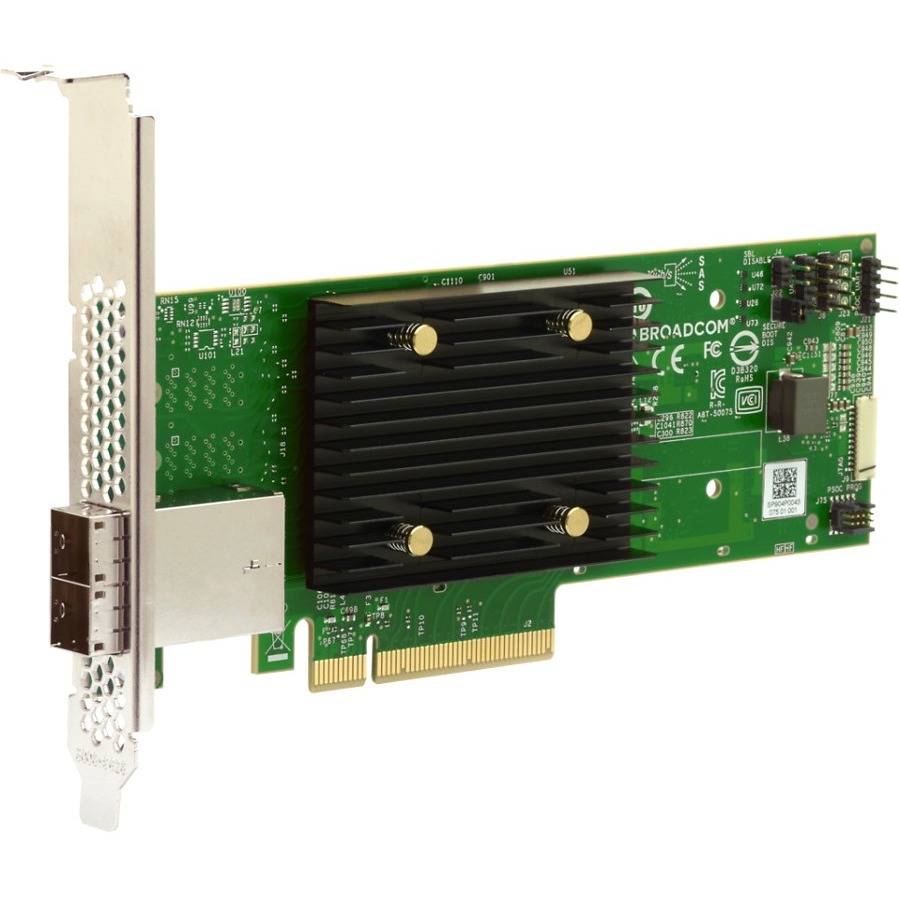

Lenovo ThinkSystem 440-8e SAS/SATA PCIe Gen4 12Gb HBA

12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - JBOD RAID Level - 2x Mini-SAS HD SFF8644 - 2 Total SAS Port(s) - 2 SAS Port(s) External - PC, Linux - Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 8.7, Red Hat Enterprise Linux 9.0, ...

Part No. 4Y37A78837

by Lenovo Group Limited

$972.99

Specifications

General Information

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	4Y37A78837
Brand Name	Lenovo
Product Model	440-8e
Product Name	ThinkSystem 440-8e SAS/SATA PCIe Gen4 12Gb HBA
Marketing Information	The Lenovo ThinkSystem 440-8e and 440-16e SAS/SATA 12Gb HBAs are high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapters provide either two or four x4 external mini-SAS HD connectors to provide connectivity to external storage devices such as ThinkSystem DE Series storage and LTO9 tape drives.
Product Type	SAS Controller

Technical Information

Host Interface	PCI Express 4.0 x8
Controller Type	12Gb/s SAS
RAID Supported	No
RAID Levels	JBOD
Device Supported	Server
Operating System Supported	Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 7.7 Red Hat Enterprise Linux 7.8 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.3 Red Hat Enterprise Linux 8.4 Red Hat Enterprise Linux 8.5 Red Hat Enterprise Linux 8.6 Red Hat Enterprise Linux 8.7 Red Hat Enterprise Linux 9.0 Red Hat Enterprise Linux 9.1 SUSE Linux Enterprise Server 12 SP4 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 SP3 Ubuntu 22.04 LTS Windows Server 2016 Red Hat Enterprise Linux 7.6 Red Hat Enterprise Linux 8 Red Hat Enterprise Linux 8.1 Red Hat Enterprise Linux 8.2

Memory

Cache Memory	No

Interfaces/Ports

Total Number of SAS Ports	2
Number of SAS Ports (External)	2
SAS Connector Details	2x Mini-SAS HD SFF8644

Physical Characteristics

Form Factor	Plug-in Card

Miscellaneous

Package Contents	ThinkSystem 440-8e SAS/SATA PCIe Gen4 12Gb HBA Adapter with a Full-height (3U) Bracket Attached Low-profile (2U) Bracket Documentation Flyer
Platform Supported	PC Linux
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No
UPC	0889488634774

Warranty

Limited Warranty	1 Year
Additional Warranty Information	The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapters assume the server's base warranty and any warranty service upgrade.
