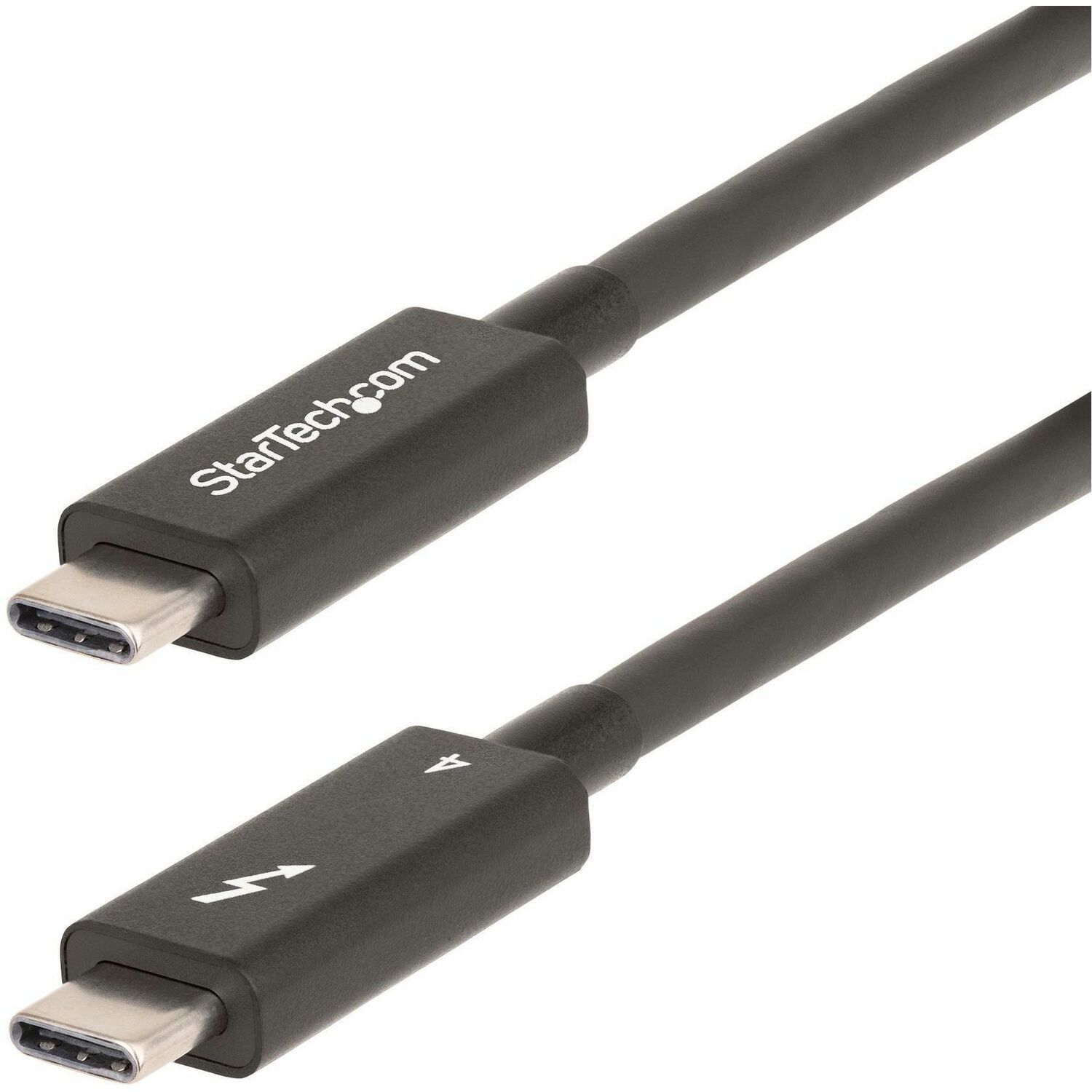

StarTech.com 6ft (2m) Active Thunderbolt 4 Cable, 40Gbps, 100W PD, 4K/8K Video, Intel-Certified, Compatible w/Thunderbolt 3/USB 3.2/DisplayPort

Part No. A40G2MB-TB4-CABLE

by StarTech.com

StarTech.com 6ft (2m) Active Thunderbolt 4 Cable, 40Gbps, 100W PD, 4K/8K Video, Intel-Certified, Compatible w/Thunderbolt 3/USB 3.2/DisplayPort

6.6ft (2m) Active Thunderbolt 4 cable w/ chipset enables optimal signal quality for consistent 40 Gbps performance; Compatible w/ TB3 USB4/USB-C; Thunderbolt Certified; DP 1.4a w/ DSC and HDR; 8K 60Hz; 100W PD; PCIe 3.0; Black; 30/32AWG

Part No. A40G2MB-TB4-CABLE

by StarTech.com

$155.99
General Information
ManufacturerStarTech.com
Manufacturer Part NumberA40G2MB-TB4-CABLE
Brand NameStarTech.com
Product NameThunderbolt 4 Data Transfer Cable
Marketing Information

The 6.6ft (2m) Active Thunderbolt™ 4 cable enables full Thunderbolt™ 4 capabilities and outperforms passive cables beyond 3.3ft (1m) length. An active integrated chipset minimizes signal degradation for consistent 40Gbps output at distances of up to 6.6ft (2m), while passive cables deliver limited performance beyond 3.3ft (1m) due to signal loss.

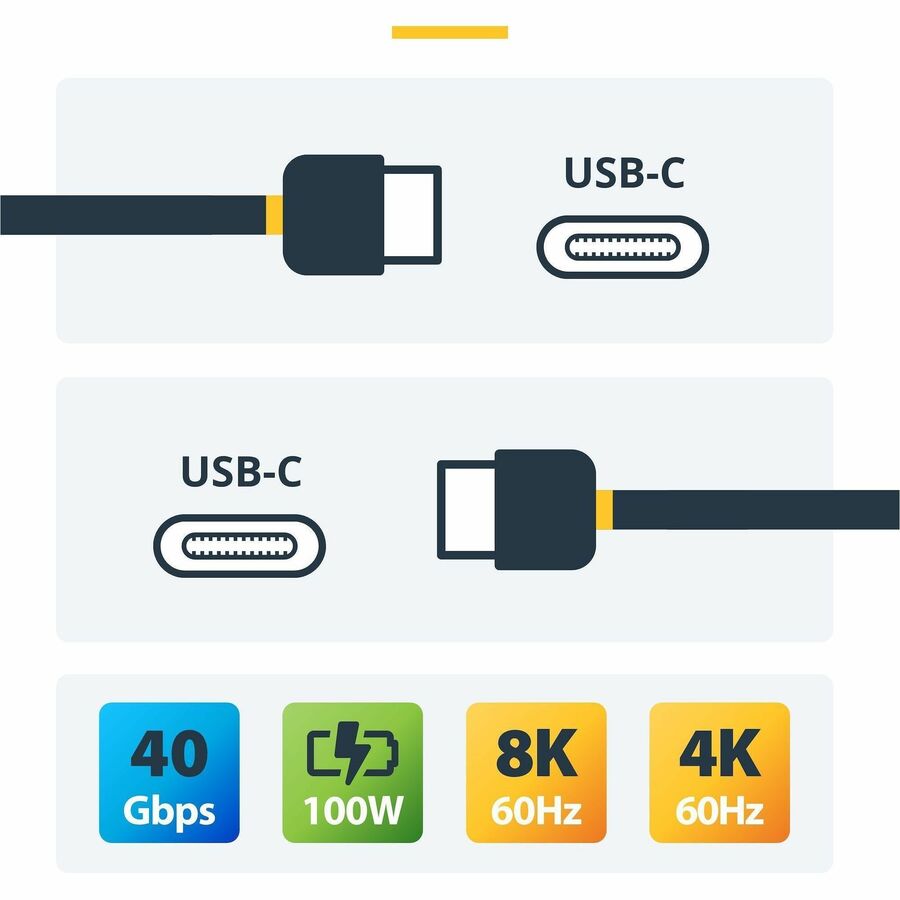

40 Gbps for Thunderbolt 4 / 3 Devices

This Active Thunderbolt 4 cable supports data transfer rates of 40 Gbps, when connected to a Thunderbolt 4, Thunderbolt 3, or USB4-compatible source and device. It is capable of transferring data four times faster than standard USB 3.2 Gen 2 (10 Gbps) cables.

USB Power Delivery 3.0

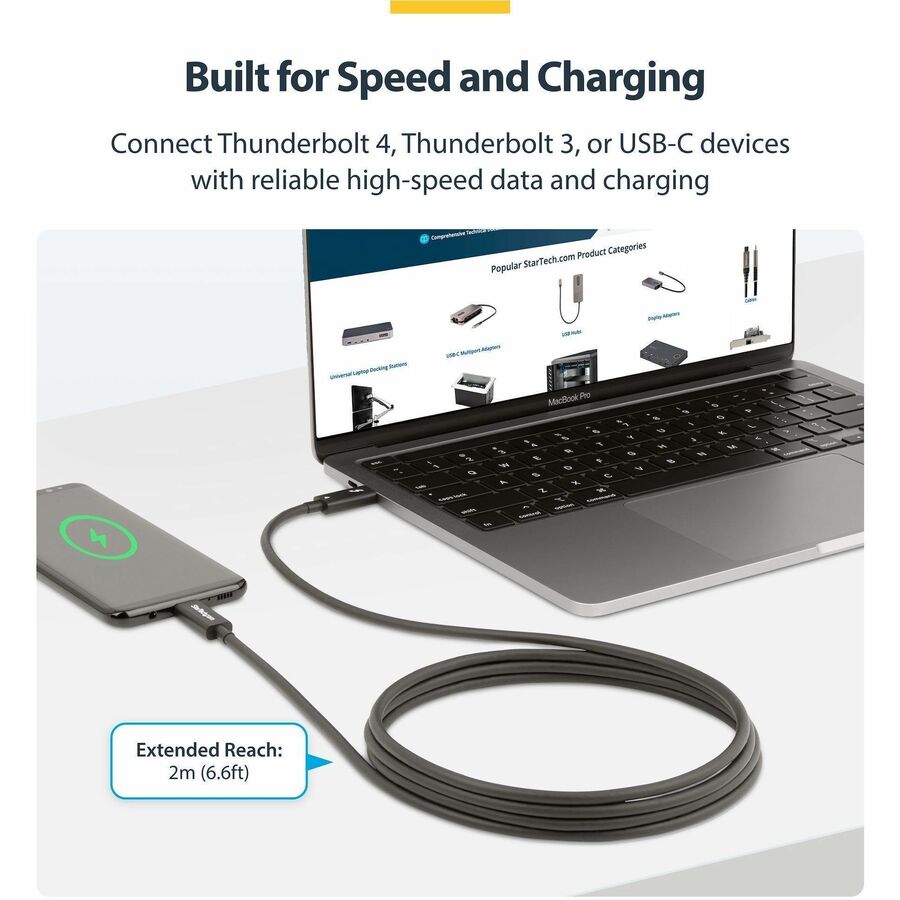

This Thunderbolt 4 cable delivers up to 100W of Power Delivery to charge a laptop or power a display, and 15W for bus-powered devices such as hard drive enclosures.

USB-C Compatible

The Thunderbolt 4 cable is compatible with all USB Type-C devices and can be used to charge and sync mobile devices. In addition, this cable can be used to connect and power USB-C laptops, such as MacBook® and Chromebook™, and USB-C peripherals such as portable hard drives and docking stations.

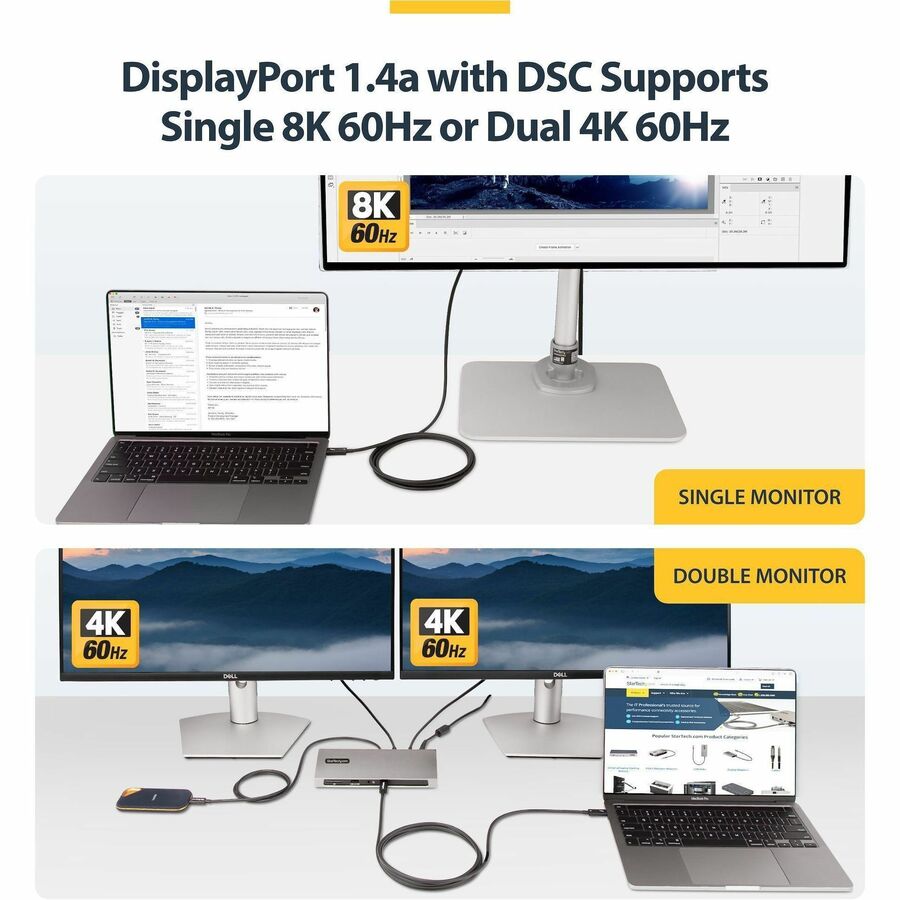

Full-8K Video

The cable supports full-8K 60Hz video and DisplayPort 1.4a, and is compatible with Display Stream Compression (DSC). Use it to connect a docking station to laptop, or a laptop to a display.

Thunderbolt Networking

The cable can be used to daisy chain up to 6 Thunderbolt 4-enabled devices, such as laptops for peer-to-peer 10GbE networking. In addition, connect two Thunderbolt 4 laptops to transfer/migrate data.

Packaged Quantity1
Product TypeData Transfer Cable
Technical Information
Cable TypeThunderbolt 4
Cable Length6 ft (1.83 m)
Connector Type on First EndThunderbolt 4 (USB 4.0) - Male
Connector Gender on First EndMale
Connector on First End Details1 x Thunderbolt 4 (USB 4.0) - Male
Connector Type on Second EndThunderbolt 4 (USB 4.0) - Male
Connector Gender on Second EndMale
Connector on Second End Details1 x Thunderbolt 4 (USB 4.0) - Male
Connector PlatingNickel
ShieldingYes
Device Supported
  • Notebook
  • Docking Station
  • Monitor
  • PCIe Solid State Drive
  • USB Device
American Wire Gauge30/32 AWG
Data Transfer Rate40 Gbit/s
Supported Resolution7680 x 4320
Features
  • Active
  • USB- Power Delivery (USB PD)
  • Display Stream Compression (DSC)
  • EMI Protection
  • Strain Relief
  • HDR Support
  • Power Delivery 3.0
  • Charging
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Shielding Material
  • Aluminum-polyester Foil
  • Tinned Copper Braid
Jacket MaterialPolyvinyl Chloride (PVC)
Miscellaneous
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC0065030895859
Warranty
Limited Warranty2 Year
