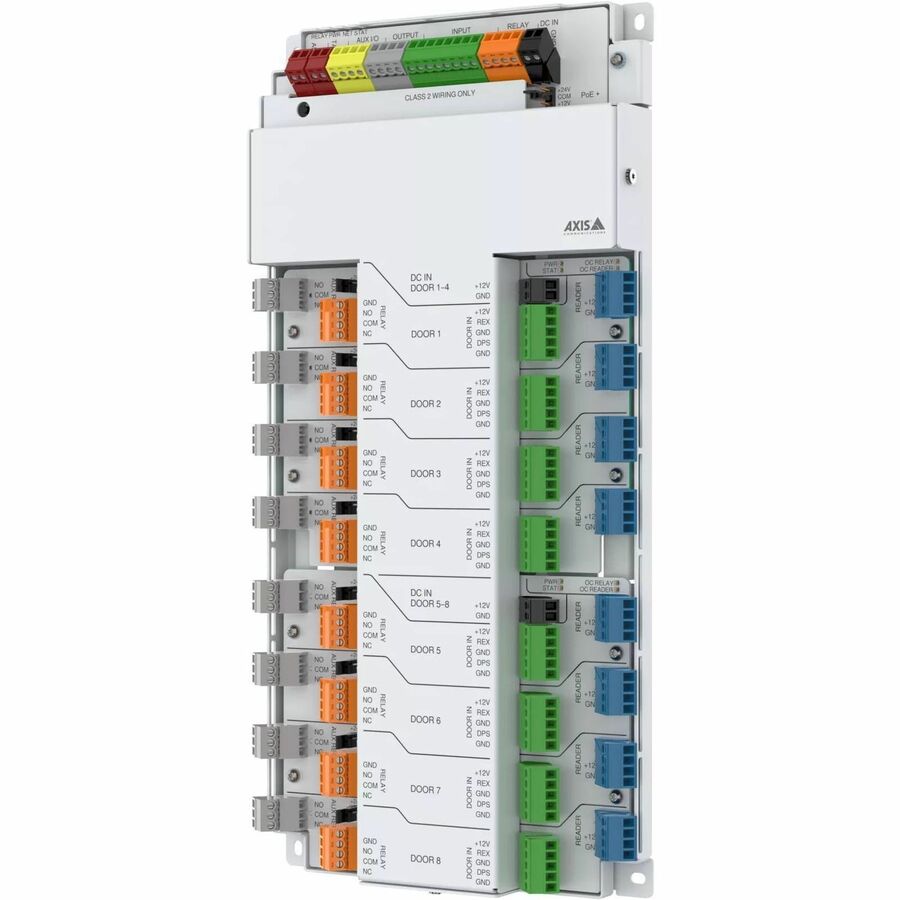

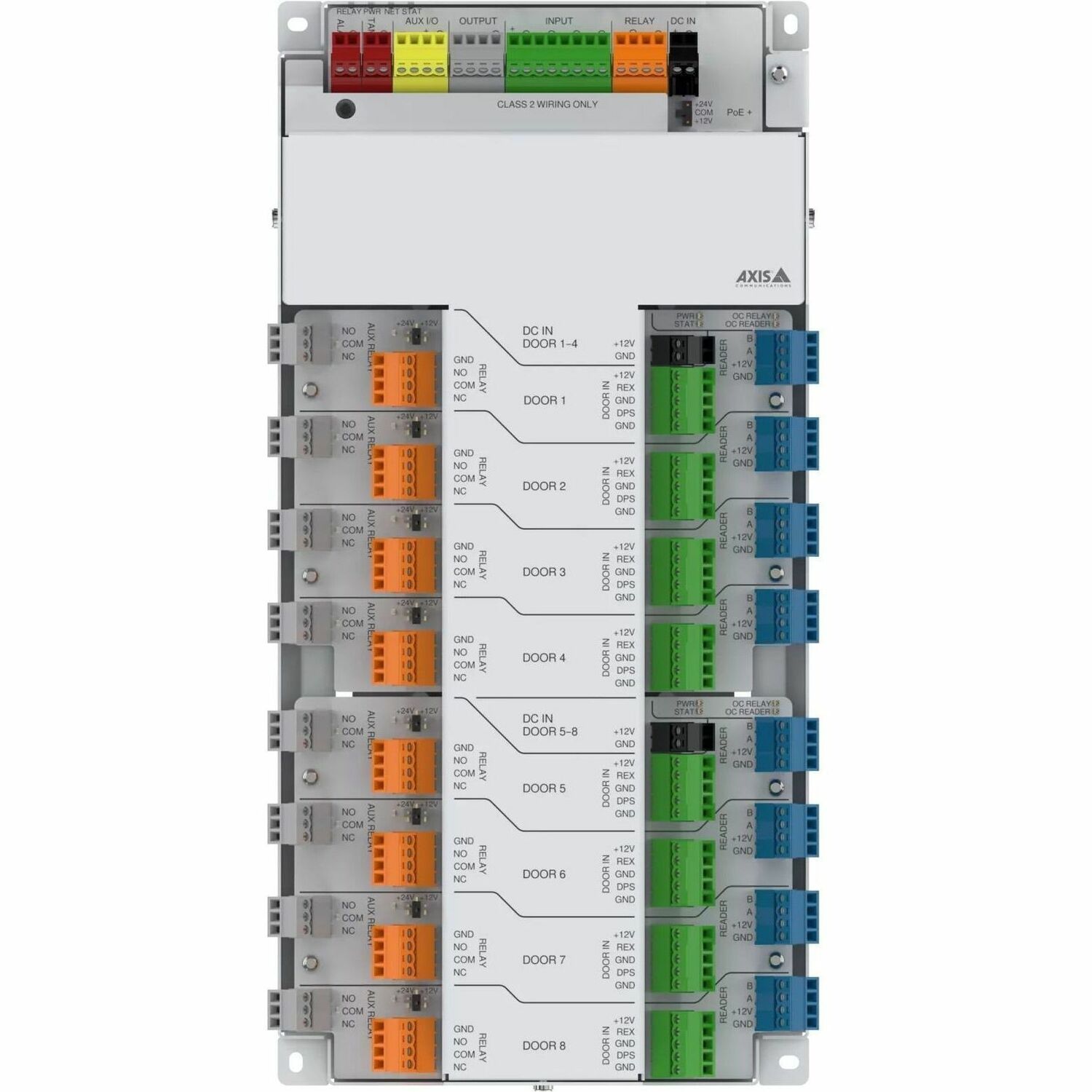

This compact, cost-efficient door controller gives you full control for up to eight doors including support for up to eight OSDP readers and eight locks. With onboard lock power, this all-in-one multi-door controller simplifies complex installations.

Cost-efficient and easy to install

Ideal for both new and retrofit installations, this competitively priced network door controller is easy to scale as your needs change. It's designed for centralized installations, for instance, in security rooms or main controller rooms. Built-in lock power management simplifies installation and minimizes complexity. Plus, the connectors are color-coded for easy cable management. This powerful, all-in-one multi-door controller offers complete control for up to eight doors with onboard support for up to 16 OSDP readers and 16 powerful locks.

Compact and scalable

This compact barebone device offers a smaller footprint design than most door controllers on the market. It's designed for centralized installation with Axis and third-party cabinets. With out-of-the-box support for OSDP readers and an optional accessory for Wiegand readers, this scalable and future-proof door controller is optimized for both small and large installations. You can store up to 250k credentials and 250k event logs on the device. What's more, it can be used together with AXIS Camera Station Secure Entry or partner solutions to provide a scalable, all-in-one video and access control management system.

Designed with security in mind

Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also ensures cryptographic keys are safely and securely stored in the onboard EAL6+ Certified compute module. It's Open Supervised Device Protocol (OSDP) Verified to ensure secure bidirectional communication. Additionally, it offers flexible and secure authentication using different types of credentials such as card or PIN codes, Bluetooth and dynamic QR codes for visitor access, and license plates for vehicle access. And multi-factor authentication ensures enhanced security.

• QR Code
• Key Code
• Vehicle License Plate

• DIN Rail Mountable
• Cabinet Mount

• A1810-B Network Door Controller
• Installation Guide
• Connector Kit (mounted)
• Grounding Kit
• Splicing Connectors

Axis Network I/O Relay Modules:

• A9188
• A9188-VE
• A9210

Axis Readers:

• A4020-E
• A4120-E
• A4612

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
