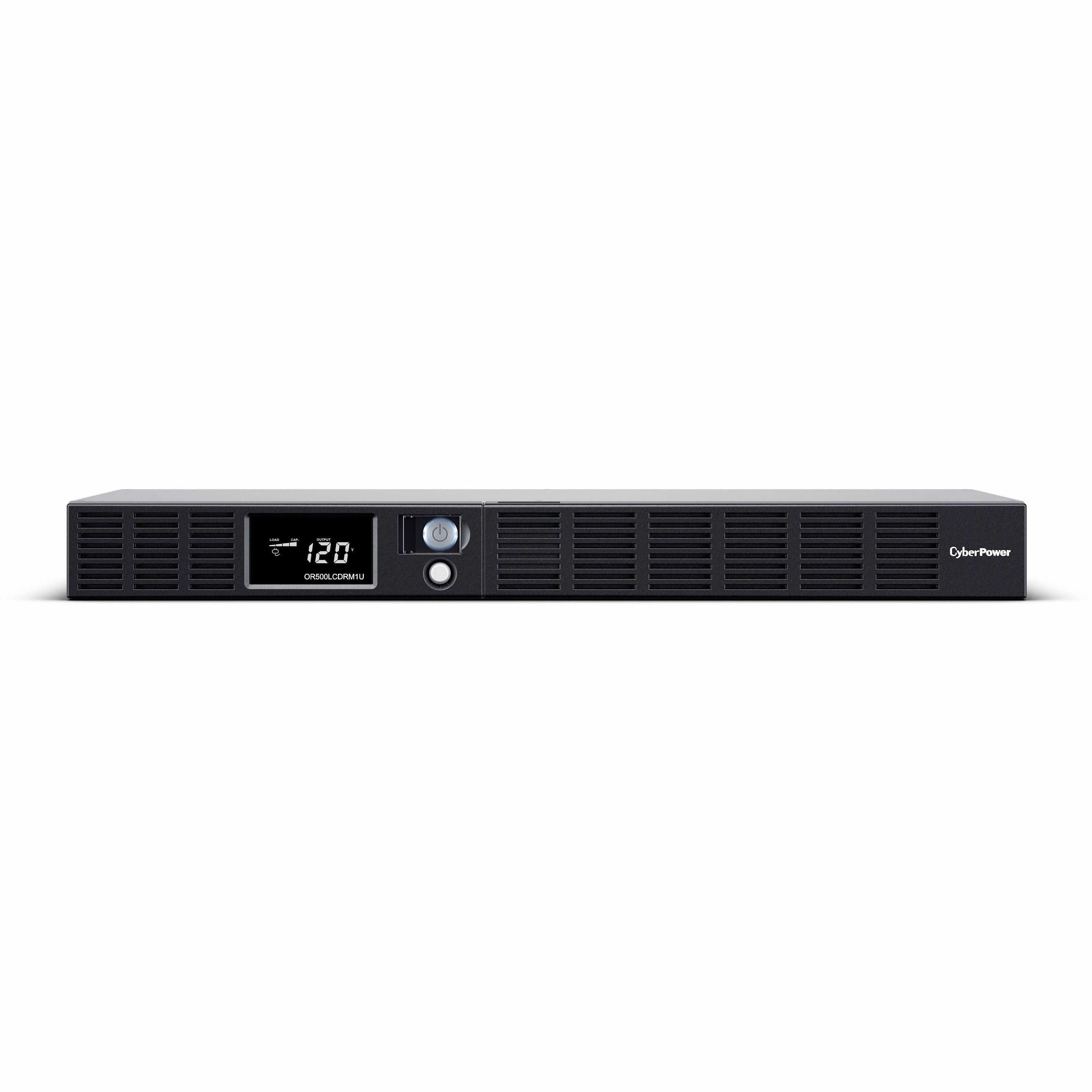

CyberPower OR500LCDRM1U Smart App LCD UPS Systems
500VA/300W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
$277.99
In Stock Availability
- All Locations: (62+)
- Calgary, AB (3+)
- Halifax, NS (13+)
- Mississauga, ON (12+)
- Richmond, BC (4+)
- Toronto, ON (44+)
- Vancouver, BC (1+)
General Information
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR500LCDRM1U |
| Brand Name | CyberPower |
| Product Series | Smart App LCD UPS |
| Product Model | OR500LCDRM1U |
| Product Name | OR500LCDRM1U Smart App LCD UPS Systems |
| Marketing Information | A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee. |
| Product Type | Line-interactive UPS |
Technical Information
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 8 ms |
| Dataline Protection |
|
| Protection Type |
|
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 500 VA |
| Input Voltage | 120 V AC |
| Input Voltage Range | 90 V AC - 140 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 1150 J |
Management
| Alarm |
|
Controls/Indicators
| Status Indicators | On Unit:
LCD Panel:
|
Interfaces/Ports
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Battery Information
| Number of Batteries | 2 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 60" (1524 mm) |
| Storage Relative Humidity | 0% - 95% |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 9.25" (234.95 mm) |
| Weight (Approximate) | 18 lb (8164.66 g) |
Miscellaneous
| Package Contents |
|
| Additional Information | |
| Certifications & Standards |
|
| Software Included | PowerPanel® Business |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532715015 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge. |
| Directly Connected Equipment Guarantee | $300000 Lifetime |
