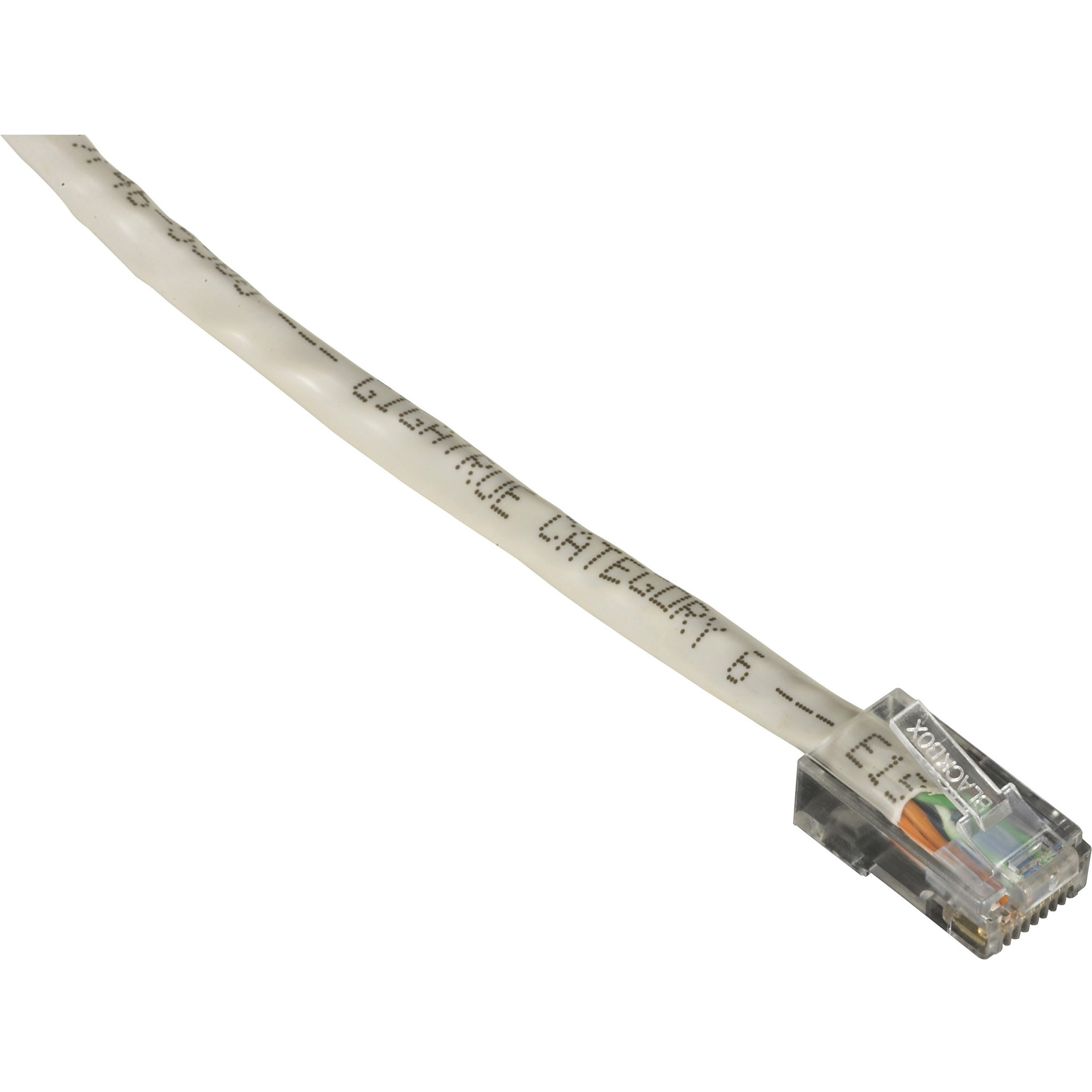

Black Box GigaTrue Cat.6 UTP Patch Network Cable

3 ft (0.91 m) Category 6 Network Cable for Patch Panel, Wallplate, Network Device - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 1 Gbit/s - Patch Cable - CM - 24 AWG - Beige - 1 Each

Part No. EVNSL625-0003

by Black Box Corporation

$12.99

Specifications

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	EVNSL625-0003
Brand Name	Black Box
Product Line	GigaTrue
Product Name	GigaTrue Cat.6 UTP Patch Network Cable
Marketing Information	Get high-level CAT6 performance in an end-to-end BLACK BOX® GigaTrue® channel with our 550MHz Stranded Ethernet Patch Cable. It provides full-duplex operation for next-generation applications and meets balance requirements (LCL/LCTL), resulting in better transmission. The improved attenuation provides cleaner data and video transmissions. Our rugged PVC jacket stands up to long-term use and is perfect for full broadband and baseband video.
Packaged Quantity	1 Each
Product Type	Network Cable

Technical Information

Cable Type	Category 6
Cable Characteristic	Patch Cable
Cable Length	3 ft
Connector Type on First End	RJ-45 Network - Male
Connector on First End Details	1 x RJ-45 Network - Male
Connector Type on Second End	RJ-45 Network - Male
Connector on Second End Details	1 x RJ-45 Network - Male
Conductor	Copper
Shielding	No
Jacket Type	CM
Device Supported	Patch Panel Wallplate Network Device
American Wire Gauge	24 AWG
Data Transfer Rate	1 Gbit/s
Features	Stranded Non-booted Rugged Near End Cross Talk (NEXT)

Physical Characteristics

Color Family	Beige
Product Color	Beige
Jacket Material	Polyvinyl Chloride (PVC)

Miscellaneous

Additional Information	Full Power Sum Performance Impedance: 100 ± 15 Ohms at 100 MHz, 100 ± 22 Ohms at 100-550 Mhz Meets balance requirements (LCL/LCTL) Attenuation:23.6 dB at 100 MHz, 39.1 dB at 250 MHz Delay Skew (Maximum): 25 ns/100 m Mutual Capacitance (Maximum): 56 pF/m NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz PS-ACR: 32 dB (Typical) at 100 MHz PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz Resistance (Maximum): 9.09 ohms/100 m (328 ft.) Return Loss: 22.5 dB at 100 MHz; 20.5 dB at 250 MHz Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 Mhz Applications: 1000BASE-T 100BASE-TX 100BASE-VG 155-Mbps ATM 100-Mbps FDDI/CDDI
Certifications & Standards	EIA/TIA-568-B.2-1
Country of Origin	China
Condition	No
UPC	822088034711

Warranty

Limited Warranty	Lifetime
