CyberPower PR3000LCD Smart App Sinewave UPS Systems

Part No. PR3000LCD

by CyberPower Systems, Inc

CyberPower PR3000LCD Smart App Sinewave UPS Systems

3000VA/2700W, 120 VAC, NEMA L5-30P, Tower, Sine Wave, 10 Outlets, LCD, PowerPanel® Business, $375000 CEG, 3YR Warranty

Part No. PR3000LCD

by CyberPower Systems, Inc

$2391.99
General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberPR3000LCD
Brand NameCyberPower
Product SeriesSmart App Sinewave UPS
Product ModelPR3000LCD
Product NamePR3000LCD Smart App Sinewave UPS Systems
Marketing Information

A tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR3000LCD provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR3000LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR3000LCD comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.

Product TypeLine-interactive UPS
Technical Information
AVRYes
Plug/Connector TypeNEMA L5-30P
Receptacle Type
  • NEMA 5-20R
  • NEMA 5-15R

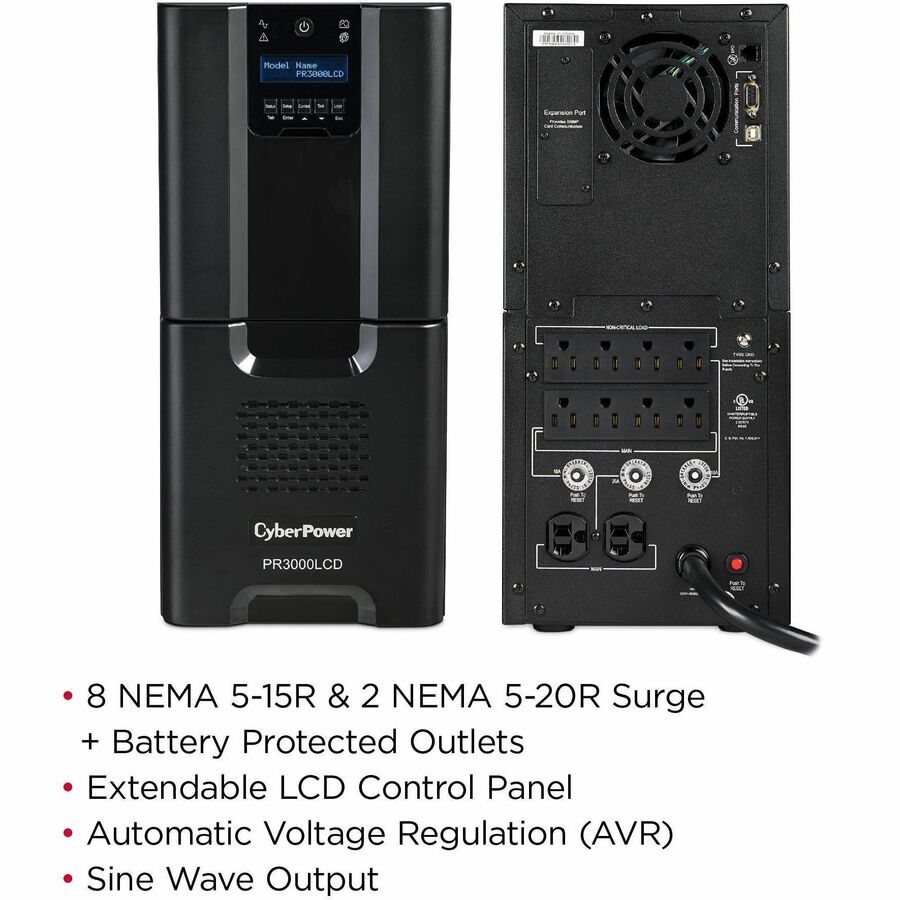

Receptacle Detail
  • 2 x NEMA 5-20R
  • 8 x NEMA 5-15R
Power Description
Load Capacity (VA)3 kVA
Input Voltage120 V AC
Output Voltage120 V AC
Management
Network ManagementSNMP/HTTP Remote Monitoring
Alarm
  • Low Battery
  • On Battery
  • Overload
Controls/Indicators
Status Indicators
  • Power On
  • Wiring Fault
  • AC Power
  • Battery Power
  • Replace Battery
Interfaces/Ports
Serial PortYes
USBYes
USB (HID Compliant) PortYes
Battery Information
Number of Batteries4
Battery CharacteristicsMaintenance-free/Sealed
Battery ChemistryLead Acid
Backup/Run Time (Full Load)6 Minute
Backup/Run Time (Half Load)16.80 Minute
Typical Battery Recharge Time8 Hour
Physical Characteristics
Form FactorTower

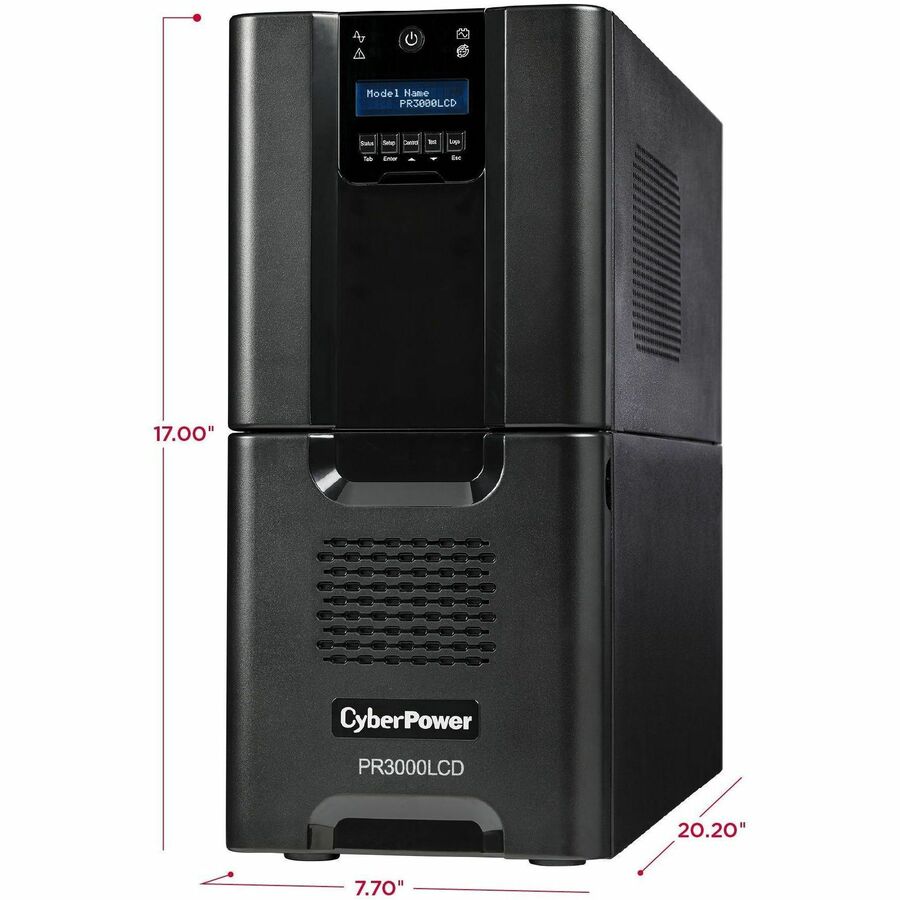

Height17" (431.80 mm)
Width7.70" (195.58 mm)
Depth20.20" (513.08 mm)
Weight (Approximate)124 lb (56245.45 g)
Miscellaneous
Package Contents
  • Smart App Sinewave PR3000LCD 3000VA Pure Sine Wave Tower LCD UPS
  • PowerPanel Business Edition Software CD
  • User Manual
  • Functional Setup Guide
  • USB Cable
  • Serial Cable
  • Emergency Power Off (EPO) Cable
  • Registration Card
Additional Information
  • Active PFC Compatible : Yes
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • UPS Topology : Line Interactive
  • Battery Quantity : 4
  • Battery Size : 12 V / 17 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : RB12170X4
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 6 min
  • Runtime at Half Load : 17 min
  • Typical Recharge Time : 8 Hours
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 19.56 x 43.18 x 51.31 (cm)
  • Physical Dimensions - (WxHxD) (in) : 7.7 x 17 x 20.2 (in)
  • Physical Dimensions - (WxHxD) (mm) : 196 x 432 x 513 (mm)
  • Weight (kg) : 56.25
  • Weight (lb) : 124
  • Shipping Dimensions - (WxHxD) (cm) : 32.39 x 55.88 x 66.04 (cm)
  • Shipping - Dimensions (WxHxD, in) : 12.75 x 22.0 x 26.0 (in)
  • Shipping - Dimensions (WxHxD, mm) : 323.85 x 558.8 x 660.4 (mm)
  • Shipping - Weight (kg) : 59.42
  • Shipping - Weight (lb) : 131.00
  • Circuit Breaker : 30 A
  • Cord Length : 10 ft (3.0 m)
  • Input Frequency Range : 47 Hz - 63 Hz
  • Input Plug Type : NEMA L5-30P
  • Input Voltage Range : 75 VAC - 154 VAC
  • Nominal Input Voltage : 120 VAC
  • Plug Style : Straight
  • Automatic Voltage Regulation : Double Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 50/60 Hz ± 1%
  • On Battery Voltage : 120 VAC ± 5%
  • On Battery Waveform : Sine Wave
  • Outlets - Battery & Surge Protected : 10
  • Outlets - Total : 10
  • Outlet Type COMPUTED : 8 - NEMA 5-15R
  • Output Power Factor : 0.9
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 4 ms
  • USB Charge Port : No
  • VA : 3000 VA
  • Watts : 2700 W
  • EMI/RFI Filtration COMPUTED : Yes
  • Surge Suppression (Joules) : 1030 J
  • EMI/RFI Filtration COMPUTED : Yes
  • Surge Suppression (Joules) : 1030 J
  • Audible Alarms : Battery Mode
  • Emergency Power Off (EPO) Port : Yes
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Power On
  • Management Cable : USB Cable

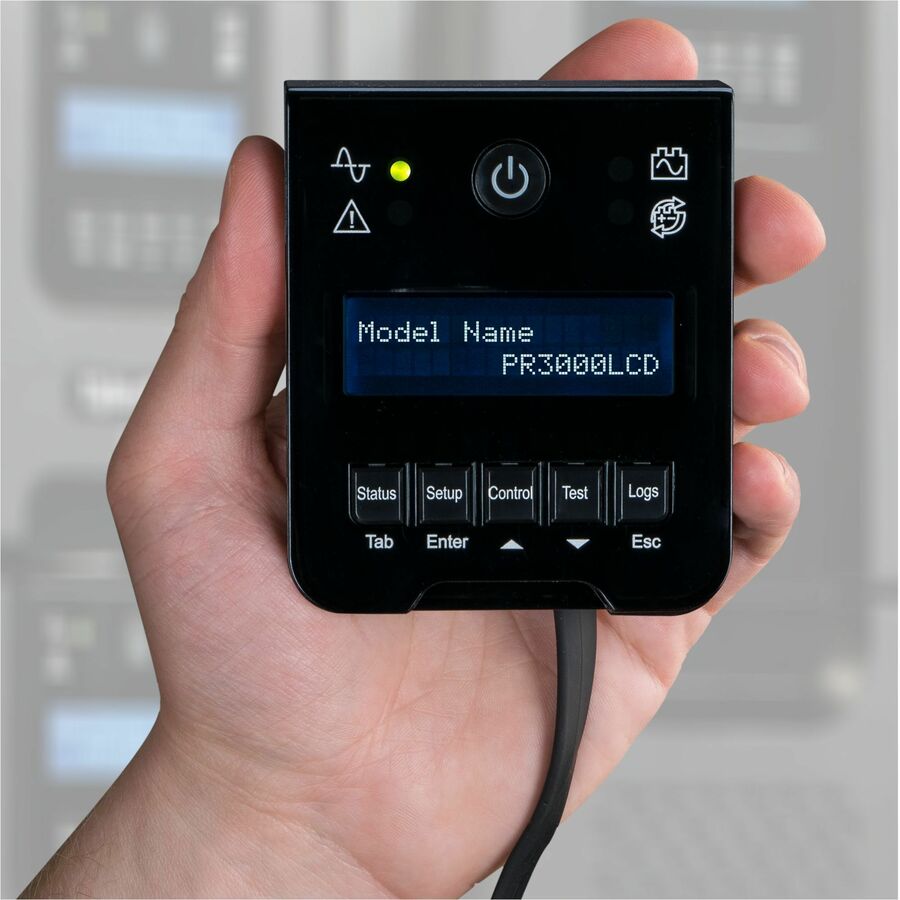

  • Removable LCD Control Panel Option : Yes - Standard with 4.5 ft Cable
  • Serial Port : 1 Serial
  • SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
  • Software (Free Download) : PowerPanel® Business
  • Color : Black
  • Form Factor : Tower
  • Material of Construction : Metal
  • Operating Relative Humidity : 0 - 90 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL1778
  • CEG Amount : $375000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U4B
  • Product Warranty : 3 Year Limited Warranty
  • Certifications & Standards
    • UL1778
    • cUL 107.3
    • FCC DOC Class A
    Software IncludedPowerPanel Business Edition Software
    Energy StarNo
    Country of OriginChina
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0649532606573
    Warranty
    Limited Warranty3 Year
