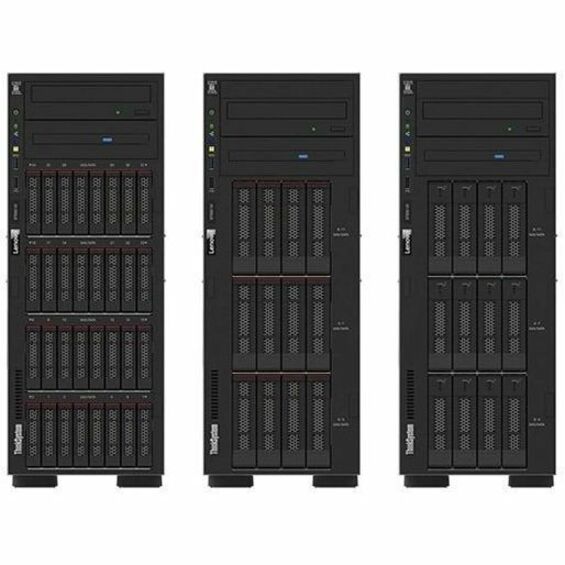

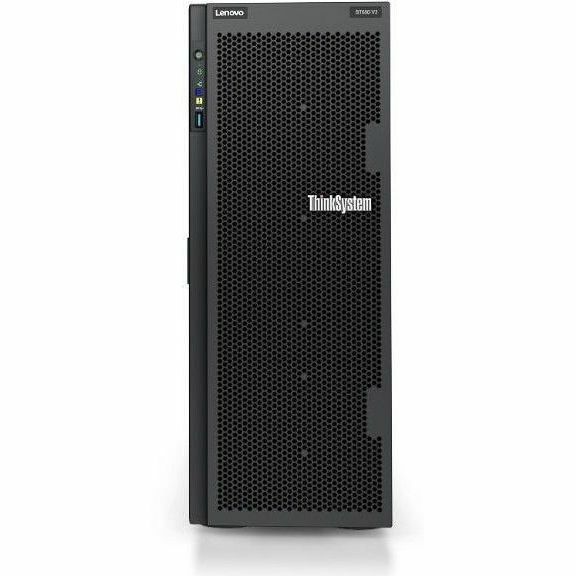

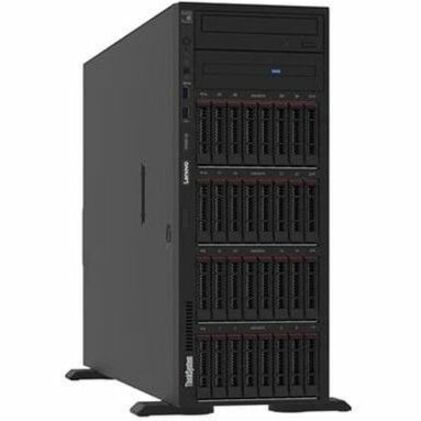

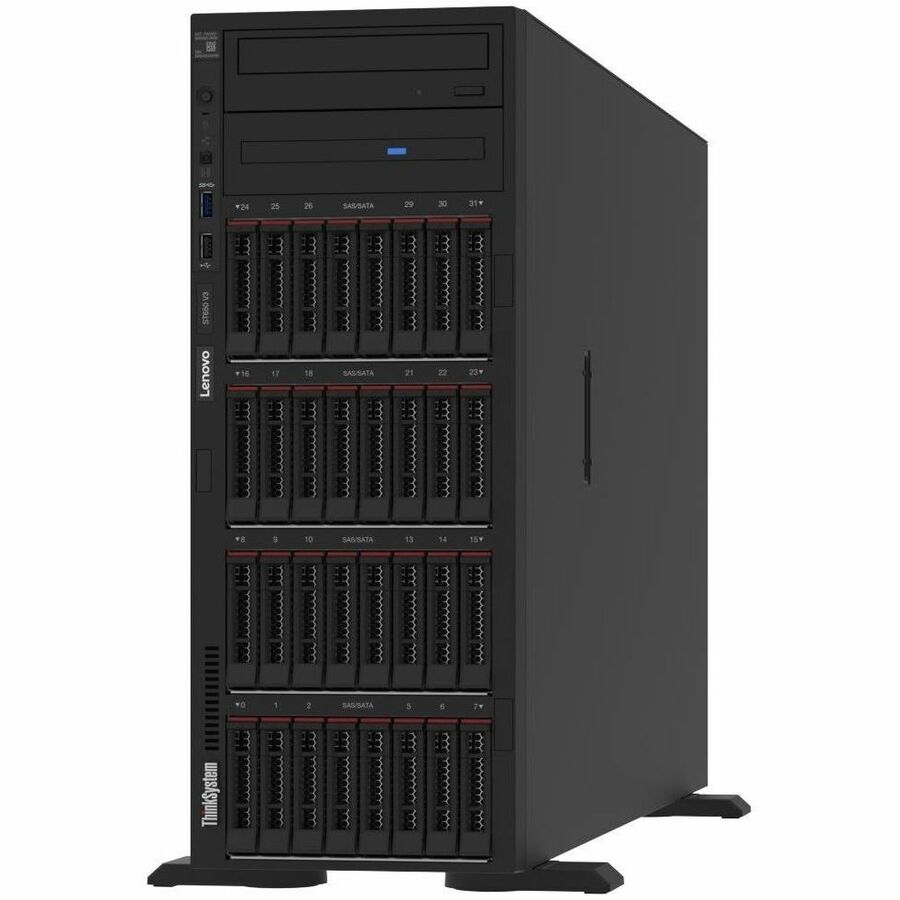

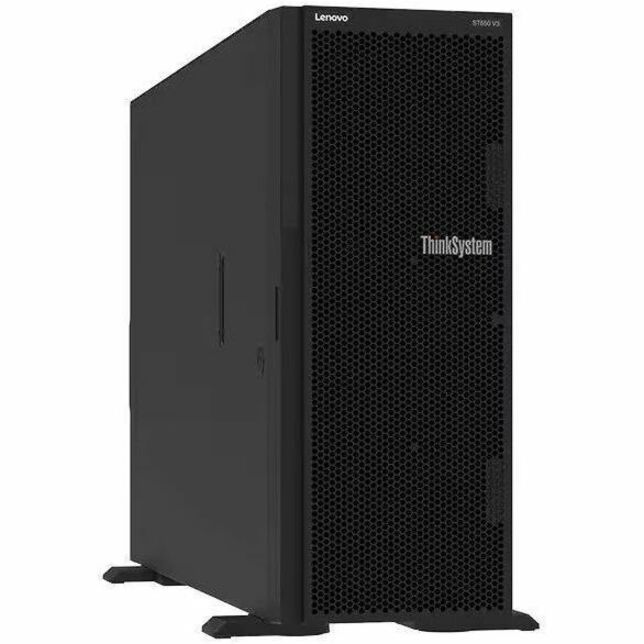

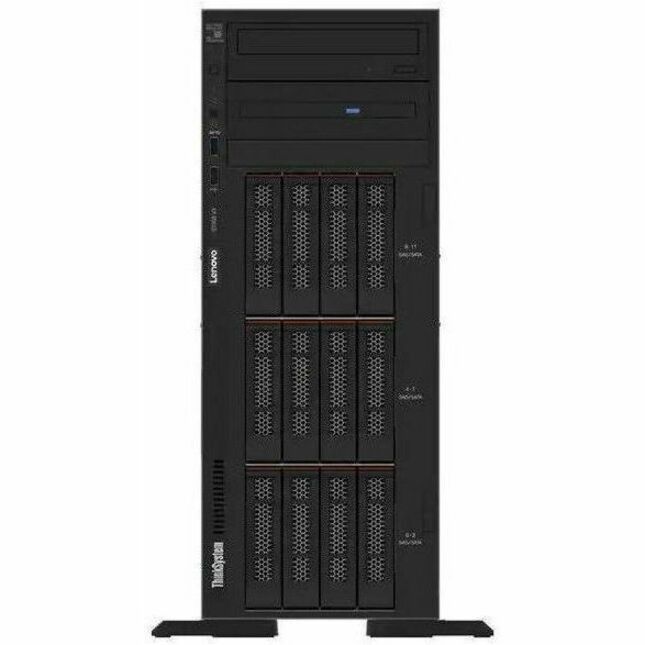

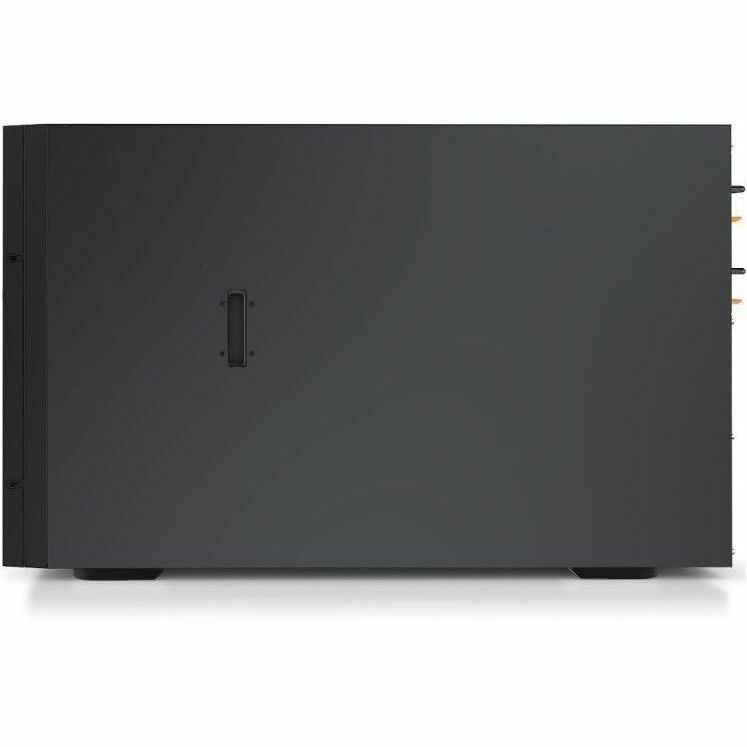

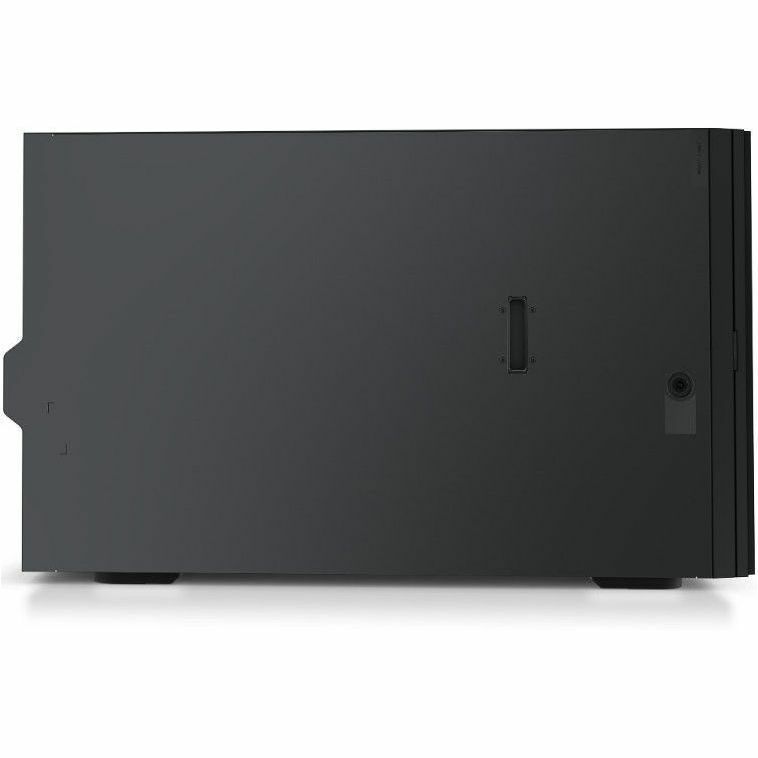

Lenovo ThinkSystem ST650 V3 7D7A100WNA 4U Tower Server - 1 x Intel Xeon Silver 4514Y 2 GHz - 32 GB RAM - 12Gb/s SAS Controller

Part No. 7D7A100WNA

by Lenovo Group Limited

Lenovo ThinkSystem ST650 V3 7D7A100WNA 4U Tower Server - 1 x Intel Xeon Silver 4514Y 2 GHz - 32 GB RAM - 12Gb/s SAS Controller

Intel C741 Chip - 2 Processor Support - 4 TB RAM Support - TruDDR5 - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 10 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 1.10 kW

Part No. 7D7A100WNA

by Lenovo Group Limited

$6637.99
General Information
ManufacturerLenovo Group Limited
Manufacturer Part Number7D7A100WNA
Brand NameLenovo
Product LineThinkSystem
Product SeriesST650 V3
Product Model7D7A100WNA
Product NameThinkSystem ST650 V3 7D7A100WNA Server
Marketing Information

The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Product TypeServer

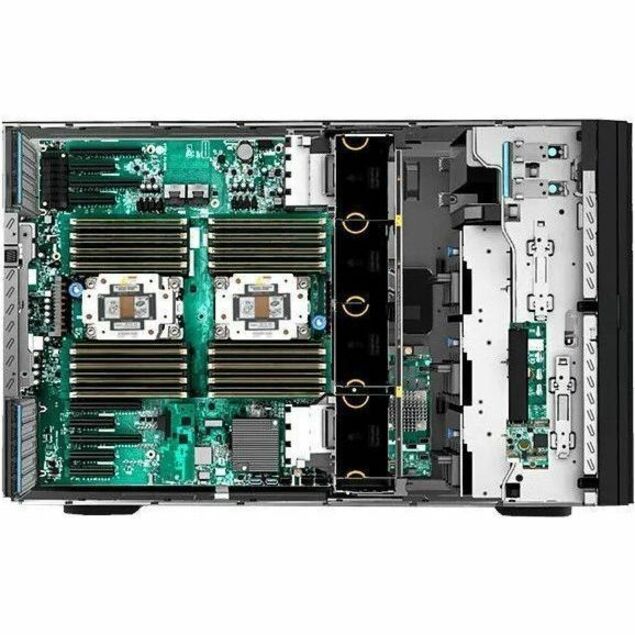

Processor
Number of Processors Supported2
Number of Processors Installed1
Processor ManufacturerIntel
Processor TypeXeon Silver
Processor Generation5th Gen
Processor Model4514Y
Processor CoreHexadeca-core (16 Core)
Processor Speed2 GHz
Cache30 MB
Chipset
Chipset ManufacturerIntel
Chipset ModelC741
Memory
Standard Memory32 GB
Maximum Memory Supported4 TB
Memory TechnologyTruDDR5
Memory Clock Speed5.60 GHz
Error CheckingECC
Total Number of Memory Slots32
Number of Occupied Memory Slots1
Signal ProcessingRegistered (Buffered)
Controllers
Controller Type12Gb/s SAS
Controller Model940-8i
RAID SupportedYes
RAID Levels0, 1, 5, 6, 10, 50, 60, JBOD
I/O Expansions
Number of Total Expansion Bays10
Number of External 5.25" Bays2
Number of Internal 2.5" Bays8
Number of SFF Bays8
Hot Swappable BaysYes
Total Number of Expansion Slots9
PCI Express DetailsUp to nine PCIe slots, five of which are PCIe 5.0.
Display & Graphics
Graphics Memory Capacity16 MB
Network & Communication
Ethernet Technology10 Gigabit Ethernet

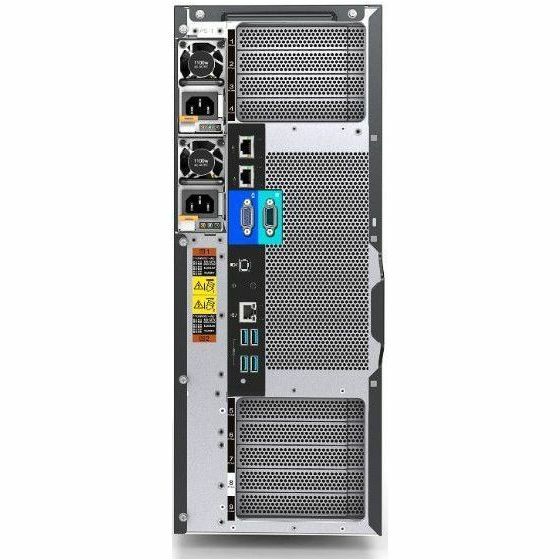

Interfaces/Ports
Total Number of USB Ports8
Number of USB 2.0 Ports1
Network (RJ-45)Yes
Number of Network (RJ-45) Ports2
VGAYes
Number of VGA Ports1
Remote ManagementYes
Remote Management ControllerXClarity Controller (XCC) Platinum
Operating System
Operating System Supported
  • Windows Server 2019
  • Windows Server 2022
  • Red Hat Enterprise Linux 8.10
  • Red Hat Enterprise Linux 9.2
  • Red Hat Enterprise Linux 9.4
  • SUSE Linux Enterprise Server 15 SP5
  • Ubuntu 22.04 LTS x64
  • SUSE Linux Enterprise Server 15 SP6
  • Windows Server 2025
  • Red Hat Enterprise Linux 8.8
  • Red Hat Enterprise Linux 9.5
  • Red Hat Enterprise Linux 9.6
  • Red Hat Enterprise Linux 10
  • SUSE Linux Enterprise Server 15 SP7
  • Ubuntu 24.04 LTS x64
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported2
Number of Power Supplies Installed1
Plug/Connector TypeC13/C14
Maximum Power Supply Wattage1.10 kW
Hot Swappable Power SupplyYes
Power SourcePower Supply
Physical Characteristics
Form FactorTower
Rack Height4U
Height18.19" (462 mm)
Width6.89" (175 mm)
Depth28.90" (734 mm)
Weight (Approximate)86.20 lb (39100 g)
Miscellaneous
Package Contents
  • ThinkSystem ST650 V3 7D7A100WNA Server
  • Power Cord
Security Features
  • Power-on Password
  • Administrator's Password
  • Root of Trust module supporting TPM 2.0
  • Platform Firmware Resiliency (PFR)
Energy StarYes
Environmentally FriendlyYes
Environmental Certification
  • GREENGUARD
  • China Environmental Labeling Program (CELP)
Energy Efficiency Certification
  • China Energy Conservation Program (CECP)
  • ENERGY STAR 4.0
Energy Efficiency ComplianceEnergy-related Products Directive Lot 9 (ErP Lot 9)
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
Warranty
Limited Warranty3 Year
Additional Warranty Information

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
