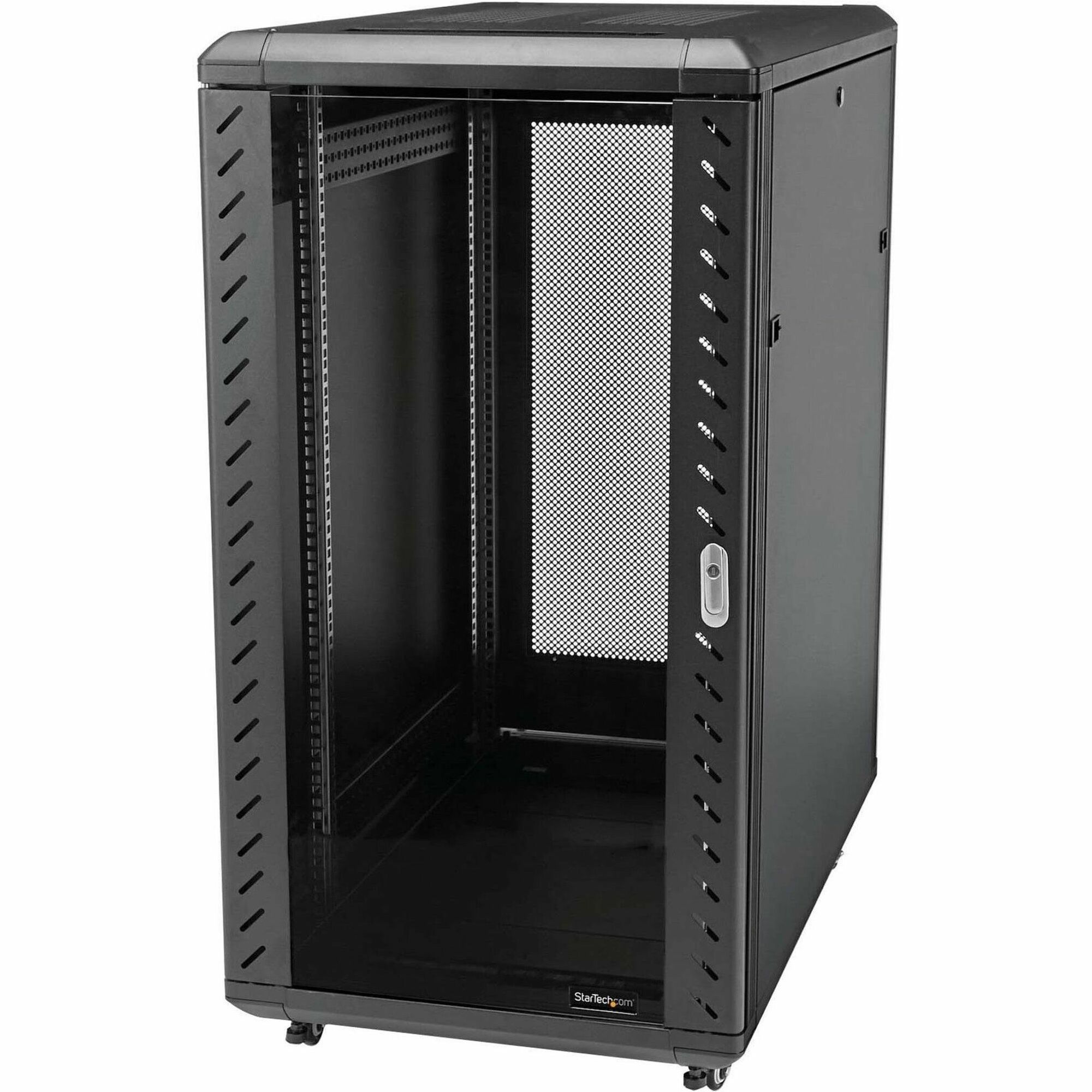

StarTech.com 4-Post 22U Server Rack Cabinet, 19" Data Rack Cabinet for Computer / IT Equipment, Home Network Rack, Half Height Server Rack

Part No. RK2236BKF

by StarTech.com

StarTech.com 4-Post 22U Server Rack Cabinet, 19" Data Rack Cabinet for Computer / IT Equipment, Home Network Rack, Half Height Server Rack

4-Post 22U 19" server rack enclosure w/ adjustable mounting depth - EIA/ECA-310-E Compliant - 22U data cabinet ships flat-packed - 46.6in (118,3cm) in height; 1764lb (800kg) weight capacity - Lockable & removable door; Vented top allowing airflow

Part No. RK2236BKF

by StarTech.com

$1053.99
General Information
ManufacturerStarTech.com
Manufacturer Part NumberRK2236BKF
Brand NameStarTech.com
Product Name22U 36in Knock-Down Server Rack Cabinet with Casters
Marketing InformationThis server rack provides 22U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19" rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1763.7 lbs.).

Hassle-free equipment installation

This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.

With adjustable mounting rails you can easily change the rail depth to up to 28.7 in. (730 mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.

The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.

Securely protect your equipment while still being able to see it

To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.

The rack also has removable side panels with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.

Save money, with a cost effective, compact shipping container

The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.

Maximum Maneuverability, with casters included

The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.

Ensure your equipment is running at an optimal temperature

The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that's cost effective and ensures your equipment runs at an optimal temperature.

The top ceiling panel features square venting holes that are cage nut compatible, which provide mounting points that enable you to add additional equipment at the top of your rack.

The RK2236BKF is backed by a lifetime StarTech.com warranty with free technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity1 Each
Product TypeRack Cabinet
Technical Information
Front RailYes
Rear RailYes
Rail Depth39.40" (1000.76 mm)
Application/Usage
  • Server
  • LAN Switch
  • Patch Panel
  • A/V Equipment
  • KVM Switch
FeaturesCasters

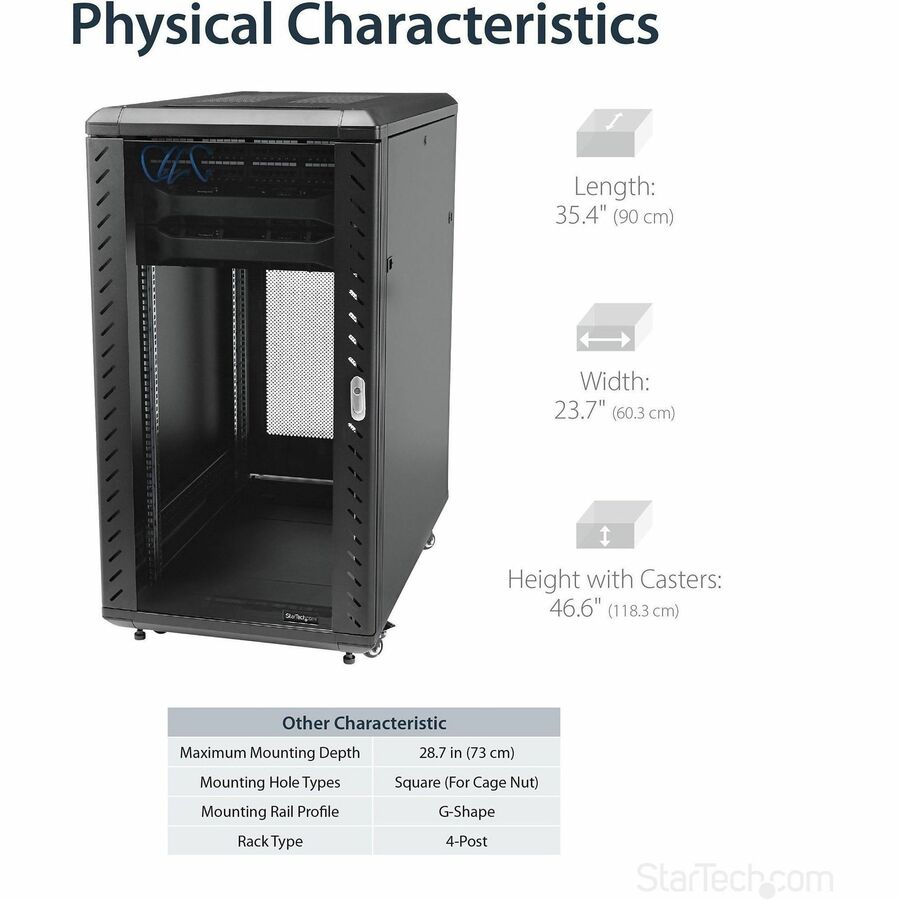

Physical Characteristics
Form FactorFloor Standing
Color FamilyBlack
Product ColorBlack
Product Material
  • Steel Mesh
  • Glass
  • Steel
  • Aluminum
Static/Stationary Weight Capacity1763.70 lb (800000 g)
Height43.80" (1112.52 mm)
Width23.70" (601.98 mm)
Length39.60" (1005.84 mm)
Weight (Approximate)138.30 lb (62731.82 g)
Rack Height22U
Rack Width19" (482.60 mm)
Rack Depth32.70" (830.58 mm)
Miscellaneous
Package Contents
  • 1 x Top and Bottom Panels
  • 1 x Left and Right Panel and frame
  • 4 x Joints
  • 8 x Corner Caps
  • 4 x Casters
  • 3 x Sets of keys.
  • 1 x Assembly screw kit (M4,M5,M6,M8)
  • 4 x Adjustable Feet
  • 20 x M6 Screws
  • 20 x M6 Cage Nut
  • 1 x Allen Wrench
Additional Information
  • Applicable in Server rooms or other locations where servers and networking equipment need to be housed
  • Easy assembly at the point of installation for rapid deployment
  • Flat-packed design reduces handling costs
  • Vented glass front door and mesh rear door for excellent passive cooling
Certifications & Standards
  • DIN41491 Part I
  • EIA RS310-D
  • IEC297-2
Assembly RequiredYes
Country of OriginChina
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
ConditionNo
UPC0065030820752
Warranty
Limited WarrantyLifetime
